Schematic and parts list for: Eureka Model: 4641
This is a list of parts and a diagram and schematic for: Eureka Model: 4641
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Victory Whirlwind Upright
Popular Supplies

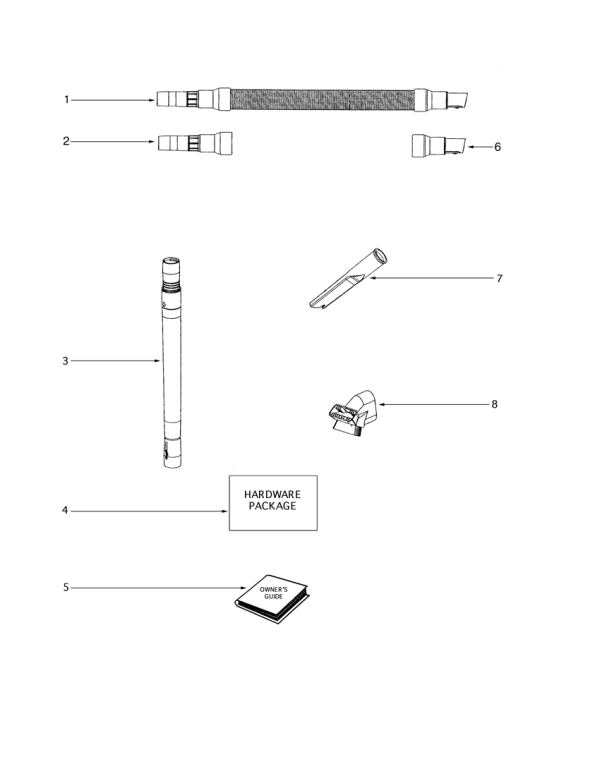

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Hose Assy (Button Lock) - | 61224-2 | Not Available |
| 02 | Not Available | Eureka Coupling - Hose | 37057B-3 | Not Available |
| 03 |  | Dew Mettler silk finish egyptian cotton 50WT (164 yd) thread spool. 9105-1531 alternate: | 91051531 | $3.25Read more |
| 04 | Not Available | Eureka Package - Hardware | 71917 | Not Available |
| 05 | Not Available | Eureka Owners Guide | 70938B | Not Available |
| 06 | Not Available | Eureka Connector - Hose | 39279-333N | Not Available |
| 07 |  | Crevice Tool, 4467 Part Number: 272373 for Eureka | 272373 | $7.53Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 | Not Available | Eureka Combination Tool - Packag | 61037 | Not Available |

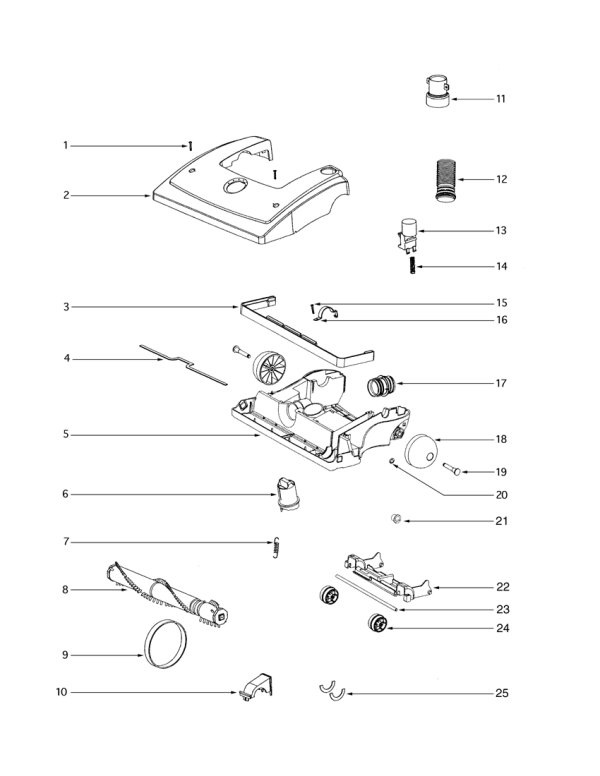

| # | Part image | Description | SKU | Price |
| 01 |  | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $7.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | Not Available | Eureka Hood Assy. | 54933-79 | Not Available |
| 03 | Not Available | Eureka Guard - Furniture (12") | 15237A-288N | Not Available |
| 04 | Not Available | Eureka Gasket | 58506-1 | Not Available |
| 05 | Not Available | Eureka Base Assembly | 60843-11 | Not Available |
| 06 |  | KNOB, HIEGHT ADJUSTMENT VICTORY UPRIGHT Part Number: 27462E-288N for Eureka | 27462E288N | $6.66Read more |
| 07 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 | Not Available | Eureka 12" Disturbulator.(60844-5) | 60251-3 | Not Available |
| 09 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| 10 | Not Available | Eureka Belt Cap & Gasket - Packa | 54376-2 | Not Available |
| 11 |  | CUFF, HOSE NOZZLE HSG VICTORY SERIES Part Number: 27468D-119N for Eureka | 27468D119N | $8.24Read more |
| 12 | Not Available | Eureka Hose - Compression (Purch | 38479-4 | Not Available |
| 13 | Not Available | Eureka Release - Handle | 27467A-288N | Not Available |
| 14 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $4.46Read more |
| 15 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 16 | Not Available | Eureka Clamp | 38420-2 | Not Available |
| 17 | Not Available | Eureka Adapter - Base | 28243A-316N | Not Available |
| 18 | Not Available | Eureka Wheel - Rear | 72117-119N | Not Available |
| 19 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $8.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Eureka Bushing - Axle | 72113-1 | Not Available |
| 22 | Not Available | Eureka Carriage - Wheel | 14993C-119N | Not Available |
| 23 | Not Available | Eureka Wheel Axle | 71551 | Not Available |
| 24 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $4.55Read more |

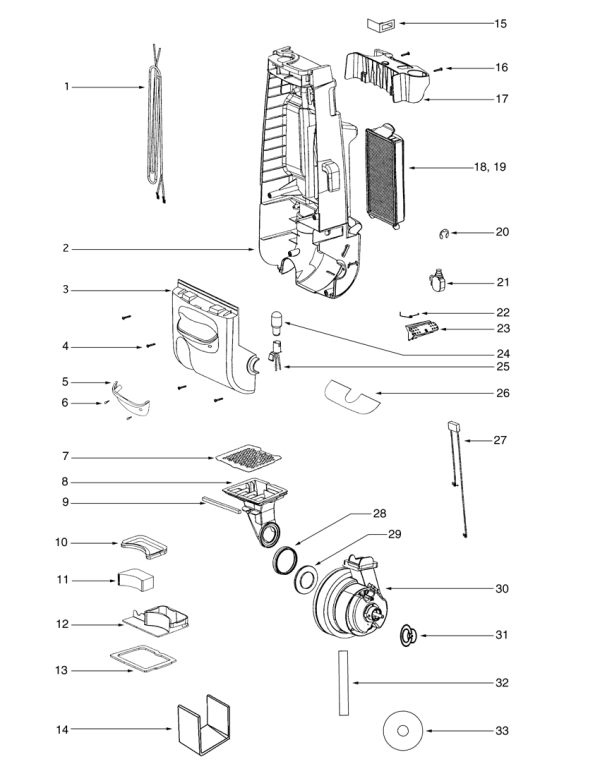

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Supply Cord & Terminal Assembly | 38680-16 | Not Available |
| 02 | No Image | HOUSING, REAR 4640 Part Number: 71608A-119N for Eureka | 71608A119N | $29.83Read more |
| 03 | Not Available | Eureka Motor Cover Assy. | 61432-21 | Not Available |
| 04 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 05 | Not Available | Eureka Lens - Motor Cover | 15072-313N | Not Available |
| 06 | Not Available | Eureka Screw Package | 60068-2 | Not Available |
| 07 | Not Available | Eureka Grille - Air Duct | 28425 | Not Available |
| 08 | Not Available | Eureka Air Duct | 15536A-119N | Not Available |
| 09 | Not Available | Eureka Gasket - Air Duct | 59297SV | Not Available |
| 10 | Not Available | Eureka Gasket - Motor Intake | 70642 | Not Available |
| 11 | Not Available | Eureka Filter - Pre-Motor | 39348 | Not Available |
| 12 | Not Available | Eureka Adapter Motor Intake (Nla) | 39346-119N | Not Available |
| 13 | Not Available | Eureka Motor Gasket (Nla) | 39349 | Not Available |
| 14 | No Image | FOAM, SOUND Part Number: 722241 for Eureka | 722241 | $4.63Read more |
| 15 | Not Available | Eureka Shield Switch (Nla) | 71645 | Not Available |
| 16 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 17 | Not Available | Eureka Tool Caddy | 15443B-119N | Not Available |
| 18 | Not Available | Eureka Filter Frame | 28457-6 | Not Available |
| 19 |  | DUST BRUSH, 1-1/4" Round Black Part Number: 90615-00 for Shop Vac | 9061500 | $25.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Eureka Retaining Ring Pkg | 60165-1 | Not Available |
| 21 |  | Switch, Red Push Button Mighty Mite 3684/3690/3695 mpn: 28304A2 for Eureka Mighty Mite 3684, 3690 and 3695 Sanitaire SC3683 Series, SC3686 Series and SC3681 | E-15376-5 | $9.99Add to cart |
| 22 | Not Available | Eureka Tors Spring Pkg | 60134 | Not Available |
| 23 | Not Available | Eureka Switch - Button | 27474C-288N | Not Available |
| 24 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $4.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Eureka Light Socket & T (38611 (Nla) | 38611-1 | Not Available |
| 26 | Not Available | Eureka Shield - Light | 38696 | Not Available |
| 27 | Not Available | Eureka Thermostat & Terminal Assembly | 39252-2 | Not Available |
| 28 | No Image | GASKET, FAN COVER BRAVO ALL MODELS Part Number: 27171A for Eureka | 27171A | $4.55Read more |
| 29 | Not Available | Eureka Flange - Motor Intake | 39023 | Not Available |
| 30 | Not Available | Eureka Motor Assy. (Nla) | 60261-11 | Not Available |
| 31 | Not Available | Eureka Grommet | 27552B | Not Available |
| 32 | Not Available | Eureka Gasket (Nla) | 27962 | Not Available |
| 33 | Not Available | Eureka Motor Shield (Nla) | 38688 | Not Available |

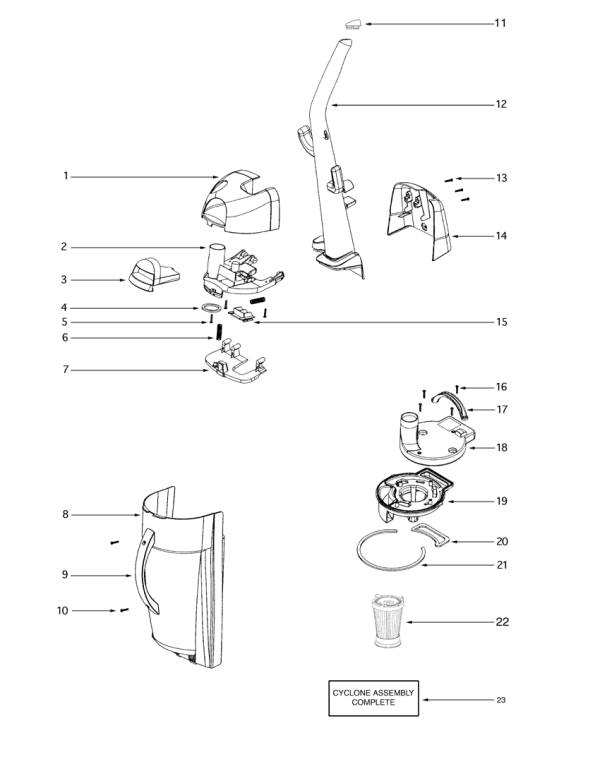

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Top Cover (Nla) | 61365-1 | Not Available |
| 02 | Not Available | Eureka Top Hinged Tool Support (Nla) | 15687-119N | Not Available |
| 03 | Not Available | Eureka Latch | 39347A-288N | Not Available |
| 04 | No Image | GASKET, HINGED TOP Part Number: 70644 for Eureka | 70644 | $4.55Read more |
| 05 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 06 | | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $4.46Read more |
| 07 | Not Available | Eureka Front Handle Bracket (Nla) | 28462-119N | Not Available |
| 08 | Not Available | Eureka Dirt Cup | 61316-14 | Not Available |
| 09 | Not Available | Eureka Handle - Dust Cup | 28460-313N | Not Available |
| 10 | Not Available | Eureka Screws Pkg 10 | 53197-3 | Not Available |
| 11 | Not Available | Eureka Cap - Handle | 38482A-119N | Not Available |
| 12 | Not Available | Eureka Handle & Cap Assembly | 71139-1 | Not Available |
| 13 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 14 | Not Available | Eureka Rear Bracket | 28463-119N | Not Available |
| 15 | Not Available | Eureka Spring Support (Nla) | 70857-119N | Not Available |
| 16 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 17 | Not Available | Eureka Handle - Plenum | 70856-333N | Not Available |
| 18 | Not Available | Eureka Cover - Plenum | 28461-288N | Not Available |
| 19 | Not Available | Eureka Cyclone | 15686-288N | Not Available |
| 20 | Not Available | Eureka Disp.Valve Assy 2400'S (Nla) | 39009 | Not Available |
| 21 | No Image | GASKET, 4685AT Part Number: 39351 for Eureka | 39351 | $4.55Read more |
| 22 | Not Available | Eureka Dust Cup Filter (Style Dc | 61805 | Not Available |
| 23 | Not Available | Eureka Cyclone Assembly - Carton | 61474-2 | Not Available |
