Schematic and parts list for: Eureka Model: 4670
This is a list of parts and a diagram and schematic for: Eureka Model: 4670
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Victory Upright

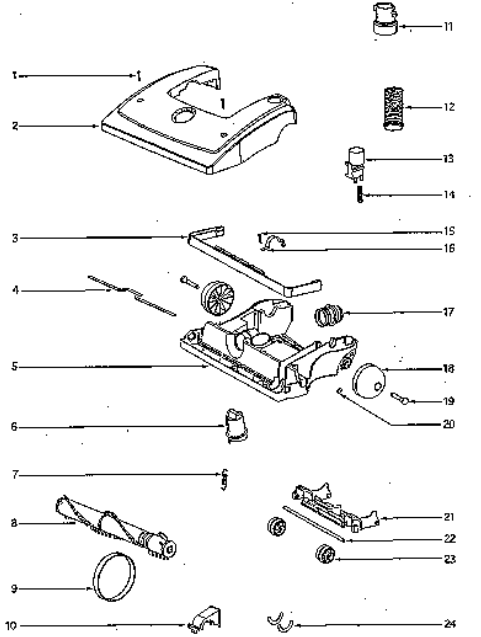

| # | Part image | Description | SKU | Price |
| xx | No Image | GASKET, NOZ.BASE VICTORY SERIES Part Number: 58506-2 for Eureka | 585062 | $4.55Read more |
| xx |  | CUFF, HOSE NOZZLE HSG VICTORY SERIES Part Number: 27468D-119N for Eureka | 27468D119N | $8.24Read more |
| xx | Not Available | Eureka Wheel-Rear | 27493-288N | Not Available |
| 02 | Not Available | Eureka Hood Assembly - Packaged | 61364-2 | Not Available |
| 03 | Not Available | Eureka Furniture Guard | 15591-288N | Not Available |
| 05 | Not Available | Eureka Base Assembly - Pkgd | 60701-8 | Not Available |
| 06 | Not Available | Eureka Operator - Height Adjustm | 27462C-288N | Not Available |
| 07 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 | Not Available | Eureka Disturbulator | 61308-1 | Not Available |
| 09 | Not Available | Eureka Belt Package Assembly | 54312A | Not Available |
| 10 | Not Available | Eureka Belt Cap & Gasket Pkg | 54376-2 | Not Available |
| 12 | Not Available | Eureka Hose-Compression | 38479-4 | Not Available |
| 13 | Not Available | Eureka Release-Handle | 27467A-288N | Not Available |
| 14 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $4.46Read more |
| 15 | Not Available | Eureka Screws-Pkg 10 | 53197-1 | Not Available |
| 16 | Not Available | Eureka Clamp | 38420-2 | Not Available |
| 19 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $8.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Eureka Carriage-Wheel | 14993B-119N | Not Available |
| 22 | Not Available | Eureka Axle - Wheel | 58206-1 | Not Available |
| 23 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $4.55Read more |
| # | Part image | Description | SKU | Price |

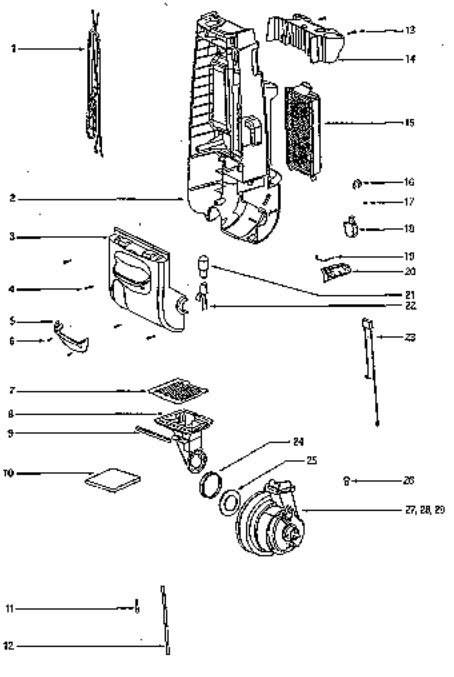

| 01 | Not Available | Eureka 35'Cord Assembly/Victory | 38680-17 | Not Available |
| 02 | Not Available | Eureka Rear Housing/Sub 60703-4 | 60703-2 | Not Available |
| 03 | Not Available | Eureka Motor Cover Assembly W/O Lens | 54937-42 | Not Available |
| 04 | Not Available | Eureka Screws-Pkg 10 | 53197-1 | Not Available |
| 05 | Not Available | Eureka Lens-Motor Cover | 15072-313N | Not Available |
| 06 | Not Available | Eureka Screw/Pkg Light | 60068-2 | Not Available |
| 07 | Not Available | Eureka Metal Grill | 28425 | Not Available |
| 08 | Not Available | Eureka Air Duct/ Victory Series | 15408B-119N | Not Available |
| 09 | Not Available | Eureka Gasket-Air Duck | 59297SV | Not Available |
| 10 | Not Available | Eureka Filter - Secondary | 39334 | Not Available |
| 11 | Not Available | Eureka Tube Adapter | 59361A | Not Available |
| 12 | Not Available | Eureka Tube | 59362B | Not Available |
| 13 | Not Available | Eureka Screws-Pkg 10 | 53197-1 | Not Available |
| 14 | Not Available | Eureka Tool Caddy | 15443A-119N | Not Available |
| 15 | Not Available | Eureka Hepa Filter Package | 60285B | Not Available |
| 16 | Not Available | Eureka Retaining Ring Pkg | 70521 | Not Available |
| 17 | Not Available | Eureka Push Nuts | 60613 | Not Available |
| 18 |  | Switch, Red Push Button Mighty Mite 3684/3690/3695 mpn: 28304A2 for Eureka Mighty Mite 3684, 3690 and 3695 Sanitaire SC3683 Series, SC3686 Series and SC3681 | E-15376-5 | $9.99Add to cart |
| 19 | Not Available | Eureka Pkg5 Springs | 60134 | Not Available |
| 20 | Not Available | Eureka Switch-Button | 27474C-288N | Not Available |
| 21 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $4.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Eureka Light Socket & T | 38611-1 | Not Available |
| 23 | Not Available | Eureka Thermostat | 39252-2 | Not Available |
| 24 | No Image | GASKET, FAN COVER BRAVO ALL MODELS Part Number: 27171A for Eureka | 27171A | $4.55Read more |
| 25 | Not Available | Eureka Flange/Motor Intake | 39023 | Not Available |
| 26 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 27 | Not Available | Eureka Motor Assembly/4680At | 60625-8 | Not Available |
| 28 | Not Available | Eureka Grommet | 27552B | Not Available |
| 29 | No Image | GASKET, MOTOR Part Number: 59137 for Eureka | 59137 | $4.55Read more |
| # | Part image | Description | SKU | Price |

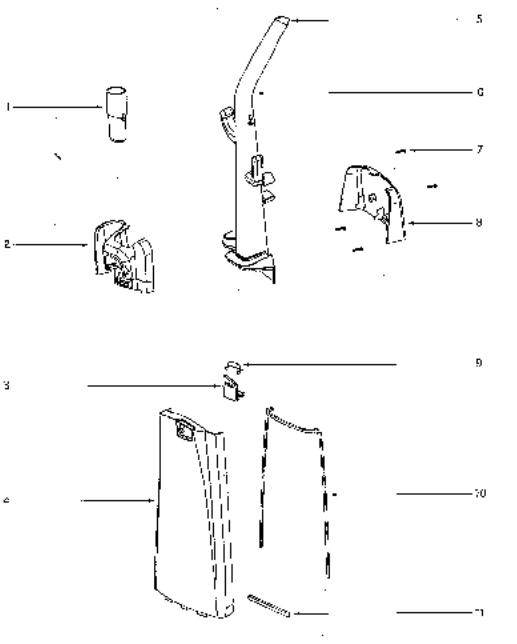

| 01 | Not Available | Eureka Coupling Bag | 28341-119N | Not Available |
| 02 | Not Available | Eureka Front Handle Cover - Pkgd | 61423-1 | Not Available |
| 03 | Not Available | Eureka Latch/Bag Cover 4570 | 28256-288N | Not Available |
| 04 |  | Float Gpurple CW2 Bissell repair part number: 1614241 | 1614241 | $6.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 | Not Available | Eureka Handle Cap | 38482-119N | Not Available |
| 06 | Not Available | Eureka Handle Assembly 4675At | 15713-1 | Not Available |
| 07 | Not Available | Eureka Screws-Pkg 10 | 53197-1 | Not Available |
| 08 | Not Available | Eureka Cover - Handle Rear | 15684-119N | Not Available |
| 09 |  | Insulation Part Number 39268 for Simplicity Models BRIO | 39268 | Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Timing Belt 16.5in for Janome and Kenmore Machines #650071005 | 650071005 | $17.99Read more |
| 11 |  | Hoover Upholstery Tool for Shampooers | WP11565 | $9.99Add to cart |
