Schematic and parts list for: Eureka Model: 4709AZ
This is a list of parts and a diagram and schematic for: Eureka Model: 4709AZ
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright - Bagless
Popular Supplies
| # | Part image | Description | SKU | Price |

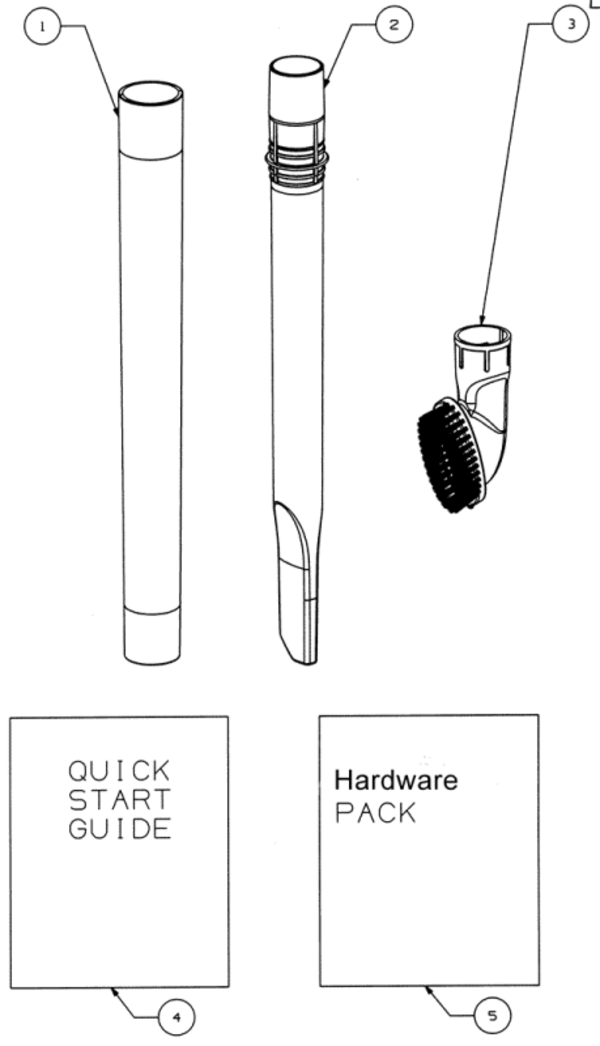

| xx | Not Available | Eureka Turbo Nozzle Assembly | 75391-16 | Not Available |
| 1 | Not Available | Eureka Wand - Outer | 77507-366N | Not Available |
| 2 | Not Available | Eureka Wand - Crevice | 77506-366N | Not Available |
| 3 | Not Available | Eureka Combination Brush - Brist | 78217-1 | Not Available |
| 4 | Not Available | Eureka Owners Guide | 77418A | Not Available |
| 5 |  | SCREW KIT, HANDLE 4704A Part Number: 75193 for Eureka | 75193 | $6.57Read more |
| 6 | Not Available | Eureka Nesting Wand Assembly | 77505-1 | Not Available |
| # | Part image | Description | SKU | Price |

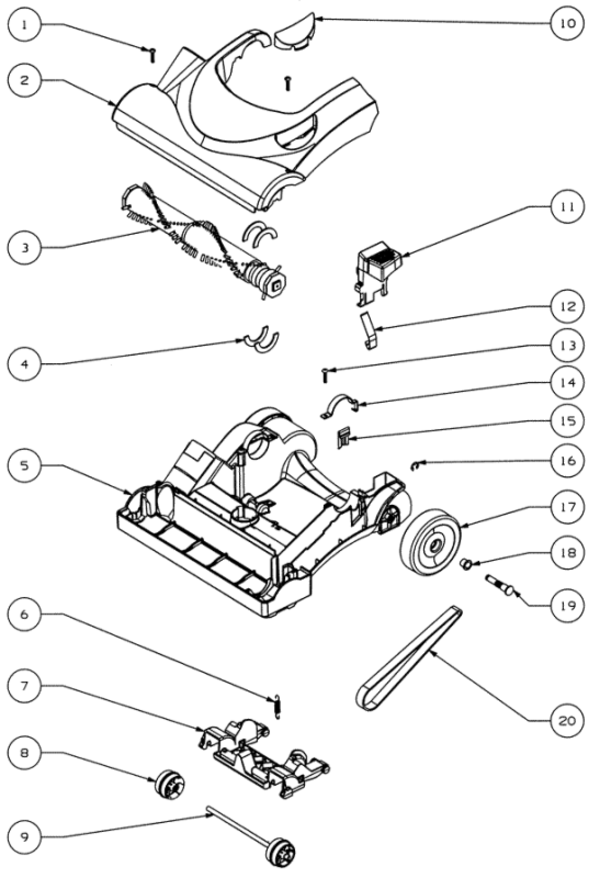

| xx | Not Available | Eureka Knob - Height Adjustment | 72472-355N | Not Available |
| 1 | Not Available | Eureka Package - Hardware | 74846-1 | Not Available |
| 2 | Not Available | Eureka Hood Assembly - Packaged | 63342-31 | Not Available |
| 3 |  | Brushroll, 12 In Wood Upright 4700 Reverse Helix | E-60844-5 | $37.95Read more |
| 4 | Not Available | Eureka Nozzle Felt | 74824 | Not Available |
| 5 |  | BASE, 4700A Part Number: 62072-3 for Eureka | 620723 | $33.50Read more |
| 6 | Not Available | Eureka Spring Package | 38698 | Not Available |
| 7 | Not Available | Eureka Carriage - Wheel | 74817-355N | Not Available |
| 8 | Not Available | Eureka Wheel - Front | 74818-355N | Not Available |
| 9 |  | Axle, Front SC5713/SC5815/SC5845 Uprights Part Number: 71478 for Eureka | 71478 | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Eureka Window - Belt View | 75092-313N | Not Available |
| 11 | Not Available | Eureka Cup Release Latch | 74820-355N | Not Available |
| 12 | Not Available | Eureka Spring - Handle Release | 74821 | Not Available |
| 13 | Not Available | Eureka Screw Package | EW312-8T12ZP | Not Available |
| 14 | Not Available | Eureka Clamp - Motor | 74825 | Not Available |
| 15 | Not Available | Eureka Guard - Belt | 74822 | Not Available |
| 16 | No Image | HOOD ASS'Y, LIGHTNING POWER NOZZLE Part Number: 75096 for Fantom | 75096 | $26.21Read more |
| 17 | Not Available | Eureka Wheel - Rear | 74816-355N | Not Available |
| 18 | Not Available | Eureka Bushing - Axle | 75097 | Not Available |
| 19 | Not Available | Eureka Axle - Rear | 75095 | Not Available |
| 20 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| # | Part image | Description | SKU | Price |

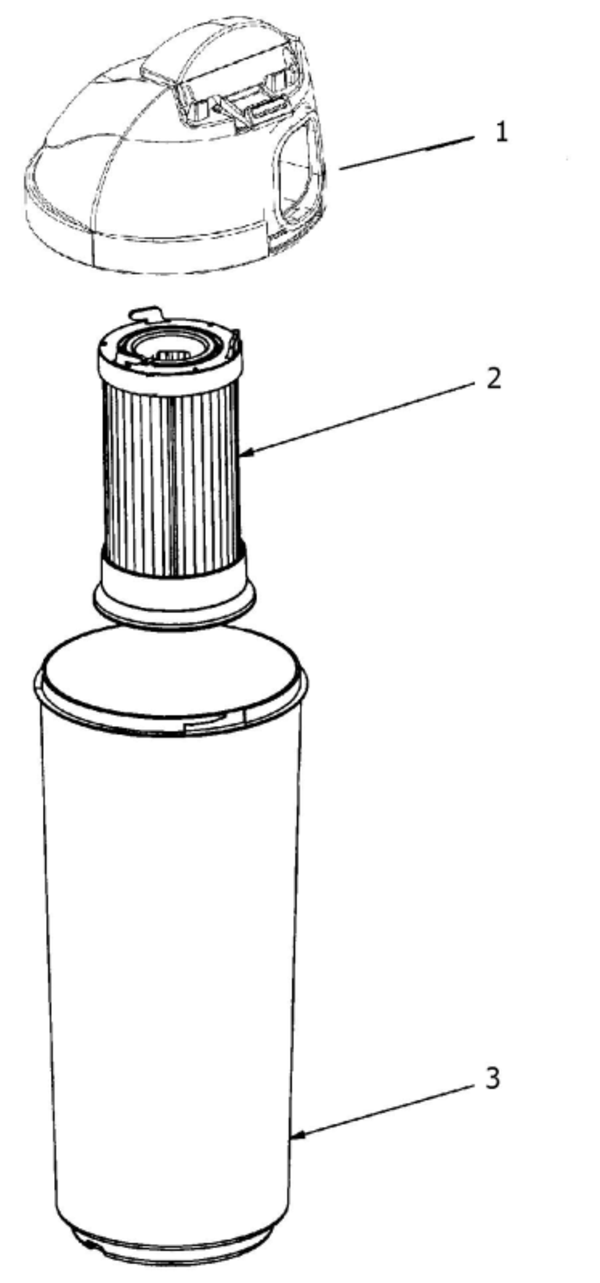

| 1 | Not Available | Eureka Cover & Graphics Assembly | 75188-22 | Not Available |
| 2 |  | Eureka DCF4 DCF18 HEPA Filter | ER-18505 | $12.99Read more |
| 3 | Not Available | Eureka Dust Cup & Graphics Assy | 80071-14 | Not Available |
| # | Part image | Description | SKU | Price |

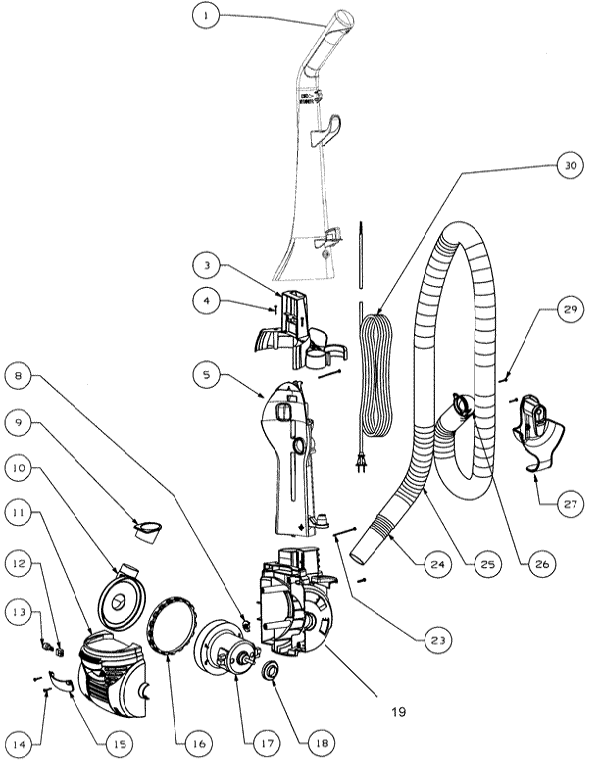

| xx | No Image | COVER, FILTER HEPA 116. 22312202 Part Number: 8175093 for Kenmore | 8175093 | $38.84Read more |
| 1 | Not Available | Eureka Upper Handle Assembly | 75956-6 | Not Available |
| 3 | Not Available | Eureka Tool Caddy | 74852-644N | Not Available |
| 4 | Not Available | Eureka Package - Hardware | 74846-1 | Not Available |
| 5 | Not Available | Eureka Backbone Housing | 62561 | Not Available |
| 8 | Not Available | Eureka Washer Package | 63202 | Not Available |
| 9 | Not Available | Eureka Gasket - Motor Inlet | 74836 | Not Available |
| 10 | Not Available | Eureka Duct - Air | 74834-119N | Not Available |
| 11 | Not Available | Eureka Cover - Motor (Front) | 74829-644N | Not Available |
| 13 | Not Available | Eureka Lamp - Headlight | 57940-3 | Not Available |
| 14 | Not Available | Eureka Package - Hardware | 74846-1 | Not Available |
| 15 | Not Available | Eureka Lens | 74830-313N | Not Available |
| 16 | No Image | HOSE, 4 WIRE Part Number: 8174835 for Kenmore | 8174835 | $153.20Read more |
| 17 | Not Available | Eureka Motor Assembly - Packaged | 62568-1 | Not Available |
| 18 | Not Available | Eureka Bushing - Motor | 75094 | Not Available |
| 19 | Not Available | Eureka Rear Motor Cover Assembly | 62562-6 | Not Available |
| 23 | Not Available | Eureka Package - Hardware | 74846-2 | Not Available |
| 24 | Not Available | Eureka Wand - Short (Nla) | 74855-355N | Not Available |
| 25 | Not Available | Eureka Hose Assembly - Cartoned | 74854-355N | Not Available |
| 26 | Not Available | Eureka Adaptor - Hose | 74856-313N | Not Available |
| 27 | Not Available | Eureka Lower Hose Retainer Assem | 75195-12 | Not Available |
| 29 | Not Available | Eureka Package - Hardware | 74846-1 | Not Available |
| 30 | Not Available | Eureka Supply Cord & Terminal As | 74838-1 | Not Available |
| 31 | Not Available | Eureka Hose Assembly - Cartoned | 62293-4 | Not Available |
