Schematic and parts list for: Eureka Model: 4760
This is a list of parts and a diagram and schematic for: Eureka Model: 4760
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright- Bagged
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka Turbo Nozzle Assembly | 75391 | Not Available |

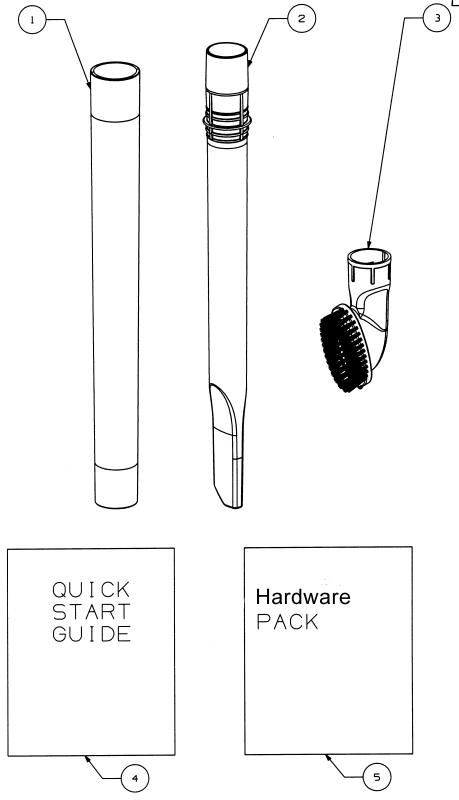

| 01 | Not Available | Eureka Wand - Outer | 71973-119N | Not Available |
| 02 | Not Available | Eureka Wand-Crevice | 71956A-119N | Not Available |
| 03 |  | Cord Wrap Rewind Bissell repair part number: 1609903 | 1609903 | $53.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | Not Available | Eureka Quick Start Guide | 77417 | Not Available |
| 05 |  | SCREW KIT, HANDLE 4704A Part Number: 75193 for Eureka | 75193 | $6.57Read more |
| 06 | Not Available | Eureka Nesting Wand Assembly Includes Items 1 And 2 | 71492A | Not Available |
| # | Part image | Description | SKU | Price |

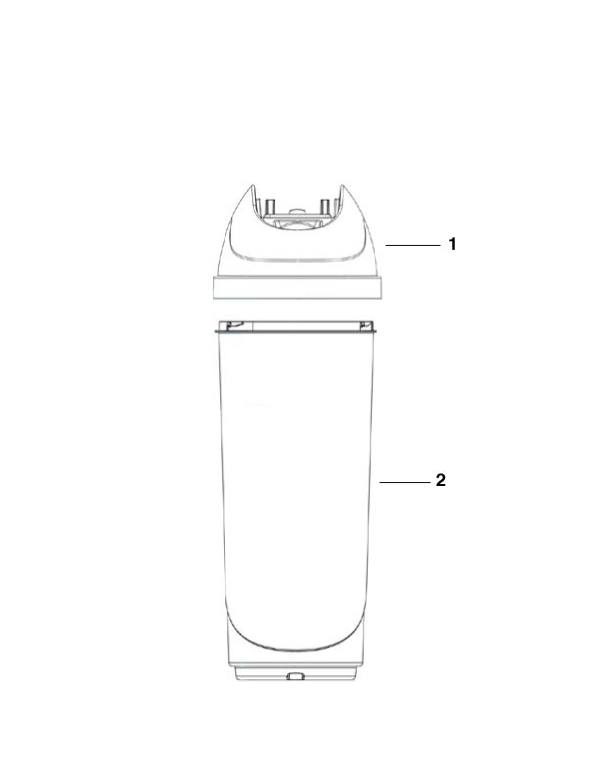

| 01 | Not Available | Eureka Cover & Graphics Assembly | 76079-3 | Not Available |
| 02 | Not Available | Eureka Dust Cup Assembly | 76075-3 | Not Available |
| # | Part image | Description | SKU | Price |

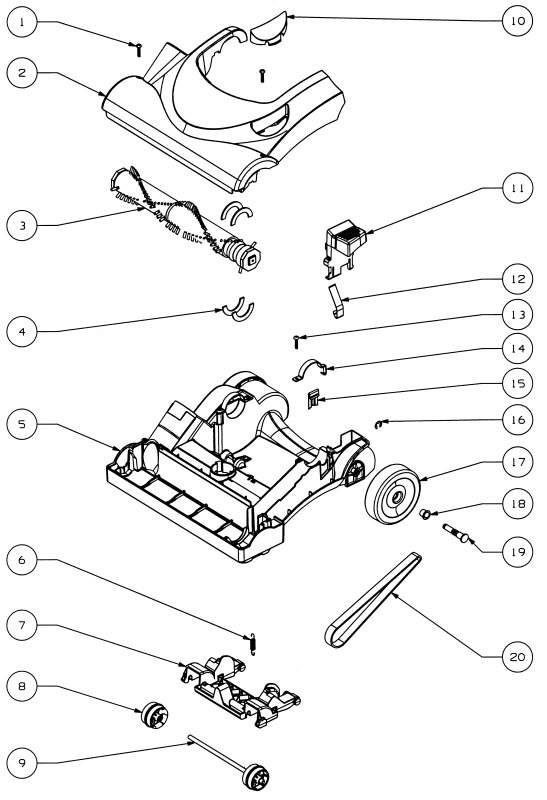

| 01 | Not Available | Eureka Screw - Pan Head | 74846-1 | Not Available |
| 02 | Not Available | Eureka Hood Assembly - Packaged | 63612 | Not Available |
| 03 | Not Available | Eureka Brushroll Assembly | 62228-3 | Not Available |
| 04 | Not Available | Eureka Nozzle Felt | 74824 | Not Available |
| 05 | Not Available | Eureka Base Assembly - Packaged Includes Items 4-9, 11,12, 15-19. | 62072-5 | Not Available |
| 06 | Not Available | Eureka Spring Package | 38698 | Not Available |
| 07 | Not Available | Eureka Carriage - Wheel | 74817-355N | Not Available |
| 08 | Not Available | Eureka Wheel - Front | 74818-355N | Not Available |
| 09 | Not Available | Eureka Axle - Front | 71478-2 | Not Available |
| 10 | Not Available | Eureka Window - Belt View | 75092-313N | Not Available |
| 11 | Not Available | Eureka Release - Handle | 74820-355N | Not Available |
| 12 | Not Available | Eureka Handle Release Plate | 74821 | Not Available |
| 13 | Not Available | Eureka Screw Package | EW312-8T12ZP | Not Available |
| 14 | Not Available | Eureka Clamp - Motor | 74825 | Not Available |
| 15 | Not Available | Eureka Guard - Belt | 74822 | Not Available |
| 16 | No Image | HOOD ASS'Y, LIGHTNING POWER NOZZLE Part Number: 75096 for Fantom | 75096 | $26.21Read more |
| 17 | Not Available | Eureka Wheel - Rear | 74816-355N | Not Available |
| 18 | Not Available | Eureka Bushing - Axle | 75097A | Not Available |
| 19 | Not Available | Eureka Axle - Rear | 75095 | Not Available |
| 20 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Upper Handle Assembly | 75956-1 | Not Available |
| 03 | Not Available | Eureka Tool Caddy | 76094-355N | Not Available |
| 04 | Not Available | Eureka Screw - Pan Head | 74846-1 | Not Available |
| 05 | Not Available | Eureka Backbone Assembly | 62561-3 | Not Available |
| 08 | Not Available | Eureka Washer Package | 63202 | Not Available |
| 09 | Not Available | Eureka Gasket - Motor Inlet | 74836 | Not Available |
| 10 | Not Available | Eureka Duct - Air | 74834-119N | Not Available |
| 11 | Not Available | Eureka Cover - Motor (Front) | 74829-355N | Not Available |
| 13 | Not Available | Eureka Lamp - Headlight | 57940-3 | Not Available |
| 14 | Not Available | Eureka Screw - Pan Head | 74846-1 | Not Available |
| 15 | Not Available | Eureka Lens | 74830-313N | Not Available |
| 16 | No Image | HOSE, 4 WIRE Part Number: 8174835 for Kenmore | 8174835 | $153.20Read more |
| 17 | Not Available | Eureka Motor Assembly - Packaged | 62568 | Not Available |
| 18 | Not Available | Eureka Bushing - Motor | 75094 | Not Available |
| 19 | Not Available | Eureka Rear Motor Cover Assembly Includes Pedal Switch. | 62562 | Not Available |
| 23 | Not Available | Eureka Screw - Pan Head | 74846-2 | Not Available |
| 24 | Not Available | Eureka Wand - Short | 74855-355N | Not Available |
| 25 | Not Available | Eureka Hose - Blow Molded | 76074-355N | Not Available |
| 26 | Not Available | Eureka Adaptor - Hose | 74856-313N | Not Available |
| 27 | Not Available | Eureka Retainer & Cord Release Assembly | 62563 | Not Available |
| 29 | Not Available | Eureka Screw - Pan Head | 74846-1 | Not Available |
| 30 | Not Available | Eureka Supply Cord & Terminal Assembly | 74838-1 | Not Available |
| 31 | Not Available | Eureka Hose Assembly - Cartoned Includes Items 24-26. | 62293-5 | Not Available |
| 32 | Not Available | Eureka Filter - Pre-Motor | 76087 | Not Available |
