Schematic and parts list for: Eureka Model: 5401A
This is a list of parts and a diagram and schematic for: Eureka Model: 5401A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright - Bagless
Popular Supplies

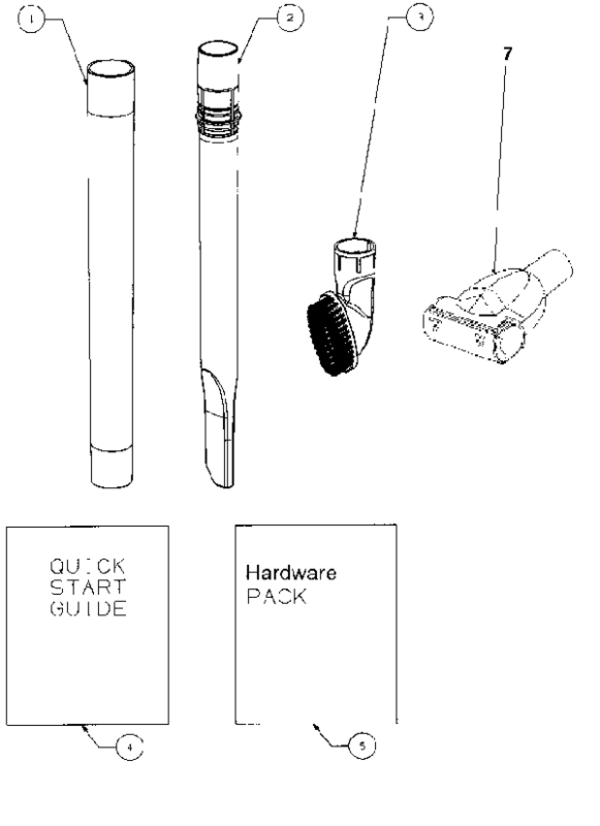

| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka Belt - Turbo | 75914 | Not Available |
| 1 | Not Available | Eureka Wand - Outer | 77507-119N | Not Available |
| 2 |  | Crevice Tool, Gray Wand 1956A Part Number: 77506355N for Eureka | 77506355N | $10.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Cord Wrap Rewind Bissell repair part number: 1609903 | 1609903 | $53.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Eureka Owners Guide | 84836 | Not Available |
| 5 | Not Available | Eureka Package - Hardware | 75193-2 | Not Available |
| 6 |  | CREVICE TOOL, GE5500/5550/106575/10658 Part Number: 7750522 for Eureka | 7750522 | $12.36Read more |
| 7 | Not Available | Eureka Turbo Nozzle Assembly | 75391-34 | Not Available |

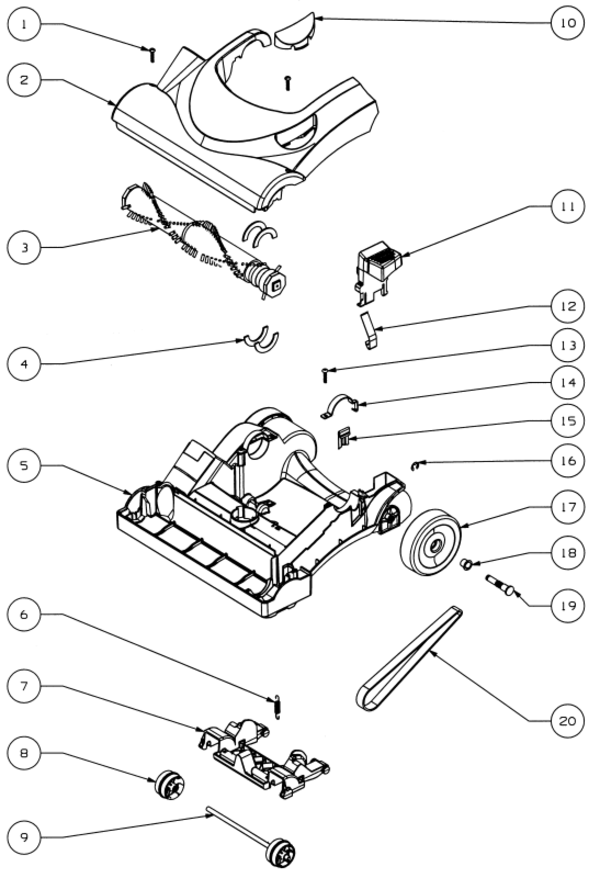

| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka Knob - Height Adjustment | 72472-355N | Not Available |
| 1 | Not Available | Eureka Package - Hardware | 74846-1 | Not Available |
| 2 | Not Available | Eureka Hood Assembly - Packaged | 63342-58 | Not Available |
| 3 | No Image | SCREW, HANDLE LOCK SPRING Part Number: 01-0273-1 for Koblenz | 0102731 | $1.63Read more |
| 4 | Not Available | Eureka Felt - Base | 73114 | Not Available |
| 5 | Not Available | Eureka Base Assembly | 62559-11 | Not Available |
| 6 | Not Available | Eureka Spring Package | 54943-1 | Not Available |
| 7 | Not Available | Eureka Carriage - Wheel | 74817A-119N | Not Available |
| 8 | Not Available | Eureka Wheel - Front | 74818A-119N | Not Available |
| 9 | Not Available | Eureka Axle (Nla) | 71478-2 | Not Available |
| 10 | Not Available | Eureka No Description | FNLA | Not Available |
| 11 | Not Available | Eureka Cup Release Latch | 74820-355N | Not Available |
| 12 | Not Available | Eureka Spring - Handle Release | 74821 | Not Available |
| 13 | Not Available | Eureka Screw Package | EW312-8T12ZP | Not Available |
| 14 | Not Available | Eureka Clamp - Motor | 74825 | Not Available |
| 15 | Not Available | Eureka Guard - Belt | 74822 | Not Available |
| 16 | No Image | HOOD ASS'Y, LIGHTNING POWER NOZZLE Part Number: 75096 for Fantom | 75096 | $26.21Read more |
| 17 | Not Available | Eureka Rear Wheel (Nla) | 74816A-119N | Not Available |
| 18 | Not Available | Eureka Bushing - Axle | 75097A | Not Available |
| 19 | Not Available | Eureka Axle - Rear | 75095 | Not Available |
| 20 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |

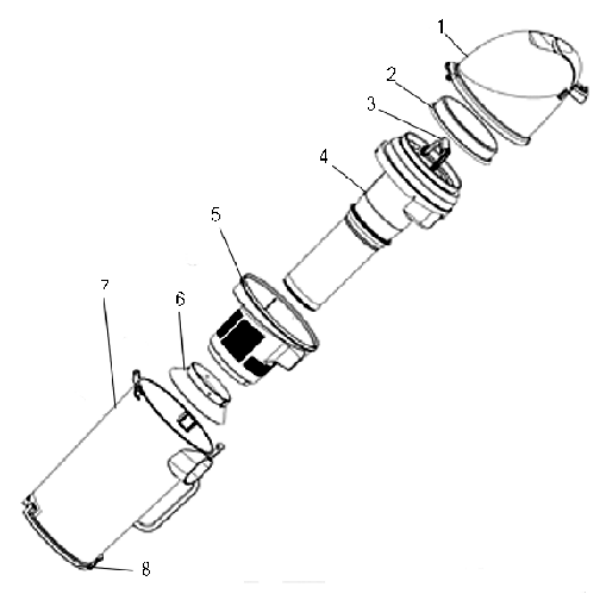

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Dust Cup Lid Assembly | 84193-2 | Not Available |
| 2 |  | Aftermarket Replacement Dust Cup Filter for Eureka DCF-25 Uprights | E829822 | $13.99Read more |
| 3 | Not Available | Eureka Bail Handle Assembly | 84337-1 | Not Available |
| 4 | Not Available | Eureka Inner Cyclone Assembly | 84212-2 | Not Available |
| 5 | Not Available | Eureka Screen & Graphics Assembl | 84215-2 | Not Available |
| 6 | Not Available | Eureka Cone | 83791-492N | Not Available |
| 7 | Not Available | Eureka Cup Assembly | 84216-1 | Not Available |
| 8 | Not Available | Eureka Bottom Lid Assembly | 84218-1 | Not Available |

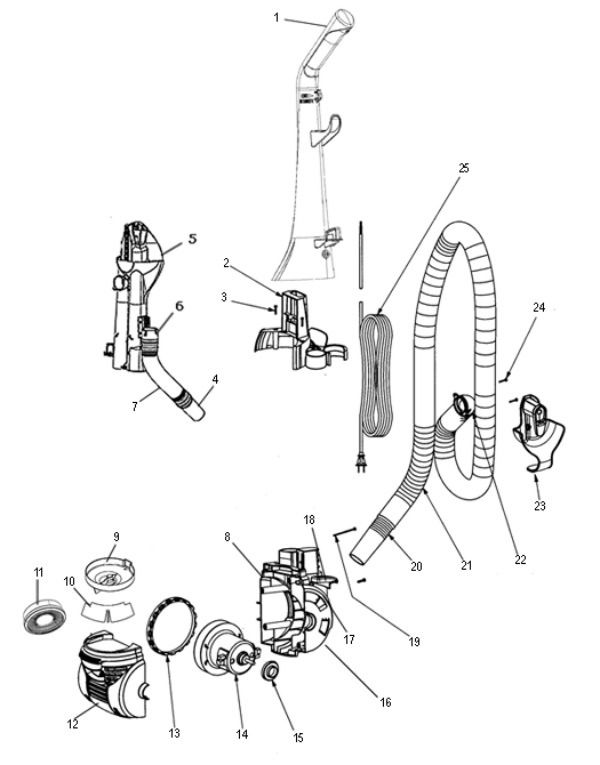

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Upper Handle Assembly | 84590-1 | Not Available |
| 2 | Not Available | Eureka Tool Caddy | 75958-119N | Not Available |
| 3 | Not Available | Eureka Package - Hardware | 74846-1 | Not Available |
| 4 | Not Available | Eureka Adapter - Base Hose | 81168-355N | Not Available |
| 5 | Not Available | Eureka Backbone & Base Hose Assy | 84644-1 | Not Available |
| 6 | Not Available | Eureka Adapter - Duster Housing | 81165-119N | Not Available |
| 7 | Not Available | Eureka Hose - Base | 81167-355N | Not Available |
| 8 | Not Available | Eureka Gasket - Motor Cover | 72522-5 | Not Available |
| 9 | Not Available | Eureka Cover - Hepa | 84344-313N | Not Available |
| 10 | Not Available | Eureka Foam - Exhaust | 84651-549N | Not Available |

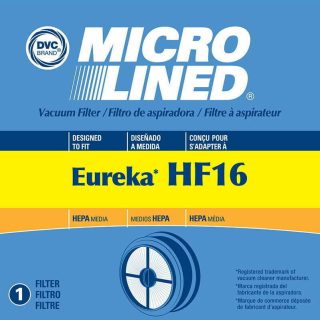

| 11 |  | Eureka HF-16 HEPA Vacuum Filter 68115B | 023169132573 | $14.95Add to cart |
| 12 | Not Available | Eureka Motor Cvr Front & Grphcs | 84957-1 | Not Available |
| 13 | Not Available | Eureka Gasket - Motor Can | 82175-119N | Not Available |
| 14 | Not Available | Eureka Motor Assembly - Packaged | 62568-2 | Not Available |
| 15 | Not Available | Eureka Bushing - Motor | 84429 | Not Available |
| 16 | Not Available | Eureka Motor Cover & Graphics As | 84627-2 | Not Available |
| 17 | Not Available | Eureka Switch (Rocktek) | 74843-1 | Not Available |
| 18 | Not Available | Eureka Pedal - Switch | 74844-359N | Not Available |
| 19 | Not Available | Eureka Package - Hardware | 75193-3 | Not Available |
| 20 | Not Available | Eureka Wand - Long | 81169-119N | Not Available |
| 21 | Not Available | Eureka Hose Assembly - Cartoned | 62293-26 | Not Available |
| 22 | Not Available | Eureka Hose Adapter Assembly | 84463-1 | Not Available |
| 23 | Not Available | Eureka Lower Hose Retainer Assem | 75195-16 | Not Available |
| 24 | Not Available | Eureka Package - Hardware | 74846-1 | Not Available |
| 25 | Not Available | Eureka Supply Cord & Terminal As | 83947-4 | Not Available |
