Schematic and parts list for: Eureka Model: 5812Atest

Schematic and parts list for: Eureka Model: 5812A

This is a list of parts and a diagram and schematic for: Eureka Model: 5812A

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: Litespeed Upright

Popular Supplies



# Part image Description SKU Price
xxProduct ThumbnailTiming Belt 16.5in for Janome and Kenmore Machines #650071005

More Product Details

650071005

$17.99Read more

xxProduct ThumbnailCord, 2-Wire M x F Part Number: 1435160000 for Royal

More Product Details

1435160000

$13.31Read more

1Product ThumbnailHose, Attach W/Adaptor/Coupling Litespeed 5811A Part Number: 618654 for Eureka

More Product Details

618654

$50.80Read more

2Product ThumbnailAdapter, Hose 5800/2900/SC5713/SC5815 Series Part Number: 71725313N for Eureka

More Product Details

71725313N

$9.69Read more

3Not AvailableEureka Nesting Wand Assembly 71492ANot Available
4Not AvailableEureka Wand - Crevice 71956A-355NNot Available
5Not AvailableEureka Wand - Outer 71973-119NNot Available
6Product ThumbnailCoupling, Hose 2900/3200/5800 Series Upright Part Number: 70559A119N for Eureka

More Product Details

70559A119N

$11.79Add to cart

Product is special order please allow 2-4 weeks for delivery.
7Product ThumbnailAdapter Wand Lower Bissell repair part number: 1609902

More Product Details

1609902

$2.97Add to cart

Product is special order please allow 2-4 weeks for delivery.
8Not AvailableEureka Package - Hardware 72322Not Available

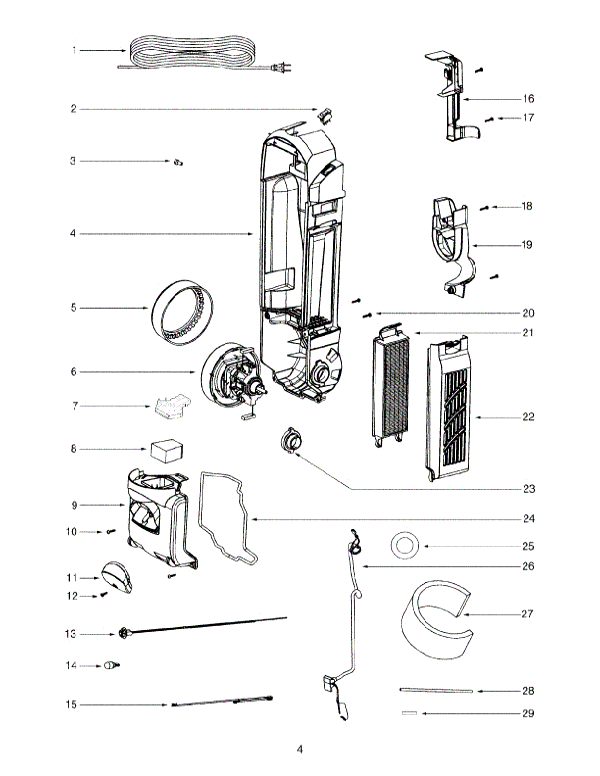

# Part image Description SKU Price

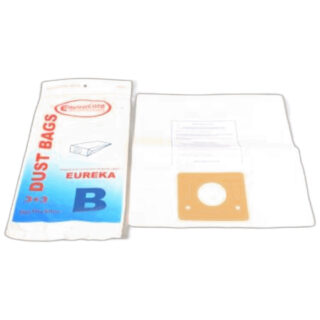

xxProduct ThumbnailEureka Type B Replacement Micro-Lined Bags fit the following : Eureka Power Team 1700 Series and 3700 Series

More Product Details

836301001060

$7.95Add to cart

xxNot AvailableEureka Housing - Rear 71608-119NNot Available
1Product ThumbnailFilter, 3M Dirt Devil F52 Ea Part Number: 65852 for Royal Replacement

More Product Details

65852

$9.12Add to cart

Product is special order please allow 2-4 weeks for delivery.
2Not AvailableEureka Switch - Rocker 39455-1Not Available
3Product ThumbnailWire Nuts, 5Pk Part Number: 60192-1 for Eureka

More Product Details

601921

$5.98Read more

4Not AvailableEureka Rear Housing Assy (Nla) 71744Not Available
5No ImageGASKET, MOTOR 5815 Part Number: 71649 for Eureka

More Product Details

71649

$5.98Read more

6Not AvailableEureka Motor Assy. (Nla) 60261-11Not Available
7No ImageSCREEN, MOTOR SC5815 Part Number: 71851119N for Eureka

More Product Details

71851119N

$6.49Read more

8Product ThumbnailFilter, Secondary Foam 5740/5840/5843/5844/5846 Part Number: 71480 for Eureka

More Product Details

71480

$3.97Read more

9Not AvailableEureka Motor Cover Assy - Pkgd 61879-2Not Available
11Not AvailableEureka Lens - Headlamp 71460-313NNot Available
12Product ThumbnailScrew, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka

More Product Details

5323844

$7.14Add to cart

Product is special order please allow 2-4 weeks for delivery.
13Not AvailableEureka Headlight Socket Termina (Nla) 70701-2Not Available
14Not AvailableEureka Lamp - Headlight 57940-3Not Available
15Product ThumbnailTHERMOSTAT, 4870 Part Number: 39252-1 for Eureka

More Product Details

392521

$10.76Read more

16No ImageCOVER, SWITCH 5740A 5840 Part Number: 72127 for Eureka

More Product Details

72127

$10.79Read more

19Product ThumbnailTool Pack, Lower 5800 Series Part Number: 71455119N for Eureka

More Product Details

71455119N

$11.29Add to cart

Product is special order please allow 2-4 weeks for delivery.
20Not AvailableEureka Screw Package 53238-27Not Available
21Product ThumbnailDyson End Cap for DC25 Nozzle

More Product Details

10361006

$9.99Add to cart

22No ImageCOVER, FILTER W/GRAPHICS 5848 Part Number: 72006-4 for Eureka

More Product Details

720064

$10.81Read more

23No ImageHANDLE, GRIP CVAC PAK III HOSE Part Number: 170084 for Built-In

More Product Details

170084

$27.62Read more

24No ImageGASKET, MOTOR COVER 5845 Part Number: 71484 for Eureka

More Product Details

71484

$5.09Read more

25Not AvailableEureka Gasket - Motor Hub 71969-1Not Available
26No ImageUPHOLSTERY TOOL, FITALL FOR JET PACK 1 1/4" Part Number: 14-1714-65 for Fitall

More Product Details

14171465

$0.88Read more

27No ImageFOAM, SOUND Part Number: 722241 for Eureka

More Product Details

722241

$4.63Read more

28Not AvailableEureka Tube - Flexible 70651Not Available
29Not AvailableEureka Plug 72167Not Available

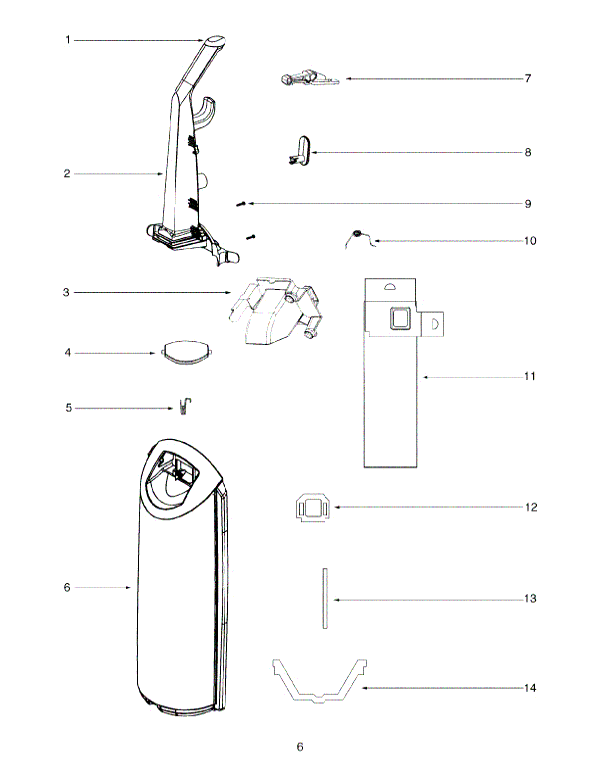

# Part image Description SKU Price
xxNot AvailableEureka Rivet Package 51108A-10Not Available
xxProduct ThumbnailTiming Belt 16.5in for Janome and Kenmore Machines #650071005

More Product Details

650071005

$17.99Read more

1Not AvailableEureka Cap-Handle 71235-119NNot Available
2Not AvailableEureka Handle Assembly 71473ANot Available
3No ImageADAPTOR, CLIP Part Number: 71746119N for Eureka

More Product Details

71746119N

$7.47Read more

4No ImageLatch, Bag Cover SC5815 71830-355N Part Number: 71830308N for Eureka

More Product Details

71830308N

$5.98Add to cart

Product is special order please allow 2-4 weeks for delivery.
5Not AvailableEureka Spring 71852Not Available
6Product ThumbnailAftermarket Dyson HEPA Filter for DC25 Uprights

More Product Details

91618806

$34.99Add to cart

7Not AvailableEureka Bag-In-Place Arm 71747-119NNot Available
8Not AvailableEureka Hook Cord 70864A-119NNot Available
9Product ThumbnailScrew, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka

More Product Details

5323844

$7.14Add to cart

Product is special order please allow 2-4 weeks for delivery.
10Not AvailableEureka Spring - Torsion 71748Not Available
11Product Thumbnailaftermarket Eureka Type LS Sanitaire Vacuum Bags, LiteSpeed Upright, Bagged, Boss Signature Genesis, Refurb Powerline Limited, Sanitaire Commercial Vacuum Cleaners, Series 5700 & 5800, 62123 61820A, SC5815A, SC5713A

More Product Details

836301003156

$8.95Add to cart

12No ImageADAPTOR, GASKET SC5815 UPRIGHT Part Number: 71854 for Eureka

More Product Details

71854

$5.98Read more

13Not AvailableEureka Gasket- Bag Cover (Nla) 71512Not Available
14Not AvailableEureka Gasket - Lower Bag 71765ANot Available




# Part image Description SKU Price

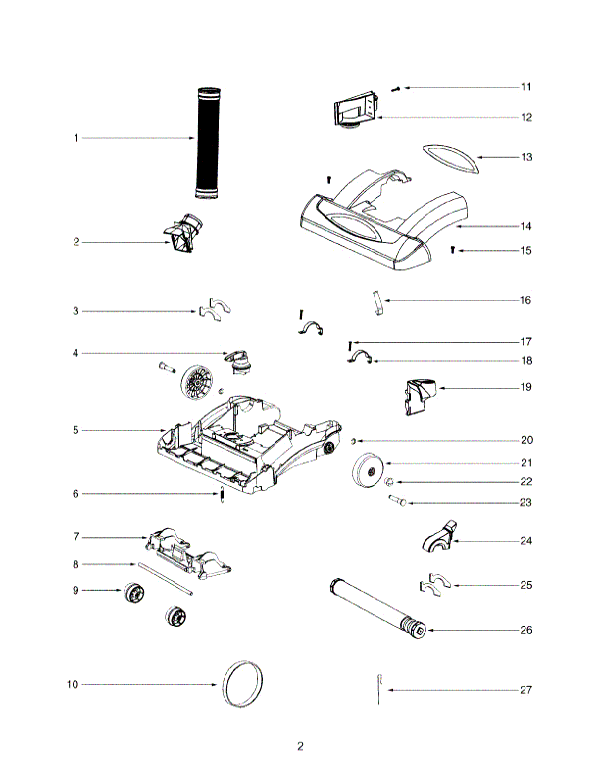

xxProduct ThumbnailPulley, CR5128Z/30Z/58Z Part Number: 1380261000 for Royal

More Product Details

1380261000

$13.77Add to cart

Product is special order please allow 2-4 weeks for delivery.
xxProduct ThumbnailTiming Belt 16.5in for Janome and Kenmore Machines #650071005

More Product Details

650071005

$17.99Read more

1Product ThumbnailTransmission gear housing for kitchenaid mixer

More Product Details

WP12257

$99.99Read more

2Not AvailableEureka Base Hose Assy 71447-119NNot Available
3Not AvailableEureka Felt - Base 73153Not Available
4Product ThumbnailKnob, Gray Height Adjustment SC5713/SC5815 Series Part Number: 71448355N for Eureka

More Product Details

71448355N

$7.25Add to cart

Product is special order please allow 2-4 weeks for delivery.
5Not AvailableEureka Base Assembly - Packaged 61877-8Not Available
6Product ThumbnailSpring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka

More Product Details

54943

$12.31Add to cart

Product is special order please allow 2-4 weeks for delivery.
7Product ThumbnailCarriage, Front Wheel 5812A/5855AN/5857AZ Part Number: 71446A119N for Eureka

More Product Details

71446A119N

$14.00Add to cart

Product is special order please allow 2-4 weeks for delivery.
8Product ThumbnailAxle, Front SC5713/SC5815/SC5845 Uprights Part Number: 71478 for Eureka

More Product Details

71478

$5.98Add to cart

Product is special order please allow 2-4 weeks for delivery.
9Product ThumbnailWheel, Front 5191/5847AV Part Number: 39173A119N for Eureka

More Product Details

39173A119N

$5.98Add to cart

Product is special order please allow 2-4 weeks for delivery.
10Product ThumbnailEureka Extended U belt aftermarket pn: 61120F

More Product Details

20310801

$9.99Add to cart

12Not AvailableEureka Base Hose Assy 71726-119NNot Available
13Not AvailableEureka Deluxe 15" Lens & Graphic 72178-5Not Available
14Not AvailableEureka Hood Assembly - Packaged 61878-1Not Available
15Product ThumbnailScrew, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka

More Product Details

5323844

$7.14Add to cart

Product is special order please allow 2-4 weeks for delivery.
16Product ThumbnailSPRING, HANDLE RELEASE 2903 Part Number: 71574 for Eureka

More Product Details

71574

$5.30Read more

17Not AvailableEureka Screw Package 53238-27Not Available
18No ImageClamp, Motor Part Number: 71487 for Eureka

More Product Details

71487

$8.52Read more

19Product ThumbnailPedal, Gray Foot Handle Release SC-5845 Part Number: 71457355N for Eureka

More Product Details

71457355N

$7.25Read more

20Not AvailableEureka Retaining Ring 54432-1Not Available
21Not AvailableEureka Wheel - Rear 72117-119NNot Available
22Not AvailableEureka Bushing - Axle 72113-1Not Available
23Product ThumbnailAxle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka

More Product Details

38590A

$8.22Add to cart

Product is special order please allow 2-4 weeks for delivery.
24Product ThumbnailCover, Off-Wht Plastic Belt Cap 5700-5800 Series Part Number: 71741A for Eureka

More Product Details

71741A

$6.49Read more

25Product ThumbnailBelt Cap, White Felt SC5713/SC5815/SP5816 Part Number: 73152 for Eureka

More Product Details

73152

$5.44Read more

26Not AvailableEureka Brushroll Assembly - Cart 61869-1Not Available
27Product ThumbnailAxle, Rear 68C7 Upright/12B1 PowerForce Helix Part Number: 203-8063 for Bissell

More Product Details

2038063

$4.75Add to cart

Product is special order please allow 2-4 weeks for delivery.
