Schematic and parts list for: Eureka Model: 6500
This is a list of parts and a diagram and schematic for: Eureka Model: 6500
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: AIRMAX Bagged Powerteam

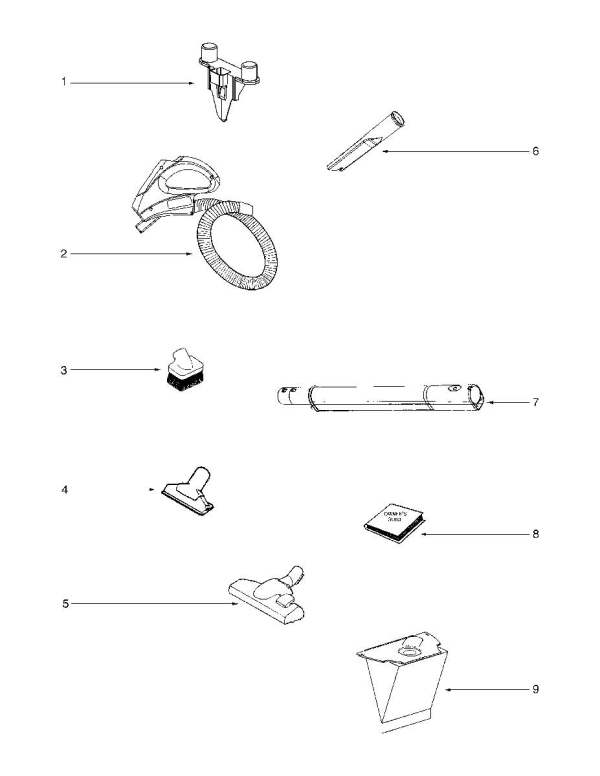

| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka Turbo Nozzle Assembly | 75391-3 | Not Available |
| 01 | Not Available | Eureka Accessory Clip | 78343 | Not Available |
| 02 | Not Available | Eureka Powerhead Hose Assembly - | 61977-6 | Not Available |
| 03 | Not Available | Eureka Dusting Brush | 1099002-03 | Not Available |
| 05 |  | Floor Tool, Natural Bristles Part Number: 39632 for Eureka | 39632 | $21.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Eureka Crevice Nozzle | 1099001-04 | Not Available |
| 07 | Not Available | Eureka Direct Connect Wand Assem | 39422B-3 | Not Available |
| 08 | Not Available | Eureka Owner's Guide | 78775 | Not Available |
| 09 | Not Available | Eureka Paper Bag Pkg - Style Ox | 61230D | Not Available |

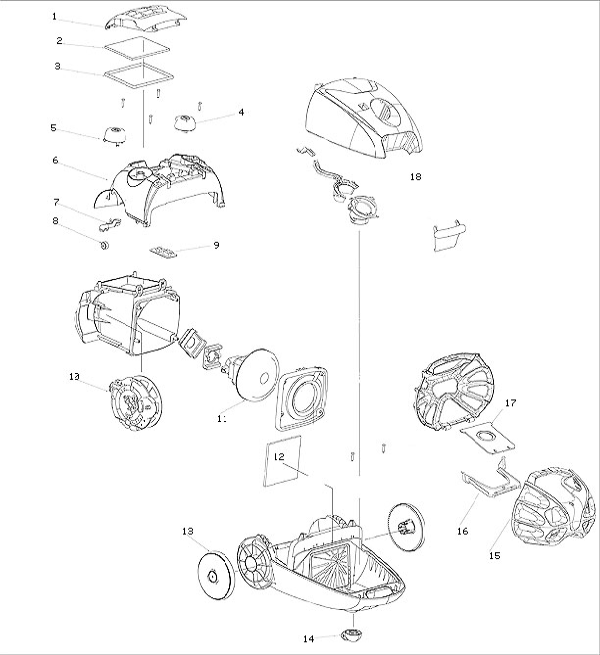

| # | Part image | Description | SKU | Price |
| xx | No Image | LATCH, EL6500A Part Number: 1180219-05 for Eureka | 118021905 | $8.79Read more |
| 01 | Not Available | Eureka Exhaust Filter Cover & Gr | 2193231-01 | Not Available |
| 02 | Not Available | Eureka Exhaust Foam Filter | 1180215-01 | Not Available |
| 03 | Not Available | Eureka Eureka Hf-1 Filter Package | 60286C | Not Available |
| 04 | Not Available | Eureka On/Off Control Button | 1180223-52 | Not Available |
| 05 | Not Available | Eureka Cord Reel Pedal | 1180205-02 | Not Available |
| 06 | Not Available | Eureka Rear Cover | 2193123-01 | Not Available |
| 07 | Not Available | Eureka Brake Arm Complete | 2192177-01 | Not Available |
| 09 | Not Available | Eureka Pc Control Board | 1180154-11 | Not Available |
| 11 | No Image | MOTOR, SUCTION 6500A 6510A Part Number: 63160-2 for Eureka | 631602 | $109.02Read more |
| 12 | Not Available | Eureka Pre Motor Filter | 1180217-01 | Not Available |
| 13 | Not Available | Eureka Wheel - Rear | 1130506-01 | Not Available |
| 14 | Not Available | Eureka Wheel Support | 1096042-03 | Not Available |
| 15 | Not Available | Eureka Dust Bag Gasket Assy | 2192150-02 | Not Available |
| 16 | No Image | HOLDER, DUST BAG Part Number: 1180237-01 for Eureka | 118023701 | $34.30Read more |
| 17 | Not Available | Eureka Paper Bag Pkg - Style Ox | 61230D | Not Available |
| 18 | No Image | COVER, DUST BAG 6500A Part Number: 2193204-01 for Eureka | 219320401 | $121.76Read more |

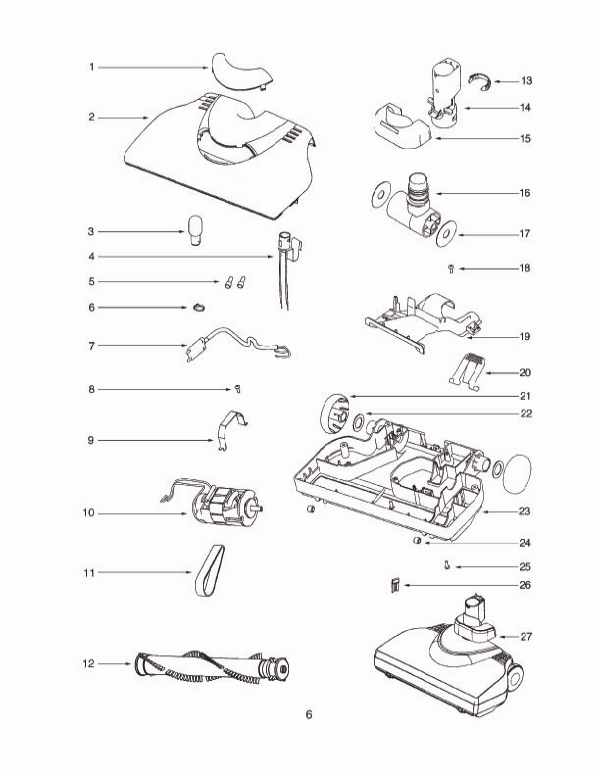

| # | Part image | Description | SKU | Price |
| 01 | No Image | FAN, TOP MOTOR 116765-13 Part Number: 0-3956-1 for Lamb | 39561 | $5.50Read more |
| 02 | Not Available | Eureka Hood & Graphics Assy - Pk | 54672-37 | Not Available |
| 03 | Not Available | Eureka Headlight | 59045 | Not Available |
| 04 | No Image | SOCKET, LAMP POWER NOZZLE 6831 Part Number: 39559 for Eureka | 39559 | $6.49Read more |
| 05 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 06 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $4.29Read more |
| 07 | Not Available | Eureka Power Cord | 39566 | Not Available |
| 08 | Not Available | Eureka Screw Package Pkg. Of 10 | 53238-8 | Not Available |
| 09 | Not Available | Eureka Strap - Motor | 72315 | Not Available |
| 10 | Not Available | Eureka Motor Assembly - Packaged | 39565 | Not Available |
| 11 | Not Available | Eureka Belt Package Assy - Style Pkg. Of 2 | 58065A | Not Available |
| 12 | Not Available | Eureka Disturbulator Assy - Ctnd | 60279-2 | Not Available |
| 13 | Not Available | Eureka C-Clamp | 39564-355N | Not Available |
| 14 | Not Available | Eureka Coupling | 72324-355N | Not Available |
| 15 | No Image | SELL E-72325-355N PEDAL, QUICK DISCONNECT 6982 Part Number: 72325-355N for Eureka | 72325355N | $0.00Read more |
| 16 | Not Available | Eureka T-Joint Includes Item 17. | 72326-355N | Not Available |
| 17 | Not Available | Eureka Gasket - Felt | 57992 | Not Available |
| 18 | Not Available | Eureka Screw Package Pkg. Of 10 | 53238-8 | Not Available |
| 19 | No Image | ***USE EC-155152 ASS'Y, T JOINT 6878 Part Number: 39562 for Eureka | 39562 | $7.86Read more |
| 20 | No Image | PEDAL, FOOT 6500A POWER NOXXLE Part Number: 39560-355N for Eureka | 39560355N | $4.55Read more |
| 21 | Not Available | Eureka Wheel - Rear | 72327-355N | Not Available |
| 22 | Not Available | Eureka Felt Washer | 56180 | Not Available |
| 23 |  | BASE, SYSTEMPRO CANISTER Part Number: 54639-5 for Eureka | 546395 | $18.44Read more |
| 24 | Not Available | Eureka Front Wheel Assembly | 60963 | Not Available |
| 25 | Not Available | Eureka Screw Package Pkg. Of 10 | 53238-8 | Not Available |
| 26 |  | Axle, Rear 68C7 Upright/12B1 PowerForce Helix Part Number: 203-8063 for Bissell | 2038063 | $4.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Eureka Powerhead Assembly | 15783A-11 | Not Available |
