Schematic and parts list for: Eureka Model: 6852
This is a list of parts and a diagram and schematic for: Eureka Model: 6852
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Home Cleaning System Canister
Popular Supplies
| # | Part image | Description | SKU | Price |

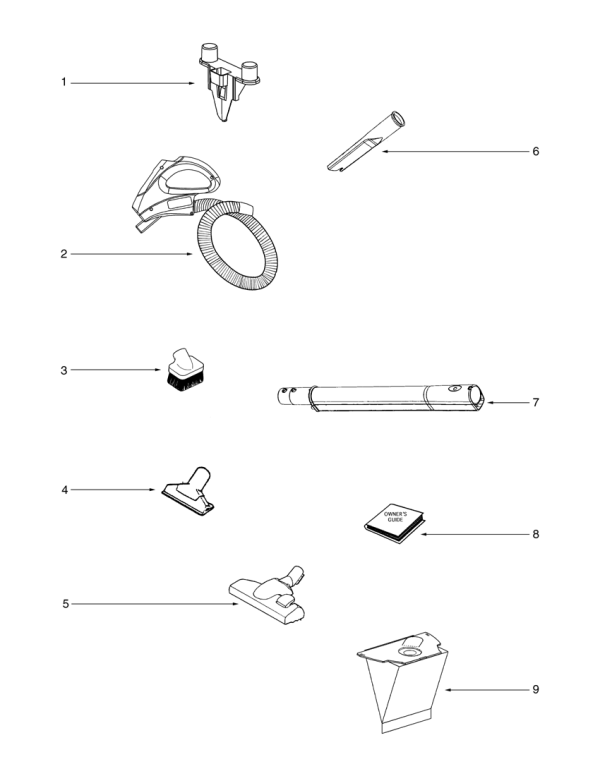

| xx | Not Available | Eureka Hose Connector Cord Assembly | 71986-1 | Not Available |
| 01 | Not Available | Eureka Tool Caddy | 72040A | Not Available |
| 02 | Not Available | Eureka Powerhead Hose Assembly - | 61977 | Not Available |
| 03 | Not Available | Eureka Dusting Brush - Packaged | 54505-3 | Not Available |
| 04 |  | Upholstery Tool, Black Excalibur Part Number: 382843 for Eureka | 382843 | $9.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 |  | Rug Tool, Floor & Friction 12" 3686A Might Part Number: 38702A2 for Eureka | 38702A2 | $34.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 |  | Crevice Tool, 4467 Part Number: 272373 for Eureka | 272373 | $7.53Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 | Not Available | Eureka Direct Connect Wand (Omega) | 39422-1 | Not Available |
| 08 | Not Available | Eureka Owner's Guide | 72923 | Not Available |
| 09 | Not Available | Eureka Paper Bag-Style Cn-1 | 61980 | Not Available |
| # | Part image | Description | SKU | Price |

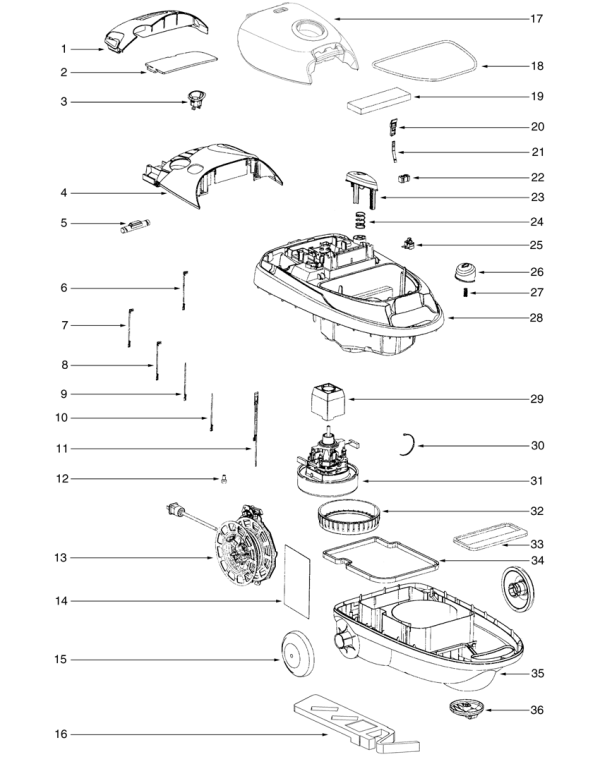

| 01 | No Image | COVER, EXHAUST FILTER W/ GRAPHICS GE6850 Part Number: 15781-1 for Eureka | 157811 | $14.70Read more |
| 02 | Not Available | Eureka Filter - Exhaust | 39483 | Not Available |
| 03 | Not Available | Eureka Bezel - Power Outlet | 28638-385N | Not Available |
| 04 | Not Available | Eureka Cover - Trim | 02482A-385N | Not Available |
| 05 | Not Available | Eureka Dust Bag Indicator | 39552 | Not Available |
| 06 | Not Available | Eureka Lead & Terminal Assembly | 39490-1 | Not Available |
| 07 | Not Available | Eureka Lead Terminal Assy. Black | 39490-4 | Not Available |
| 08 | No Image | LEAD, W/TERMINAL Part Number: 39490-5 for Eureka | 394905 | $6.52Read more |
| 09 | Not Available | Eureka Lead & Terminal Assembly | 39490-2 | Not Available |
| 10 | No Image | LEAD, W/TERMIAL Part Number: 39490-3 for Eureka | 394903 | $4.61Read more |
| 11 | No Image | Cord Set, Machine End Plug 6XP/10XP Part Number: 1403859500 for Advance | 1403859500 | $41.60Read more |
| 12 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 13 | Not Available | Eureka Cord Reel Assembly | 28632 | Not Available |
| 14 | Not Available | Eureka Shield - Wiring | 39530 | Not Available |
| 15 | Not Available | Eureka Wheel - Rear | 28621-355N | Not Available |
| 16 | Not Available | Eureka Guard - Power Outlet | 39492 | Not Available |
| 17 | Not Available | Eureka Bag Cover Assy - Packaged | 61979-1 | Not Available |
| 18 | Not Available | Eureka Gasket - Bag Chamber | 70055-4 | Not Available |
| 19 | Not Available | Eureka Filter - Disaster | 39481 | Not Available |
| 20 | Not Available | Eureka Device - No Bag Safety | 28633 | Not Available |
| 21 | Not Available | Eureka Spring - Leaf | 39478 | Not Available |
| 22 | Not Available | Eureka Connector Power Outlet | 39506 | Not Available |
| 23 | Not Available | Eureka Pedal On/Off | 28624-355N | Not Available |
| 24 | No Image | SPRING, SWITCH PEDAL 6852A Part Number: 71922 for Eureka | 71922 | $1.03Read more |
| 25 | Not Available | Eureka Switch - Push | 39482 | Not Available |
| 26 | Not Available | Eureka Pedal - Cord Reel | 28623-355N | Not Available |
| 27 | Not Available | Eureka Spring - Cord Reel Pedal | 71923 | Not Available |
| 28 | Not Available | Eureka Shell - Upper | 02480B-355N | Not Available |
| 29 | Not Available | Eureka Bushing - Motor | 28630 | Not Available |
| 30 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $4.29Read more |
| 31 | Not Available | Eureka Motor | 60261-8 | Not Available |
| 32 |  | Hoover Twist-N-Vac Belt | 38528032 | $5.99Add to cart |
| 33 | Not Available | Eureka Seal - Air Inlet | 39477 | Not Available |
| 34 | Not Available | Eureka Seal - Motor Compartment | 28627 | Not Available |
| 35 | Not Available | Eureka Shell - Lower | 02479-355N | Not Available |
| 36 | Not Available | Eureka Caster Assembly | 39479 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | FAN, TOP MOTOR 116765-13 Part Number: 0-3956-1 for Lamb | 39561 | $5.50Read more |
| 2 | Not Available | Eureka Hood & Graphics Assy - Pk | 54672-33 | Not Available |
| 3 | Not Available | Eureka Headlight | 59045 | Not Available |
| 4 | No Image | SOCKET, LAMP POWER NOZZLE 6831 Part Number: 39559 for Eureka | 39559 | $6.49Read more |
| 5 | | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 6 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $4.29Read more |
| 7 | Not Available | Eureka Power Cord | 39566 | Not Available |
| 8 | Not Available | Eureka Screw Package | 53238-8 | Not Available |
| 9 | Not Available | Eureka Strap - Motor | 72315 | Not Available |
| 10 | Not Available | Eureka Ph Motor Assembly | 54343-1 | Not Available |
| 11 | Not Available | Eureka Belt Package Assy - Style | 58065A | Not Available |
| 12 | Not Available | Eureka Disturbulator Assy - Ctnd | 60279-1 | Not Available |
| 13 | Not Available | Eureka C-Clamp | 39564-119N | Not Available |
| 14 |  | COUPLING,:( QUICK DISCON. 6982 Part Number: 72324-119N for Eureka | 72324119N | $10.68Read more |
| 15 | Not Available | Eureka Quick Disconnect Pedal | 72325-119N | Not Available |
| 16 | Not Available | Eureka O-Ring | 39563 | Not Available |
| 17 | Not Available | Eureka T-Joint | 72326-119N | Not Available |
| 18 | Not Available | Eureka Gasket - Felt | 57992 | Not Available |
| 19 | Not Available | Eureka Screw Package | 53238-8 | Not Available |
| 20 | No Image | ***USE EC-155152 ASS'Y, T JOINT 6878 Part Number: 39562 for Eureka | 39562 | $7.86Read more |
| 21 | No Image | PEDAL, FOOT 6500A POWER NOXXLE Part Number: 39560-355N for Eureka | 39560355N | $4.55Read more |
| 22 | Not Available | Eureka Wheel - Rear | 72327-355N | Not Available |
| 23 | Not Available | Eureka Felt Washer | 56180 | Not Available |
| 24 |  | BASE, SYSTEMPRO CANISTER Part Number: 54639-5 for Eureka | 546395 | $18.44Read more |
| 25 | Not Available | Eureka Front Wheel Assembly | 60963 | Not Available |
| 26 | Not Available | Eureka Screw Package | 53238-8 | Not Available |
| 27 | Not Available | Eureka Power Head Assembly - Car | 54575-28 | Not Available |
