Schematic and parts list for: Eureka Model: 6865
This is a list of parts and a diagram and schematic for: Eureka Model: 6865
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Aero Home Cleaning System

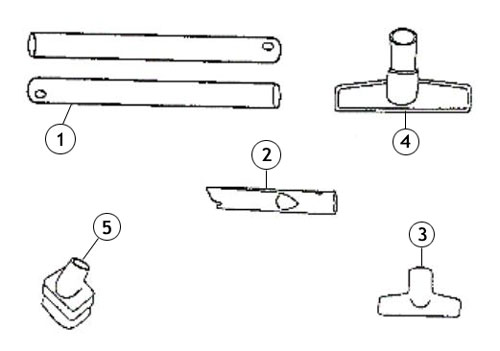

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Straight Wand Assembly | 36879-5 | Not Available |
| 02 | Not Available | Eureka Tool - Crevice | 54780 | Not Available |
| 03 | Not Available | Eureka Upholstery Tool | 38284 | Not Available |
| 04 | Not Available | Eureka Eco Floor & Wall Brush | FNLA | Not Available |
| 05 | Not Available | Eureka Eco Dusting Brush Use | 54787 | Not Available |

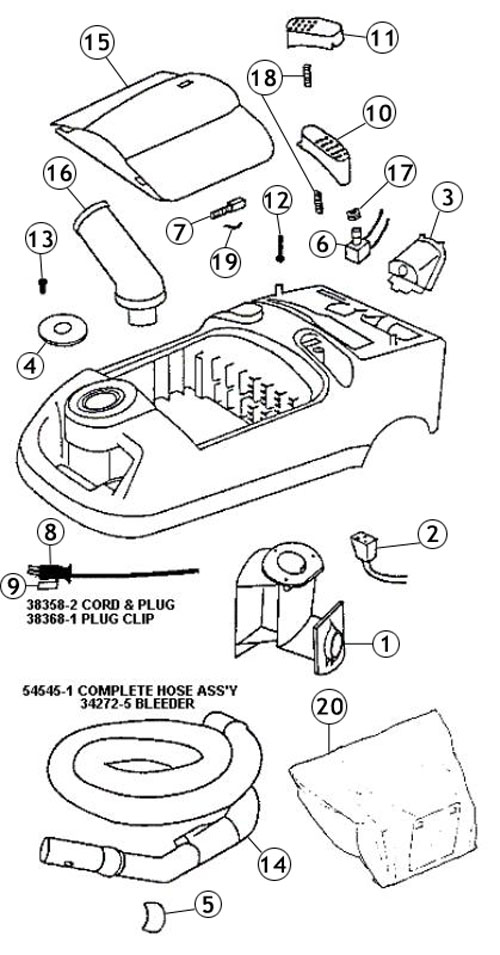

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Plate - Hose | 14905-2 | Not Available |
| 02 | No Image | RECEPTACLE, 6865A WORLD VAC CANISTER Part Number: 26730-8 for Eureka | 267308 | $18.44Read more |
| 03 | No Image | CORD GUIDE, 6865 Part Number: 27367-1 for Eureka | 273671 | $24.48Read more |
| 04 | Not Available | Eureka Hose Seal-Swivel | 27380A-1 | Not Available |
| 05 | Not Available | Eureka Bleeder | 34272-5 | Not Available |
| 06 | Not Available | Eureka Switch Push | 36341-2 | Not Available |
| 07 | Not Available | Eureka Bag Indicator Assembly | 37761-1 | Not Available |
| 08 |  | HOSE CORD, WORLDVAC CAN 6865A Part Number: 38358-2 for Eureka | 383582 | $11.97Read more |
| 09 | No Image | CLIP, PLUG WORLDVAC CANISTER Part Number: 38368-1 for Eureka | 383681 | $14.70Read more |
| 10 | Not Available | Eureka Button | 38386-2 | Not Available |
| 11 | Not Available | Eureka Button | 38387-1 | Not Available |
| 12 | Not Available | Eureka Screw Pkg | 53238-1 | Not Available |
| 13 | No Image | 8280 HANDLE SCREWS(6 PER PACK) Part Number: 53257-1 for Eureka | 532571 | $4.92Read more |
| 14 | Not Available | Eureka Hose Assembly | 54545-1 | Not Available |
| 15 | Not Available | Eureka Bag Cover & Graphics | 54635-3 | Not Available |
| 16 | Not Available | Eureka Connector Assembly - Hose | 54655-2 | Not Available |
| 17 | Not Available | Eureka Nut - Hex | 55446 | Not Available |
| 18 | Not Available | Eureka Spring | 55794 | Not Available |
| 19 | No Image | SWITCH, 125V SP MOM LIT RCK Part Number: 8.625.675.0 for Windsor | 86256750 | $55.02Read more |
| 20 | Not Available | Eureka Paper Bag Package Assembly | 57698A-6 | Not Available |

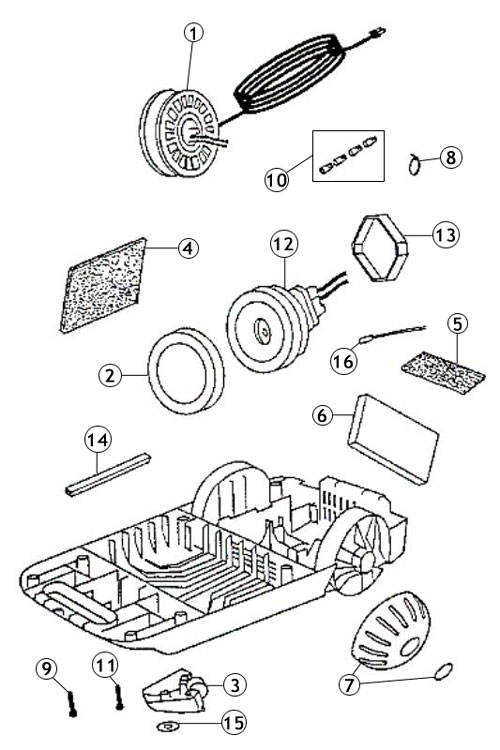

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Cord Reel Assembly | 14656-7 | Not Available |
| 02 | Not Available | Eureka Gasket - Motor Mounting | 26715A | Not Available |
| 03 | Not Available | Eureka Caster | 37403-1 | Not Available |
| 04 | Not Available | Eureka Filter - Motor | 37657 | Not Available |
| 05 |  | U-Bend, :( Iron Gray Valve DC24 Part Number: 913771-01 for Dyson | 91377101 | $20.41Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Eureka Sound Foam | 37966 | Not Available |
| 07 | Not Available | Eureka Wheel-Rear | 27366 | Not Available |
| 08 | Not Available | Eureka Tie - Cable | 46713-1 | Not Available |
| 09 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 10 | Not Available | Eureka Wire Splice 5 | 53214-2 | Not Available |
| 11 | Not Available | Eureka Screw Package | 53238-8 | Not Available |
| 12 |  | Turbine Head, Carbon Fiber Quick Release CY22 Part Number: 963544-04 for Dyson | 96354404 | $82.34Read more |
| 13 | No Image | HOOD, WITH BASE BI-5701 POWER NOZZLE Part Number: 155463 for Built-In | 155463 | $66.90Read more |
| 14 | Not Available | Eureka Wire Tube | FNLA | Not Available |
| 15 | No Image | WASHER Part Number: 56376 for Eureka | 56376 | $4.40Read more |
| 16 | Not Available | Eureka Thermostat | 57720 | Not Available |

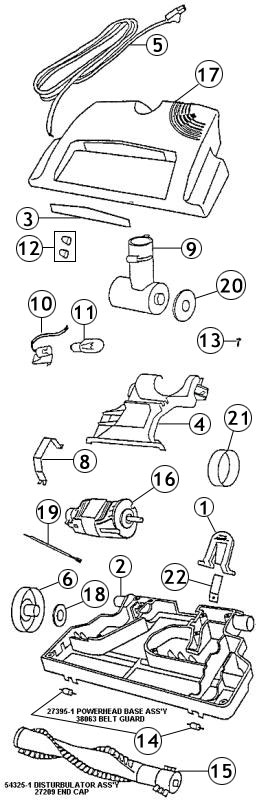

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Pedal - Foot | 14940-1 | Not Available |
| 02 | Not Available | Eureka Powerhead Hood/Base Kit | 27395-1 | Not Available |
| 03 | Not Available | Eureka Lens - Hood | 27397-1 | Not Available |
| 04 | No Image | AIR DUCT, POWER NOZZLE 6810 Part Number: 27398-1 for Eureka | 273981 | $12.83Read more |
| 05 | Not Available | Eureka Polarized Cord & Plug Assembly | 35970-18 | Not Available |
| 06 | Not Available | Eureka Wheel - Rear | 37434-2 | Not Available |
| 07 |  | Axle, Rear 68C7 Upright/12B1 PowerForce Helix Part Number: 203-8063 for Bissell | 2038063 | $4.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 | No Image | STRAP, P/N MOTOR Part Number: 38377 for Eureka | 38377 | $6.66Read more |
| 09 | Not Available | Eureka Handle Socket Assembly | 38379-1 | Not Available |
| 10 | Not Available | Eureka Socket-Headlight | FNLA | Not Available |
| 11 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $4.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Eureka Wire Splice 5 | 53214-2 | Not Available |
| 13 | Not Available | Eureka Screw Package | 53238-8 | Not Available |
| 14 | Not Available | Eureka Wheel & Axle Package | 53984-1 | Not Available |
| 15 | Not Available | Eureka Disturbulator Assembly | 54325-1 | Not Available |
| 16 | Not Available | Eureka Powerhead Motor Assembly | 54343-1 | Not Available |
| 17 | Not Available | Eureka Powerhead Hood/Base Kit | 54672-4 | Not Available |
| 18 | Not Available | Eureka Felt Washer | 56180 | Not Available |
| 19 | Not Available | Eureka Wire & Term Assembly | FNLA | Not Available |
| 20 | Not Available | Eureka Gasket - Felt | 57992 | Not Available |
| 21 | Not Available | Eureka Belt Package Assembly | 58065A | Not Available |
| 22 |  | Floor Nozzle, DuoCleanMAX Self-Cleaning AZ2000 Part Number: 1489FC2002 for Euro Pro | 1489FC2002 | $145.94Add to cart Product is special order please allow 2-4 weeks for delivery. |
