Schematic and parts list for: Eureka Model: 8293
This is a list of parts and a diagram and schematic for: Eureka Model: 8293
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Express Powerteam Canister
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Elbow | 25991-3 | Not Available |
| 02 | Not Available | Eureka Bristle Strip-Floor & Wall Brush | 33405 | Not Available |
| 03 | Not Available | Eureka Insert - Ringlock Brush | FNLA | Not Available |
| 04 | Not Available | Eureka Bleeder | 34272-5 | Not Available |
| 05 | Not Available | Eureka Insert-Floor & Wall Brush | 36877 | Not Available |
| 06 |  | Bissell inner tank bladder for ProHeat 2X Carpet Cleaner models: 8920, 8930, 9200, 9300, 9500 66Q4 9200A 8920 89203 8920V 8920W 8930 8930N 9200 92002 92003 92005 92008 9200B 9200C 9200H 9200R 9200T 9200U 9200W 9200Y 9200P 92006 92009 9200M 9200Q 9400S | 2036878 | $19.99Read more |
| 07 | Not Available | Eureka Brush | 46186 | Not Available |
| 08 | Not Available | Eureka Upholstery Nozzle Assembly | 53454-6 | Not Available |
| 09 | Not Available | Eureka Dusting Brush | 53455-4 | Not Available |
| 10 | Not Available | Eureka Hose Assembly | 53579-2 | Not Available |
| 11 | Not Available | Eureka Floor & Wall Brush & Elbow | 54309-6 | Not Available |
| 12 | Not Available | Eureka Tool - Crevice | 54355-1 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Cover - Bottom | 14110-1 | Not Available |
| 02 |  | Actuator, Translucent Scarlet On/Off DC19/DC21 Part Number: 912644-01 for Dyson | 91264401 | $9.37Read more |
| 03 | Not Available | Eureka Button - Cord Reel | 26442A-3 | Not Available |
| 04 | Not Available | Eureka Button - Switch | 26443A-11 | Not Available |
| 05 | Not Available | Eureka Guide - Cord | 26450-1 | Not Available |
| 06 | Not Available | Eureka Handle - Lower | 26663-6 | Not Available |
| 07 | Not Available | Eureka Switch Push | 36341-2 | Not Available |
| 08 | Not Available | Eureka Exhaust Filter | 37402 | Not Available |
| 09 | Not Available | Eureka Caster | 37403-1 | Not Available |
| 10 | Not Available | Eureka Sound Foam | 37408 | Not Available |
| 11 |  | Nozzle, Suction SpotBot 33N8 Series/78R5 2Pk | B-203-7483 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Eureka Plug | 37528-6 | Not Available |
| 13 | No Image | BODY, REAR SINGLE MOTOR BG15 Part Number: 203-7788 for Bissell | 2037788 | $66.34Read more |
| 14 | Not Available | Eureka Spring - Carpet Nozzle | 42797 | Not Available |
| 15 | Not Available | Eureka Paper Bag Pkg Assembly | 52358 | Not Available |
| 16 | Not Available | Eureka Tie - Cable | 53141 | Not Available |
| 17 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 18 | Not Available | Eureka Wire Nuts/ Pkg 10 | 53214-1 | Not Available |
| 19 | Not Available | Eureka Wire Splice 5 | 53214-3 | Not Available |
| 20 |  | Screw, Clamp SC888E/8284 Express 10Pk Part Number: 5323811 for Eureka | 5323811 | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Eureka Screw Package | 53238-8 | Not Available |
| 22 | Not Available | Eureka Tool Pack Assembly | 53850-28 | Not Available |
| 23 | No Image | TOOL COVER EXPRESS EUREKA 8280/8290 Part Number: 54274-1 for Eureka | 542741 | $22.96Read more |
| 24 | Not Available | Eureka Motor Assembly | 54292 | Not Available |
| 25 | Not Available | Eureka Nut - Hex | 55446 | Not Available |
| 26 | No Image | HOOD, WITH BASE BI-5701 POWER NOZZLE Part Number: 155463 for Built-In | 155463 | $66.90Read more |
| 27 | Not Available | Eureka Gasket - Shell | 55919-1 | Not Available |
| 28 | Not Available | Eureka Shell Gasket | FNLA | Not Available |
| 29 | Not Available | Eureka Clip - Furniture Guard | 55940-1 | Not Available |
| 30 | Not Available | Eureka Exhaust Cover Assembly | 56235-13 | Not Available |
| 31 | No Image | WASHER Part Number: 56376 for Eureka | 56376 | $4.40Read more |
| 32 | Not Available | Eureka Thermostat | 57580 | Not Available |
| # | Part image | Description | SKU | Price |

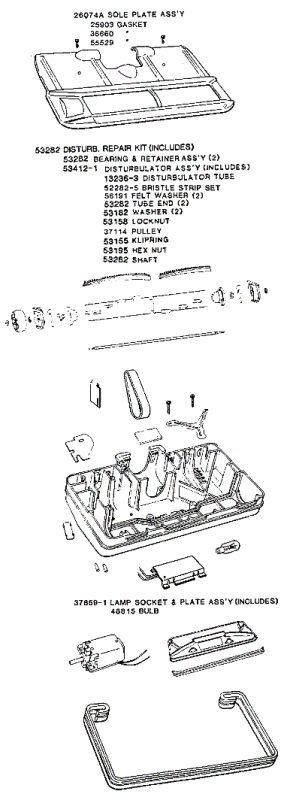

| xx | No Image | CLAMP ASS'Y, 5000 SERIES POWER DRIVE Part Number: 55282 for Eureka | 55282 | $2.65Read more |
| 01 | Not Available | Eureka Tube - Disturbulator | 13236-3 | Not Available |
| 02 | Not Available | Eureka Gasket - Sole Plate | FNLA | Not Available |
| 03 | Not Available | Eureka Window - Belt | 26028-1 | Not Available |
| 04 | Not Available | Eureka Lens | FNLA | Not Available |
| 05 | Not Available | Eureka Gasket - Sole Plate | FNLA | Not Available |
| 06 | Not Available | Eureka Cover - Grounding | 36954A | Not Available |
| 07 | No Image | VALVE, RECEIVER 7700 Part Number: 203-7114 for Bissell | 2037114 | $3.50Read more |
| 08 | Not Available | Eureka Power Head Lamp Assembly | 37859-1 | Not Available |
| 09 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $4.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Eureka Guard - Belt | 49110A | Not Available |
| 11 | Not Available | Eureka Belt Package Assembly | 52201D | Not Available |
| 12 | Not Available | Eureka Bristle Strip Package | 52282-5 | Not Available |
| 13 | Not Available | Eureka Klipring Package | 53155 | Not Available |
| 14 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $9.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Eureka Washer Package | 53182 | Not Available |
| 16 | Not Available | Eureka Nuts-Hex Package | FNLA | Not Available |
| 17 | Not Available | Eureka Wire Splice 5 | 53214-2 | Not Available |
| 18 | Not Available | Eureka Screw Package | 53238-8 | Not Available |
| 19 | Not Available | Eureka Disturbulator Repair Kit | 53282 | Not Available |
| 20 | Not Available | Eureka Disturbulator Assembly | 53412-1 | Not Available |
| 21 | Not Available | Eureka Motor Assembly | 53419-2 | Not Available |
| 22 | Not Available | Eureka Lens Housing & Graphics | 54087-11 | Not Available |
| 24 | Not Available | Eureka Felt Washer | FNLA | Not Available |

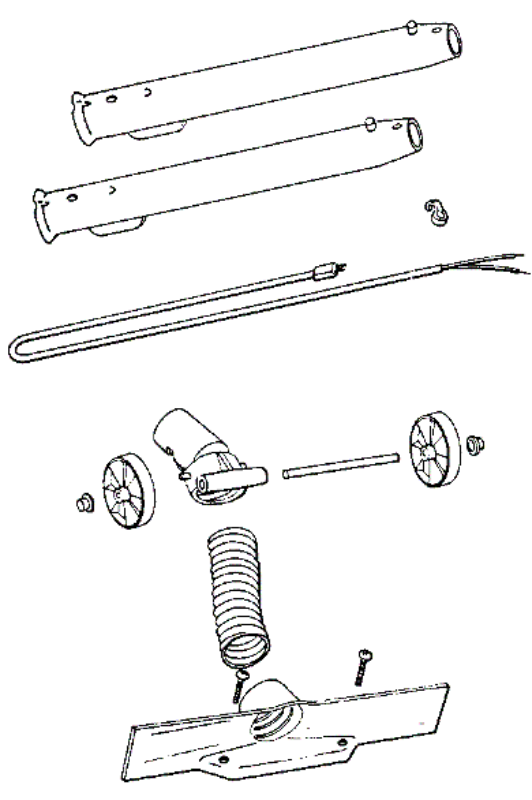

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Inlet - Divider | 12578B-1 | Not Available |
| 02 | Not Available | Eureka Hose | 25789-3 | Not Available |
| 03 | Not Available | Eureka Polarized Cord & Plug Assembly | 35970-13 | Not Available |
| 04 | Not Available | Eureka Wheel - Black | FNLA | Not Available |
| 05 | Not Available | Eureka Handle Socket Assembly | 36769-13 | Not Available |
| 06 | Not Available | Eureka Straight Wand Assembly | 36879-3 | Not Available |
| 07 | Not Available | Eureka Axle - Wheel | 48334 | Not Available |
| 08 |  | GROMMET, VICTORY CORD 10PK Part Number: 53190-1 for Eureka | 531901 | $6.52Read more |
| 09 | Not Available | Eureka Axle Bearing Pack | FNLA | Not Available |
| 10 | Not Available | Eureka Screw Package | 53238-20 | Not Available |
