Schematic and parts list for: Eureka Model: 8802
This is a list of parts and a diagram and schematic for: Eureka Model: 8802
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Capture
Popular Supplies
| # | Part image | Description | SKU | Price |

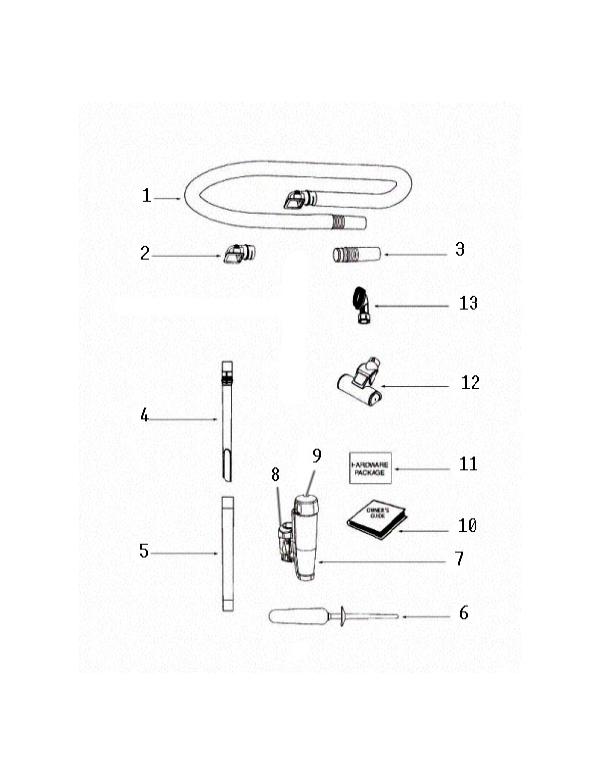

| 01 | Not Available | Eureka Hose Assembly | 61865-14 | Not Available |
| 02 | Not Available | Eureka Adapter - Hose 90Deg Elb | 77559-313N | Not Available |
| 03 | Not Available | Eureka Hose Coupling Overmolded | 78730 | Not Available |
| 04 | Not Available | Eureka Wand - Crevice | 78232-355N | Not Available |
| 05 | Not Available | Eureka Wand - Outer | 78231-355N | Not Available |
| 06 | Not Available | Eureka Electrostatic Duster Handle | 77560 | Not Available |
| 07 | Not Available | Eureka Cup - Duster | 77561-504N | Not Available |
| 08 |  | VALVE, DUSTER 8802AVZ Part Number: 65134 for Eureka | 65134 | $12.49Read more |
| 09 | Not Available | Eureka Air Inlet - Duster | 77562-489N | Not Available |
| 11 | Not Available | Eureka Package - Hardware | 78479 | Not Available |
| 12 | No Image | NOZZLE, TURBO 8802AVZ ORANGE Part Number: 77555 for Eureka | 77555 | $30.25Read more |
| 13 | Not Available | Eureka Combination Brush Bristled | 39379-1 | Not Available |
| # | Part image | Description | SKU | Price |

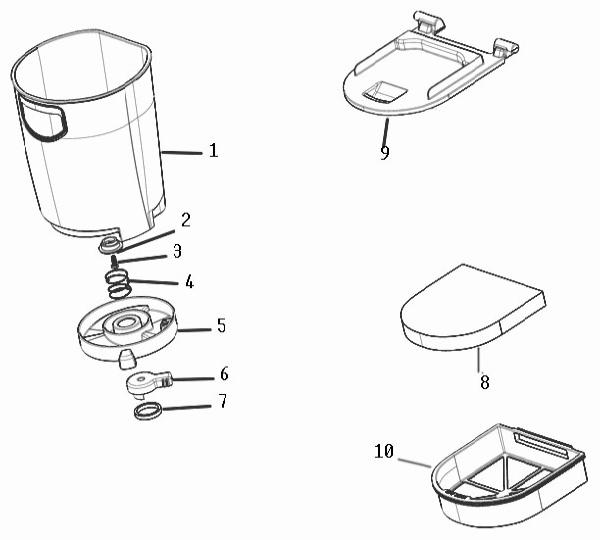

| 01 | Not Available | Eureka Dust Cup & Handle Assembly | 78437 | Not Available |
| 02 |  | Wheel with Axle Bissell repair part number: 1600775 | 1600775 | $5.34Read more |
| 03 |  | SCREW, 10 PK STAR DRIVE Part Number: 63310 for Eureka | 63310 | $6.66Read more |
| 04 | Not Available | Eureka Spring - Elevator | 78166 | Not Available |
| 05 | Not Available | Eureka Elevator - Cup | 77580-504N | Not Available |
| 06 | Not Available | Eureka Cam - Hepa | 77627-333N | Not Available |
| 07 | Not Available | Eureka Gasket - Hepa Cam | 78164 | Not Available |
| 08 | Not Available | Eureka Pre-Motor Filter Foam | 77583 | Not Available |
| 09 | Not Available | Eureka Pre-Motor Filter & Gasket | 78436 | Not Available |
| 10 | Not Available | Eureka Pre-Motor Frame & Gasket Assem | 80977 | Not Available |
| # | Part image | Description | SKU | Price |

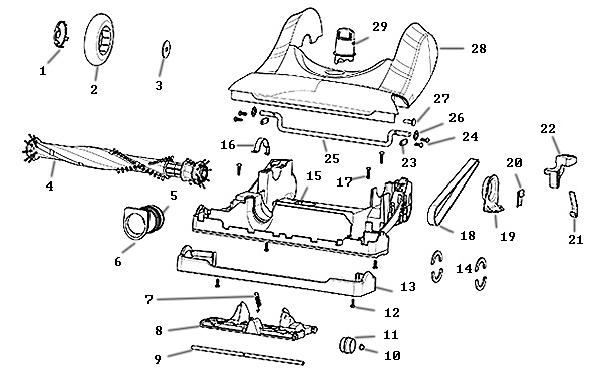

| 01 | Not Available | Eureka Hubcap - Rear Wheel | 77672-457P | Not Available |
| 04 |  | BRUSHROLL, 8802AVZ 8803AVZ 8810AVZ 8806BVZ NLA | E623654 | $36.95Read more |
| 05 | Not Available | Eureka Hose - Base | 77673-355N | Not Available |
| 06 | Not Available | Eureka Adapter - Base Hose | 78209-355N | Not Available |
| 07 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 | Not Available | Eureka Carriage - Wheel | 77661-355N | Not Available |
| 09 | Not Available | Eureka Axle - Front | 77651 | Not Available |
| 10 |  | Push Nut, Wheel Retaining 8806/8807/8852/8853 10Pk Part Number: 53121-1 for Eureka | 531211 | $11.03Read more |
| 11 | Not Available | Eureka Wheel Overmold Assembly | 77978-355N | Not Available |
| 12 | Not Available | Eureka Screw | 53238-8 | Not Available |
| 13 |  | Janome Continental M7 Professional Sewing Machine | 001M7 | Original price was: $7,999.00.$4,999.00Current price is: $4,999.00.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Eureka Gasket - Felt | 77658 | Not Available |
| 15 | Not Available | Eureka Base Assembly | 65128 | Not Available |
| 16 | Not Available | Eureka Clamp - Motor | 74825 | Not Available |
| 17 | Not Available | Eureka Screw Package | 53238-27 | Not Available |
| 18 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| 19 | Not Available | Eureka Clamp - Motor | 77656 | Not Available |
| 20 | Not Available | Eureka Guard - Belt | 74822 | Not Available |
| 28 | Not Available | Eureka Hood Assembly | 65130-2 | Not Available |
| 29 | Not Available | Eureka Knob - Height Adjustment | 77649-469P | Not Available |
| # | Part image | Description | SKU | Price |

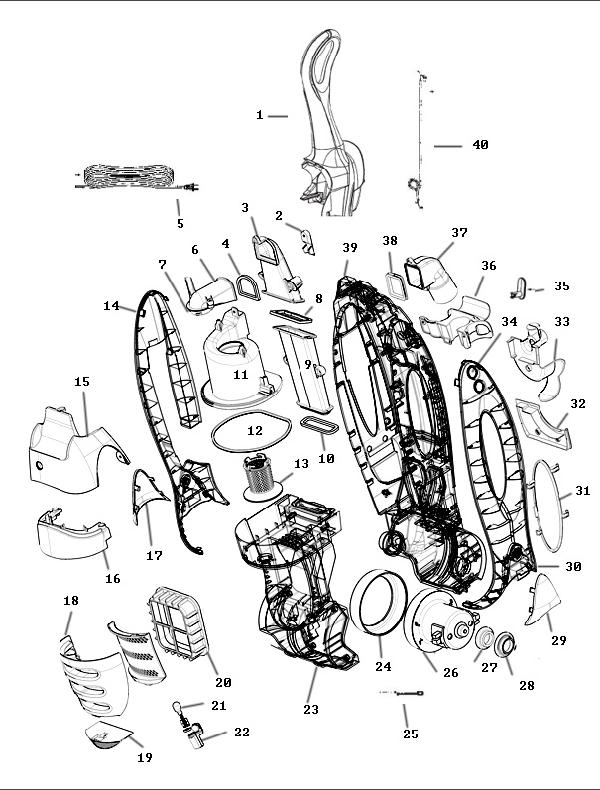

| xx | Not Available | Eureka Gasket - Rear Housing | 78669 | Not Available |
| 01 | Not Available | Eureka Handle Assembly | 78459-1 | Not Available |
| 02 | Not Available | Eureka Clip - Turbo | 77554-355N | Not Available |
| 03 | Not Available | Eureka Back Air Tube & Gasket | 78418 | Not Available |
| 04 | Not Available | Eureka Gasket - Back Air Tube | 77588 | Not Available |
| 05 | Not Available | Eureka Supply Cord Assembly | 78411 | Not Available |
| 06 | Not Available | Eureka Elbow - Cyclone Air Tube | 77576-355N | Not Available |
| 07 | Not Available | Eureka Gasket - Cyclone Air Tube | 78593 | Not Available |
| 08 | Not Available | Eureka Gasket - Front Tube Top | 77579 | Not Available |
| 09 | Not Available | Eureka Front Tube & Gasket Assembly | 78417 | Not Available |
| 10 | Not Available | Eureka Gasket - Front Air Tube | 77591 | Not Available |
| 11 | Not Available | Eureka Cyclone | 77575-313N | Not Available |
| 12 | Not Available | Eureka Gasket - Cyclone | 77571 | Not Available |
| 13 | Not Available | Eureka Screen - Filter | 77578-366N | Not Available |
| 14 | Not Available | Eureka Ear - Right Duster | 77631-489N | Not Available |
| 15 | Not Available | Eureka Cyclone Cover Assembly | 65132 | Not Available |
| 16 | Not Available | Eureka Cover - Cyclone | 77967-504N | Not Available |
| 17 | Not Available | Eureka Pod - Right | 77970-457P | Not Available |
| 18 |  | Brushroll, B1501 Part Number: 155222 for Built-In | 155222 | $37.94Read more |
| 19 | Not Available | Eureka Lens - Headlight | 77707-313N | Not Available |
| 20 |  | HEPA Vacuum Filters for Eureka HF-10 Upright Models 8800, 8850, 8900 2 Filters | 836301009363 | $17.99Read more |
| 21 | Not Available | Eureka Lamp - Headlight | 57940-3 | Not Available |
| 22 | Not Available | Eureka Headlight Assembly Overmolded | 78195 | Not Available |
| 23 | Not Available | Eureka Motor Cover Assembly | 65131 | Not Available |
| 24 | Not Available | Eureka Gasket - Motor Can | 77623-119N | Not Available |
| 26 | Not Available | Eureka Motor Assembly | 65136 | Not Available |
| 27 | Not Available | Eureka Ring - Motor Adjustment | 78792-119N | Not Available |
| 28 | Not Available | Eureka Bushing - Motor | 77624-119N | Not Available |
| 29 | Not Available | Eureka Pod - Left | 77969-457P | Not Available |
| 30 | Not Available | Eureka Ear - Left Switch Only | 77632-489N | Not Available |
| 31 | Not Available | Eureka Cover - Ear | 78165-504N | Not Available |
| 32 | Not Available | Eureka Plate - Cover | 78150-355N | Not Available |
| 33 | Not Available | Eureka Retainer - Hose Lower | 77647A-355N | Not Available |
| 34 | Not Available | Eureka Switch - 2 Position | 76621-1 | Not Available |
| 35 | Not Available | Eureka Release - Cord | 72756-355N | Not Available |
| 36 | Not Available | Eureka Handle - Carry | 77966-355N | Not Available |
| 37 | Not Available | Eureka Adapter - Hose 90Deg Elb | 77559-313N | Not Available |
| 38 | Not Available | Eureka Gasket - Cyclone Hose Ad | 77592 | Not Available |
| 39 | Not Available | Eureka Rear Housing Assembly | 65135 | Not Available |
| 40 | Not Available | Eureka Jumper Cord Assy | 78410 | Not Available |
