Schematic and parts list for: Eureka Model: 970
This is a list of parts and a diagram and schematic for: Eureka Model: 970
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Mini Canister

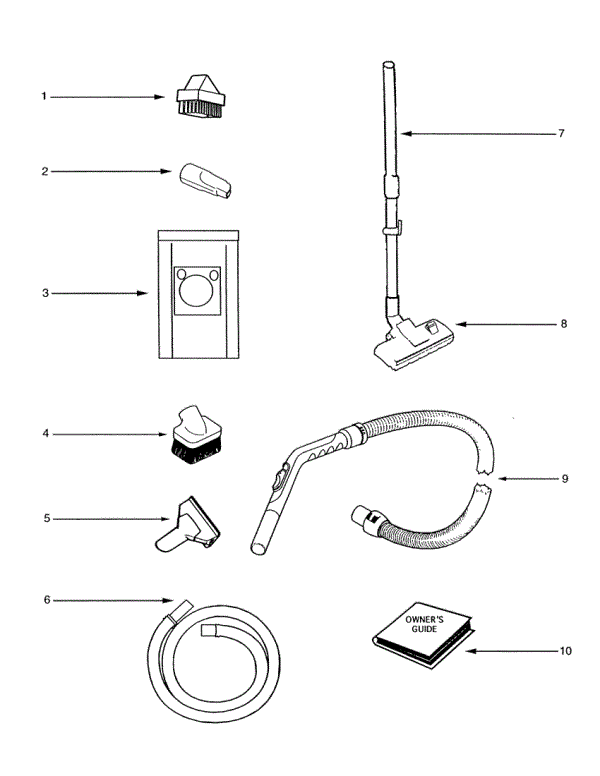

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Dusting Brush | 61554 | Not Available |
| 02 | Not Available | Eureka Crevice Tool | 61553 | Not Available |
| 03 | Not Available | Eureka Paper Bag Package - Style | 61555 | Not Available |
| 04 | Not Available | Eureka Large Dusting Brush(972) | 61720 | Not Available |
| 05 | Not Available | Eureka Upholstery Nozzle | 61719 | Not Available |
| 06 |  | Aftermarket Miele Dusting Brush - Compatible with Miele Part SUB10 | 32161564 | $9.99Add to cart |
| 07 | Not Available | Eureka Steel Telescopic Wand Set | 61559 | Not Available |
| 08 | Not Available | Eureka Floor Brush | 61558 | Not Available |
| 09 | Not Available | Eureka Hose Assembly - Cartoned | 61563 | Not Available |
| 10 | Not Available | Eureka Owner's Guide | 71572 | Not Available |

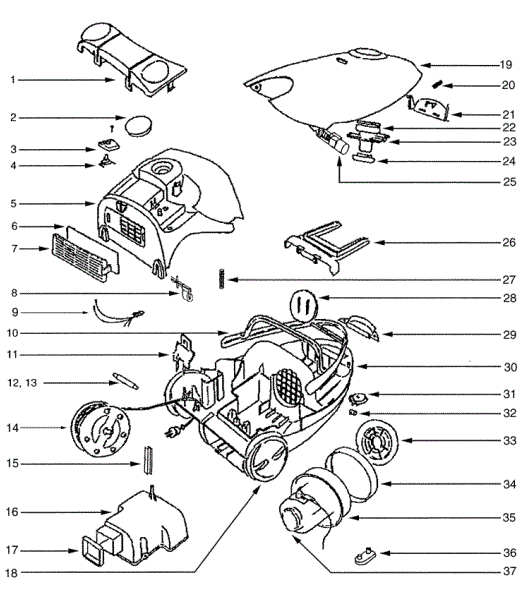

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Pedal Plate - Pkgd | 61571 | Not Available |
| 02 | Not Available | Eureka Decoration Knob | 61586 | Not Available |
| 03 | Not Available | Eureka Switch Cover | 61585 | Not Available |
| 04 | Not Available | Eureka Switch | 61584 | Not Available |
| 05 | Not Available | Eureka Rear Cover - Pkgd | 61594 | Not Available |
| 06 | Not Available | Eureka Outlet Filter | 61548 | Not Available |
| 07 | Not Available | Eureka Air Outlet Grid | 61590 | Not Available |
| 08 | Not Available | Eureka Cord Reel Brake | 61597 | Not Available |
| 09 | Not Available | Eureka Thermostat | 61582 | Not Available |
| 10 | No Image | ***USE E-16156-7 BRUSHROLL, AS2020 UPRT COMPLET Part Number: 16156-6 for Eureka | 161566 | $22.04Read more |
| 11 | Not Available | Eureka Cord Outlet Window | 61592 | Not Available |
| 12 | Not Available | Eureka Cord Guide Wheel | 61599 | Not Available |
| 13 | Not Available | Eureka Cord Guide Shaft | 61603 | Not Available |
| 14 | No Image | CORD REEL, W/CORD 972 Part Number: 61593 for Eureka | 61593 | $30.65Read more |
| 15 | Not Available | Eureka Tighener | 61598 | Not Available |
| 16 | Not Available | Eureka Motor Mask | 61587 | Not Available |
| 17 | Not Available | Eureka Motor Sealing Bar | 61588 | Not Available |
| 18 | Not Available | Eureka Rear Wheel | 61568 | Not Available |
| 19 | Not Available | Eureka Front Cover - Pkgd | 61565 | Not Available |
| 20 | Not Available | Eureka Spring | 61572 | Not Available |
| 21 | Not Available | Eureka Front Cover Lock | 61573 | Not Available |
| 22 | No Image | MOTOR, SERIAL #2-90-02 Part Number: 461570 for Koblenz | 461570 | $196.80Read more |
| 23 | Not Available | Eureka Suction Duct | 61580 | Not Available |
| 24 | Not Available | Eureka Rubber Seal Ring | 61569 | Not Available |
| 25 | Not Available | Eureka Air Flow Indicator | 61595 | Not Available |
| 26 | Not Available | Eureka Dust Bag Stand | 61583 | Not Available |
| 27 | No Image | SPRING, 972 Part Number: 61596 for Eureka | 61596 | $3.44Read more |
| 28 | Not Available | Eureka Inlet Filter | 61549 | Not Available |
| 29 | Not Available | Eureka Handle Plate | 61574 | Not Available |
| 30 | Not Available | Eureka Lower Shell | 61567 | Not Available |
| 31 | Not Available | Eureka Front Wheel Seat | 61575 | Not Available |
| 32 | Not Available | Eureka Front Wheel | 61576 | Not Available |
| 33 | Not Available | Eureka Motor Seal Ring | 61577 | Not Available |
| 34 | Not Available | Eureka Motor Seal | 61578 | Not Available |
| 35 | Not Available | Eureka Motor Assembly Cartoned | 61579 | Not Available |
| 36 | Not Available | Eureka Wand Stand | 61604 | Not Available |
| 37 | Not Available | Eureka Motor Support | 61589 | Not Available |
