Schematic and parts list for: Eureka Model: 9856AT
This is a list of parts and a diagram and schematic for: Eureka Model: 9856AT
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Bravo Upright
Popular Supplies

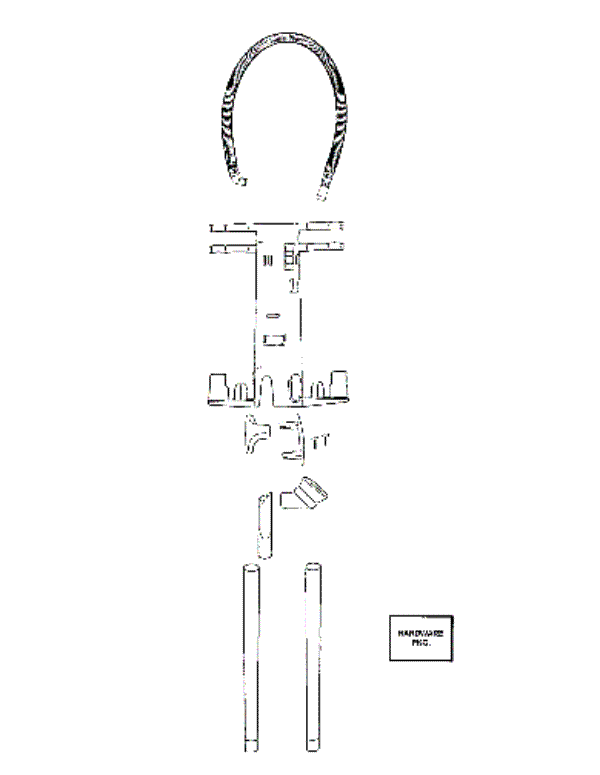

| # | Part image | Description | SKU | Price |
| 1 | No Image | CARRY HANDLE, BRAVO ALL MODELS Part Number: 27195-2 for Eureka | 271952 | $3.88Read more |
| 2 | Not Available | Eureka Hardware Package | 38302-1 | Not Available |
| 3 |  | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 4 |  | Wand, 19" Blk Plstc Ext 1-Pc Upright/Canister Part Number: 140703 for Eureka | 140703 | $11.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Crevice Tool, 4467 Part Number: 272373 for Eureka | 272373 | $7.53Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Upholstery Tool, Black Excalibur Part Number: 382843 for Eureka | 382843 | $9.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Eureka Dusting Brush - Packaged | 54505-3 | Not Available |
| 8 | Not Available | Eureka Hose Assembly - Cartoned | 60038-1 | Not Available |

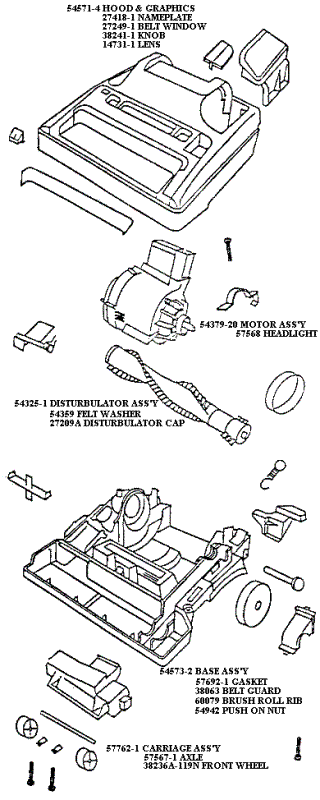

| # | Part image | Description | SKU | Price |
| 1 | No Image | LENS, CLEAR 9875 Part Number: 14731-1 for Eureka | 147311 | $6.49Read more |
| 2 | Not Available | Eureka Wheel/Bushing Package | 61875-1 | Not Available |
| 3 | No Image | HANDLE RELEASE, BRAVO ALL MODELS Part Number: 27202A-1. for Eureka | 27202A1 | $57.38Read more |
| 4 | Not Available | Eureka Mtl Cap - Disturbulator | 27209A | Not Available |
| 5 | Not Available | Eureka Window Belt | 27249-1 | Not Available |
| 6 | No Image | SWITCH PEDAL, BRAVO MOST BLACK Part Number: 27251-1 for Eureka | 272511 | $6.66Read more |
| 7 | Not Available | Eureka Nameplate | 27418-1 | Not Available |
| 8 |  | Axle, Rear 68C7 Upright/12B1 PowerForce Helix Part Number: 203-8063 for Bissell | 2038063 | $4.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Eureka Wheel - Front | 38236B-119N | Not Available |
| 10 | Not Available | Eureka Slide | 38240-1 | Not Available |
| 11 | Not Available | Eureka Knob | 38241-1 | Not Available |
| 12 | Not Available | Eureka Axle - Rear | 38242 | Not Available |
| 13 | Not Available | Eureka Clamp - Motor | 38243-1 | Not Available |
| 14 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $1.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 16 | Not Available | Eureka Screw Package | 53238-8 | Not Available |
| 17 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| 18 | Not Available | Eureka 12" Distrubulator Assembly | 60858-1 | Not Available |
| 19 | Not Available | Eureka Package - Felt Washer | 54359 | Not Available |
| 20 | Not Available | Eureka Belt Cap & Gasket - Package | 54376-2 | Not Available |
| 21 | Not Available | Eureka Motor Assembly | 54379-118 | Not Available |
| 22 | No Image | CARRIAGE CLIP Part Number: 54417-1 for Eureka | 544171 | $0.76Read more |
| 23 | Not Available | Eureka Hood Assembly | 54571-4 | Not Available |
| 24 | No Image | BASE, BRAVO MODEL 9834A/ AT Part Number: 54573-3 for Eureka | 545733 | $36.66Read more |
| 25 | Not Available | Eureka Hose Assembly - Cartoned | 60289-6 | Not Available |
| 26 | Not Available | Eureka Replacement Diverter Valve | 54821B | Not Available |
| 27 | Not Available | Eureka Push-On Nut - Packaged | 54942 | Not Available |
| 28 | Not Available | Eureka Axle - Wheel | 57567-1 | Not Available |
| 29 | Not Available | Eureka Light Bulb | 57568 | Not Available |
| 30 | No Image | GASKET, Part Number: 57692-1 for Eureka | 576921 | $2.35Read more |
| 31 | Not Available | Eureka Carriage Assembly | 57762-1SV | Not Available |
| 32 | Not Available | Eureka Brush Roll Rib Package | 60079 | Not Available |

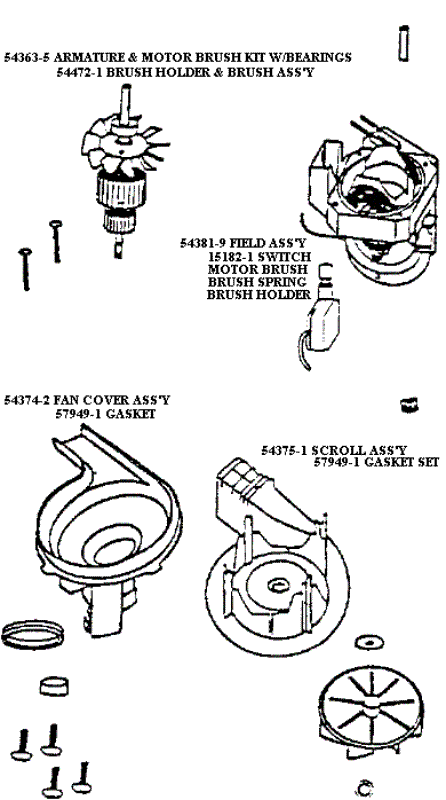

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Switch (Bravo) | 15182-1 | Not Available |
| 2 | No Image | GASKET, FAN COVER BRAVO ALL MODELS Part Number: 27171A for Eureka | 27171A | $4.55Read more |
| 3 | Not Available | Eureka Impeller | 27930 | Not Available |
| 4 | No Image | SCREW, HANDLE BRAVO SOFT BODY 10PK Part Number: 5323818 for Eureka | 5323818 | $7.22Read more |
| 5 | Not Available | Eureka Screw Package | 53238-38 | Not Available |
| 6 | Not Available | Eureka Motor Assembly - Packaged | 54379-120 | Not Available |
| 7 | Not Available | Eureka Fan Cover - Package | 54374-3 | Not Available |
| 8 | Not Available | Eureka Scroll Assembly - Pack | 54375-2 | Not Available |
| 9 | No Image | MOTOR HOUSING PLUG, BRAVO ALL MODELS Part Number: 54406 for Eureka | 54406 | $6.49Read more |
| 10 |  | NUT, FAN BRAVO HARD BODY Part Number: 54413 for Eureka | 54413 | $2.44Read more |
| 11 | Not Available | Eureka Brush Holder & Brush Assembly | 54472-2 | Not Available |
| 12 |  | Washer, Between Fan/Lower Bearing Bravo/World Vac Part Number: 54811 for Eureka | 54811 | $4.08Add to cart |
| 13 | Not Available | Eureka Nut - Hex | 55446 | Not Available |
| 14 | No Image | SEAL, MOTOR GASKET BRAVO Part Number: 57949-1 for Eureka | 579491 | $4.55Read more |
| 15 | Not Available | Eureka Internal Lockwasher - Package | 60106 | Not Available |

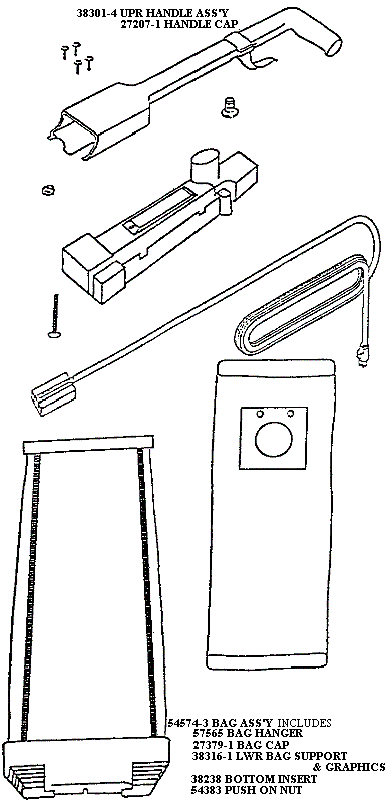

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Handle - Lower | 02061-1 | Not Available |
| 2 | Not Available | Eureka Cap Handle | 27207-1 | Not Available |
| 3 | Not Available | Eureka Clip - Hose | 27306-1 | Not Available |
| 4 | Not Available | Eureka Cord & Plug Assembly | 27535A-2 | Not Available |
| 5 | Not Available | Eureka Insert - Bottom | 38238 | Not Available |
| 6 | No Image | HANDLE, UPPER BRAVO ALL MODELS Part Number: 38301-4 for Eureka | 383014 | $10.55Read more |
| 7 | Not Available | Eureka Bag Support Lower | 38316-1 | Not Available |
| 8 | Not Available | Eureka Nuts - Package 10 | 53213-5 | Not Available |
| 9 | No Image | SCREW,:( HANDLE CONNCTN BRAVO SFT BODY 10 PK Part Number: 53218-1 for Eureka | 532181 | $6.52Read more |
| 10 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 11 | Not Available | Eureka Snap Pin Package 10 | 53536-3 | Not Available |
| 12 | No Image | PUSH NUT, BAG ASSY BRAVO 9334A/AT & 9615A/AT Part Number: 54383 for Eureka | 54383 | $2.35Read more |
| 13 | Not Available | Eureka Bag Assembly - Black | 54574-5 | Not Available |
| 14 | Not Available | Eureka Hanger Bag | 57565 | Not Available |
| 15 | Not Available | Eureka U Filteraire Package | 57802A | Not Available |
