Schematic and parts list for: Eureka Model: 990A
This is a list of parts and a diagram and schematic for: Eureka Model: 990A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: AirExcel Compact NLS Canister
| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka Owners Guide | 85775 | Not Available |
| 1 | Not Available | Eureka Chromed Telescopic Wand | 12-201-011-000-00-H001 | Not Available |
| 2 | Not Available | Eureka Hose Assembly Cartoned | 16110-2 | Not Available |
| 3 | Not Available | Eureka Crevice Nozzle | 15-94-201-01-H101 | Not Available |
| 4 | Not Available | Eureka Upholstery Brush Assembly | 15-110-201-01-H101 | Not Available |
| 5 | Not Available | Eureka Brush Assembly | 11-199-101-06-01-01-H001 | Not Available |

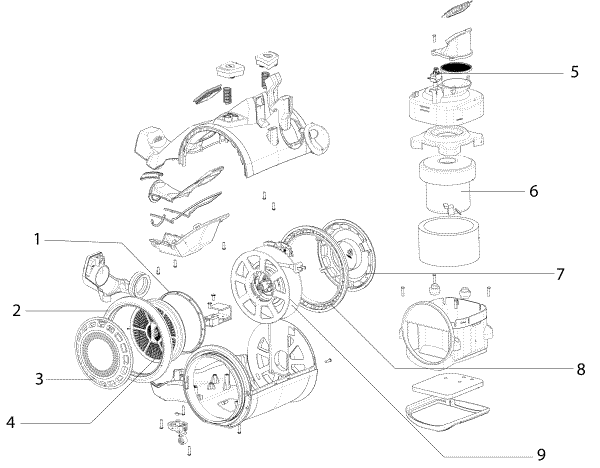

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Hepa Seal Ring | 1187-1022-201-00-H101 | Not Available |
| 2 | Not Available | Eureka Left Wheel Assembly | 1187-10059-005-01-H001 | Not Available |
| 3 | Not Available | Eureka Air Outlet Grid | 1187-1026-6403-00-H101 | Not Available |
| 4 | Not Available | Eureka Exhaust Filter | 86015 | Not Available |
| 5 | Not Available | Eureka Switch | 16-2130-141-14-H001 | Not Available |
| 6 | Not Available | Eureka Motor Assembly Cartoned | 61579-9 | Not Available |
| 7 | Not Available | Eureka Wheel Cover | 1187-1027-6403-00-H101 | Not Available |
| 8 | Not Available | Eureka Right Wheel Assembly | 1187-10060-005-01-H001 | Not Available |
| 9 | Not Available | Eureka Cord Reel Assembly | 14-74-299-000-00-H001 | Not Available |

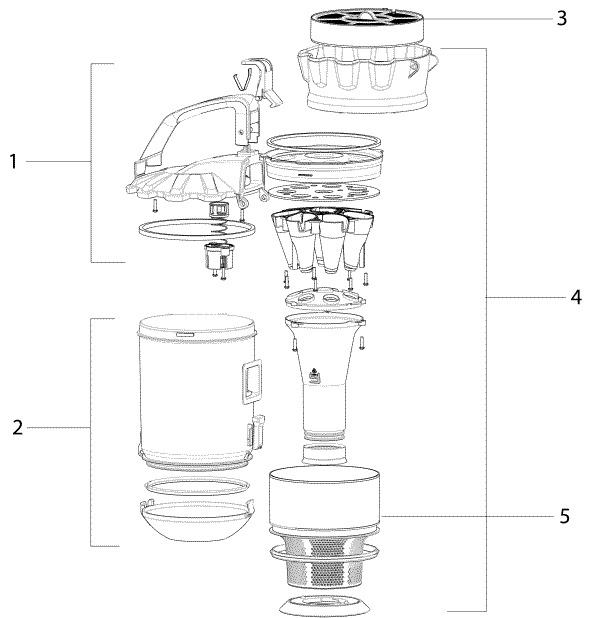

| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka | FNLA | Not Available |
| 1 | Not Available | Eureka Dust Cup Lid Assembly | 1187-10101-000-00-H001 | Not Available |
| 2 | Not Available | Eureka Cup & Bottom Door Assembly | 1187-10103-000-00-H101 | Not Available |
| 3 | Not Available | Eureka Pos-Dust Cup Filter | 86051 | Not Available |
| 4 | Not Available | Eureka Cyclone Assembly | 1187-10100-000-00-H001 | Not Available |
| 5 | Not Available | Eureka Filter Screen Assembly | 1187-10102-000-00-H101 | Not Available |
