Schematic and parts list for: Eureka Model: AS2013AA
This is a list of parts and a diagram and schematic for: Eureka Model: AS2013AA
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Air Speed Upright
Popular Supplies

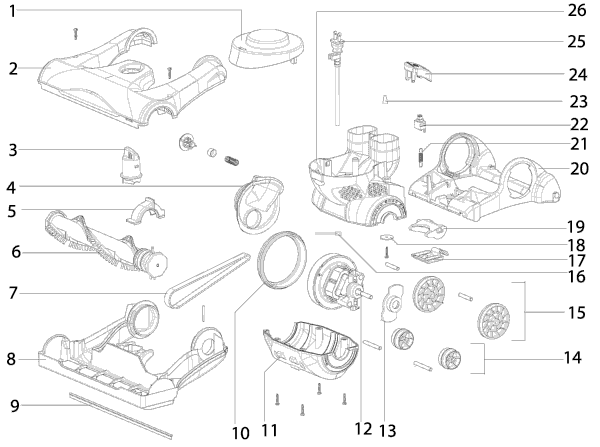

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Facia - Id Front | 090169-119N | Not Available |
| 2 | Not Available | Eureka Hood Assembly - Packaged | 16128-18 | Not Available |
| 3 | Not Available | Eureka Knob - Height Adjustment | 090183-355N | Not Available |
| 4 | Not Available | Eureka Airtube (Dirty Air Elbow) | 090262-119N | Not Available |
| 5 | Not Available | Eureka Cap - Belt | 090164-119N | Not Available |
| 6 |  | Brushroll, As2000/As2013A | E-16156-3 | $17.99Read more |
| 7 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| 8 | Not Available | Eureka Base (Lower Brushroll Cov | 090163-119N | Not Available |
| 9 | Not Available | Eureka Wiper Blade | 85148-3 | Not Available |
| 10 | Not Available | Eureka Gasket - Motor Can | 090165-316N | Not Available |
| 11 | Not Available | Eureka Housing - Lower Motor | 090170-119N | Not Available |
| 12 | Not Available | Eureka Motor Assembly Cartoned | 62431-8 | Not Available |
| 13 | Not Available | Eureka Bushing - Motor Mount | 090166-316N | Not Available |
| 14 | Not Available | Eureka Wheel & Axle Kit | 16214-1 | Not Available |
| 15 | Not Available | Eureka Wheel & Axle Kit | 16214-2 | Not Available |
| 16 | Not Available | Eureka Thermostat & Terminal Assy | 39252-21 | Not Available |
| 17 | Not Available | Eureka Clip - Detent | 090256-119N | Not Available |
| 18 | Not Available | Eureka Washer - Fiber | 74178 | Not Available |
| 19 | Not Available | Eureka Lever - Kickup | 090171-355N | Not Available |
| 20 | Not Available | Eureka Wheel Carriage | 090158-355N | Not Available |
| 21 | Not Available | Eureka Spring Package | 54943-6 | Not Available |
| 22 | Not Available | Eureka Switch Assembly | 81142-1 | Not Available |
| 23 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 24 | Not Available | Eureka Button - Switch Pedal | 090176-355N | Not Available |
| 25 | No Image | CORD,SUPPLY AS2013 Part Number: 39585-48 for Eureka | 3958548 | $18.30Read more |
| 26 | Not Available | Eureka Cover - Motor Housing | 090167-119N | Not Available |

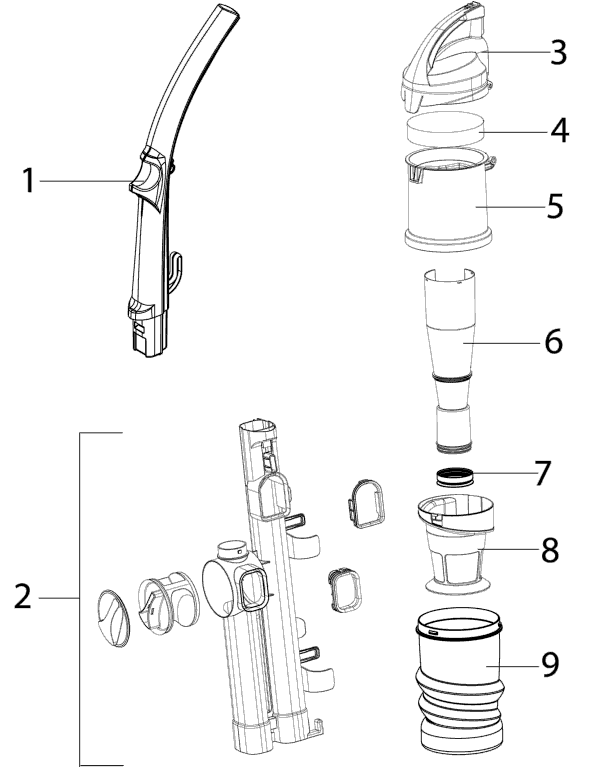

| # | Part image | Description | SKU | Price |
| 1 |  | Hoover Exhaust Filter for UH70210 | H902404001 | $4.99Read more |
| 2 | Not Available | Eureka Backbone Assy (Opp Bagles | 090219-4 | Not Available |
| 3 | Not Available | Eureka Lid - Cup | 090191-119N | Not Available |
| 4 |  | Eureka DCF-26 Genuine Washable Foam Filter 68465a | 023169136748 | $7.95Read more |
| 5 | Not Available | Eureka Upper Cyclone & Graphics | 090265-1 | Not Available |
| 6 | Not Available | Eureka Cyclone | 090186-692N | Not Available |
| 7 | Not Available | Eureka Seal - Fines | 090244-119N | Not Available |
| 8 | Not Available | Eureka Shroud - Cyclone | 090189-692N | Not Available |
| 9 | Not Available | Eureka Cup & Helix Assembly | 90305 | Not Available |

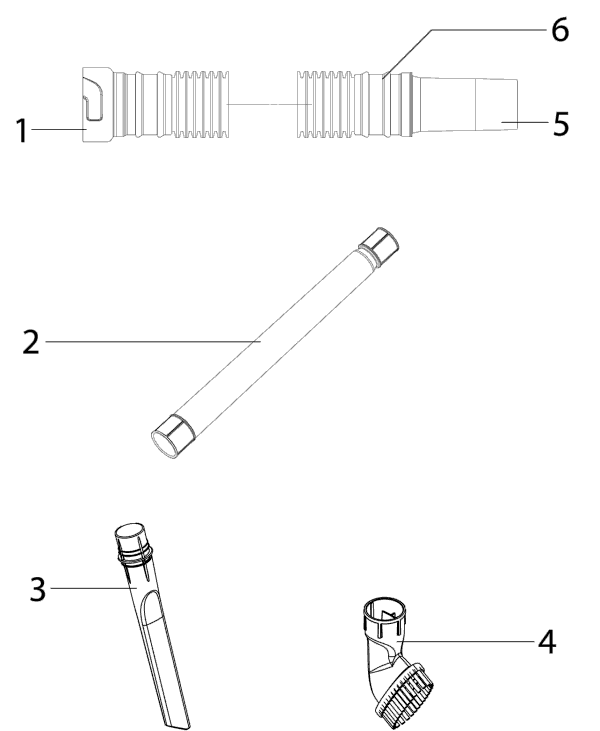

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Adaptor - Hose Backbone | 090254-119N | Not Available |
| 2 | Not Available | Eureka Wand | 090199-119N | Not Available |
| 3 | Not Available | Eureka Tool - Crevice | 090230-355N | Not Available |
| 4 | Not Available | Eureka Combination Brush Assy-Br | 90221 | Not Available |
| 5 | Not Available | Eureka Wand - Short | 090198-119N | Not Available |
| 6 | Not Available | Eureka Hose Assembly - Cartoned | 16130-5 | Not Available |
| 7 | No Image | CARBON BRUSH, :[ 88/89/99 Part Number: 700987300 for Cirrus | 700987300 | $14.70Read more |
