Schematic and parts list for: Hoover Model: C1069
This is a list of parts and a diagram and schematic for: Hoover Model: C1069
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx |  | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 4 |  | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| 5 |  | Brush Strip, :( Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover | 160646BZ | $6.21Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Furniture Brush-AG | 43414016 | Not Available |
| 4 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Hoover Swivel Connector-A | 38644020 | Not Available |
| 7 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 8 | Not Available | Hoover Brush Back-S3273-S3 | 48447001 | Not Available |
| 9 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 12 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 13 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 24 | Not Available | Hoover Converter Body Assem | 43482097 | Not Available |
| 25 | Not Available | Hoover Tool Bag U3P03 | 58544004 | Not Available |
| 28 | Not Available | Hoover Hose Sleeve-BZ | 32156010 | Not Available |
| 28 |  | Pcb Board-Titan T9000 - T9500 - Canister For: titan | 591012131 | $38.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 33 | Not Available | Hoover Latch Ring-MV-S3 | 36153021 | Not Available |
| 47 | Not Available | Hoover Extension Wand 211 | 43458001 | Not Available |
| 48 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Hood JM/LU-U4321 | 42251107 | Not Available |
| 2 | Not Available | Hoover Indicator Lens | 48111008 | Not Available |
| 3 | Not Available | Hoover Panel-LB-C1069 | 37246039 | Not Available |
| 4 | Not Available | Hoover Furniture Guard-LY-C | 36231031 | Not Available |
| 5 | Not Available | Hoover Rivet | 12997AW- | Not Available |
| 6 | Not Available | Hoover Washer | 168278AY | Not Available |
| 7 | Not Available | Hoover Rivet | 21256134 | Not Available |
| 8 | Not Available | Hoover Screw | 015738EF | Not Available |
| 9 | Not Available | Hoover Baffle-C1085 | 34287012 | Not Available |
| 10 | Not Available | Hoover Retainer | 34312011 | Not Available |
| 11 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 12 | Not Available | Hoover Wire Nut | 048969- | Not Available |
| 13 | No Image | MOTOR, 1 SPEED COMM 1067/1111 W/GUIDE Part Number: 43574192 for Hoover | 43574192 | $162.40Read more |
| 14 | Not Available | Hoover Screw | 017001FW | Not Available |
| 15 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 16 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.78Read more |
| 17 |  | BASE, C1069 UPRIGHT Part Number: 42242219 for Hoover | 42242219 | $64.50Read more |
| 18 | Not Available | Hoover Support Washer- Uprig | 21312781 | Not Available |
| 19 | Not Available | Hoover Rivet | 048422- | Not Available |
| 20 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $2.26Read more |
| 21 | No Image | SPRING, BOTTOM PLATE Part Number: 012138FW for Hoover | 012138FW | $3.73Read more |
| 22 | Not Available | Hoover Rivet-Semi Tubular | 012503EF | Not Available |
| 23 | Not Available | Hoover Agitator Assem Comp- | 41435005 | Not Available |
| 24 | Not Available | Hoover Frontwheel Shaft | 047457AY | Not Available |
| 25 | Not Available | Hoover Washer | 21312724 | Not Available |
| 26 | Not Available | Hoover Front Wheel | 34791AG- | Not Available |
| 27 | Not Available | Hoover Lock Ring | 013730- | Not Available |
| 28 | Not Available | Hoover Screw-U4581-910 | 21447220 | Not Available |
| 29 | Not Available | Hoover Screw-Self Tapping | 21447229 | Not Available |
| 30 | | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 32 | Not Available | Hoover Support Pad | 34111001 | Not Available |
| 33 | Not Available | Hoover Latch-C1K01 | 36153006 | Not Available |
| 34 | Not Available | Hoover Screw-C1085 | 21479347 | Not Available |
| 35 | Not Available | Hoover Axle/Bag Flange Reta | 35434040 | Not Available |
| 36 | Not Available | Hoover Wheel Retainer | 32182001 | Not Available |
| 37 | No Image | WHEEL, :( REAR EARLY CONVERTIBLE Part Number: 38521041 for Hoover | 38521041 | $4.20Read more |
| 38 | Not Available | Hoover Spring | 161513- | Not Available |
| 39 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 40 | Not Available | Hoover Rear Wheel Shaft | 33152003 | Not Available |
| 41 | Not Available | Hoover Cam Follower-Plastic | 43263003 | Not Available |
| 42 | Not Available | Hoover Bail Shaft | 161509AY | Not Available |
| 43 | Not Available | Hoover Indicator-AG-Printed | 51151034 | Not Available |
| 44 | Not Available | Hoover Handle Cont Rol Pin | 011735- | Not Available |
| 45 | Not Available | Hoover Screw | 21447020 | Not Available |
| 46 | Not Available | Hoover Bag Flange Clamp Lever | 019907- | Not Available |
| 47 | Not Available | Hoover Spring-Bag Flange Clamp | 048409FW | Not Available |
| 48 | Not Available | Hoover Pivot Pin | 047450AY | Not Available |
| 49 | Not Available | Hoover HDL Cont Lever-AG | 43137047 | Not Available |
| 50 | Not Available | Hoover Foot Pad-AG-C1E03 | 38426080 | Not Available |
| 51 | Not Available | Hoover Handle Nut | 32277021 | Not Available |
| 52 |  | Kit, Bag Docking W/Hinge & Clip Part Number: 440013704 for Oreck | 440013704 | $17.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | Not Available | Hoover Noz Adj Lever-AG | 38456044 | Not Available |
| 54 | Not Available | Hoover Bail-Ag-C1E03 | 41416038 | Not Available |
| 55 | No Image | CORD, C1433 Part Number: 46321033 for Hoover | 46321033 | $19.25Read more |
| 56 | Not Available | Hoover Bail Grip 65 | 034192- | Not Available |
| 57 | Not Available | Hoover Screw | 21481752 | Not Available |
| 58 | Not Available | Hoover Handle Clamp Bolt | 21631301 | Not Available |
| 59 | Not Available | Hoover Handle Retainer Plat | 35463011 | Not Available |
| 60 | Not Available | Hoover Lower Handle-Ax | 32284018 | Not Available |
| 61 | Not Available | Hoover Insulator | 36913007 | Not Available |
| 62 | Not Available | Hoover Handle Comp-Ax-C1069 | 48644043 | Not Available |
| 63 | Not Available | Hoover Upper Handle-Ax | 48644041 | Not Available |
| 64 | Not Available | Hoover Handle Grip | 023458LY | Not Available |
| 65 | No Image | CORD, UPPER HANDLE W/PLUG U7063 Part Number: 47155005 for Hoover | 47155005 | $12.26Read more |
| 66 | Not Available | Hoover Cord Retainer | 34253010 | Not Available |
| 67 | Not Available | Hoover Switch Case | 37214070 | Not Available |
| 68 | Not Available | Hoover Switch | 281770KD | Not Available |
| 70 | No Image | SWITCH PLATE SCREWS Part Number: 21465314 for Hoover | 21465314 | $2.14Read more |
| 71 | Not Available | Hoover Switch Button | 38421012 | Not Available |
| 72 | Not Available | Hoover Cord | 46383137 | Not Available |
| 73 | Not Available | Hoover Spring-Bag Closure Clip Order 41128021 | 38335009 | Not Available |
| 74 | Not Available | Hoover Bag Clip and Spring Assembly | 41128021 | Not Available |
| 75 | Not Available | Hoover Cloth Bag-AAW-AG | 43667040 | Not Available |
| 76 | Not Available | Hoover Bag Expander-U7063 | 35173001 | Not Available |
| 77 | Not Available | Hoover Seal | 34112015 | Not Available |
| 78 | Not Available | Hoover Latch - AG - U7063 | 36155011 | Not Available |
| 79 |  | Bellows, Blk Top Fill Convertible/Industrial Uprt Part Number: 38673001 for Hoover | 38673001 | $17.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | Not Available | Hoover Bag Flange W/Sealant | 41424011 | Not Available |
| 81 | Not Available | Hoover Nut | 015854EF | Not Available |
| 82 | Not Available | Hoover Retainer-BU-U4153 | 36951004 | Not Available |
| 83 | Not Available | Hoover Cord Protector-Black | 36216002 | Not Available |
| 84 | Not Available | Hoover Cord Clip-Black | 39441016 | Not Available |
| 85 | Not Available | Hoover Washer | 21312772 | Not Available |
| 86 | Not Available | Hoover Nameplate-C1069 | 52115121 | Not Available |
| 87 | Not Available | Hoover Dirt Cup Assembly | 38775001 | Not Available |
| 88 | Not Available | Hoover Gasket | 34123020 | Not Available |
| 89 | Not Available | Hoover Support & Bellows-U7 | 41427006 | Not Available |
| 90 | Not Available | Hoover Dust Cup Assem W/Cli | 43675031 | Not Available |
| # | Part image | Description | SKU | Price |
| 28 | Not Available | Hoover Hose Sleeve - BZ | 32156010 | Not Available |
| 48 | Not Available | Hoover Hose End - Converter | 013147JM | Not Available |
| 49 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Hoover Nozz Position Brkt Assy | 43468018 | Not Available |
| 51 | Not Available | Hoover Hose Grip Collar | 012704BZ | Not Available |
| 52 | Not Available | Hoover Hose End Converter | 023473JM | Not Available |
| 53 | Not Available | Hoover Hose Grip | 23393JM- | Not Available |
| 55 | Not Available | Hoover Hose Tube | 013143- | Not Available |
| 59 | Not Available | Hoover Hose Complete | 022671JM | Not Available |
| 60 | Not Available | Hoover Hose End Short 65 | 034355- | Not Available |
| 63 | Not Available | Hoover Model 91 Connector | 035190- | Not Available |
| 64 | Not Available | Hoover Connector | 034202JM | Not Available |
| 65 | Not Available | Hoover Hose-Less Ends-Ultra | 048617JM | Not Available |
| 66 | Not Available | Hoover Hose Complete-MV(J | 43434213 | Not Available |
| 67 | Not Available | Hoover Hose Assm Complete-U | 012864JM | Not Available |

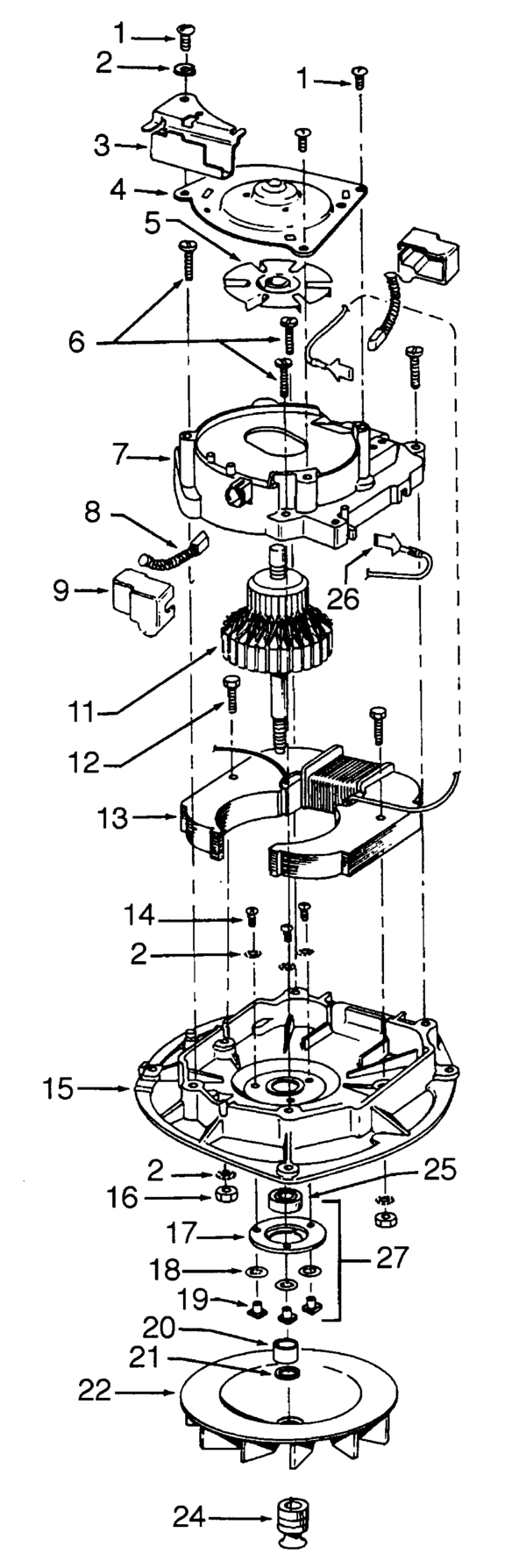

| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Indicator Guide Spri | 35276006 | Not Available |
| 1 | Not Available | Hoover Screw | 45533AY- | Not Available |
| 2 | Not Available | Hoover Lock Washer | 014062- | Not Available |
| 3 | Not Available | Hoover Indicator Guide Asse | 41961009 | Not Available |
| 4 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 5 | Not Available | Hoover Ventilating Fan-U415 | 38755004 | Not Available |
| 6 | Not Available | Hoover Screw | 161535- | Not Available |
| 7 | Not Available | Hoover Upper Motor Casing | 019857- | Not Available |
| 8 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 9 | Not Available | Hoover Brush Cap- U4313 | 36315003 | Not Available |
| 11 | Not Available | Hoover Armature-C1525 | 44768051 | Not Available |
| 12 | Not Available | Hoover Field Bolt | 045118- | Not Available |
| 13 | Not Available | Hoover Field Coil | 45412015 | Not Available |
| 14 | Not Available | Hoover Screw | 21772501 | Not Available |
| 15 | Not Available | Hoover Motor Case LH | 42193006 | Not Available |
| 16 | Not Available | Hoover Nut Hex 5140 | 015673- | Not Available |
| 17 | Not Available | Hoover Bearing Retainer- 8MM | 32184003 | Not Available |
| 18 | Not Available | Hoover Washer-Lock-843 | 019772- | Not Available |
| 19 | Not Available | Hoover Nut | 045251- | Not Available |
| 20 | Not Available | Hoover Fan Spacer-8MM | 31731002 | Not Available |
| 21 | Not Available | Hoover Washer | 166563- | Not Available |
| 22 | Not Available | Hoover Fan | 38755011 | Not Available |
| 24 | Not Available | Hoover Motor Pulley | 43251003 | Not Available |
| 25 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Hoover Terminal 1060 | 014320- | Not Available |
| 27 | Not Available | Hoover Bearing Assem Comp-8 | 43267006 | Not Available |
