Schematic and parts list for: Hoover Model: C1123
This is a list of parts and a diagram and schematic for: Hoover Model: C1123
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Outer Bag Complete | 43675187 | Not Available |
| 2 | Not Available | Hoover Bag Clip & Spring | 41128007 | Not Available |
| 3 | Not Available | Hoover Outer Bag-C1431 | 43674221 | Not Available |
| 4 | Not Available | Hoover Screw | 21765159 | Not Available |
| 5 | Not Available | Hoover Nut | 015854EF | Not Available |
| 6 | Not Available | Hoover Top Fill Tube | 38657004 | Not Available |
| 7 | Not Available | Hoover Handle Complete | 48646093 | Not Available |
| 8 | Not Available | Hoover Handle Grip | 39454007 | Not Available |
| 9 | Not Available | Hoover Handle Complete | 48646093 | Not Available |
| 10 | No Image | CORD, 35' Part Number: 46583149 for Hoover | 46583149 | $41.72Read more |
| 11 | Not Available | Hoover Handle Bolt-U7047 | 21631302 | Not Available |
| 12 |  | Kit, Bag Docking W/Hinge & Clip Part Number: 440013704 for Oreck | 440013704 | $17.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Hoover Handle Clamp Nut | 32277008 | Not Available |
| 14 | Not Available | Hoover Cord Clamp | 34785018 | Not Available |
| 15 | Not Available | Hoover Cord Protector | 36215021 | Not Available |
| 16 | Not Available | Hoover Handle Complete | 48646093 | Not Available |
| 17 | Not Available | Hoover Circlip | 24735022 | Not Available |
| 18 | Not Available | Hoover Switch Pedal | 38424003 | Not Available |
| 19 | Not Available | Hoover Mounting Bracket | 35217006 | Not Available |
| 20 | Not Available | Hoover Shaft | 613802AY | Not Available |
| 21 | Not Available | Hoover Foot Pad | 38426080 | Not Available |
| 22 | Not Available | Hoover Switch | 28212017 | Not Available |
| 23 | Not Available | Hoover Wire Nut | 48969 | Not Available |
| 24 | Not Available | Hoover Nut | 12560 | Not Available |
| 25 | Not Available | Hoover Bail (Inc. Items 11,13,27,29,30,31) | 41416064 | Not Available |
| 26 | Not Available | Hoover Strain Relief | 39049 | Not Available |
| 27 | Not Available | Hoover Handle Retainer Plate | 35463011 | Not Available |
| 28 | Not Available | Hoover Screw | 23187363 | Not Available |
| 29 | Not Available | Hoover Screw Self Tapping | 21481273 | Not Available |
| 30 | Not Available | Hoover Bail Cover Plate | 37954001 | Not Available |
| 31 | Not Available | Hoover Strain Relief Mounting | 34223004 | Not Available |
| 32 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 33 | Not Available | Hoover Nozzle Adjustment Lever | 38456044 | Not Available |
| 34 | Not Available | Hoover Lock Washer | 21354155 | Not Available |
| 35 | Not Available | Hoover Bail Shaft | 161509AY | Not Available |
| 36 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 37 | Not Available | Hoover Indicator | 51151034 | Not Available |
| 38 |  | Dirty Tank Rubber Plug Bissell repair part number: 1611735 | 1611735 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | Hoover Bag Flange Clamp Lever | 19907 | Not Available |
| 40 | Not Available | Hoover Spring | 048409FW | Not Available |
| 41 | Not Available | Hoover Bail Cord/Tubing Assembly | 46515007 | Not Available |
| 42 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 43 | Not Available | Hoover Spring | 161513 | Not Available |
| 44 | Not Available | Hoover Handle Control Lever | 38456050 | Not Available |
| 45 | Not Available | Hoover Pivot Pin | 047450AY | Not Available |
| 46 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 47 | Not Available | Hoover Indicator Guide Assembly | 41961009 | Not Available |
| 48 | Not Available | Hoover Indicator Guide Spring | 35276006 | Not Available |
| 49 | Not Available | Hoover Retainer & Sleeving | 41119009 | Not Available |
| 50 | Not Available | Hoover Screw-U4581 | 21447220 | Not Available |
| 51 | Not Available | Hoover Washer | 168278AY | Not Available |
| 52 | Not Available | Hoover Rivet | 12997AW | Not Available |
| 53 | Not Available | Hoover Retainer-U4153 | 36951004 | Not Available |
| 54 | Not Available | Hoover Rivet | 21256134 | Not Available |
| 55 | Not Available | Hoover Indicator Lens | 48111008 | Not Available |
| 56 | Not Available | Hoover Hood Assembly | 42251168 | Not Available |
| 57 | Not Available | Hoover Panel | 37246040 | Not Available |
| 58 | Not Available | Hoover Nameplate - C1123 | 52115124 | Not Available |
| 59 | Not Available | Hoover Furniture Guard | 36231031 | Not Available |
| 60 | Not Available | Hoover Screw | 45533AY | Not Available |
| 61 |  | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 62 | Not Available | Hoover Motor & Seal Kit | 40309020 | Not Available |
| 63 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.78Read more |
| 64 | Not Available | Hoover Screw | 017001FW | Not Available |
| 65 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 66 | Not Available | Hoover Front Wheel | 34791AG | Not Available |
| 67 | Not Available | Hoover Washer | 21312724 | Not Available |
| 68 | Not Available | Hoover Front wheel Shaft | 047457AY | Not Available |
| 69 |  | Clear In Line Feed Through Rocker Switch spt-2 | 48422 | $9.99Add to cart |
| 70 |  | BASE, C1069 UPRIGHT Part Number: 42242219 for Hoover | 42242219 | $64.50Read more |
| 71 | Not Available | Hoover Support Washer-Upright | 21312781 | Not Available |
| 72 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $2.26Read more |
| 73 | Not Available | Hoover Rivet-Semi Tubular | 012503EF | Not Available |
| 74 | No Image | SPRING, BOTTOM PLATE Part Number: 012138FW for Hoover | 012138FW | $3.73Read more |
| 75 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 76 |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 77 | Not Available | Hoover Support Pad | 34111001 | Not Available |
| 78 | Not Available | Hoover Bottom Plate Complete | 42246008 | Not Available |
| 79 | Not Available | Hoover Latch | 36153006 | Not Available |
| 80 | Not Available | Hoover Screw | 21447003 | Not Available |
| 81 | Not Available | Hoover Screw | 21447020 | Not Available |
| 82 | Not Available | Hoover Screw-C1085 | 21479347 | Not Available |
| 83 | Not Available | Hoover Axle/Bag Flange Retainer | 35434040 | Not Available |
| 84 | Not Available | Hoover Washer | 21312806 | Not Available |
| 85 | Not Available | Hoover Wheel Shaft & Support | 41431013 | Not Available |
| 86 | Not Available | Hoover Cam Follower-Plastic | 43263003 | Not Available |
| 87 | Not Available | Hoover Rear Wheel | 38521019 | Not Available |
| 88 | Not Available | Hoover Wheel Retainer | 32182001 | Not Available |
| 89 | Not Available | Hoover Rivet | 21256094 | Not Available |
| 90 | Not Available | Hoover Cord Clip | 39441016 | Not Available |
| 91 | Not Available | Hoover Bag Flange With Sealant | 41424011 | Not Available |
| 92 | Not Available | Hoover Bellows | 38673009 | Not Available |
| 93 | Not Available | Hoover Jacket Support Spring | 38336019 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Furniture Brush | 43414016 | Not Available |
| 4 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Hoover Swivel Connector | 38644020 | Not Available |
| 7 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 8 | Not Available | Hoover Brush Back | 48447001 | Not Available |
| 9 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 12 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 13 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 24 | Not Available | Hoover Converter Body Assembly | 43482097 | Not Available |
| 25 | Not Available | Hoover Tool Bag | 58544004 | Not Available |
| 28 | No Image | FAN, ROTATING Part Number: 31213-1 for Lamb | 312131 | $23.17Read more |
| 28 | Not Available | Hoover Hose Sleeve | 32156010 | Not Available |
| 31 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 33 | Not Available | Hoover Latch Ring | 36153021 | Not Available |
| 47 | Not Available | Hoover Extension Wand | 43458001 | Not Available |
| 48 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 28 | Not Available | Hoover Hose Sleeve | 32156010 | Not Available |
| 48 | Not Available | Hoover Hose End - Converter | 013147JM | Not Available |
| 49 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Hoover Nozzle Position Bracket Assembly | 43468018 | Not Available |
| 51 | Not Available | Hoover Hose Grip Collar | 012704BZ | Not Available |
| 52 | Not Available | Hoover Hose End Converter | 023473JM | Not Available |
| 53 | Not Available | Hoover Hose Grip | 23393JM | Not Available |
| 55 | Not Available | Hoover Hose Tube | 13143 | Not Available |
| 59 | Not Available | Hoover Hose Complete | 022671JM | Not Available |
| 60 | Not Available | Hoover Hose End Short | 34355 | Not Available |
| 63 | Not Available | Hoover Model 91 Connector | 35190 | Not Available |
| 64 | Not Available | Hoover Connector | 034202JM | Not Available |
| 65 | Not Available | Hoover Hose-Less Ends | 048617JM | Not Available |
| 66 | Not Available | Hoover Hose Complete | 43434213 | Not Available |
| 67 | Not Available | Hoover Hose Assembly Complete | 012864JM | Not Available |

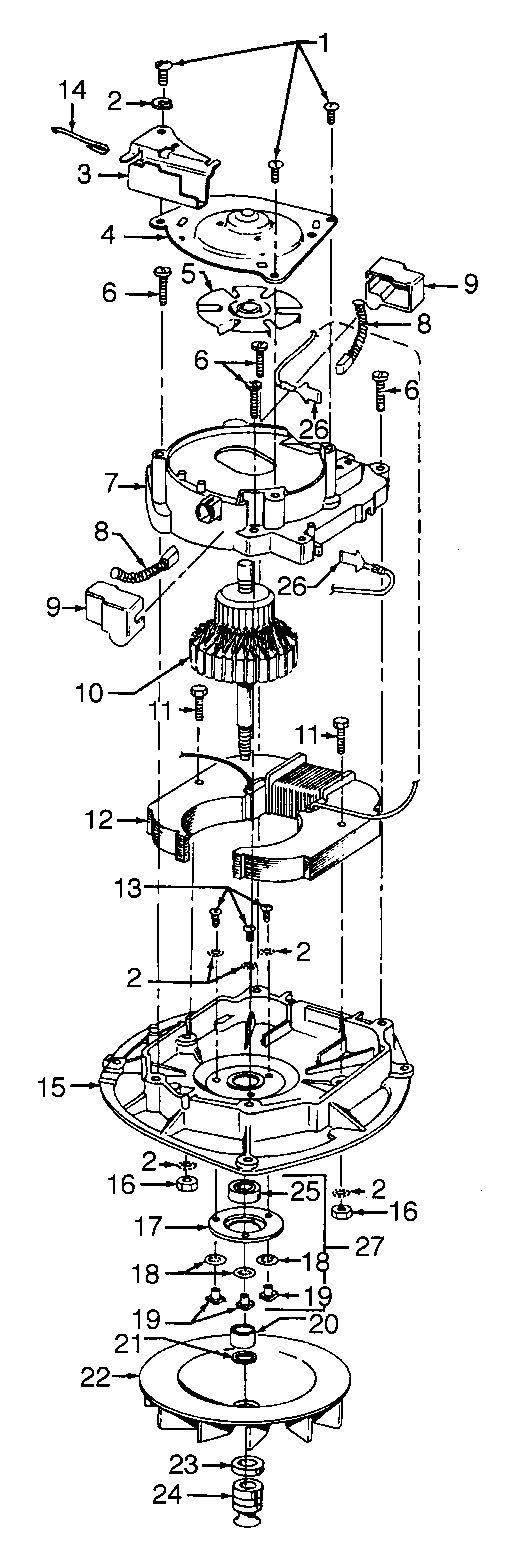

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 45533AY | Not Available |
| 2 | | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Indicator Guide Assembly | 41961009 | Not Available |
| 4 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 5 | Not Available | Hoover Vent Fan-Plastic | 38755005 | Not Available |
| 6 | Not Available | Hoover Screw | 161535 | Not Available |
| 7 | Not Available | Hoover Upper Motor Casing | 42195003 | Not Available |
| 8 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 9 | Not Available | Hoover Brush Cap - U4313 | 36315003 | Not Available |
| 10 | Not Available | Hoover Armature | 44768043 | Not Available |
| 11 | Not Available | Hoover Field Bolt | 45118 | Not Available |
| 12 | Not Available | Hoover Field Coil | 45412015 | Not Available |
| 13 | Not Available | Hoover Screw | 21772501 | Not Available |
| 14 | Not Available | Hoover Indicator Guide Spring | 35276006 | Not Available |
| 15 | Not Available | Hoover Motor Case Left Hand | 42193006 | Not Available |
| 16 | Not Available | Hoover Nut Hex 5140 | 15673 | Not Available |
| 17 | Not Available | Hoover Bearing Retainer-8Mm | 32184003 | Not Available |
| 18 | Not Available | Hoover Washer-Lock | 19772 | Not Available |
| 19 | Not Available | Hoover Nut | 45251 | Not Available |
| 20 | Not Available | Hoover Fan Spacer-8Mm | 31731002 | Not Available |
| 21 | Not Available | Hoover Washer | 166563 | Not Available |
| 22 | Not Available | Hoover Fan | 38755011 | Not Available |
| 23 | Not Available | Hoover Washer-Heat Insulation | 31162004 | Not Available |
| 24 | Not Available | Hoover Motor Pulley-Heat Insulation | 38532009 | Not Available |
| 25 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | | PreMotor Filter single black with 90PPI Bissell repair part number: 1614320 | 1614320 | $8.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Hoover Bearing Assembly Complete | 43267006 | Not Available |
