This is a list of parts and a diagram and schematic for: Hoover Model: C1631
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Cloth Bagged Upright - Hoover Guardsman Professional
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Outer Cloth Bag Complete - Black Zipper Bag | 43675187 | Not Available |
| 2 | No Image | Slide W/Spring-Hoover C1627 Cloth Bag For: hoover | 41128007 | $13.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Outer Cloth Bag - Bag Only Gray Dump Bag | 43674221 | Not Available |
| 4 | Not Available | Hoover Screw | 017206-- | Not Available |
| 5 | Not Available | Hoover Nut | 015854EF | Not Available |
| 6 | Not Available | Hoover Top Fill Tube | 38657004 | Not Available |
| 7 | Not Available | Hoover Handle Complete - Chromium Plate | 48646093 | Not Available |
| 8 | Not Available | Hoover Handle Grip - Transparent | 39454070 | Not Available |
| 9 | Not Available | Hoover Upper Handle | 48646093 | Not Available |
| 10 | Not Available | Hoover Power Cord - 50' | 46583009 | Not Available |
| 11 |  | Handle Bolt-Long-N/S Hoover For: hoover | 21631302 | $1.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Kit, Bag Docking W/Hinge & Clip Part Number: 440013704 for Oreck | 440013704 | $17.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | This part is available CERTIFIED RECONDITIONED Pre-owned Oreck Bag Dock Kit CC Style More Product Details | 09-75675-01R | $14.39Add to cart |
| 13 | Not Available | Hoover Handle Clamp Nut | 32277008 | Not Available |
| 14 | No Image | Clamp-Cord / Hvr C1125 For: hoover | 34785017 | $4.86Read more |
| 15 | Not Available | Hoover Cord Protector | 36215025 | Not Available |
| 16 | Not Available | Hoover Lower Handle | 48631134 | Not Available |
| 17 | Not Available | Hoover Circular Clip | 24735022 | Not Available |
| 18 | Not Available | Hoover Switch Pedal | 38424003 | Not Available |
| 19 | Not Available | Hoover Mounting Bracket | 35217006 | Not Available |
| 20 | Not Available | Hoover Shaft | 613802AY | Not Available |
| 21 | Not Available | Hoover Foot Pad - Black | 38426080 | Not Available |
| 22 | Not Available | Hoover Switch | 28212017 | Not Available |
| 23 | Not Available | Hoover Wire Nut | 048969-- | Not Available |
| 24 | Not Available | Hoover Nut | 012560-- | Not Available |
| 25 | Not Available | Hoover Bail / Handle Fork | 41416051 | Not Available |
| 27 |  | Handle Retainer Plt-Hoover 7077 Commercial Upright For: hoover | 35463011 | $2.05Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Screw - Detent Plate - Hoover Commercial For: hoover | 23187363 | $0.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | Not Available | Hoover Insulator / Strain Relief | 36913026 | Not Available |
| 30 | Not Available | Hoover Bail / Handle Fork Plate | 37954004 | Not Available |
| 32 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 33 | Not Available | Hoover Nozzle Adjustment Lever - Black | 38456044 | Not Available |
| 34 | Not Available | Hoover Lock Washer | 21354155 | Not Available |
| 35 |  | Bail Shaft #1070 For: hoover | 161509AY | $3.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | Hoover Lock Ring | 013730-- | Not Available |
| 37 | Not Available | Hoover Indicator | 51151037 | Not Available |
| 38 | Not Available | Hoover Handle Control Roll Pin | 12002663 | Not Available |
| 39 | Not Available | Hoover Bag Flange Clmap Lever | 019907-- | Not Available |
| 40 | Not Available | Hoover Spring | 048409FW | Not Available |
| 41 | Not Available | Hoover Bail Cord Tubing Assembly | 46515007 | Not Available |
| 42 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 43 | Not Available | Hoover Spring | 161513-- | Not Available |
| 44 |  | Lever-Hoover Handle Control For: hoover | 38456050 | $4.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 |  | Pivot Pin-Trip Lever-Hoover Upright For: hoover | 047450AY | $0.30Read more |
| 46 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 47 | Not Available | Hoover Indicator Guide Assembly | 41961009 | Not Available |
| 48 | Not Available | Hoover Indicator Guide Spring | 35276006 | Not Available |
| 49 | Not Available | Hoover Retainer And Sleeving | 41119009 | Not Available |
| 50 | Not Available | Hoover Screw | 21447220 | Not Available |
| 51 | Not Available | Hoover Washer | 168278AY | Not Available |
| 52 | Not Available | Hoover Rivet - Furniture Guard | 012997AW | Not Available |
| 53 | Not Available | Hoover Retainer | 36951004 | Not Available |
| 54 | Not Available | Hoover Rivet | 21256134 | Not Available |
| 55 |  | Hght Ad Indicator Lens-4000&41000 Mdl For: hoover | 48111008 | $4.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | Not Available | Hoover Hood / Nozzle Cover - Black | 42251336 | Not Available |
| 57 | Not Available | Hoover Panel - Black | 37246044 | Not Available |
| 58 | Not Available | Hoover Hood Name Plate | 52115214 | Not Available |
| 59 | Not Available | Hoover Furniture Guard | 36231151 | Not Available |
| 60 | Not Available | Hoover Screw | 45533AY | Not Available |
| 61 | Not Available | Hoover Lock Washer | 014062-- | Not Available |
| 62 | Not Available | Hoover Motor And Seal Kit | 43574191 | Not Available |
| 63 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.58Read more |
| 64 | Not Available | Hoover Screw - Self Tapping | 017001FW | Not Available |
| 65 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 66 | Not Available | Hoover Front Wheel | 034791AG | Not Available |
| 67 | Not Available | Hoover Washer | 21312724 | Not Available |
| 68 | Not Available | Hoover Front Wheel Shaft | 047457AY | Not Available |
| 69 | Not Available | Hoover Rivet | 048422-- | Not Available |
| 70 | Not Available | Hoover Main Body / Nozzle Base - Black | 42242277 | Not Available |
| 71 | Not Available | Hoover Support Washer | 21312781 | Not Available |
| 72 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $1.58Read more |
| 73 | No Image | PAPER BAG, :) HVR TYPE A ALLERGAN 3PK Part Number: H4010100A for Hoover Replacement | H4010100A | $8.22Read more |
| 75 |  | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| 75 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 76 |  | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 76 |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 77 | Not Available | Hoover Motor Lead Spring | 38313023 | Not Available |
| 78 | Not Available | Hoover Bottom Plate / Nozzle Guard - Plastic | 37245081 | Not Available |
| 79 | Not Available | Hoover Latch | 36153006 | Not Available |
| 80 | Not Available | Hoover Screw - Self Tapping | 017001FW | Not Available |
| 81 | Not Available | Hoover Screw | 21447020 | Not Available |
| 82 | Not Available | Hoover Screw - Self Tapping | 017001FW | Not Available |
| 83 | No Image | Axle Bag Flange Retainer New Models For: hoover | 35434040 | $1.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 84 | No Image | Washer - Hoover For: hoover | 21312806 | $1.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 85 |  | Wheel Shaft Support Assy For: hoover | 41431013 | $8.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 86 |  | Cam Follower-Hoover Convertible Upright - 2 Position For: hoover | 43263005 | $4.15Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 87 | Not Available | Hoover Rear Wheel - Black | 38521019 | Not Available |
| 88 | Not Available | Hoover Wheel Retainer | 32182001 | Not Available |
| 89 | Not Available | Hoover Rivet | 21256094 | Not Available |
| 90 | Not Available | Hoover Cord Clip - Black | 39441016 | Not Available |
| 91 | Not Available | Hoover Bag Flange With Sealant | 41424011 | Not Available |
| 92 |  | Bellows, Blk Top Fill Convertible/Industrial Uprt Part Number: 38673001 for Hoover | 38673001 | $17.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 93 | Not Available | Hoover Jacket Support Spring | 38336019 | Not Available |
| 94 | Not Available | Hoover Fuse Assembly - 8a / 250c | 440001219 | Not Available |

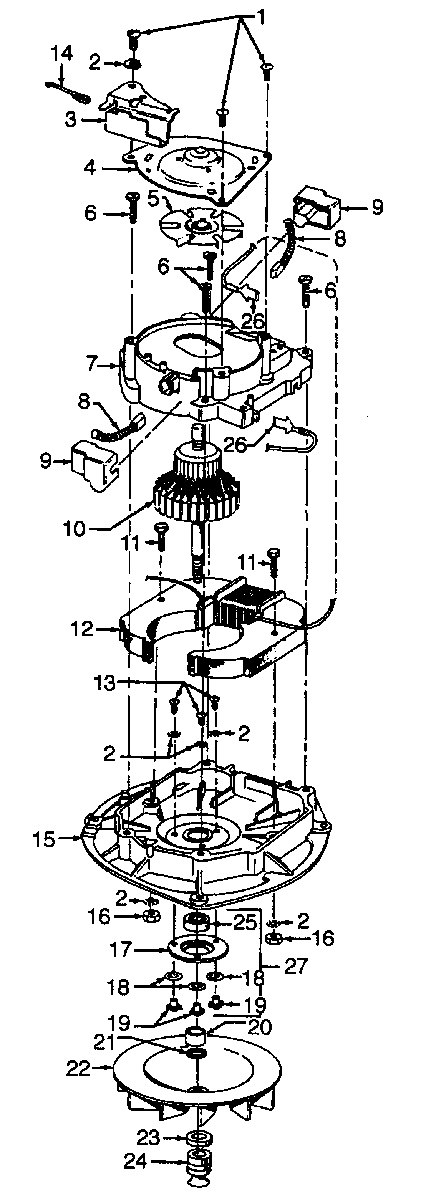

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 45533AY | Not Available |
| 2 | Not Available | Hoover Lock Washer | 014062-- | Not Available |
| 3 | Not Available | Hoover Indicator Guide Assembly | 41961009 | Not Available |
| 4 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 5 | Not Available | Hoover Vent Fan - Plastic | 38755005 | Not Available |
| 6 | Not Available | Hoover Screw | 161535-- | Not Available |
| 7 | Not Available | Hoover Upper Motor Casing | 42195003 | Not Available |
| 8 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 9 | No Image | Wbd Brush Cap - U4313 For: hoover | 36315003 | $1.90Read more |
| 10 | No Image | ARMATURE, C1407 Part Number: 44768049 for Hoover | 44768049 | $66.70Read more |
| 11 | Not Available | Hoover Field Bolt | 045118-- | Not Available |
| 12 | Not Available | Hoover Field Coil | 45412015 | Not Available |
| 13 | Not Available | Hoover Screw | 21772501 | Not Available |
| 14 | Not Available | Hoover Indicator Guide Spring | 35276006 | Not Available |
| 15 | Not Available | Hoover Motor Case - Left | 42193006 | Not Available |
| 16 | Not Available | Hoover Hex Nut | 015673-- | Not Available |
| 17 | Not Available | Hoover Bearing Retainer - 8mm | 32184003 | Not Available |
| 18 | Not Available | Hoover Washer Lock | 019772-- | Not Available |
| 19 | Not Available | Hoover Nut | 045251-- | Not Available |
| 20 | Not Available | Hoover Fan Spacker - 8mm | 31731002 | Not Available |
| 21 | Not Available | Hoover Washer | 166563-- | Not Available |
| 22 | Not Available | Hoover Fan | 38755011 | Not Available |
| 23 | Not Available | Hoover Washer - Heat Insulation | 31162004 | Not Available |
| 24 | Not Available | Hoover Motor Pulley | 38532005 | Not Available |
| 25 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Hoover Terminal | 014320-- | Not Available |
| 27 | Not Available | Hoover Motor Case - Left | 43267006 | Not Available |
