Schematic and parts list for: Hoover Model: C1712
This is a list of parts and a diagram and schematic for: Hoover Model: C1712
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Bagged Upright - Hoover Windtunnel Professional
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Upper Handle Assembly | 48663207 | Not Available |
| 2 | Not Available | Hoover Cord Wrap | 39442043 | Not Available |
| 3 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 4 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
| 8 | No Image | Housing, Bag WindTunnel 1703-900 Part Number: 40309039 for Hoover | 40309039 | $54.86Read more |
| 9 | Not Available | Hoover Handle Hardware Assembly Screws 3-15/16" | 40201149 | Not Available |
| 10 | Not Available | Hoover Strain Relief | 27482231 | Not Available |
| 11 | Not Available | Hoover Power Cord - 50' Brite Yellow | 46583067 | Not Available |
| 12 | Not Available | Hoover Hose Connector Gasket | 31178017 | Not Available |
| 13 | Not Available | Hoover Dirt Duct | 38641005 | Not Available |
| 14 | Not Available | Hoover Hose Assembly Complete | 304102001 | Not Available |
| 15 | Not Available | Hoover Screw - Self Tapping | 21447242 | Not Available |
| 16 | Not Available | Hoover Tool / Hose Holder | 92001070 | Not Available |
| 17 | Not Available | Hoover Screw - Self Tapping | 23149002 | Not Available |
| 18 | Not Available | Hoover Lower Hose / Inlet Door Assembly | 43431005 | Not Available |
| 19 | Not Available | Hoover Wire Opening Seal | 34311004 | Not Available |
| 20 | Not Available | Hoover Furniture Nozzle - Graphite Gray | 38614044 | Not Available |
| 21 | Not Available | Hoover Crevice Tool - Deep Sand | 38617027 | Not Available |
| 22 |  | Dust Brush, :( Black WindTunnel Upright Part Number: 43414197 for Hoover | 43414197 | $11.71Read more |
| 23 | Not Available | Hoover Extension Tube - Black | 38634078 | Not Available |
| 24 | Not Available | Hoover Motor Mount - Large | 36322037 | Not Available |
| 26 | Not Available | Hoover Thermal Protector | 28382086 | Not Available |
| 27 | Not Available | Hoover Screw - Self Tapping | 21447230 | Not Available |
| 28 | Not Available | Hoover Motor Cover | 37196159 | Not Available |
| 29 | Not Available | Hoover Screw - Self Tapping | 21447228 | Not Available |
| 30 | Not Available | Hoover Lens | 39383107 | Not Available |
| 31 | Not Available | Hoover Bag Door Gasket - Bottom | 34123050 | Not Available |
| 32 | Not Available | Hoover Cover - Dark Charcoal Gray | 37944010 | Not Available |
| 33 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 35 | Not Available | Hoover Lamp | 27313101 | Not Available |
| 36 | Not Available | Hoover Wire Opening Plug | 34131019 | Not Available |
| 37 |  | Mount, :( Small Motor Belt Side WindTunnel Part Number: 440013147 for Hoover | 440013147 | $4.26Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Hoover Secondary Filter | AH41001 | Not Available |
| 39 |  | Frame, :( Filter WindTunnel Upright Part Number: 36426034 for Hoover | 36426034 | $2.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Hoover Hex Nut | 21641558 | Not Available |
| 42 | Not Available | Hoover Bag Indicator | 51151010 | Not Available |
| 43 |  | Paper Bag, Y/Z Microlined 3Pk Part Number: 151907 for Hoover Replacement | 151907 | $4.81Read more |
| 43 |  | HOOVER Type Y Allergen Bag (9-Pack) aftermarket | 655295085036 | $14.99Add to cart |
| 44 | Not Available | Hoover Bag Door Gasket - 34.5" | 38781057 | Not Available |
| 45 | Not Available | Hoover Bag Door - Gaskets / Bag Indicator Not Included | 37254102 | Not Available |
| 46 | Not Available | Hoover Hose Tube Extention Door Asmbly | 43457024 | Not Available |
| 47 | Not Available | Hoover Upper Wand Holder | 36433117 | Not Available |
| 48 | Not Available | Hoover Lower Wand Holder | 36433116 | Not Available |
| 49 | Not Available | Hoover Attachment Cord Clamp | 27478456 | Not Available |
| 50 | Not Available | Hoover Foam Motor Muffler | 39411001 | Not Available |

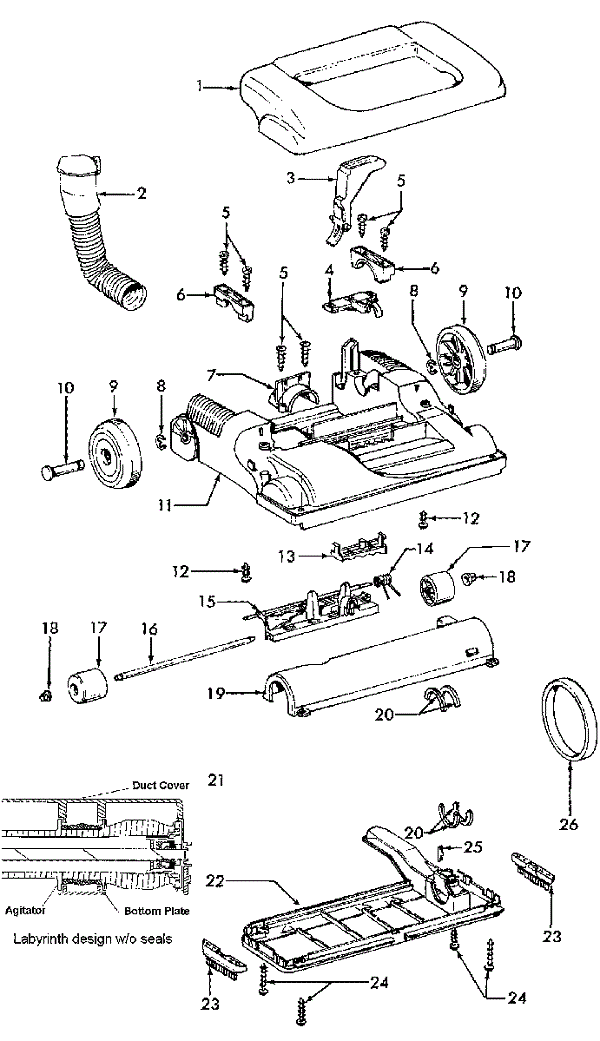

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Hood / Nozzle Cover - Dove Gray | 37253A37 | Not Available |
| 2 | Not Available | Hoover Lower Hose / Inlet Door Assembly | 43431005 | Not Available |
| 3 | Not Available | Hoover Handle Release Lever | 38458043 | Not Available |
| 4 | Not Available | Hoover Nozzle Adjustment Lever( | 38421087 | Not Available |
| 5 | | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 6 | Not Available | Hoover Trunnion Cover | 36131094 | Not Available |
| 7 | Not Available | Hoover Hose Clamp | 36171044 | Not Available |
| 8 | Not Available | Hoover Lock Ring | 160017-- | Not Available |
| 9 | Not Available | Hoover Rear Wheel - Dark Charcoal Gray | 43244009 | Not Available |
| 10 | Not Available | Hoover Rear Axle | 32434007 | Not Available |
| 11 | Not Available | Hoover Nozzle Base - 13" Dark Charcoal Gray | 37242124 | Not Available |
| 12 | Not Available | Hoover Screw - Self Tapping | 21447228 | Not Available |
| 13 | Not Available | Hoover Nozzle Adjustment Lever( | 38421087 | Not Available |
| 14 | Not Available | Hoover Torsion Spring | 38355010 | Not Available |
| 15 | Not Available | Hoover Front Wheel Support - Only Clear | 36432027 | Not Available |
| 16 |  | Wheel, 2-Front W/Axle & Carriage WindTunnel Uprigh | H-43248057 | $23.99Read more |
| 17 | | Wheel, 2-Front W/Axle & Carriage WindTunnel Uprigh | H-43248057 | $23.99Read more |
| 18 | Not Available | Hoover Wheel Retainer | 36131056 | Not Available |
| 19 | Not Available | Hoover Bottom Plate And Duct Assembly - 13" | 40309025 | Not Available |
| 20 | Not Available | Hoover Agitator Pulley Seal | 38781053 | Not Available |
| 21 | Not Available | Hoover Agitator Assembly - 13" Wooden | 303996001 | Not Available |
| 22 | Not Available | Hoover Bottom Plate / Duct Assembly - 13" | 40309025 | Not Available |
| 24 | Not Available | Hoover Screw | 21447121 | Not Available |
| 25 | Not Available | Hoover Rib Shoe | 013261AY | Not Available |
| 26 |  | Belt, Flat Brushroll WindTunnel W/O Power Drive | H-38528033 | $4.99Read more |
| 27 | Not Available | Hoover Hose Door - Black | 37911082 | Not Available |
| 28 | Not Available | Hoover Hose Door Bracket - Black | 36438002 | Not Available |
