Schematic and parts list for: Hoover Model: C2069

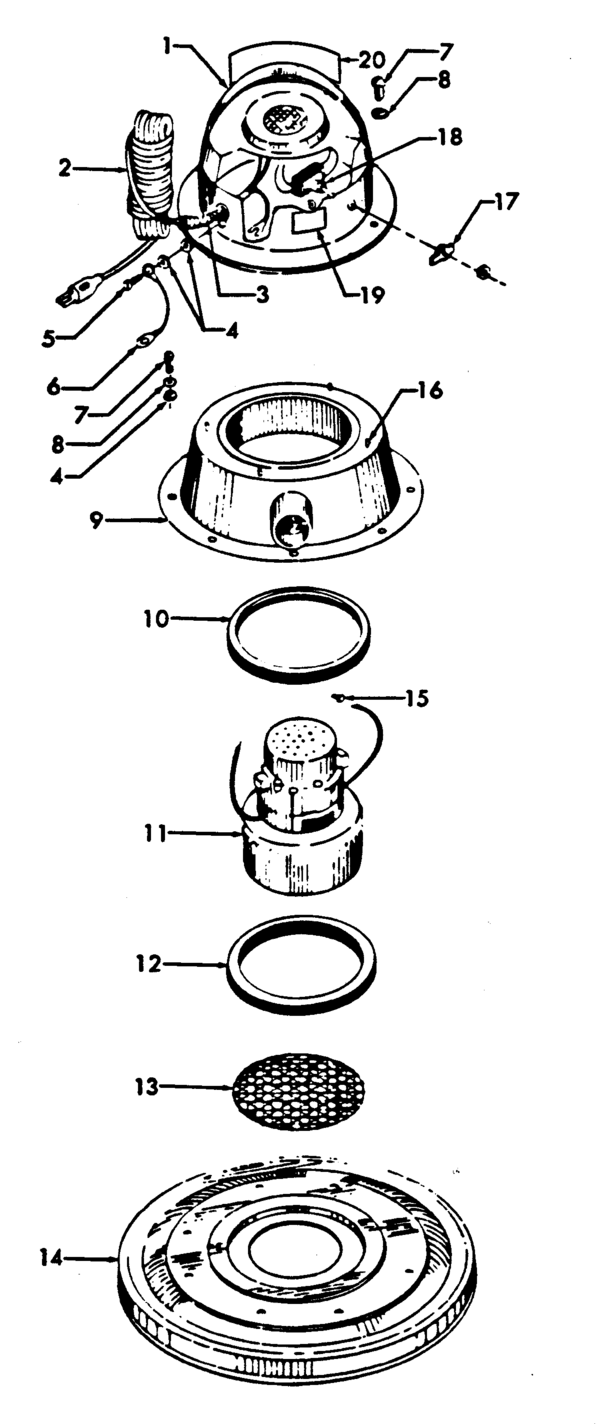

This is a list of parts and a diagram and schematic for: Hoover Model: C2069
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Dome Assembly-1Hp | 59137237 | Not Available |
| 2 | Not Available | Hoover Cord Set Package | 59137238 | Not Available |
| 3 | Not Available | Hoover Strain Relief | 59137239 | Not Available |
| 4 | Not Available | Hoover Nut | 59137240 | Not Available |
| 5 | Not Available | Hoover Screw | 59137241 | Not Available |
| 6 | Not Available | Hoover Ground Wire Assembly | 59137242 | Not Available |
| 7 | Not Available | Hoover Screw | 59137243 | Not Available |
| 8 | Not Available | Hoover Washer | 59137244 | Not Available |
| 9 | Not Available | Hoover Blower Chamber Assem | 59137245 | Not Available |
| 10 | Not Available | Hoover Gasket | 59137246 | Not Available |
| 11 | Not Available | Hoover Motor 115 Volt C2069 | 59137247 | Not Available |
| 12 | Not Available | Hoover Gasket | 59137248 | Not Available |
| 13 | Not Available | Hoover Screen | 59137249 | Not Available |
| 14 | Not Available | Hoover Can Cap | 59137250 | Not Available |
| 15 | Not Available | Hoover Screw | 59137251 | Not Available |
| 16 | Not Available | Hoover Spacer | 59137252 | Not Available |
| 17 | Not Available | Hoover On/Off Plate | 59137253 | Not Available |
| 18 | Not Available | Hoover Switch C2069 | 59137254 | Not Available |
| 19 | Not Available | Hoover Warning Label/Dome | 59137184 | Not Available |
| 20 | Not Available | Hoover Nameplate | 59137178 | Not Available |
