Schematic and parts list for: Hoover Model: C2127
This is a list of parts and a diagram and schematic for: Hoover Model: C2127
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

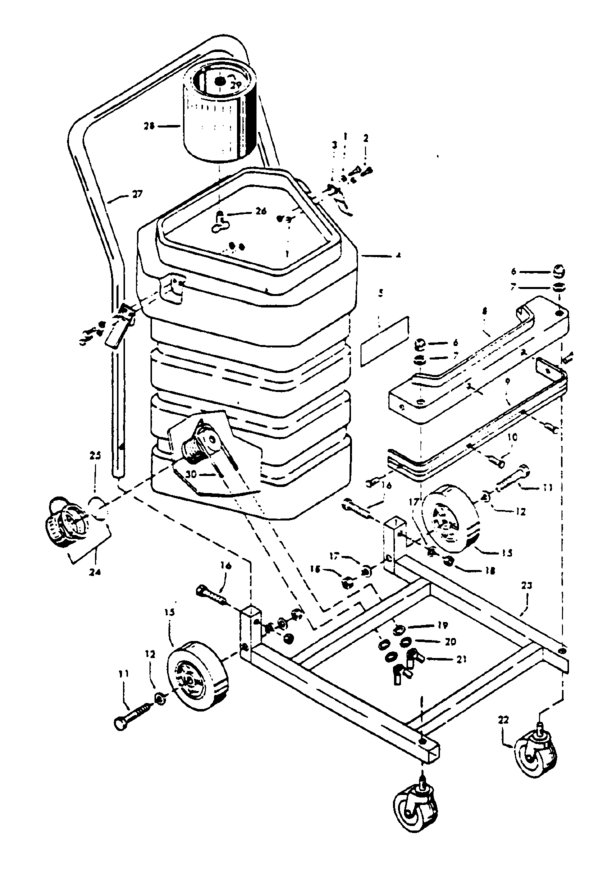

Parts for: Commercial Vacuum
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Washer | 21312761 | Not Available |
| 2 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 3 | Not Available | Hoover Latch - C9031 | 41112011 | Not Available |
| 5 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 6 | Not Available | Hoover Acorn Nut - C9031 | 21846153 | Not Available |
| 7 | Not Available | Hoover Washer - C9031 | 21312790 | Not Available |
| 8 | Not Available | Hoover Bumper Guard-Ag | 36235041 | Not Available |
| 9 | Not Available | Hoover Furniture Guard | 36231043 | Not Available |
| 10 | Not Available | Hoover Rivet-Tubular | 32242004 | Not Available |
| 11 | Not Available | Hoover Bolt - C3007 | 21811016 | Not Available |
| 12 | Not Available | Hoover Washer-C3003 | 1107605- | Not Available |
| 15 | Not Available | Hoover Wheel-C2127,C2129 | 43247025 | Not Available |
| 16 | Not Available | Hoover Hex Bolt-C | 1105547- | Not Available |
| 17 | Not Available | Hoover Washer 3600 | 016183- | Not Available |
| 18 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 19 | Not Available | Hoover Washer | 21312710 | Not Available |
| 20 | Not Available | Hoover Washer-C3005 | 1107610- | Not Available |
| 21 | Not Available | Hoover Wing Nut - C9031 | 21864204 | Not Available |
| 22 | Not Available | Hoover Caster - C9031 | 23737103 | Not Available |
| 23 | Not Available | Hoover Base-Ag-C2127,C2129 | 41423013 | Not Available |
| 24 | Not Available | Hoover Drain Cap - Ag | 58519002 | Not Available |
| 25 | Not Available | Hoover Gasket - C9031 | 31113009 | Not Available |
| 26 | No Image | SCREW, WING C9031 Part Number: 36111002 for Hoover | 36111002 | $8.85Read more |
| 27 | Not Available | Hoover Handle - C9031 | 39454050 | Not Available |
| 28 | Not Available | Hoover Dry Filter - Ccs- Re | 43611023 | Not Available |
| 29 | Not Available | Hoover Retainer - C9031 | 36131047 | Not Available |
| 30 | Not Available | Hoover Clamp - C9031 | 36171045 | Not Available |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Owner Manual-C2127/2 | 56518045 | Not Available |
| 2 | Not Available | Hoover Fiber Washer | 015278- | Not Available |
| 3 | Not Available | Hoover Screw-C2077 | 21447204 | Not Available |
| 4 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 5 | Not Available | Hoover Vent Tube - C2077 | 31727028 | Not Available |
| 6 | Not Available | Hoover Exhaust Hose - C2077 | 38671012 | Not Available |
| 7 | Not Available | Hoover Hose Clamp-C3005 | 1114203- | Not Available |
| 8 | Not Available | Hoover Exhaust Cover - C207 | 37914010 | Not Available |
| 9 | Not Available | Hoover Exhaust Gasket - C20 | 34338001 | Not Available |
| 10 | Not Available | Hoover Nut-C3003 | 1107628- | Not Available |
| 11 | Not Available | Hoover Washer 3600 | 016183- | Not Available |
| 14 | Not Available | Hoover Bag Indicator - C207 | 27343214 | Not Available |
| 15 | Not Available | Hoover Nameplate-C2077/70/8 | 51438004 | Not Available |
| 16 | Not Available | Hoover Switch - C3007 | 28164278 | Not Available |
| 17 | Not Available | Hoover Hose Adapter-Ag-C212 | 43457041 | Not Available |
| 18 | Not Available | Hoover Gasket - C2077 | 34113010 | Not Available |
| 19 | Not Available | Hoover Screw-C2075 | 21772598 | Not Available |
| 20 | Not Available | Hoover Control Panel-Ag-C20 | 37214170 | Not Available |
| 22 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 23 | Not Available | Hoover Slide Button-C2127,C | 38421011 | Not Available |
| 24 | Not Available | Hoover Slide Latch-S3273 | 36152005 | Not Available |
| 25 | No Image | SPRING, LATCH ASSY C2081-061 COMMERCIAL Part Number: 38313017 for Hoover | 38313017 | $0.37Read more |
| 26 | Not Available | Hoover Float Ball - C2077 | 33761001 | Not Available |
| 27 | Not Available | Hoover Float Hsg. - C2077 | 37931007 | Not Available |
| 28 | Not Available | Hoover Wet Filter - C2077 | 38763002 | Not Available |
| 29 | Not Available | Hoover Lock Washer D6047 | 164929- | Not Available |
| 30 | Not Available | Hoover Screw | 21447014 | Not Available |
| 31 | Not Available | Hoover Washer | 21312710 | Not Available |
| 32 | Not Available | Hoover Bag Retainer - C2077 | 36131054 | Not Available |
| 33 | Not Available | Hoover Ball Gasket - C2077 | 38784031 | Not Available |
| 34 | Not Available | Hoover Washer | 21328071 | Not Available |
| 36 | Not Available | Hoover Tank Gasket - C2077 | 34113011 | Not Available |
| 37 | Not Available | Hoover Cord | 46583114 | Not Available |
| 38 | Not Available | Hoover Cord Protector - Black | 36216008 | Not Available |
| 39 | Not Available | Hoover Strain Relief - C207 | 27478611 | Not Available |
| 40 | Not Available | Hoover Screw | 21447007 | Not Available |
| 41 | Not Available | Hoover 0-Ring - C2079 | 25156508 | Not Available |
| 43 | No Image | MOTOR, 2.2HP C2081061 WET/DRY Part Number: 27212019 for Hoover | 27212019 | $292.44Read more |
| 43 | Not Available | Hoover Motor 2 Hp - C2079 | 27212017 | Not Available |
| 44 | Not Available | Hoover Seal - C2077 | 38784033 | Not Available |
| 45 | Not Available | Hoover Washer | 21312713 | Not Available |
| 46 | Not Available | Hoover Screw-C2079 | 21447205 | Not Available |
