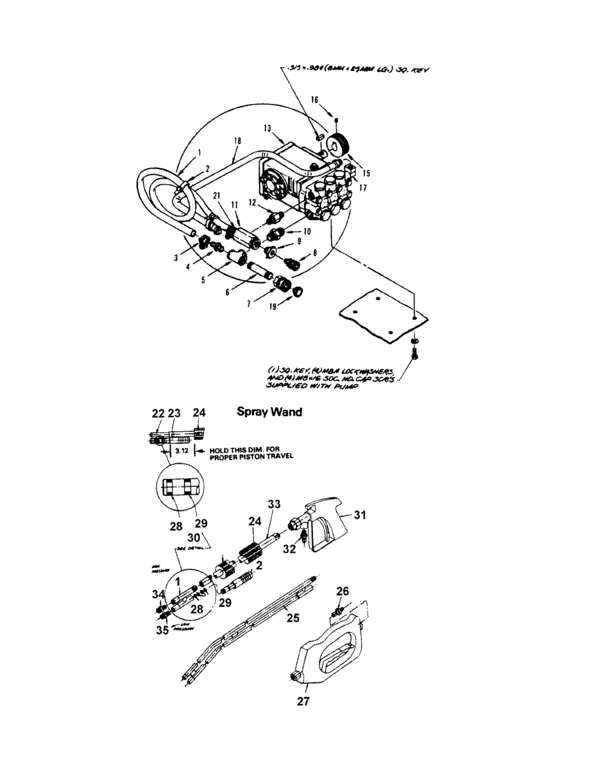

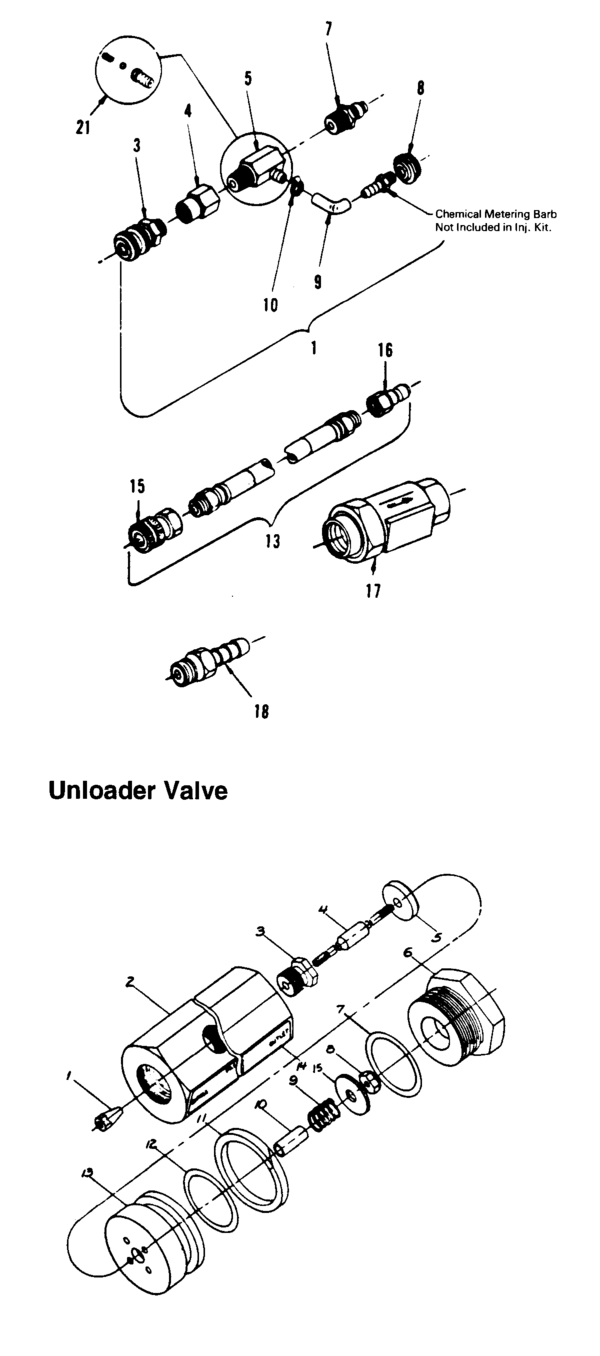

Schematic and parts list for: Hoover Model: C4275
This is a list of parts and a diagram and schematic for: Hoover Model: C4275
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw-010001-Hyt | 59133033 | Not Available |
| 2 | Not Available | Hoover Washer-014000-Hyt | 59133034 | Not Available |
| 3 | Not Available | Hoover Mat 7 X 10-004900-Hy | 59133035 | Not Available |
| 4 | Not Available | Hoover Shroud-500202-Hyt | 59133036 | Not Available |
| 5 | Not Available | Hoover Trim-44 Inch-500217- | 59133037 | Not Available |
| 7 | Not Available | Hoover Decal-Downstream-001 | 59133038 | Not Available |
| 8 | Not Available | Hoover Switch - C3007 | 28164278 | Not Available |
| 10 | Not Available | Hoover Safety Disc & Connec | 59133011 | Not Available |
| 11 | Not Available | Hoover Motor Shroud-500209- | 59133040 | Not Available |
| 12 | Not Available | Hoover Decal-Oper-Inst-0015 | 59133041 | Not Available |
| 13 | Not Available | Hoover Handle-500210-Hyt | 59133042 | Not Available |
| 14 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 16 | Not Available | Hoover Nut-Lock-010005-Hyt | 59133044 | Not Available |
| 18 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 19 | Not Available | Hoover Nut-Lock-010004 | 59133048 | Not Available |
| 20 | Not Available | Hoover Metering Barb No.18-Hy | 59133003 | Not Available |
| 21 | Not Available | Hoover Metering Barb No.28-Hy | 59133002 | Not Available |
| 22 | Not Available | Hoover Wheel-041003-Hyt | 59133049 | Not Available |
| 23 | Not Available | Hoover Metering Barb No.40-Hy | 59133001 | Not Available |
| 24 | Not Available | Hoover Frame-500228-Hyt | 59133050 | Not Available |
| 27 | Not Available | Hoover Leg-500214-Hyt | 59133053 | Not Available |
| 28 | Not Available | Hoover Plug-Hole-053001-Hyt | 59133054 | Not Available |
| 29 | Not Available | Hoover Motor-028000-Hyt | 59133055 | Not Available |
| 30 | Not Available | Hoover Nut-Acorn-010020-Hyt | 59133056 | Not Available |
| 31 | Not Available | Hoover Belt-046000-Hyt | 59133057 | Not Available |
| 32 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 34 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 35 | Not Available | Hoover Motor Mount-500205-H | 59133058 | Not Available |
| 36 | Not Available | Hoover Decal-Wiring-001013- | 59133059 | Not Available |
| 37 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 40 | Not Available | Hoover Cable Clamp-037001-H | 59133060 | Not Available |
| 41 | Not Available | Hoover Attachment Cord-5001 | 59133062 | Not Available |
| 43 | Not Available | Hoover Decal-Downstream-001 | 59133063 | Not Available |
| 44 | Not Available | Hoover Strain Relief-033000 | 59133064 | Not Available |
| 45 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 50 | Not Available | Hoover Decal-Warning-001503 | 59133069 | Not Available |
| 51 | Not Available | Hoover Decal-Stripe-Ft-0015 | 59133070 | Not Available |
| 52 | Not Available | Hoover Washer-014001-Hyt | 59133071 | Not Available |
| 53 | Not Available | Hoover Motor-028006-Hyt | 59133072 | Not Available |
| 54 | Not Available | Hoover Sheave-100601-Hyt | 59133073 | Not Available |
| 55 | Not Available | Hoover Motor Shroud-500605- | 59133074 | Not Available |
| 59 | Not Available | Hoover Hose Clamp-037005-Hy | 59133077 | Not Available |
| 60 | Not Available | Hoover Decal-Oil-001507-Hyt | 59133078 | Not Available |
| 61 | Not Available | Hoover Decal-Data Plate-001 | 59133079 | Not Available |
| 62 | Not Available | Hoover Decal-Inlet-001512-H | 59133080 | Not Available |
| 63 | Not Available | Hoover Decal-Outlet-001513- | 59133081 | Not Available |
| 67 | Not Available | Hoover Metering Barb No.21-Hy | 59133006 | Not Available |
| 68 | Not Available | Hoover Metering Barb No.32-Hy | 59133005 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Pump Head-060000-Hyt | 59133143 | Not Available |
| 2 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 3 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 4 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 5 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 6 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 7 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 8 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 9 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 10 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 11 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 12 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 13 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 14 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 15 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 16 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 17 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 18 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 19 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 20 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 21 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 22 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 23 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 24 | Not Available | Hoover Oil Dip Stick-060003 | 59133144 | Not Available |
| 25 | Not Available | Hoover Cover Gasket-060005- | 59133145 | Not Available |
| 26 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 27 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 28 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 29 | Not Available | Hoover Oil Level Indicator- | 59133146 | Not Available |
| 30 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 31 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 32 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 33 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 34 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 35 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 36 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 37 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 38 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 39 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 40 | Not Available | Hoover Piston-060009-Hyt | 59133147 | Not Available |
| 41 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 42 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 43 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 44 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 45 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 46 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 47 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 48 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 49 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 50 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 51 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Hose-100223-Hyt | 59133088 | Not Available |
| 2 | Not Available | Hoover Cable Tie-032001-Hyt | 59133089 | Not Available |
| 3 | Not Available | Hoover Hose Clamp-037002-Hy | 59133090 | Not Available |
| 4 | Not Available | Hoover Hose Barb-005018-Hyt | 59133091 | Not Available |
| 5 | Not Available | Hoover Tee-005014-Hyt | 59133092 | Not Available |
| 6 | Not Available | Hoover Nipple-005017-Hyt | 59133093 | Not Available |
| 7 | Not Available | Hoover Adapter-005013-Hyt | 59133094 | Not Available |
| 8 | Not Available | Hoover Coupler-005010-Hyt | 59133095 | Not Available |
| 9 | Not Available | Hoover Bushing-005005-Hyt | 59133096 | Not Available |
| 10 | Not Available | Hoover Nipple-Hex-005015-Hy | 59133097 | Not Available |
| 11 | Not Available | Hoover Unloader Valve-C4275 | 40300053 | Not Available |
| 16 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 17 | Not Available | Hoover Elbow-005023-Hyt | 59133106 | Not Available |
| 18 | Not Available | Hoover Pulse Hose-048003-Hy | 59133107 | Not Available |
| 19 | Not Available | Hoover Inlet Filter-045001- | 59133108 | Not Available |
| 21 | Not Available | Hoover Hose Barb-005030-Hyt | 59133110 | Not Available |
| 23 | Not Available | Hoover Piston-200538-Hyt | 59133166 | Not Available |
| 24 | Not Available | Hoover Lance Handle-047002- | 59133167 | Not Available |
| 25 | Not Available | Hoover 4 Ft-Dual Wand-20050 | 59133168 | Not Available |
| 26 | Not Available | Hoover Plug Disconnect-2005 | 59133169 | Not Available |
| 27 | Not Available | Hoover Spray Gun-047001-Hyt | 59133170 | Not Available |
| 28 | Not Available | Hoover O Ring-035000-Hyt | 59133171 | Not Available |
| 29 | Not Available | Hoover Back-Up Ring-035001- | 59133172 | Not Available |
| 30 | Not Available | Hoover O-Ring Lube - 2 Oz. | 59133173 | Not Available |
| 31 | Not Available | Hoover Spray Gun-047000-Hyt | 59133174 | Not Available |
| 32 | Not Available | Hoover Plug Disconnect-0050 | 59133175 | Not Available |
| 33 | Not Available | Hoover Tube-200529-Hyt | 59133176 | Not Available |
| 35 | Not Available | Hoover Low Pressure Nozzle- | 59133177 | Not Available |
| # | Part image | Description | SKU | Price |
| 3 | Not Available | Hoover Coupler-005010-Hyt | 59133095 | Not Available |
| 4 | Not Available | Hoover Reducer Coupling-005 | 59133178 | Not Available |
| 7 | Not Available | Hoover Plug Disconnect-2005 | 59133169 | Not Available |
| 8 | Not Available | Hoover Strainer-045002-Hyt | 59133182 | Not Available |
| 9 | Not Available | Hoover Tube-100235-Hyt | 59133181 | Not Available |
| 10 | Not Available | Hoover Hose Clamp-037000-Hy | 59133180 | Not Available |
| 15 | Not Available | Hoover Coupler-005021-Hyt | 59133191 | Not Available |
| 16 | Not Available | Hoover Disconnect Plug-0050 | 59133192 | Not Available |
| 17 | Not Available | Hoover Back Flow Preventor- | 59133031 | Not Available |
