Schematic and parts list for: Hoover Model: C5025
This is a list of parts and a diagram and schematic for: Hoover Model: C5025
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum

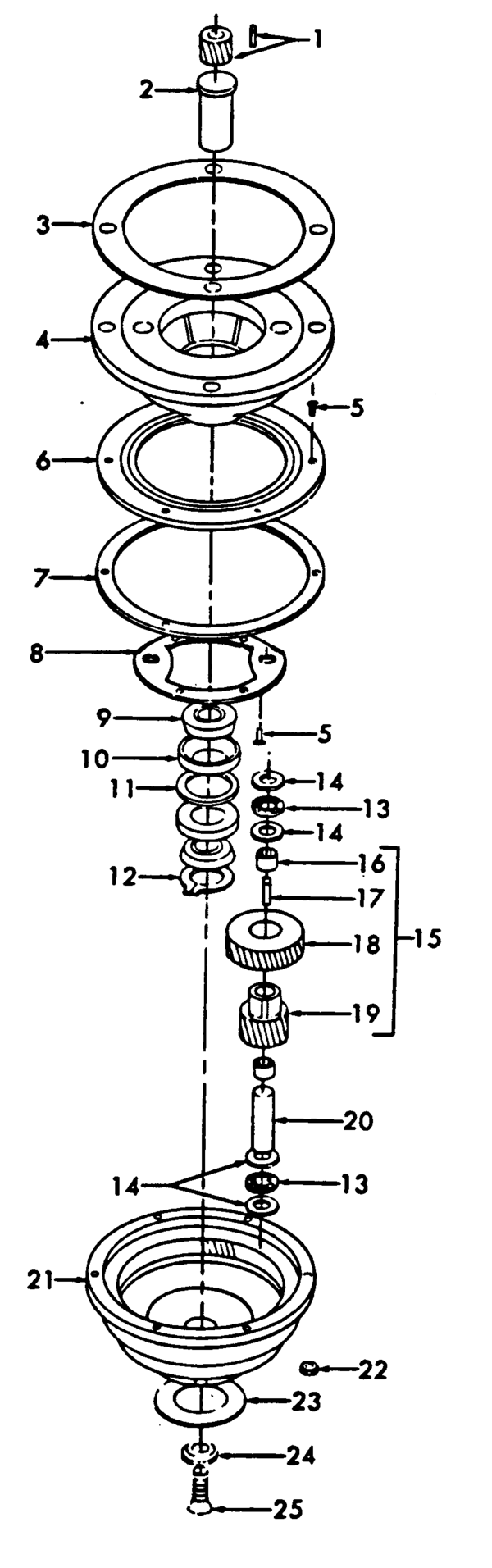

| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Center Shaft | 59137148 | Not Available |
| 3 | Not Available | Hoover Gasket | 59137113 | Not Available |
| 4 | Not Available | Hoover Adaptor-23 In | 59137151 | Not Available |
| 5 | Not Available | Hoover Screw-Special 10-24 | 59137152 | Not Available |
| 6 | Not Available | Hoover Seal | 59137153 | Not Available |
| 7 | Not Available | Hoover Gasket | 59137154 | Not Available |
| 8 | Not Available | Hoover Grease Baffle-20 In | 59137156 | Not Available |
| 9 | Not Available | Hoover Bearing Cone | 59137157 | Not Available |
| 10 | Not Available | Hoover Bearing Cup | 59137159 | Not Available |
| 11 | Not Available | Hoover Bearing Spacer | 59137160 | Not Available |
| 12 | Not Available | Hoover Retainer Ring | 59137161 | Not Available |
| 13 | Not Available | Hoover Thrust Bearing | 59137162 | Not Available |
| 14 | Not Available | Hoover Race Bearing | 59137163 | Not Available |
| 15 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 16 | Not Available | Hoover Needle Bearing | 59137164 | Not Available |
| 17 | Not Available | Hoover Idler Gear Key | 59137165 | Not Available |
| 18 | Not Available | Hoover Idler Gear - C5025 | 59137344 | Not Available |
| 19 | Not Available | Hoover Idler Gear-Steel | 59137167 | Not Available |
| 20 | Not Available | Hoover Idler Gear Shaft | 59137168 | Not Available |
| 21 | Not Available | Hoover Gear Housing | 59137171 | Not Available |
| 22 | Not Available | Hoover Nut W/Washer | 59137172 | Not Available |
| 23 | Not Available | Hoover Gasket | 59137175 | Not Available |
| 24 | Not Available | Hoover Pressure Washer | 59137173 | Not Available |
| 25 | Not Available | Hoover Screw-Special | 59137174 | Not Available |

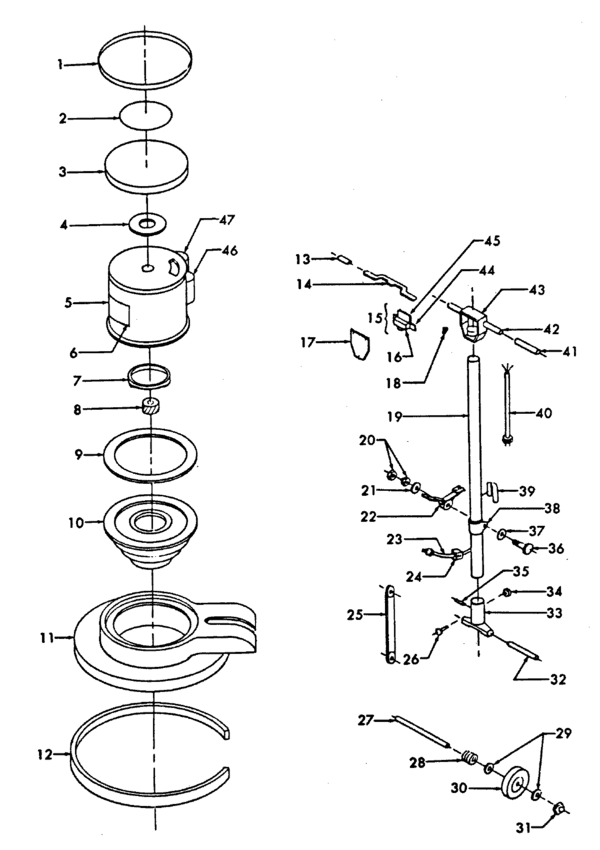

| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Centrifugal Switch - | 59137342 | Not Available |
| 1 | Not Available | Hoover Canopy Bumper | 59137106 | Not Available |
| 2 | Not Available | Hoover Nameplate/Motor Band | 59137107 | Not Available |
| 3 | Not Available | Hoover Motor Canopy | 59137108 | Not Available |
| 4 | Not Available | Hoover Canopy Spacer-Ph-F70 | 59137020 | Not Available |
| 5 | Not Available | Hoover Motor-1.5Hp | 59137110 | Not Available |
| 6 | Not Available | Hoover Nameplate/Motor Band | 59137146 | Not Available |
| 7 | Not Available | Hoover O-Ring | 59137111 | Not Available |
| 8 | Not Available | Hoover Pinion W/Key | 59137112 | Not Available |
| 9 | Not Available | Hoover Gasket | 59137113 | Not Available |
| 10 | Not Available | Hoover Gear Assembly Hyt | 59137115 | Not Available |
| 11 | Not Available | Hoover Chassis-20 In | 59137117 | Not Available |
| 12 | Not Available | Hoover Bumper W/Insert-20 I | 59137119 | Not Available |
| 13 | Not Available | Hoover Switch Lever Sleeve | 59137120 | Not Available |
| 14 | Not Available | Hoover Switch Lever | 59137121 | Not Available |
| 15 | Not Available | Hoover Switch Assembly | 59137123 | Not Available |
| 16 | Not Available | Hoover Switch-Ph-F7095 | 59137019 | Not Available |
| 17 | Not Available | Hoover Switch Box Cover-Ph- | 59137006 | Not Available |
| 18 | Not Available | Hoover Sw Lever Spring-Ph-F | 59137048 | Not Available |
| 19 | Not Available | Hoover Handle Tube | 59137122 | Not Available |
| 20 | Not Available | Hoover Locknut | 59137124 | Not Available |
| 21 | Not Available | Hoover Washer | 59137125 | Not Available |
| 22 | Not Available | Hoover Kick Latch Pedal | 59137126 | Not Available |
| 24 | Not Available | Hoover Strain Relief-Ph-F70 | 59137024 | Not Available |
| 25 | Not Available | Hoover Handle Adjust Strut | 59137128 | Not Available |
| 26 | Not Available | Hoover Screw-Oval Head | 59137129 | Not Available |
| 27 | Not Available | Hoover Wheel Axle | 59137130 | Not Available |
| 28 | Not Available | Hoover Spring | 59137131 | Not Available |
| 29 | Not Available | Hoover Washer | 59137125 | Not Available |
| 30 | Not Available | Hoover Trans Wheel-4 In-Ph- | 59137039 | Not Available |
| 31 | Not Available | Hoover Acorn Nut | 59137133 | Not Available |
| 32 | Not Available | Hoover Handle Tee Shaft | 59137134 | Not Available |
| 33 | Not Available | Hoover Handle Tee | 59137135 | Not Available |
| 34 | Not Available | Hoover Nut W/Washer 1/4-20 | 59137136 | Not Available |
| 35 | Not Available | Hoover Drive Pin | 59137137 | Not Available |
| 36 | Not Available | Hoover Carriage Bolt | 59137138 | Not Available |
| 37 | Not Available | Hoover Washer-Rubber | 59137139 | Not Available |
| 38 | Not Available | Hoover Handle Clamp | 59137140 | Not Available |
| 39 | Not Available | Hoover Cord Hook | 59137052 | Not Available |
| 40 | Not Available | Hoover Cord Set Package | 59137141 | Not Available |
| 41 | Not Available | Hoover Handle Grip | 59137142 | Not Available |
| 42 | Not Available | Hoover Switch Box Handle | 59137143 | Not Available |
| 43 | Not Available | Hoover Nameplate/Switch Box | 59137176 | Not Available |
| 44 | Not Available | Hoover Bracket-Ph-F7095 | 59137047 | Not Available |
| 45 | Not Available | Hoover Insulation Paper-Ph- | 59137046 | Not Available |
| 46 | Not Available | Hoover Capacitor-Start C502 | 59137313 | Not Available |
