Schematic and parts list for: Hoover Model: C5027
This is a list of parts and a diagram and schematic for: Hoover Model: C5027
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum

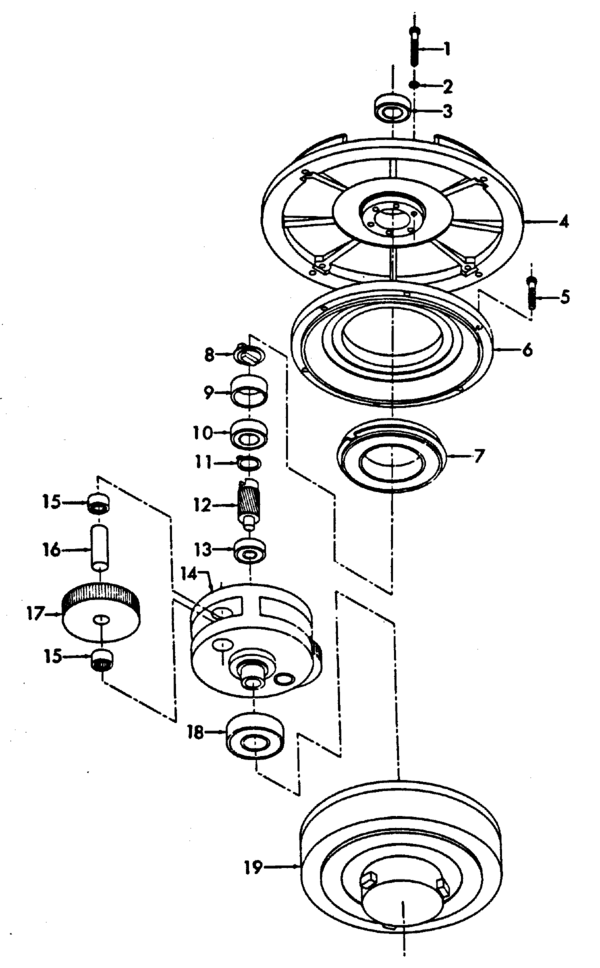

| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Lockwasher | 59137235 | Not Available |
| 3 | Not Available | Hoover Bearing | 59137234 | Not Available |
| 4 | Not Available | Hoover End Shield | 59137233 | Not Available |
| 5 | Not Available | Hoover Screw | 59137232 | Not Available |
| 6 | Not Available | Hoover Rotating Cover | 59137231 | Not Available |
| 7 | Not Available | Hoover Bearing | 59137230 | Not Available |
| 8 | Not Available | Hoover Coupling | 59137199 | Not Available |
| 9 | Not Available | Hoover Spacer | 59137198 | Not Available |
| 10 | Not Available | Hoover Bearing | 59137197 | Not Available |
| 11 | Not Available | Hoover Snap Ring | 59137196 | Not Available |
| 12 | Not Available | Hoover Pinion | 59137195 | Not Available |
| 13 | Not Available | Hoover Bearing | 59137194 | Not Available |
| 14 | Not Available | Hoover Planet Cage | 59137193 | Not Available |
| 15 | Not Available | Hoover Bearing | 59137190 | Not Available |
| 16 | Not Available | Hoover Planet Shaft | 59137192 | Not Available |
| 17 | Not Available | Hoover Planet Gear | 59137191 | Not Available |
| 18 | Not Available | Hoover Bearing | 59137189 | Not Available |
| 19 | Not Available | Hoover Drive Cover | 59137188 | Not Available |

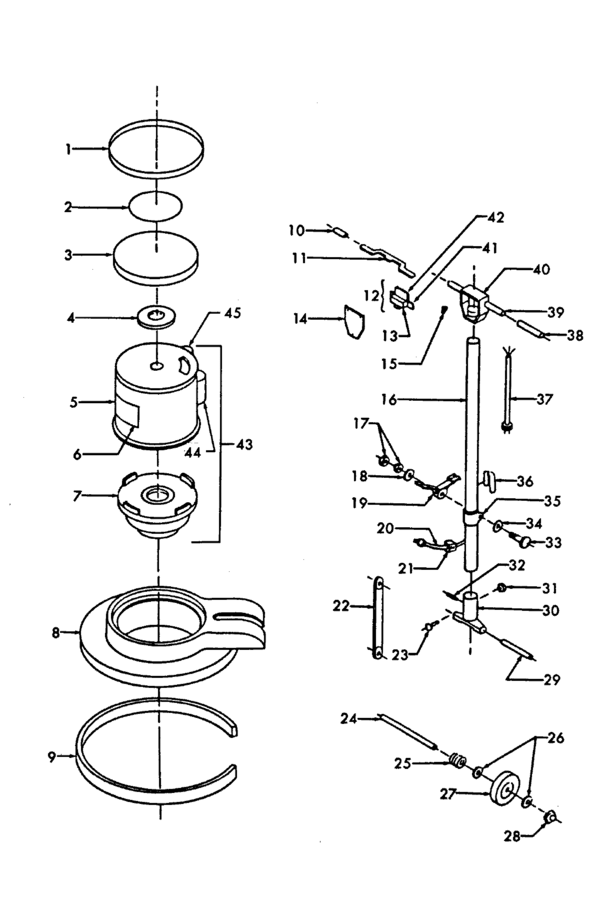

| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Centrifugal Switch - | 59137342 | Not Available |
| 1 | Not Available | Hoover Canopy Bumper | 59137106 | Not Available |
| 2 | Not Available | Hoover Nameplate/Motor Band | 59137107 | Not Available |
| 3 | Not Available | Hoover Motor Canopy | 59137108 | Not Available |
| 4 | Not Available | Hoover Canopy Spacer-Ph-F70 | 59137020 | Not Available |
| 5 | Not Available | Hoover Motor-1.5Hp | 59137158 | Not Available |
| 6 | Not Available | Hoover Nameplate/Motor Band | 59137146 | Not Available |
| 7 | Not Available | Hoover Gear Assembly Hs | 59137170 | Not Available |
| 8 | Not Available | Hoover Chassis-18 In | 59137185 | Not Available |
| 9 | Not Available | Hoover Bumper W/Insert-18 I | 59137186 | Not Available |
| 10 | Not Available | Hoover Switch Lever Sleeve | 59137120 | Not Available |
| 11 | Not Available | Hoover Switch Lever | 59137121 | Not Available |
| 12 | Not Available | Hoover Switch Assembly | 59137123 | Not Available |
| 13 | Not Available | Hoover Switch-Ph-F7095 | 59137019 | Not Available |
| 14 | Not Available | Hoover Switch Box Cover-Ph- | 59137006 | Not Available |
| 15 | Not Available | Hoover Sw Lever Spring-Ph-F | 59137048 | Not Available |
| 16 | Not Available | Hoover Handle Tube | 59137122 | Not Available |
| 17 | Not Available | Hoover Locknut | 59137124 | Not Available |
| 18 | Not Available | Hoover Washer | 59137125 | Not Available |
| 19 | Not Available | Hoover Kick Latch Pedal | 59137126 | Not Available |
| 21 | Not Available | Hoover Strain Relief-Ph-F70 | 59137024 | Not Available |
| 22 | Not Available | Hoover Handle Adjust Strut | 59137128 | Not Available |
| 23 | Not Available | Hoover Screw-Oval Head | 59137129 | Not Available |
| 24 | Not Available | Hoover Wheel Axle | 59137130 | Not Available |
| 25 | Not Available | Hoover Spring | 59137131 | Not Available |
| 26 | Not Available | Hoover Washer | 59137125 | Not Available |
| 27 | Not Available | Hoover Trans Wheel-4 In-Ph- | 59137039 | Not Available |
| 28 | Not Available | Hoover Acorn Nut | 59137133 | Not Available |
| 29 | Not Available | Hoover Handle Tee Shaft | 59137134 | Not Available |
| 30 | Not Available | Hoover Handle Tee | 59137135 | Not Available |
| 31 | Not Available | Hoover Nut W/Washer 1/4-20 | 59137136 | Not Available |
| 32 | Not Available | Hoover Drive Pin | 59137137 | Not Available |
| 33 | Not Available | Hoover Carriage Bolt | 59137138 | Not Available |
| 34 | Not Available | Hoover Washer-Rubber | 59137139 | Not Available |
| 35 | Not Available | Hoover Handle Clamp | 59137140 | Not Available |
| 36 | Not Available | Hoover Cord Hook | 59137052 | Not Available |
| 37 | Not Available | Hoover Cord Set Package | 59137141 | Not Available |
| 38 | Not Available | Hoover Handle Grip | 59137142 | Not Available |
| 39 | Not Available | Hoover Switch Box Handle | 59137143 | Not Available |
| 40 | Not Available | Hoover Switch Box Decal-18 | 59137187 | Not Available |
| 41 | Not Available | Hoover Bracket-Ph-F7095 | 59137047 | Not Available |
| 42 | Not Available | Hoover Insulation Paper-Ph- | 59137046 | Not Available |
| 43 | Not Available | Hoover Motor & Gear Assembl | 59137169 | Not Available |
| 44 | Not Available | Hoover Capacitor-Start C502 | 59137313 | Not Available |
