Schematic and parts list for: Hoover Model: C5029

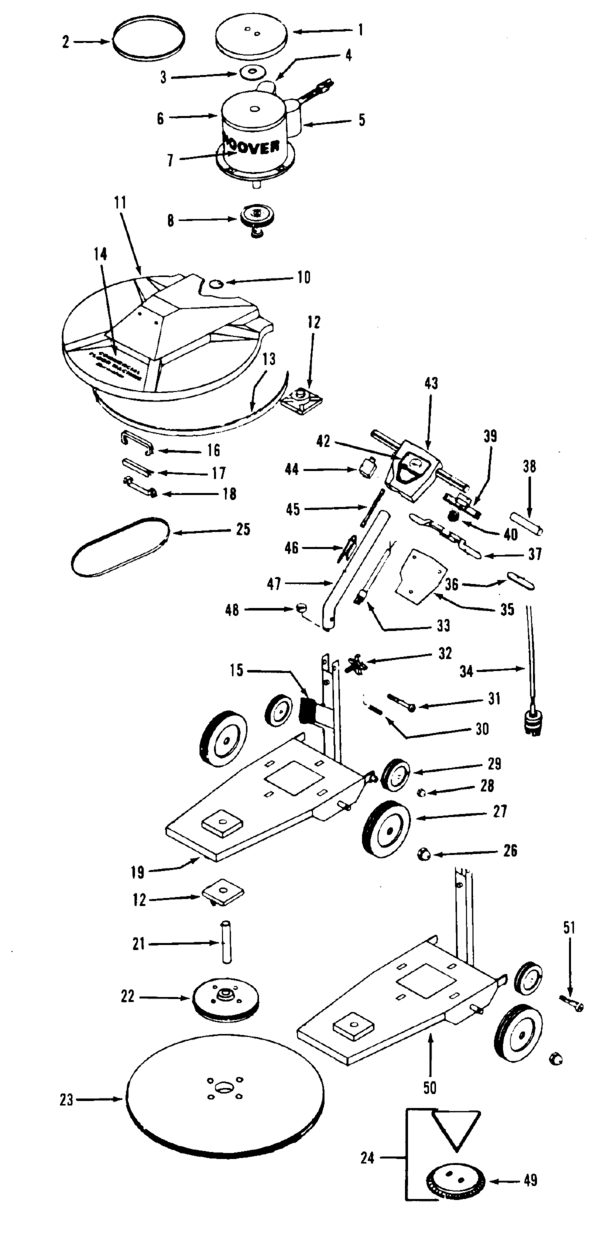

This is a list of parts and a diagram and schematic for: Hoover Model: C5029
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Motor Canopy-Ph-F709 | 59137018 | Not Available |
| 2 | Not Available | Hoover Canopy Bumper-Ph-F70 | 59137015 | Not Available |
| 3 | Not Available | Hoover Canopy Spacer-Ph-F70 | 59137020 | Not Available |
| 4 | Not Available | Hoover Capacitor-Oil-Ph-F70 | 59137021 | Not Available |
| 5 | Not Available | Hoover Capacitor-Elec-Ph-F7 | 59137022 | Not Available |
| 6 | Not Available | Hoover Motor-1 1/2Hp Ac-Ph- | 59137016 | Not Available |
| 7 | Not Available | Hoover Motor Case Decal-Ph- | 59137017 | Not Available |
| 8 | Not Available | Hoover Motor Pulley-Ph-F709 | 59137023 | Not Available |
| 10 | Not Available | Hoover Cam Tensioner-Ph-F70 | 59137025 | Not Available |
| 11 | Not Available | Hoover Shroud-Ly-C5029 | 59137322 | Not Available |
| 12 | Not Available | Hoover Flange Bearing-C5029 | 59137323 | Not Available |
| 13 | Not Available | Hoover Shroud Bumper-Ph-F70 | 59137014 | Not Available |
| 14 | Not Available | Hoover Shroud Decal-Ph-F709 | 59137013 | Not Available |
| 15 | Not Available | Hoover Plug Button-Ph-F7095 | 59137027 | Not Available |
| 16 | Not Available | Hoover Lift Handle-Ph-F7095 | 59137028 | Not Available |
| 17 | Not Available | Hoover Handle Cap-Ph-F7095 | 59137029 | Not Available |
| 18 | Not Available | Hoover Handle Bracket-Ph-F7 | 59137030 | Not Available |
| 19 | Not Available | Hoover Chassis-Ph-F7095 | 59137010 | Not Available |
| 21 | Not Available | Hoover Shaft-Ph-F7095 | 59137032 | Not Available |
| 22 | Not Available | Hoover Drive Pulley-Ph-F709 | 59137033 | Not Available |
| 23 | Not Available | Hoover Pad Holder-Ph-F7095 | 59137034 | Not Available |
| 24 | Not Available | Hoover Pad Lock Assem-C5029 | 59137345 | Not Available |
| 25 | Not Available | Hoover Drive Belt-Ph-F7095 | 59137036 | Not Available |
| 26 | Not Available | Hoover Acorn Nut-Ph-F7095 | 59137037 | Not Available |
| 27 | Not Available | Hoover Wheel 6 In-Ph-F7095 | 59137011 | Not Available |
| 28 | Not Available | Hoover Acorn Nut | 59137133 | Not Available |
| 29 | Not Available | Hoover Trans Wheel-4 In-Ph- | 59137039 | Not Available |
| 30 | Not Available | Hoover Split Pin-Ph-F7095 | 59137040 | Not Available |
| 31 | Not Available | Hoover Shoulder Bolt-Ph-F70 | 59137041 | Not Available |
| 32 | Not Available | Hoover Handle Lock Knob-Ph- | 59137042 | Not Available |
| 34 | Not Available | Hoover Cord Set Package | 59137141 | Not Available |
| 35 | Not Available | Hoover Switch Box Cover-Ph- | 59137006 | Not Available |
| 36 | Not Available | Hoover Sw Lever Sleeve-Ph-F | 59137008 | Not Available |
| 37 | Not Available | Hoover Switch Lever | 59137121 | Not Available |
| 38 | Not Available | Hoover Handle Grip-F7095-Ph | 59137007 | Not Available |
| 40 | Not Available | Hoover Sw Lever Spring-Ph-F | 59137048 | Not Available |
| 42 | Not Available | Hoover Switch Box Decal-F70 | 59137009 | Not Available |
| 43 | Not Available | Hoover Switch Box-F7095-Ph | 59137005 | Not Available |
| 44 | Not Available | Hoover Circuit Breaker-Ph-F | 59137050 | Not Available |
| 45 | Not Available | Hoover Jumper Lead-Ph-F7095 | 59137051 | Not Available |
| 46 | Not Available | Hoover Cord Hook | 59137052 | Not Available |
| 47 | Not Available | Hoover Handle Tube-Ph-F7095 | 59137053 | Not Available |
| 48 | Not Available | Hoover Cap Plug-Ph-F7095 | 59137054 | Not Available |
| 49 | Not Available | Hoover Pad Clamp-C5029 | 59137328 | Not Available |
| 50 | Not Available | Hoover Chassis-Ph-F7095 | 59137010 | Not Available |
| 51 | Not Available | Hoover Shoulder Bolt-Ph-F70 | 59137038 | Not Available |
