Schematic and parts list for: Hoover Model: C5031
This is a list of parts and a diagram and schematic for: Hoover Model: C5031
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum

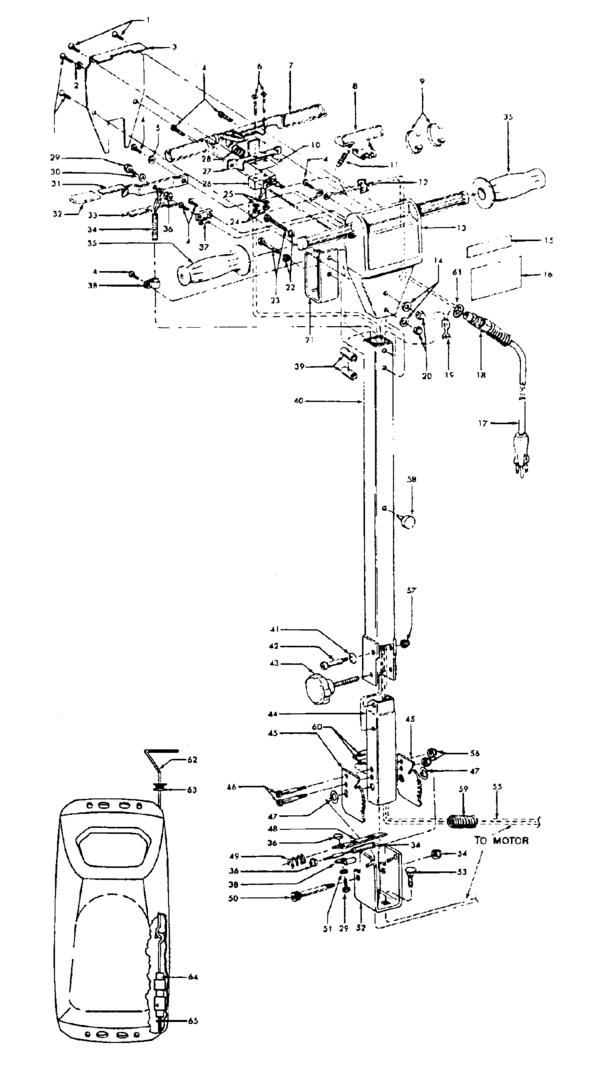

![](https://www.vacuumsrus.com/wp-content/uploads/2023/11/vacuums-C5031-1-565x1024.png)
# | Part image | Description | SKU | Price |
1 | Not Available | Hoover Self-Tapping Screw | 21447209 | Not Available |
2 | Not Available | Hoover Lock Washer | 21354601 | Not Available |
3 | Not Available | Hoover Cover Plate-Ag-C5031 | 37944008 | Not Available |
4 | Not Available | Hoover Self-Tapping Screw | 21447207 | Not Available |
5 | Not Available | Hoover Washer-C9013 | 1107641- | Not Available |
6 | Not Available | Hoover Machine Screw | 21768127 | Not Available |
8 | Not Available | Hoover Hp-Sw Lockout Button | 38421046 | Not Available |
9 | Not Available | Hoover Wire Tie | 1539143- | Not Available |
10 | Not Available | Hoover Insulating Barrier | 34154005 | Not Available |
11 | Not Available | Hoover Tension Spring | 38333006 | Not Available |
12 | Not Available | Hoover Locknut | 21853019 | Not Available |
13 | Not Available | Hoover Switch Box-Ag-C5031/ | 37923035 | Not Available |
14 | Not Available | Hoover Washer | 21312798 | Not Available |
16 | Not Available | Hoover Label - Floormax | 51663004 | Not Available |
17 | Not Available | Hoover Exp-Attachment Cord | 46583153 | Not Available |
18 | Not Available | Hoover Strain Relief - C503 | 27482140 | Not Available |
19 | Not Available | Hoover Terminal-Insulated-U | 018972- | Not Available |
20 | Not Available | Hoover Acorn Nut | 21846155 | Not Available |
21 | Not Available | Hoover Cord Wrap | 34638009 | Not Available |
22 | Not Available | Hoover Washer-C3003 | 1107627- | Not Available |
23 | Not Available | Hoover Hex Head Bolt | 21811018 | Not Available |
24 | Not Available | Hoover Brass Nut-C3003 | 1307631- | Not Available |
25 | Not Available | Hoover Washer-S7001 | 1107699- | Not Available |
26 | Not Available | Hoover Switch - C5031 | 28218044 | Not Available |
27 | Not Available | Hoover Switch Bracket - Ay | 36957021 | Not Available |
28 | No Image | SPRING, PUSH SWITCH SPIRIT 3487 Part Number: 38314002 for Hoover | 38314002 | $1.63Read more |
29 | Not Available | Hoover Screw-C9013 | 21781154 | Not Available |
30 | Not Available | Hoover Washer - C3007 | 21312796 | Not Available |
31 | Not Available | Hoover Release Lever - Ay | 38452096 | Not Available |
32 | Not Available | Hoover Sleeve - Ay | 25696405 | Not Available |
33 | Not Available | Hoover Restraint Bar | 34252015 | Not Available |
34 | Not Available | Hoover Cable Assem - C5031 | 43211008 | Not Available |
35 | Not Available | Hoover Handle Grip-Ag-C5031 | 39454051 | Not Available |
36 | Not Available | Hoover Lock Nut-C3003 | 1107602- | Not Available |
37 | Not Available | Hoover Strain Relief - C207 | 27478611 | Not Available |
38 | Not Available | Hoover Cable Clamp - C5031 | 36171029 | Not Available |
39 | Not Available | Hoover Spacer | 31722023 | Not Available |
41 | Not Available | Hoover Spring Washer | 21347004 | Not Available |
42 | Not Available | Hoover Socket Head Shoulder | 21811021 | Not Available |
43 | Not Available | Hoover Knob - C5031, C5037 | 23718104 | Not Available |
45 | Not Available | Hoover Cam Plate - Fw | 34287036 | Not Available |
46 | Not Available | Hoover Socket Head Shoulder | 21751006 | Not Available |
47 | Not Available | Hoover Brass Washer | 21312519 | Not Available |
48 | Not Available | Hoover Release Bar - Fw | 34252011 | Not Available |
49 | Not Available | Hoover Fw-Bail Ret Spring-C | 38314020 | Not Available |
50 | Not Available | Hoover Socket Head Shoulder | 21751005 | Not Available |
51 | Not Available | Hoover Flat Washer | 21312801 | Not Available |
52 | Not Available | Hoover Handle Bracket - Fw | 34618021 | Not Available |
53 | Not Available | Hoover Carriage Bolt | 21831025 | Not Available |
54 | Not Available | Hoover Lock Nut | 21854202 | Not Available |
55 | Not Available | Hoover Cord And Terminal Assembly | 46533001 | Not Available |
56 | Not Available | Hoover Nut-C2075 | 21854103 | Not Available |
57 | Not Available | Hoover Nut-S7001-Chemko | 21851005 | Not Available |
58 | Not Available | Hoover Bumper - C5031 | 36222019 | Not Available |
59 | Not Available | Hoover Ay-Spring - C5037/39 | 38335024 | Not Available |
60 | Not Available | Hoover Spacer - .250 - Ccs | 31721042 | Not Available |
61 | Not Available | Hoover Washer - Special | 21312812 | Not Available |
62 | Not Available | Hoover Handle Rod - Fp121 | 59189001 | Not Available |
63 | Not Available | Hoover Grommet - 314Ab | 59189002 | Not Available |
64 | Not Available | Hoover Shampoovalve - Fp122 | 59189003 | Not Available |
65 | Not Available | Hoover Washer - 309Ab | 59189004 | Not Available |

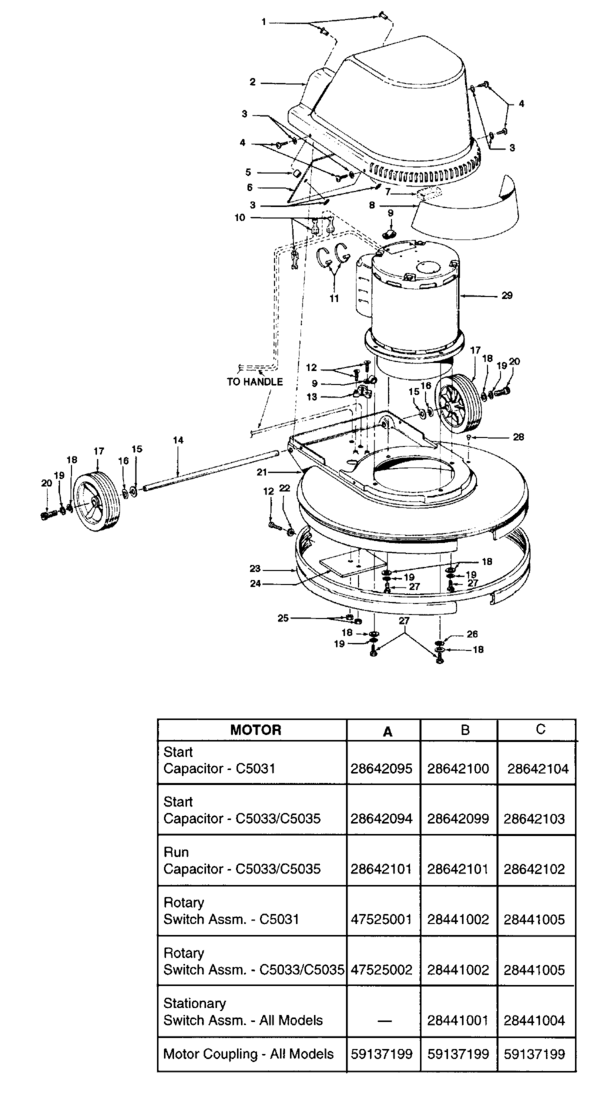

![](https://www.vacuumsrus.com/wp-content/uploads/2023/11/vacuums-C5031-2-558x1024.png)
# | Part image | Description | SKU | Price |
1 | Not Available | Hoover Rivet | 1205591- | Not Available |
2 | Not Available | Hoover Shroud Assembly- Hp | 42272072 | Not Available |
3 | Not Available | Hoover Flat Washer | 21312801 | Not Available |
4 | Not Available | Hoover Self-Tapping Screw | 21447207 | Not Available |
5 | Not Available | Hoover Spacer - S2095-97-99 | 31721047 | Not Available |
6 | Not Available | Hoover Baffle | 34175017 | Not Available |
7 | Not Available | Hoover Motor Cushion | 34141006 | Not Available |
8 | Not Available | Hoover Label - Shroud | 51664017 | Not Available |
9 | Not Available | Hoover Cord Clamp | 014492- | Not Available |
10 | Not Available | Hoover Terminal-Insulated-U | 018972- | Not Available |
11 | Not Available | Hoover Wire Tie | 1539143- | Not Available |
12 | Not Available | Hoover Self-Tapping Screw | 21447208 | Not Available |
13 | Not Available | Hoover Strain Relief - C207 | 27478611 | Not Available |
14 | Not Available | Hoover Ay-Axle Shaft - C503 | 31565006 | Not Available |
15 | Not Available | Hoover Flat Washer | 21312800 | Not Available |
16 | No Image | CURVED WASHER FOR WHEEL C5030 Part Number: 21347002 for Hoover | 21347002 | $1.54Read more |
17 | Not Available | Hoover Wheel | 43247024 | Not Available |
18 | Not Available | Hoover Washer | 21312798 | Not Available |
19 | Not Available | Hoover Washer-C3003 | 1107627- | Not Available |
20 | Not Available | Hoover Socket Head Cap Scre | 21751003 | Not Available |
22 | Not Available | Hoover Flat Washer | 21312797 | Not Available |
24 | Not Available | Hoover Bearing Plate | 34175020 | Not Available |
25 | Not Available | Hoover Hex Lock Nut | 21854203 | Not Available |
26 | Not Available | Hoover Lock Washer - Ccs | 21356014 | Not Available |
27 | Not Available | Hoover Bolt-C3003 | 1105501- | Not Available |
28 | Not Available | Hoover Plug | 23762513 | Not Available |
