Schematic and parts list for: Hoover Model: C5122test

Schematic and parts list for: Hoover Model: C5122

This is a list of parts and a diagram and schematic for: Hoover Model: C5122

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: Commercial Vacuum

#	Part image	Description	SKU	Price

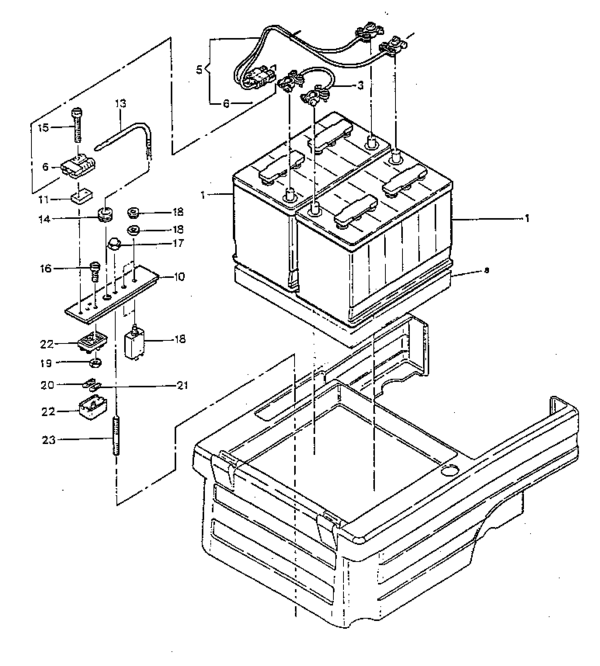

1	Not Available	Hoover 1 Set Of Batteries 1X12V / 110	59815223	Not Available
3	Not Available	Hoover Cable-Short	59815216	Not Available
5	Not Available	Hoover Cable-Long	59815215	Not Available
6	Not Available	Hoover Charger Plug W/O Lea	59187347	Not Available
8	Not Available	Hoover Battery Tray	59815217	Not Available
10	Not Available	Hoover Cover	59815219	Not Available
11	Not Available	Hoover Plug	59815218	Not Available
13	Not Available	Hoover Cable Bend	59815214	Not Available
14	Not Available	Hoover Rubber Claim	59815210	Not Available
15	Not Available	Hoover Pan Head Screw	59815209	Not Available
16	Not Available	Hoover Pan Head Screw	59815078	Not Available
17	Not Available	Hoover Nut	59815206	Not Available
19	Not Available	Hoover Nut	59815207	Not Available
20	Not Available	Hoover Fuse - 25 Amp	59815211	Not Available
21	Not Available	Hoover Fuse - 5 Amp	59815212	Not Available
22	Not Available	Hoover Distribution Box	59815222	Not Available
23	Not Available	Hoover Pin	59815208	Not Available

#	Part image	Description	SKU	Price
1	Not Available	Hoover Motor	59815012	Not Available
2	Not Available	Hoover Distance Cup	59815014	Not Available
3	Not Available	Hoover Motor Holder	59815015	Not Available
4	Not Available	Hoover Driving Plate	59815017	Not Available
5	Not Available	Hoover Nylon Wash Brush	59815018	Not Available
6	Not Available	Hoover Pin	59815053	Not Available
7	Not Available	Hoover Wave W/Worm Gear	59815013	Not Available
8	Not Available	Hoover Hexagon Screw	59815040	Not Available
15	Not Available	Hoover Lock Washer	59815052	Not Available
18	Not Available	Hoover Distance Cup	59815016	Not Available
21	Not Available	Hoover Distance Cup	59815030	Not Available
22	Not Available	Hoover Distance Cup	59815029	Not Available
23	Not Available	Hoover Hexagon Screw	59815040	Not Available
24	Not Available	Hoover Nut	59815048	Not Available
26	Not Available	Hoover Lever Compl	59815020	Not Available
27	Not Available	Hoover Lever	59815022	Not Available
28	Not Available	Hoover Permaglass Piece	59815019	Not Available
30	Not Available	Hoover Pressure Spring	59815026	Not Available
32	Not Available	Hoover Plastic Piece	59815028	Not Available
33	Not Available	Hoover Distance Piece	59815027	Not Available
34	Not Available	Hoover Hexagon Screw	59815040	Not Available
35	Not Available	Hoover Permaglass Piece	59815021	Not Available
38	Not Available	Hoover Foot Pedal	59815025	Not Available
39	Not Available	Hoover Pan Head Screw	59815043	Not Available
41	Not Available	Hoover Screw	59815034	Not Available
42	Not Available	Hoover Hexagon Screw	59815041	Not Available
43	Not Available	Hoover Cy Screw	59815045	Not Available
44	Not Available	Hoover Brace	59815036	Not Available
45	Not Available	Hoover Press. Reg. Lever	59815023	Not Available
46	Not Available	Hoover Lever	59815024	Not Available
47	Not Available	Hoover Hexagon Screw	59815046	Not Available
48	Not Available	Hoover Hexagon Screw	59815039	Not Available
49	Not Available	Hoover Hexagon Screw	59815039	Not Available
51	Not Available	Hoover Pin Screw	59815044	Not Available
55	Not Available	Hoover Lever Compl	59815035	Not Available
56	Not Available	Hoover Handle	59815011	Not Available
58	Not Available	Hoover Pressure Spring	59815037	Not Available
59	Not Available	Hoover Hexagon Screw	59815038	Not Available
60	Not Available	Hoover Hexagon Screw	59815042	Not Available
62	Not Available	Hoover Spring Holder	59815031	Not Available
63	Not Available	Hoover Distance Cup	59815032	Not Available
64	Not Available	Hoover Spring	59815033	Not Available
65	Not Available	Hoover Nut	59815047	Not Available
66	Not Available	Hoover Washer	59815051	Not Available

#	Part image	Description	SKU	Price

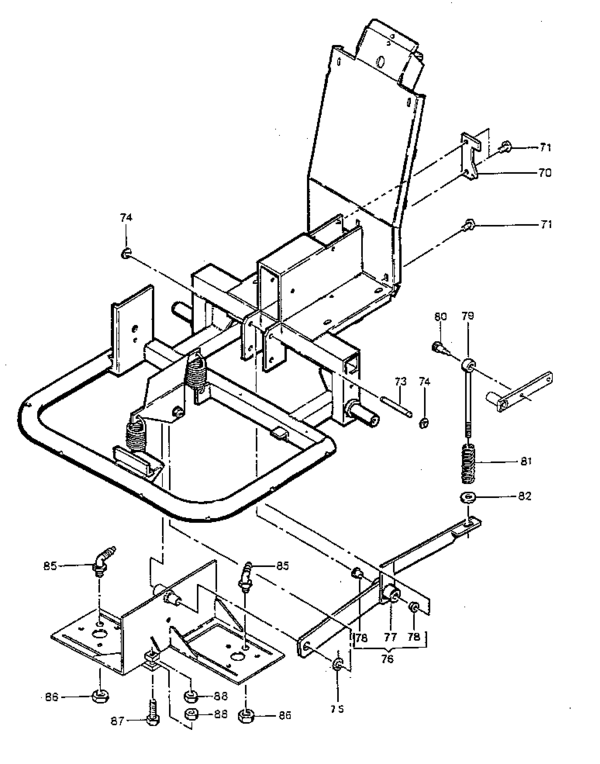

70	Not Available	Hoover Link Sheet Metal	59815061	Not Available
71	Not Available	Hoover Pan Head Screw	59815043	Not Available
73	Not Available	Hoover Swivel Pin	59815060	Not Available
74	Not Available	Hoover Washer	59815064	Not Available
75	Not Available	Hoover Distance Disc	59815054	Not Available
76	Not Available	Hoover Lift Lever	59815055	Not Available
77	Not Available	Hoover Lever	59815056	Not Available
78	Not Available	Hoover Permaglass Piece	59815019	Not Available
79	Not Available	Hoover Eye Nut	59815058	Not Available
80	Not Available	Hoover Screw	59815057	Not Available
81	Not Available	Hoover Pressure Spring	59815059	Not Available
82	Not Available	Hoover Washer	59815063	Not Available
85	Not Available	Hoover Angled Hose	59815066	Not Available
86	Not Available	Hoover Counter Nut	59815065	Not Available
87	Not Available	Hoover Hexagon Screw	59815040	Not Available
88	Not Available	Hoover Hexagon Nut	59815062	Not Available

#	Part image	Description	SKU	Price

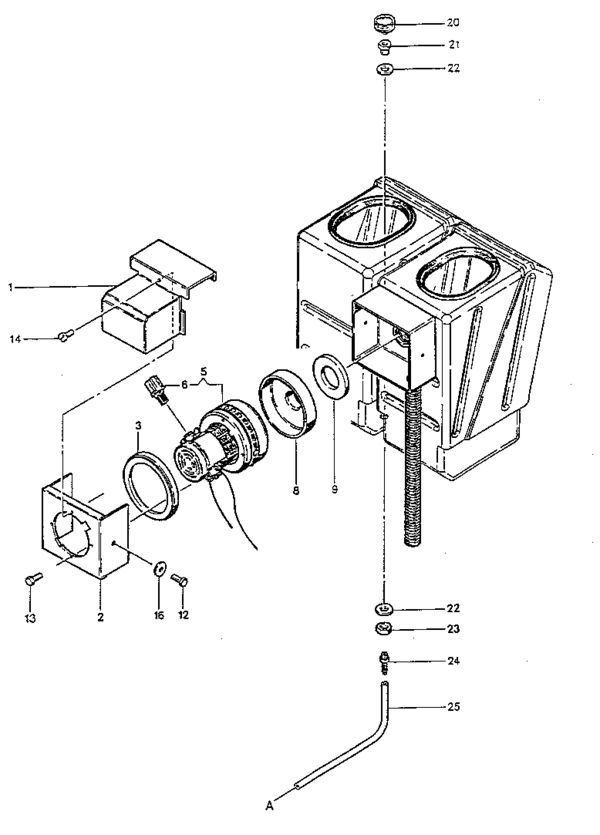

1	Not Available	Hoover Motor Cover	59815152	Not Available
2	Not Available	Hoover Motor Holder	59815151	Not Available
3	Not Available	Hoover Rest Of Motor	59815161	Not Available
5	Not Available	Hoover Suction Motor	59815149	Not Available
6	Not Available	Hoover Carbon Brushes	59815150	Not Available
8	Not Available	Hoover Hose Conn Cap	59815153	Not Available
9	Not Available	Hoover Sealing Ring	59815155	Not Available
12	Not Available	Hoover Hexagon Screw	59815156	Not Available
13	Not Available	Hoover Pan Head Screw	59815158	Not Available
14	Not Available	Hoover Pan Head Screw	59815157	Not Available
16	Not Available	Hoover Washer	59815137	Not Available
20	Not Available	Hoover Water Filter	59815148	Not Available
21	Not Available	Hoover Reducer	59815159	Not Available
22	Not Available	Hoover Gasket	59815154	Not Available
23	Not Available	Hoover Hexagon Nut	59815160	Not Available
24	Not Available	Hoover Fitting	59815087	Not Available
25	Not Available	Hoover Silicon Hose	59815147	Not Available

#	Part image	Description	SKU	Price
1	Not Available	Hoover Splash Protection	59815074	Not Available
3	Not Available	Hoover Pt Screw	59815081	Not Available
4	Not Available	Hoover Washer	59815050	Not Available
6	Not Available	Hoover Wheel	59815069	Not Available
7	Not Available	Hoover Countersunk Screw	59815080	Not Available
8	Not Available	Hoover Holding Washer	59815070	Not Available
10	Not Available	Hoover Sw Caster Wheel	59815077	Not Available
12	Not Available	Hoover Screw	59815082	Not Available
13	Not Available	Hoover Nut	59815085	Not Available
14	Not Available	Hoover Washer	59815086	Not Available
18	Not Available	Hoover Magnetic Valve	59815071	Not Available
19	Not Available	Hoover Not Required Part Or See Note Turbine Complete	W10124350	Not Available
20	Not Available	Hoover Plug For Valve	59815072	Not Available
21	Not Available	Hoover Nut	59815083	Not Available
25	Not Available	Hoover Fender Wheel	59815076	Not Available
26	Not Available	Hoover Sh Of Fend.Wheel	59815075	Not Available
28	Not Available	Hoover Ball Tap	59815067	Not Available
29	Not Available	Hoover Bracket	59815068	Not Available
30	Not Available	Hoover Nut	59815084	Not Available
31	Not Available	Hoover Pan Head Screw	59815079	Not Available
32	Not Available	Hoover Fitting	59815087	Not Available
33	Not Available	Hoover Angled Hose	59815066	Not Available
35	Not Available	Hoover Pan Head Screw	59815078	Not Available

#	Part image	Description	SKU	Price

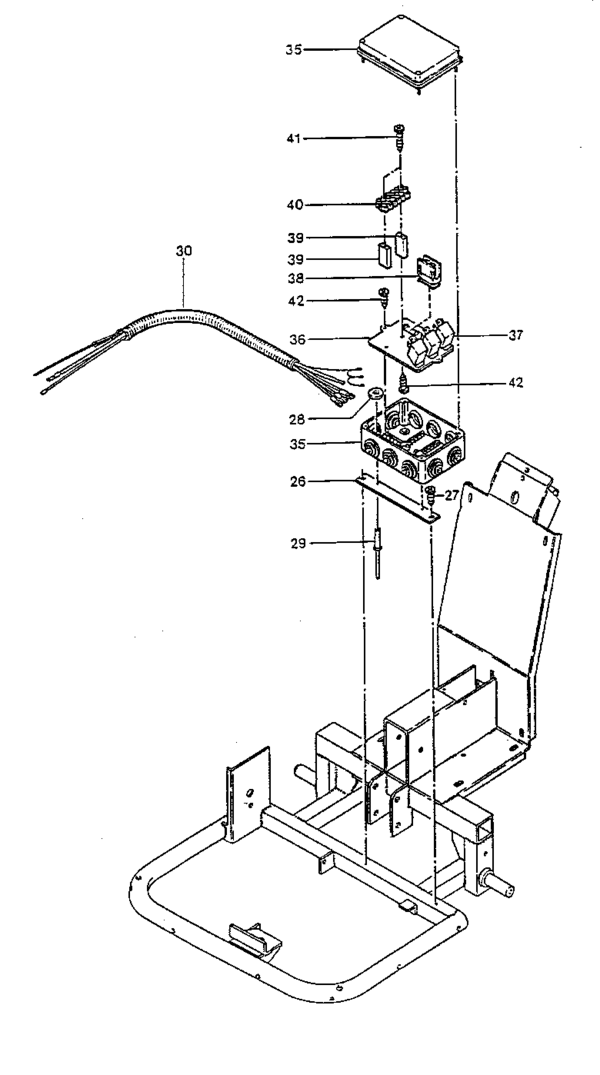

27	Not Available	Hoover Pt Screw	59815081	Not Available
28	Not Available	Hoover Washer	59815224	Not Available
29	Not Available	Hoover Rivet	59815225	Not Available
30	Not Available	Hoover Cable Strand	59815231	Not Available
35	Not Available	Hoover Distribution Box	59815235	Not Available
36	Not Available	Hoover Electric Plate	59815234	Not Available
37	Not Available	Hoover Relais	59815232	Not Available
38	Not Available	Hoover Clamp	59815228	Not Available
39	Not Available	Hoover Distance Piece	59815230	Not Available
40	Not Available	Hoover Terminal	59815229	Not Available
41	Not Available	Hoover Screw	59815227	Not Available
42	Not Available	Hoover Screw	59815226	Not Available

#	Part image	Description	SKU	Price

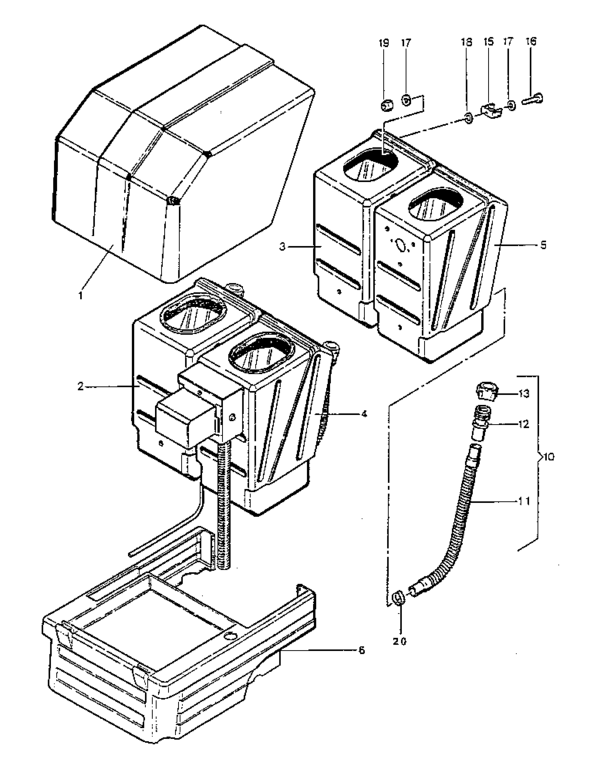

xx	Not Available	Hoover Hose Clamp	59815194	Not Available
1	Not Available	Hoover Cap	59815193	Not Available
2	Not Available	Hoover Water Tank Compl	59815205	Not Available
3	Not Available	Hoover Fresh Water Tank	59815204	Not Available
4	Not Available	Hoover Waste Tank	59815196	Not Available
5	Not Available	Hoover Washer Tank	59815195	Not Available
6	Not Available	Hoover Shop Protection	59815191	Not Available
13	Not Available	Hoover Hose Jacket Cap	59815197	Not Available
16	Not Available	Hoover Screw	59815190	Not Available
17	Not Available	Hoover Washer	59815189	Not Available
18	Not Available	Hoover Lock Washer	59815188	Not Available
19	Not Available	Hoover Nut	59815084	Not Available
20	Not Available	Hoover Hose Claim	59815187	Not Available

#	Part image	Description	SKU	Price

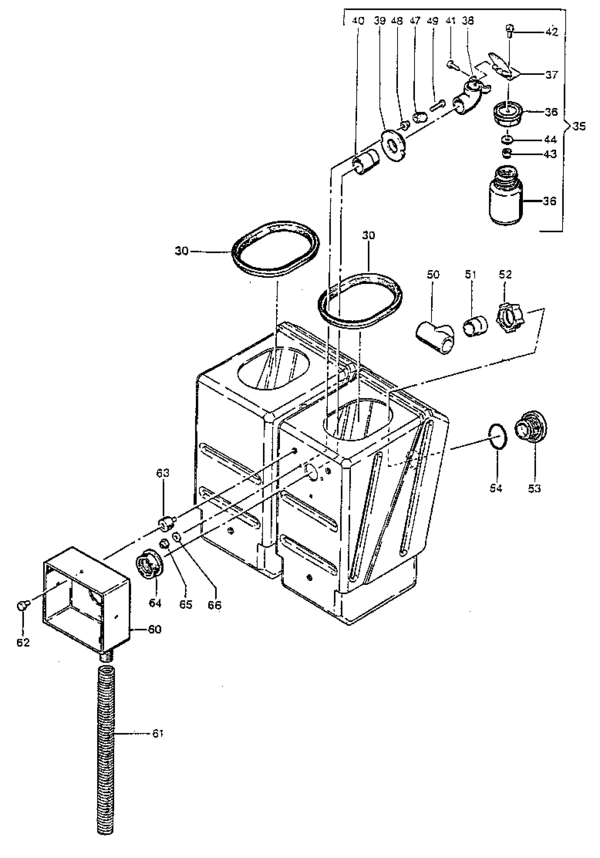

30	Not Available	Hoover Gasket Cord	59815164	Not Available
35	Not Available	Hoover Floating Comp	59815172	Not Available
36	Not Available	Hoover Float Bottle Comp	59815178	Not Available
37	Not Available	Hoover Foat Flab	59815173	Not Available
38	Not Available	Hoover Bow Compl	59815176	Not Available
39	Not Available	Hoover Gasket	59815175	Not Available
40	Not Available	Hoover Reducing Raccord	59815174	Not Available
41	Not Available	Hoover Wood Screw	59815183	Not Available
42	Not Available	Hoover Pan Head Screw	59815184	Not Available
43	Not Available	Hoover Nut	59815185	Not Available
44	Not Available	Hoover Washer	59815050	Not Available
47	Not Available	Hoover Clamping Gib	59815179	Not Available
48	Not Available	Hoover Distance Piece	59815177	Not Available
49	Not Available	Hoover Pan Head Screw	59815182	Not Available
51	Not Available	Hoover Reducing Raccord	59815167	Not Available
52	Not Available	Hoover Nut	59815163	Not Available
53	Not Available	Hoover Socket	59815165	Not Available
54	Not Available	Hoover O Ring	59815169	Not Available
60	Not Available	Hoover Support For Motor	59815170	Not Available
61	Not Available	Hoover Suction Hose	59815171	Not Available
62	Not Available	Hoover Hexagon Screw	59815181	Not Available
63	Not Available	Hoover Round Buffer	59815180	Not Available
64	Not Available	Hoover Gasket	59815162	Not Available
65	Not Available	Hoover Nut	59815186	Not Available
66	Not Available	Hoover Nut	59815186	Not Available

#	Part image	Description	SKU	Price

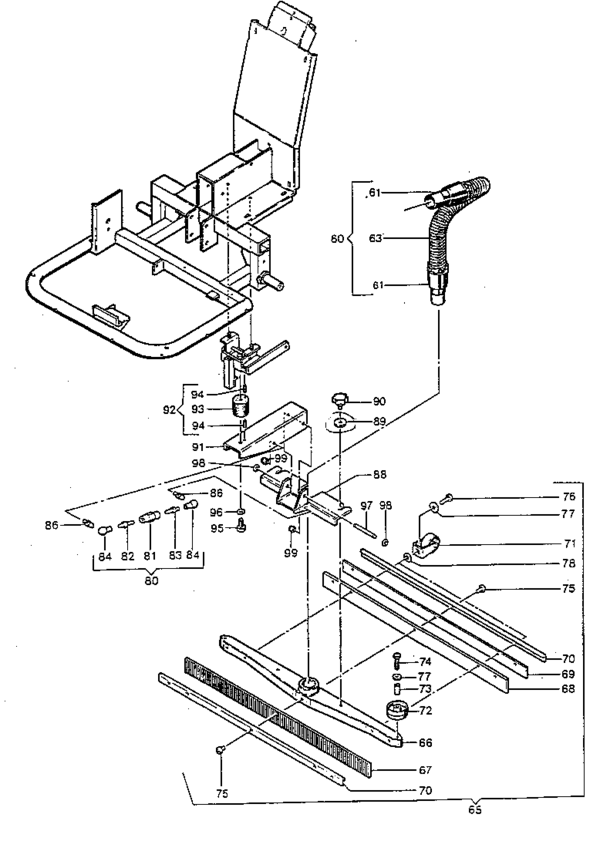

60	Not Available	Hoover Suction Hose Comp	59815111	Not Available
61	Not Available	Hoover Hose Socket	59815145	Not Available
63	Not Available	Hoover Suction Hose	59815112	Not Available
65	Not Available	Hoover Tractor Nozzle C.	59815109	Not Available
66	Not Available	Hoover Tractor Nozzle	59815110	Not Available
67	Not Available	Hoover Scraper	59815093	Not Available
68	Not Available	Hoover Scraper	59815105	Not Available
69	Not Available	Hoover Supporting Lips	59815094	Not Available
70	Not Available	Hoover Clamping Guide	59815095	Not Available
71	Not Available	Hoover Supporting Wheel	59815096	Not Available
72	Not Available	Hoover Fender Wheel	59815097	Not Available
73	Not Available	Hoover Pipe	59815098	Not Available
74	Not Available	Hoover Hexagon Screw	59815126	Not Available
75	Not Available	Hoover Pan Head Screw	59815129	Not Available
76	Not Available	Hoover Hexagon Screw	59815127	Not Available
77	Not Available	Hoover Washer	59815137	Not Available
78	Not Available	Hoover Lock Washer	59815140	Not Available
80	Not Available	Hoover Adj. Spindle	59815099	Not Available
81	Not Available	Hoover Thread Socket	59815100	Not Available
82	Not Available	Hoover Thread Pin-Right	59815101	Not Available
83	Not Available	Hoover Thread Pin-Left	59815102	Not Available
84	Not Available	Hoover Ball	59815142	Not Available
86	Not Available	Hoover Ball Pin	59815143	Not Available
88	Not Available	Hoover Nozzle Holder	59815115	Not Available
89	Not Available	Hoover Washer	59815135	Not Available
90	Not Available	Hoover Star Handle	59815089	Not Available
91	Not Available	Hoover Support	59815114	Not Available
92	Not Available	Hoover Cuff Cylinder	59815117	Not Available
93	Not Available	Hoover Cuff Cylinder	59815116	Not Available
94	Not Available	Hoover Pin	59815144	Not Available
95	Not Available	Hoover Hexagon Screw	59815128	Not Available
96	Not Available	Hoover Lock Washer	59815139	Not Available
97	Not Available	Hoover Bolt	59815119	Not Available
98	Not Available	Hoover Washer	59815064	Not Available
99	Not Available	Hoover Nut	59815047	Not Available

Report errors on this page HERE

Schematic and parts list for: Hoover Model: C5122

Arvada

Boulder

Fort Collins
