Schematic and parts list for: Hoover Model: F4323

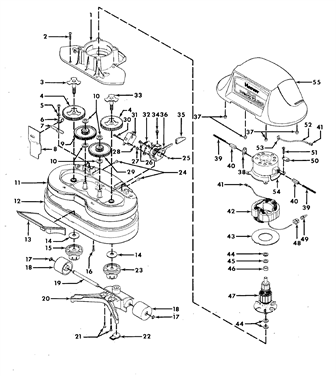

This is a list of parts and a diagram and schematic for: Hoover Model: F4323
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac
Popular Supplies
| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |

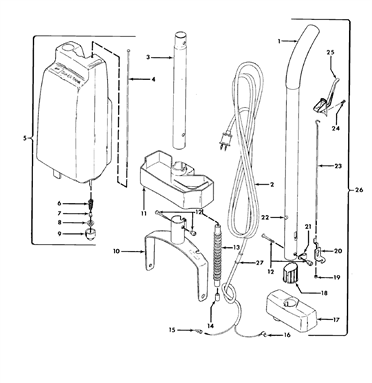

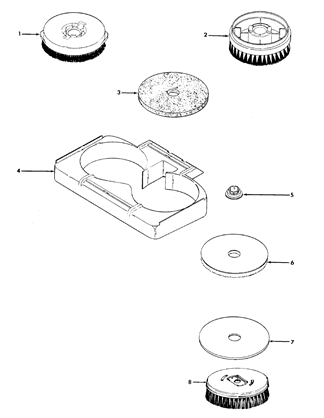

| 2 | Not Available | Hoover Power Cord | 46383068 | Not Available |
| 4 | Not Available | Hoover Valve Rod | 019717 | Not Available |
| 6 | Not Available | Hoover Valve Spring 5471 | 017314 | Not Available |
| 7 |  | Bissell Style 8 and 14 Belts | 011120014341 | $7.49Add to cart |
| 8 | Not Available | Hoover Tank Cap Liner-5471 | 015796 | Not Available |
| 9 | Not Available | Hoover Valve Cap | 37911006 | Not Available |
| 12 | Not Available | Hoover Bolt & Nut | 48294AW | Not Available |
| 13 | Not Available | Hoover Distributor Hose 547 | 017473 | Not Available |
| 14 | Not Available | Hoover Plug | 162180 | Not Available |
| 15 | Not Available | Hoover Wire Nut | 048969 | Not Available |
| 16 | Not Available | Hoover Terminal-Flag | 161876 | Not Available |
| 19 | Not Available | Hoover Nut-5471 | 162067 | Not Available |
| 20 | Not Available | Hoover Valve Control Bracke | 162069AY | Not Available |
| 21 | Not Available | Hoover Cord Clamp | 012910 | Not Available |
| 22 | Not Available | Hoover Rivet 5479 | 017252 | Not Available |
| 23 | Not Available | Hoover Control Rod-5471 | 162068 | Not Available |
| 24 | Not Available | Hoover Screw 5471 | 017942 | Not Available |
| 25 | Not Available | Hoover Control Housing-Ag-F | 43138005 | Not Available |
| 26 | Not Available | Hoover Upper Handle-Ax-F430 | 48648022 | Not Available |
| 27 | Not Available | Hoover Owner Manual-F4255 | 56518060 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Gear Cover Assembly | 12165 | Not Available |
| 2 | Not Available | Hoover Screw | 049417AZ | Not Available |
| 3 | Not Available | Hoover Brush Shaft & Insert Rh | 168405 | Not Available |
| 4 | Not Available | Hoover Brush Gear | 38541002 | Not Available |
| 5 | Not Available | Hoover Screw | 014378 | Not Available |
| 6 | Not Available | Hoover Cord Clamp | 012910 | Not Available |
| 7 | Not Available | Hoover Bail Shaft Rh-5350 | 049388AY | Not Available |
| 8 | Not Available | Hoover Cord Insulator | 014367 | Not Available |
| 9 | Not Available | Hoover Idler Gear-Rh-S486 | 035675BZ | Not Available |
| 10 | Not Available | Hoover Washer | 21312724 | Not Available |
| 11 | Not Available | Hoover Gear Housing Comp | 42273011 | Not Available |
| 12 | Not Available | Hoover Furniture Guard F400 | 017292JM | Not Available |
| 13 | Not Available | Hoover Hood Adapter | 017074AG | Not Available |
| 14 | Not Available | Hoover Washer | 21312757 | Not Available |
| 15 | Not Available | Hoover Brush Carrier Rh 514 | 017309 | Not Available |
| 17 |  | Agitator Fillet Part Number B016-0014 for Riccar and Simplicity Models R100, R200, R300, R300C, R500, R600, R700, R800, R800C, 4-5AE,VIBPBP.2, VIBCBP.1 | B0160014 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Hoover Wheel Shaft | 35662AY | Not Available |
| 21 | Not Available | Hoover Screw | 012956 | Not Available |
| 22 | Not Available | Hoover Plug | 37911052 | Not Available |
| 23 | Not Available | Hoover Brush Carrier Lh 514 | 017308 | Not Available |
| 24 | Not Available | Hoover Rivet | 049571AY | Not Available |
| 25 | Not Available | Hoover Switch Insulator 513 | 014377 | Not Available |
| 26 | Not Available | Hoover Eyelet 513 | 014360 | Not Available |
| 27 | Not Available | Hoover Nut-Special | 21388105 | Not Available |
| 28 | Not Available | Hoover Washer | 21312761 | Not Available |
| 29 | Not Available | Hoover Idler Gear-Left Hand | 035674 | Not Available |
| 30 | Not Available | Hoover Screw-Machine | 012892 | Not Available |
| 31 | No Image | SWITCH, 5488 POLISHER/ SHAMPOOER 5488 Part Number: 019512AH for Hoover | 019512AH | $14.05Read more |
| 32 | Not Available | Hoover Handle Control Lever | 012891 | Not Available |
| 33 | Not Available | Hoover Brush Shaft & Insert Lh | 168404 | Not Available |
| 34 | Not Available | Hoover Screw | 049429 | Not Available |
| 35 | Not Available | Hoover Foot Pad - F50471 | 034207AG | Not Available |
| 36 | Not Available | Hoover Bail Mtg Brkt W/Swtc | 165104 | Not Available |
| 37 | Not Available | Hoover Capsert-1060 | 016125AY | Not Available |
| 38 | Not Available | Hoover Lead Wire Holder-F42 | 013190 | Not Available |
| 39 | Not Available | Hoover Motor Brush Spring | 38311009 | Not Available |
| 40 | Not Available | Hoover Exp-Motor Brush & Sp | 47311005 | Not Available |
| 41 | Not Available | Hoover Terminal | 014197 | Not Available |
| 42 | Not Available | Hoover Field Assembly 5350 | 023444 | Not Available |
| 43 | Not Available | Hoover Baffle | 012653 | Not Available |
| 44 | Not Available | Hoover Washer | 21312720 | Not Available |
| 45 | Not Available | Hoover Washer | 015865 | Not Available |
| 46 | Not Available | Hoover Insulator | 049344 | Not Available |
| 47 | Not Available | Hoover Armature 5350 | 023445 | Not Available |
| 48 | Not Available | Hoover Lead Wire Collar 535 | 049379 | Not Available |
| 49 | Not Available | Hoover Wire Nut | 048969 | Not Available |
| 50 | Not Available | Hoover Wire Holder | 045517 | Not Available |
| 51 | Not Available | Hoover Screw | 017001FW | Not Available |
| 52 | Not Available | Hoover Lead Wire By Foot | 012574 | Not Available |
| 53 | Not Available | Hoover Terminal-Flag | 161876 | Not Available |
| 54 | Not Available | Hoover Motor Cap Assembly | 42197002 | Not Available |
| # | Part image | Description | SKU | Price |

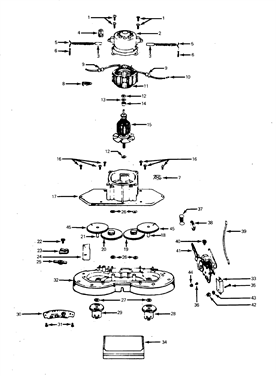

| 1 | Not Available | Hoover Screw | 017001FW | Not Available |
| 2 | Not Available | Hoover Motor Cap Assembly | 42197002 | Not Available |
| 3 | Not Available | Hoover Motr Brush Assembly | 014882 | Not Available |
| 4 | Not Available | Hoover Lead Wire Holder-F42 | 013190 | Not Available |
| 5 | Not Available | Hoover Retainer | 049397 | Not Available |
| 6 | Not Available | Hoover Pin | 049435 | Not Available |
| 7 | Not Available | Hoover Wire Holder | 045517 | Not Available |
| 8 | Not Available | Hoover Wire Nut | 048969 | Not Available |
| 9 | Not Available | Hoover Lead Wire Collar 535 | 049379 | Not Available |
| 10 | Not Available | Hoover Terminal | 014197 | Not Available |
| 11 | Not Available | Hoover Field Coil 5486 | 160352 | Not Available |
| 12 | Not Available | Hoover Washer | 21312720 | Not Available |
| 13 | Not Available | Hoover Washer | 015865 | Not Available |
| 14 | Not Available | Hoover Insulator | 049344 | Not Available |
| 15 | Not Available | Hoover Armature 5350 | 023445 | Not Available |
| 16 | Not Available | Hoover Screw | 049417AZ | Not Available |
| 17 | Not Available | Hoover Gear Cover Assembly | 012165 | Not Available |
| 18 | Not Available | Hoover Brush Shaft & Insert Lh | 168404 | Not Available |
| 19 | Not Available | Hoover Idler Gear-Left Hand | 035674 | Not Available |
| 20 | Not Available | Hoover Idler Gear-Rh-S486 | 035675BZ | Not Available |
| 21 | Not Available | Hoover Brush Shaft & Insert Rh | 168405 | Not Available |
| 22 | Not Available | Hoover Screw 5140 | 014378 | Not Available |
| 23 | Not Available | Hoover Cord Clamp | 014492 | Not Available |
| 24 | Not Available | Hoover Cord Insulator | 014367 | Not Available |
| 25 | Not Available | Hoover Bail Shaft Rh-5350 | 049388AY | Not Available |
| 26 | Not Available | Hoover Washer | 21312724 | Not Available |
| 27 | Not Available | Hoover Washer | 21312757 | Not Available |
| 28 | Not Available | Hoover Brush Carrier Rh 514 | 017309 | Not Available |
| 29 | Not Available | Hoover Brush Carrier Lh 514 | 017308 | Not Available |
| 30 | Not Available | Hoover Atent Plate 160319 | 160319 P | Not Available |
| 31 | Not Available | Hoover Screw | 049508 | Not Available |
| 32 | Not Available | Hoover Gear Housing Comp | 42273011 | Not Available |
| 33 | No Image | SWITCH, 5488 POLISHER/ SHAMPOOER 5488 Part Number: 019512AH for Hoover | 019512AH | $14.05Read more |
| 34 | Not Available | Hoover Hood Adapter | 017074AG | Not Available |
| 35 | Not Available | Hoover Screw-Machine | 012892 | Not Available |
| 36 | Not Available | Hoover Eyelet | 014360 | Not Available |
| 37 | Not Available | Hoover Handle Control Lever | 012891 | Not Available |
| 38 | Not Available | Hoover Foot Pad - F5047 | 034207AG | Not Available |
| 39 | Not Available | Hoover Lead Wire By Foot | 012574 | Not Available |
| 40 | Not Available | Hoover Screw | 049429 | Not Available |
| 41 | Not Available | Hoover Bail Moutning Bracke | 035676 | Not Available |
| 42 | Not Available | Hoover Nut-Special | 21388105 | Not Available |
| 43 | Not Available | Hoover Washer | 21312761 | Not Available |
| 44 | Not Available | Hoover Switch Insulator 513 | 014377 | Not Available |
| 45 | Not Available | Hoover Brush Gear | 38541002 | Not Available |
