Schematic and parts list for: Hoover Model: F5809

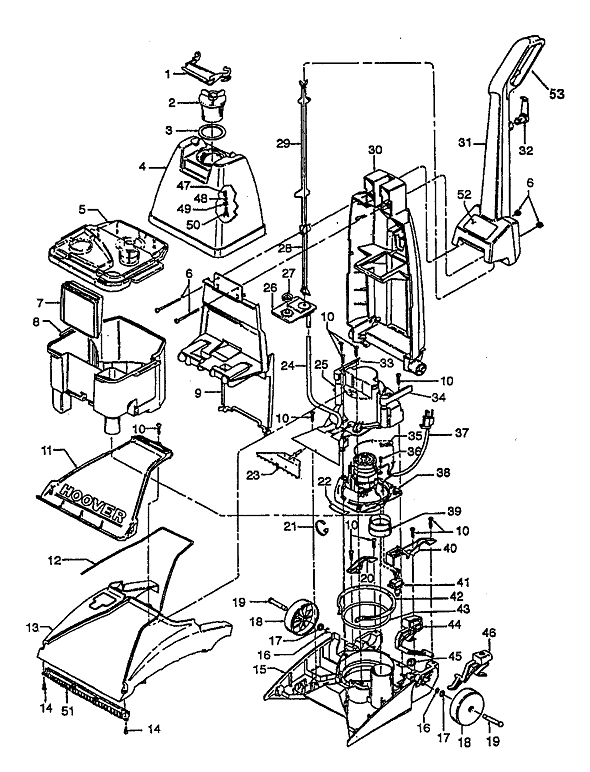

This is a list of parts and a diagram and schematic for: Hoover Model: F5809
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Solution Tank Handle | 39457016 | Not Available |
| 2 | Not Available | Hoover Solution Tank Cap | 42272002 | Not Available |
| 3 |  | Gasket, :( Circular Tank SteamVac/Uprights Part Number: 38784062 for Hoover | 38784062 | $1.57Read more |
| 4 | Not Available | Hoover Solution Tank And Cap Assembly Frost Translucent | 440007358 | Not Available |
| 5 | Not Available | Hoover Recovery Tank Lid | 42272111 | Not Available |
| 6 | Not Available | Hoover Hardware Assembly | 40201145 | Not Available |
| 7 | Not Available | Hoover Duct | 38661003 | Not Available |
| 8 | Not Available | Hoover Recovery Tank Complete With Lid Assembly - Revised Duct / Translucent Frost | 38777081 | Not Available |
| 9 | Not Available | Hoover Handle Cover | 37276001 | Not Available |
| 10 | Not Available | Hoover Screw | 21447020 | Not Available |
| 11 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 12 | Not Available | Hoover Seal (Noz. Frt. Plat | 38781037 | Not Available |
| 13 | Not Available | Hoover Hood - F5805 | 37271029 | Not Available |
| 14 | Not Available | Hoover Body Screw - #6 - 10 Self Tapping | 21447228 | Not Available |
| 16 | Not Available | Hoover E-Clip / Lock Ring | 160017- | Not Available |
| 17 | Not Available | Hoover Washer | 163110- | Not Available |
| 18 | Not Available | Hoover Rear Wheel | 38522076 | Not Available |
| 20 | Not Available | Hoover Trunion Cover - Rh | 36131085 | Not Available |
| 21 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 22 | Not Available | Hoover Motor Housing Seal | 34122021 | Not Available |
| 23 | Not Available | Hoover Distributor Assem. | 43411006 | Not Available |
| 24 |  | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 25 |  | COVER, MOTOR ASSY Part Number: 40309005 for Hoover | 40309005 | $24.70Read more |
| 26 | Not Available | Hoover Reservoir Assem - F5 | 43516007 | Not Available |
| 27 | Not Available | Hoover Seal - Solution Tank | 38784060 | Not Available |
| 28 | Not Available | Hoover Control Rod - Lower | 38458033 | Not Available |
| 29 | Not Available | Hoover Control Rod - Upper | 38458031 | Not Available |
| 31 | Not Available | Hoover Upper Handle | 48663170 | Not Available |
| 32 | Not Available | Hoover Cord Wrap | 39442041 | Not Available |
| 33 | Not Available | Hoover Tank Release Latch-R | 36151019 | Not Available |
| 34 | Not Available | Hoover Tank Release Latch-L | 36151029 | Not Available |
| 35 | Not Available | Hoover Terminals-0513 | 012227- | Not Available |
| 36 | Not Available | Hoover Screw-Tapping | 21447240 | Not Available |
| 37 | Not Available | Hoover Cord | 46583125 | Not Available |
| 37 | No Image | CORD, 31' STEAMER WHITE WIRE STRIPPED Part Number: 46583012 for Hoover | 46583012 | $28.91Read more |
| 39 | Not Available | Hoover Standpipe Seal | 38784063 | Not Available |
| 40 | Not Available | Hoover Trunion Cover - Lh | 36131086 | Not Available |
| 41 | Not Available | Hoover Switch-F5805/15/25 | 28218048 | Not Available |
| 42 | Not Available | Hoover Motor Base Seal | 38781039 | Not Available |
| 43 | Not Available | Hoover Motor Intake Seal | 38784064 | Not Available |
| 45 | Not Available | Hoover Cord Retainer | 36172054 | Not Available |
| 46 | Not Available | Hoover Switch Actuator Lever - Black | 38434025 | Not Available |
| 47 | Not Available | Hoover Valve Spring - Clean Water Solution Tank | 38312014 | Not Available |
| 48 | Not Available | Hoover Washer-Brass | 21312518 | Not Available |
| 49 | Not Available | Hoover Valve Seal - Clean Water Solution Tank - Order 563226001 | 38784061 | Not Available |
| 50 | Not Available | Hoover Valve Stem - Black / Clean Water Solution Tank | 440009753 | Not Available |
| 51 | Not Available | Hoover Brush Back Assembly | 440007473 | Not Available |
| 52 | Not Available | Hoover Nameplate | 52313013 | Not Available |
| 53 | Not Available | Hoover Handle Lever Guard-Abu | 39458005 | Not Available |
| 99 |  | Retainer, Float SteamVac/Extractor FH50025/F5809 Part Number: 38719027 for Hoover | 38719027 | $4.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 900 |  | NLA Hoover HOOVER 48447002 STATIONARY BRUSH for models F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 48447002 | $10.00Read more |
