Schematic and parts list for: Hoover Model: F5827
This is a list of parts and a diagram and schematic for: Hoover Model: F5827
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac
| # | Part image | Description | SKU | Price |
| 02 | Not Available | Hoover Hose With Collars | 38671035 | Not Available |
| 03 | Not Available | Hoover Wand Valve Assembly-F58 | 43516006 | Not Available |
| 04 | Not Available | Hoover Carpet Cleaning Solution 16Oz | 57333016 | Not Available |
| 05 | Not Available | Hoover Upholstery Nozzle-F5 | 38619011 | Not Available |
| 06 | Not Available | Hoover Tube Strap-F5815/25 | 36172033 | Not Available |
| 07 | Not Available | Hoover Connector/Coupler | 43513007 | Not Available |
| 08 | Not Available | Hoover Solution Tubing Assembly (Inc. Item 7) | 0M100168 | Not Available |
| 09 | Not Available | Hoover Spot Brush-F5851/55/ | 48448001 | Not Available |
| 10 | Not Available | Hoover Corner Tool-F5851/55 | 38619018 | Not Available |
| 11 | Not Available | Hoover Edge Tool-F5851/55/5 | 38619019 | Not Available |
| 12 | Not Available | Hoover Nozzle Clean Out Too | 39514001 | Not Available |
| 900 | Not Available | Hoover Pet Stain/Odor Remover 32 Oz. Pet Stain And Odor Remover - 32 Oz. | 40305032 | Not Available |

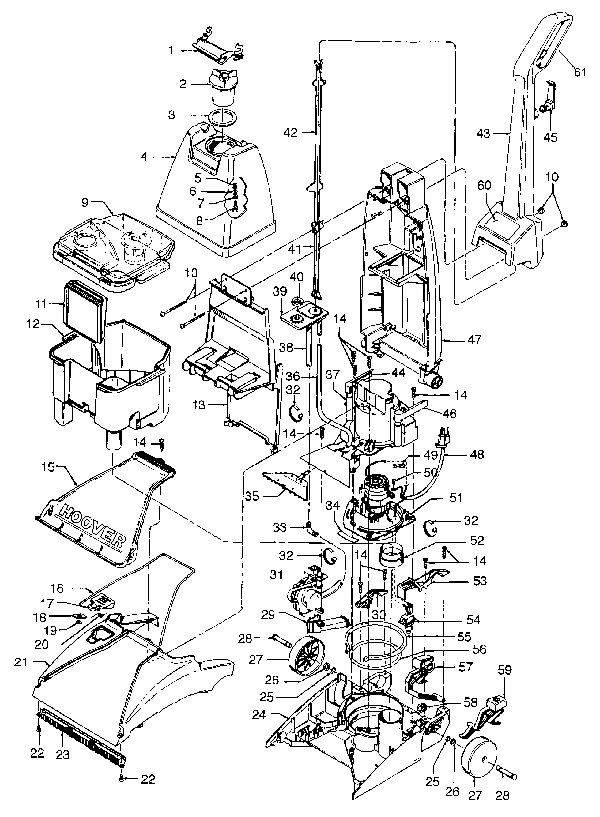

| # | Part image | Description | SKU | Price |
| xx |  | NLA Hoover HOOVER 48447002 STATIONARY BRUSH for models F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 48447002 | $10.00Read more |
| 01 | Not Available | Hoover Solution Tank Handle | 39457016 | Not Available |
| 02 | Not Available | Hoover Solution Tank Cap | 42272002 | Not Available |
| 03 |  | Gasket, :( Circular Tank SteamVac/Uprights Part Number: 38784062 for Hoover | 38784062 | $1.57Read more |
| 04 | Not Available | Hoover Solution Tank | 440007358 | Not Available |
| 05 | Not Available | Hoover Spring | 38312014 | Not Available |
| 06 | Not Available | Hoover Washer-Brass | 21312518 | Not Available |
| 07 |  | Gasket, Tank Valve Seal FloorMate/SteamVac Part Number: 440013804 for Hoover | 440013804 | $4.81Read more |
| 08 | Not Available | Hoover Valve Stem | 440009753 | Not Available |
| 09 | Not Available | Hoover Recovery Tank Lid | 42272111 | Not Available |
| 10 | Not Available | Hoover Handle Hardware Assembly | 40201149 | Not Available |
| 11 | Not Available | Hoover Duct | 38661003 | Not Available |
| 12 | Not Available | Hoover Recovery Tank-Service ( Incl. Items 9,11 ) | 38777081 | Not Available |
| 13 | Not Available | Hoover Handle Cover | 37276001 | Not Available |
| 14 | Not Available | Hoover Screw | 21447020 | Not Available |
| 16 | Not Available | Hoover Seal (Noz. Frt. Plat | 38781037 | Not Available |
| 18 | Not Available | Hoover Seal | 38783019 | Not Available |
| 19 | Not Available | Hoover Speed Nut | 21362006 | Not Available |
| 20 | Not Available | Hoover Spring -Access Door | 38351017 | Not Available |
| 22 | Not Available | Hoover Screw-Self-Tapping | 21447228 | Not Available |
| 23 | Not Available | Hoover Brush Back Assembly | 440007473 | Not Available |
| 25 | Not Available | Hoover Lock Ring | 160017-- | Not Available |
| 27 | Not Available | Hoover Rear Wheel | 38522076 | Not Available |
| 28 | Not Available | Hoover Rear Axle | 32434007 | Not Available |
| 29 | Not Available | Hoover Elbow Duct | 38664001 | Not Available |
| 30 | Not Available | Hoover Trunion Cover - Rh | 36131085 | Not Available |
| 31 | Not Available | Hoover Pump Assembly Complete | 43582003 | Not Available |
| 32 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 33 | Not Available | Hoover Elbow Connector | 33241001 | Not Available |
| 34 | Not Available | Hoover Motor Housing Seal | 34122021 | Not Available |
| 35 | Not Available | Hoover Distributor Assembly | 43411006 | Not Available |
| 36 |  | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 37 |  | COVER, MOTOR ASSY Part Number: 40309005 for Hoover | 40309005 | $24.70Read more |
| 38 | | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 39 | Not Available | Hoover Reservoir Assembly-F581 | 43516008 | Not Available |
| 40 | Not Available | Hoover Solution Tank Seal | 38784060 | Not Available |
| 41 | Not Available | Hoover Control Rod - Lower | 38458033 | Not Available |
| 42 | Not Available | Hoover Control Rod - Upper | 38458031 | Not Available |
| 43 | Not Available | Hoover Upper Handle | 48663170 | Not Available |
| 44 | Not Available | Hoover Tank Release Latch-R | 36151019 | Not Available |
| 45 | Not Available | Hoover Cord Wrap | 39442041 | Not Available |
| 46 | Not Available | Hoover Tank Release Latch-L | 36151029 | Not Available |
| 48 | No Image | CORD, 31' STEAMER WHITE WIRE STRIPPED Part Number: 46583012 for Hoover | 46583012 | $28.91Read more |
| 48 | Not Available | Hoover Cord-Steam Vac-33' | 46583125 | Not Available |
| 49 | Not Available | Hoover Terminals-0513 | 012227-- | Not Available |
| 50 | Not Available | Hoover Screw-Tapping | 21447240 | Not Available |
| 51 | Not Available | Hoover Motor Kit-Wv Replaces Gs Motor | 40309009 | Not Available |
| 52 | Not Available | Hoover Standpipe Seal | 38784063 | Not Available |
| 53 | Not Available | Hoover Trunion Cover - Lh | 36131086 | Not Available |
| 54 | Not Available | Hoover Switch-F5805/15/25 | 28218048 | Not Available |
| 55 | Not Available | Hoover Motor Base Seal | 38781039 | Not Available |
| 56 | Not Available | Hoover Motor Intake Seal | 38784064 | Not Available |
| 58 | Not Available | Hoover Cord Retainer | 36172054 | Not Available |
| 59 | Not Available | Hoover Switch Actuator Lever | 38434025 | Not Available |
| 61 | Not Available | Hoover Handle Lever Guard-Abu | 39458005 | Not Available |
| 92 |  | Hoover 302598001 Upholstery Tool, Air Driven Extactor | 302598001 | $32.99Read more |
| 99 |  | Retainer, Float SteamVac/Extractor FH50025/F5809 Part Number: 38719027 for Hoover | 38719027 | $4.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
