Schematic and parts list for: Hoover Model: F5917

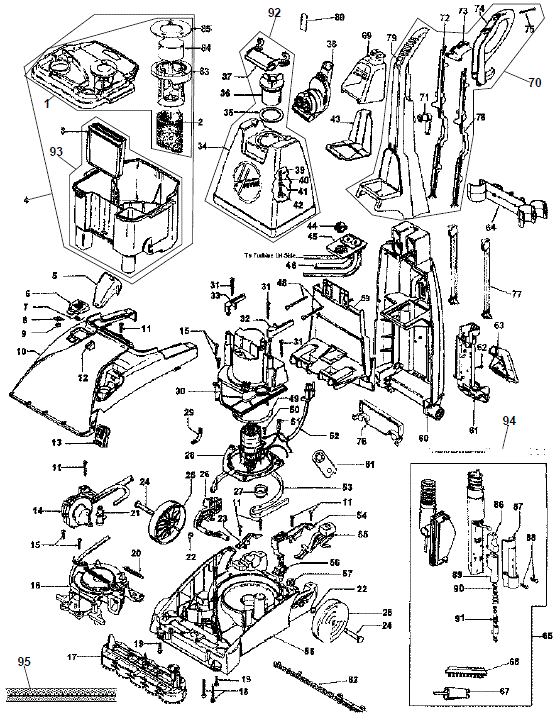

This is a list of parts and a diagram and schematic for: Hoover Model: F5917
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac with Clean Surge
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Recovery Tank Lid With Filter | 42272111 | Not Available |
| 02 | Not Available | Hoover Tank Filter | 38762014 | Not Available |
| 03 | Not Available | Hoover Duct | 38777106 | Not Available |
| 05 | Not Available | Hoover Lens | 39383106 | Not Available |
| 06 | Not Available | Hoover Hose Access Door - Black | 37257297 | Not Available |
| 07 | Not Available | Hoover Access Door Spring | 38351017 | Not Available |
| 08 | Not Available | Hoover Seal | 38783021 | Not Available |
| 09 | Not Available | Hoover Speed Nut | 21362006 | Not Available |
| 10 | Not Available | Hoover Nozzle / Hood - Black | 37271136 | Not Available |
| 11 | Not Available | Hoover Screw | 21447020 | Not Available |
| 13 | Not Available | Hoover Screen Assembly - Black | 43613009 | Not Available |
| 14 |  | Hoover pump for model F5815 F5825 F5857 F50044 steam vacs pon 43582018 | 43582018 | $30.00Read more |
| 15 | Not Available | Hoover Screw - Self Tapping | 21447217 | Not Available |
| 16 | Not Available | Hoover Turbine & Gear Assy (New) must also purchase #17B Brush Block Assy as well | 440006853 | Not Available |
| 17A |  | 5-brush brush for hoover steamvac models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 48437022 | $25.00Read more |
| 17B | Not Available | Hoover Brush Block Assy (New) Only fits new Turbine & Gear Assy #16 | 440006854 | Not Available |
| 18 | Not Available | Hoover Screw | 21479438 | Not Available |
| 19 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 20 | Not Available | Hoover Spring | 38333009 | Not Available |
| 21 | Not Available | Hoover Quick Disconnect Assembly | 43523004 | Not Available |
| 22 | Not Available | Hoover Lock Ring | 160017-- | Not Available |
| 24 | Not Available | Hoover Rear Axle | 32434007 | Not Available |
| 27 | Not Available | Hoover Standpipe Seal | 38784063 | Not Available |
| 28 |  | New Genuine Hoover Steam Vac 12 Amp Motor 43576197, 27212074, 27212077 YDC62-1AD | 43576197 | $79.99Read more |
| 28 | Not Available | Hoover Lead Wire - White | 49811079 | Not Available |
| 29 | Not Available | Hoover Elbow Connector | 33241001 | Not Available |
| 30 | Not Available | Hoover Motor Cover | 37196190 | Not Available |
| 31 | Not Available | Hoover Screw - Self Tapping | 21447232 | Not Available |
| 32 | Not Available | Hoover Tank Release Latch - Left Mag Gray | 36151044 | Not Available |
| 32 |  | hoover model f5905-900 left tank release latch part number H-522194002 per essco | WP10825 | $10.50Read more |
| 33 | Not Available | Hoover Tank Release Latch - Right Mag Gray | 36151043 | Not Available |
| 33 |  | Latch, RH Recover Tank SteamVac FH50021/FH50025 Part Number: 440007360 for Hoover | 440007360 | $5.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | ***USE H-440001251TANK, SOLUTION WITH CAP STORM G Part Number: 304040001 for Hoover | 304040001 | $39.63Read more |
| 34 | Not Available | Hoover Solution Tank With Cap - Frost | 440007358 | Not Available |
| 35 |  | Gasket, :( Circular Tank SteamVac/Uprights Part Number: 38784062 for Hoover | 38784062 | $1.57Read more |
| 36 | Not Available | Hoover Solution Tank Cap-Black | 42272158 | Not Available |
| 37 | Not Available | Hoover Solution Tank Handle - Magnsm Gray | 39457053 | Not Available |
| 37 | No Image | Handle, Satin Silver Plastic Solution Tank C3820 | H-522209001 | $12.99Read more |
| 38 |  | Hoover 302598001 Upholstery Tool, Air Driven Extactor | 302598001 | $32.99Read more |
| 39 | Not Available | Hoover Spring | 38312014 | Not Available |
| 41 |  | Gasket, Tank Valve Seal FloorMate/SteamVac Part Number: 440013804 for Hoover | 440013804 | $4.81Read more |
| 42 | Not Available | Hoover Valve Stem | 440009753 | Not Available |
| 44 | Not Available | Hoover Solution Tank Seal | 38784060 | Not Available |
| 45 | Not Available | Hoover Reservoir Regulator - Magnsm Gray | 43526018 | Not Available |
| 45 |  | Hoover Reservoir Regulator Fh50042, Fh50044 | 304046001 | $16.00Read more |
| 46 |  | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 48 |  | Nut & Bolt, Handle Hardware SteamVac F6020 2Pk Part Number: 40201245 for Hoover | 40201245 | $5.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | Not Available | Hoover Motor Seal | 34113004 | Not Available |
| 50 | Not Available | Hoover Screw | FNLA | Not Available |
| 51 | Not Available | Hoover Terminals | 012227-- | Not Available |
| 52 | Not Available | Hoover Power Cord - 21' Black | 46583125 | Not Available |
| 53 | Not Available | Hoover Motor Base Seal | 38781048 | Not Available |
| 56 | Not Available | Hoover Switch | 28218061 | Not Available |
| 57 | Not Available | Hoover Cord Retainer - Black | 90001281 | Not Available |
| 61 | Not Available | Hoover Lower Tool Holder - Magnesium Gray | 36433234 | Not Available |
| 62 | Not Available | Hoover Screw | 21447041 | Not Available |
| 63 |  | Hoover Upholstery Tool for Shampooers | WP11565 | $9.99Read more |
| 65 | Not Available | Hoover Complete Hose Assembly Magnesium Gray | 43491075 | Not Available |
| 65 |  | Hose, Black Assembly W/Cleaning Tool F5912/F5914 Part Number: 440007181 for Hoover | 440007181 | $60.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 | Not Available | Hoover Connector Coupler | 43513010 | Not Available |
| 68 | Not Available | Hoover Brush Block Assembly - Hose Tool | 48445003 | Not Available |
| 69 | Not Available | Hoover Tool Cover - Transparent | 37276011 | Not Available |
| 70 |  | HANDLE, UPPER ONLY SHADOW GRAY Part Number: 522212001 for Hoover | 522212001 | $37.27Read more |
| 70 | Not Available | Hoover Upper Handle - Magnesium Gray | 440007191 | Not Available |
| 71 | Not Available | Hoover Cord Wrap - Magnesium Gray | 39442048 | Not Available |
| 72 | Not Available | Hoover Control Rod - Upper | 38458056 | Not Available |
| 75 | Not Available | Hoover Screw - Self Tapping | 21447255 | Not Available |
| 77 | Not Available | Hoover Control Rod - Lower | 38458033 | Not Available |
| 78 | Not Available | Hoover Control Rod - Upper Back | 38458055 | Not Available |
| 80 | Not Available | Hoover Label - Clean Surge | 51639165 | Not Available |
| 81 | Not Available | Hoover Tubing Retainer | 36132004 | Not Available |
| 82 | Not Available | Hoover Exhaust Duct - Black | 38769028 | Not Available |
| 83 |  | Retainer, Float SteamVac/Extractor FH50025/F5809 Part Number: 38719027 for Hoover | 38719027 | $4.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 84 | Not Available | Hoover Float Assembly - Brite Yellow | 43538001 | Not Available |
| 85 | Not Available | Hoover Float Retainer Seal | 38784070 | Not Available |
| 86 |  | Trigger, Black SteamVac FH50044 Part Number: 38433074 for Hoover | 38433074 | $1.96Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 87 | Not Available | Hoover Wand Cover - Desert Sand | 37276006 | Not Available |
| 88 | Not Available | Hoover Screw | 21447239 | Not Available |
| 89 | Not Available | Hoover Wand Valve Assembly - Larger Nipple | 43513024 | Not Available |
| 90 | Not Available | Hoover Spring | 38312019 | Not Available |
| 91 | Not Available | Hoover Nozzle/Valve Assembly | 43412007 | Not Available |
| 92 | Not Available | Hoover Solution Tank With Cap | 440007358 | Not Available |
| 93 | Not Available | Hoover Recovery Tank With Duct Only Revised | 38777106 | Not Available |
| 94 | Not Available | Hoover Nozzle Clean Out Tool | 39514003 | Not Available |
