Schematic and parts list for: Hoover Model: F6023

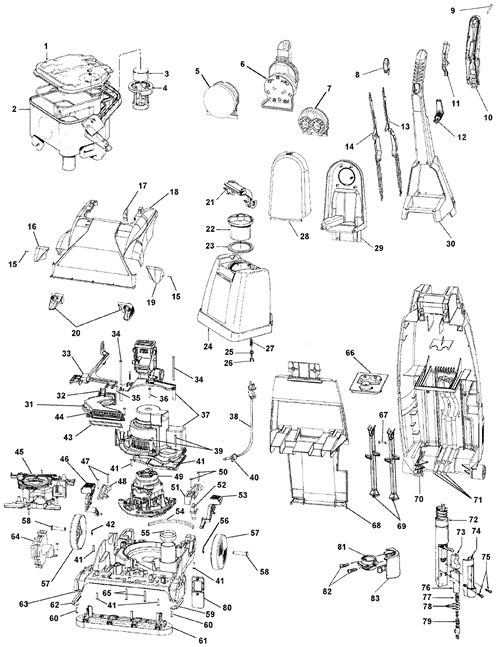

This is a list of parts and a diagram and schematic for: Hoover Model: F6023
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac
| # | Part image | Description | SKU | Price |
| xx |  | Hoover Upholstery Tool for Shampooers | WP11565 | $9.99Read more |
| # | Part image | Description | SKU | Price |
| xx | No Image | HOOD, STEAM VAC F6018 Part Number: 37271069 for Hoover | 37271069 | $40.04Read more |
| 01 | Not Available | Hoover Recovery Tank Lid (Does Not Incl. It. 3 & 4) | 42272123 | Not Available |
| 02 | Not Available | Hoover Recovery Tank (Incl. It. 1, 3, 4) | 38777060 | Not Available |
| 03 | Not Available | Hoover Float Assembly | 43538001 | Not Available |
| 04 | Not Available | Hoover Float Retainer | 38719043 | Not Available |
| 05 | Not Available | Hoover Scrub Module-F6024-9 F6020-910, F6024-900, F6027-980 (Incl. 1 Scrub Pad) | 48437028 | Not Available |
| 06 |  | Hoover 302598001 Upholstery Tool, Air Driven Extactor | 302598001 | $32.99Read more |
| 06 | Not Available | Hoover Powered Hand Tool-F6 (Incl. It. 7) F6020-910, F6024-900, F6025-900, F6026-900, F6027-980 | 48439003 | Not Available |
| 07 | Not Available | Hoover Upholstery Module-F6 F6024-900, F6024-980 | 48437027 | Not Available |
| 08 | Not Available | Hoover Solution Button-Sv-W | 38433077 | Not Available |
| 09 | Not Available | Hoover Screw-Self Tapping-S | 21447255 | Not Available |
| 10 | Not Available | Hoover Handle Lever Guard-S | 39458007 | Not Available |
| 11 | Not Available | Hoover Control Lever-Ag-Sv- | 38434029 | Not Available |
| 12 | Not Available | Hoover Cord Wrap-Svw | 39442044 | Not Available |
| 13 | Not Available | Hoover Control Rod Upper-Ba | 38458055 | Not Available |
| 14 | Not Available | Hoover Control Rod Upper-Fr | 38458056 | Not Available |
| 15 | Not Available | Hoover Screw-Self Tapping | 21479432 | Not Available |
| 16 | Not Available | Hoover Lens Cover-Rh-Clear | 39383104 | Not Available |
| 17 | Not Available | Hoover Indicator Knob-Sv-Wi | 38421092 | Not Available |
| 19 | Not Available | Hoover Lens Cover-Lh-Svw | 39383103 | Not Available |
| 21 | Not Available | Hoover Solution Tank Handle | 39457016 | Not Available |
| 22 | Not Available | Hoover Solution Tank Cap | 42272002 | Not Available |
| 23 |  | Gasket, :( Circular Tank SteamVac/Uprights Part Number: 38784062 for Hoover | 38784062 | $1.57Read more |
| 24 | Not Available | Hoover Solution Tank | 440007358 | Not Available |
| 25 |  | Gasket, Tank Valve Seal FloorMate/SteamVac Part Number: 440013804 for Hoover | 440013804 | $4.81Read more |
| 26 | Not Available | Hoover Valve Stem | 440009753 | Not Available |
| 27 | Not Available | Hoover Spring | 38312014 | Not Available |
| 30 | Not Available | Hoover Upper Handle-Svw (Inc. Its 8 Thru 14) | 440007191 | Not Available |
| 31 | Not Available | Hoover Duct-Svw | 43484003 | Not Available |
| 32 | Not Available | Hoover Screw-Self Tapping | 23149002 | Not Available |
| 33 | Not Available | Hoover Turbine Actuator Arm | 38458024 | Not Available |
| 34 | Not Available | Hoover Screw-Sv 3.125" | 21447246 | Not Available |
| 35 | Not Available | Hoover Screw | 21447003 | Not Available |
| 36 | Not Available | Hoover Screw | 21447020 | Not Available |
| 37 | Not Available | Hoover Motor Cover/Valve | 42192029 | Not Available |
| 38 | Not Available | Hoover Cord-Steam Vac-33' | 46583125 | Not Available |
| 39 | Not Available | Hoover Screw-Self Tapping-F | 21447232 | Not Available |
| 40 | Not Available | Hoover Cord Retainer | 36172054 | Not Available |
| 41 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 42 | Not Available | Hoover Lock Ring | 160017-- | Not Available |
| 43 | Not Available | Hoover Duct Seal-Sv-Widepat | 38783025 | Not Available |
| 44 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 45 | Not Available | Hoover Turbine & Gear Svw | 43191004 | Not Available |
| 46 | Not Available | Hoover Handle Release Pedal | 38458059 | Not Available |
| 47 | Not Available | Hoover Screw | 21447020 | Not Available |
| 48 | Not Available | Hoover Trunion Cover - Rh F6027-980 | 36131085 | Not Available |
| 49 | Not Available | Hoover Motor - Svw | 43576187 | Not Available |
| 50 | Not Available | Hoover Screw | 21447020 | Not Available |
| 52 | Not Available | Hoover Switch-F5805/15/25 | 28218048 | Not Available |
| 53 | No Image | PEDAL, SWITCH F6020 Part Number: 38458060 for Hoover | 38458060 | $7.94Read more |
| 54 | Not Available | Hoover Motor Base Seal | 38781048 | Not Available |
| 55 | Not Available | Hoover Standpipe Seal | 38784063 | Not Available |
| 56 | Not Available | Hoover Lock Ring | 160017-- | Not Available |
| 57 | Not Available | Hoover Rear Wheel-Adb-Sv-Wi | 38522081 | Not Available |
| 58 | Not Available | Hoover Rear Axle-Aax-U5433- | 32434008 | Not Available |
| 59 | Not Available | Hoover Brush Back Assm-Lh-S | 48445011 | Not Available |
| 60 | No Image | SCREW, SELF TAPPING Part Number: 21447257 for Hoover | 21447257 | $1.18Read more |
| 62 | Not Available | Hoover Brush Back Assm-Rh-S | 48445007 | Not Available |
| 63 | Not Available | Hoover Main Body-Svw | 42274003 | Not Available |
| 64 | Not Available | Hoover Pump Assembly-Sv Iii | 43582005 | Not Available |
| 65 | Not Available | Hoover Screw | 21479438 | Not Available |
| 66 | Not Available | Hoover Reservoir Regulator- | 43526016 | Not Available |
| 67 | No Image | SCREW, LOWER HAND SVIII Part Number: 21447244 for Hoover | 21447244 | $1.03Read more |
| 68 | Not Available | Hoover Hdl. Cover-Sv-Widpat | 37276003 | Not Available |
| 69 | Not Available | Hoover Control Rod - Lower | 38458033 | Not Available |
| 70 | Not Available | Hoover Lower Handle-Svw | 39466044 | Not Available |
| 71 | Not Available | Hoover Service Tubing Pack- | 40309029 | Not Available |
| 72 | Not Available | Hoover Hose Comp-Svwp-10 Ft | 43436023 | Not Available |
| 73 |  | Trigger, Black SteamVac FH50044 Part Number: 38433074 for Hoover | 38433074 | $1.96Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 74 | Not Available | Hoover Wand Cover-Sv Iii | 37276006 | Not Available |
| 75 | Not Available | Hoover Screw | 21447239 | Not Available |
| 76 | Not Available | Hoover Wand Valve Assem-Sv | 43513011 | Not Available |
| 77 | Not Available | Hoover Spring | 38312019 | Not Available |
| 79 | Not Available | Hoover Nozzle/Valve Assembl | 43412007 | Not Available |
| 80 | Not Available | Hoover Filter Cassette & Screen Assm | 43613018 | Not Available |
| 81 | Not Available | Hoover Screw-Self-Tapping | 21447228 | Not Available |
| 82 | Not Available | Hoover Hose Cover-Sv Iii | 36131097 | Not Available |
| 83 | Not Available | Hoover Hose Clamp-Sv Iii'S | 36171032 | Not Available |
| 84 |  | Nut & Bolt, Handle Hardware SteamVac F6020 2Pk Part Number: 40201245 for Hoover | 40201245 | $5.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
