Schematic and parts list for: Hoover Model: S1019
This is a list of parts and a diagram and schematic for: Hoover Model: S1019
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

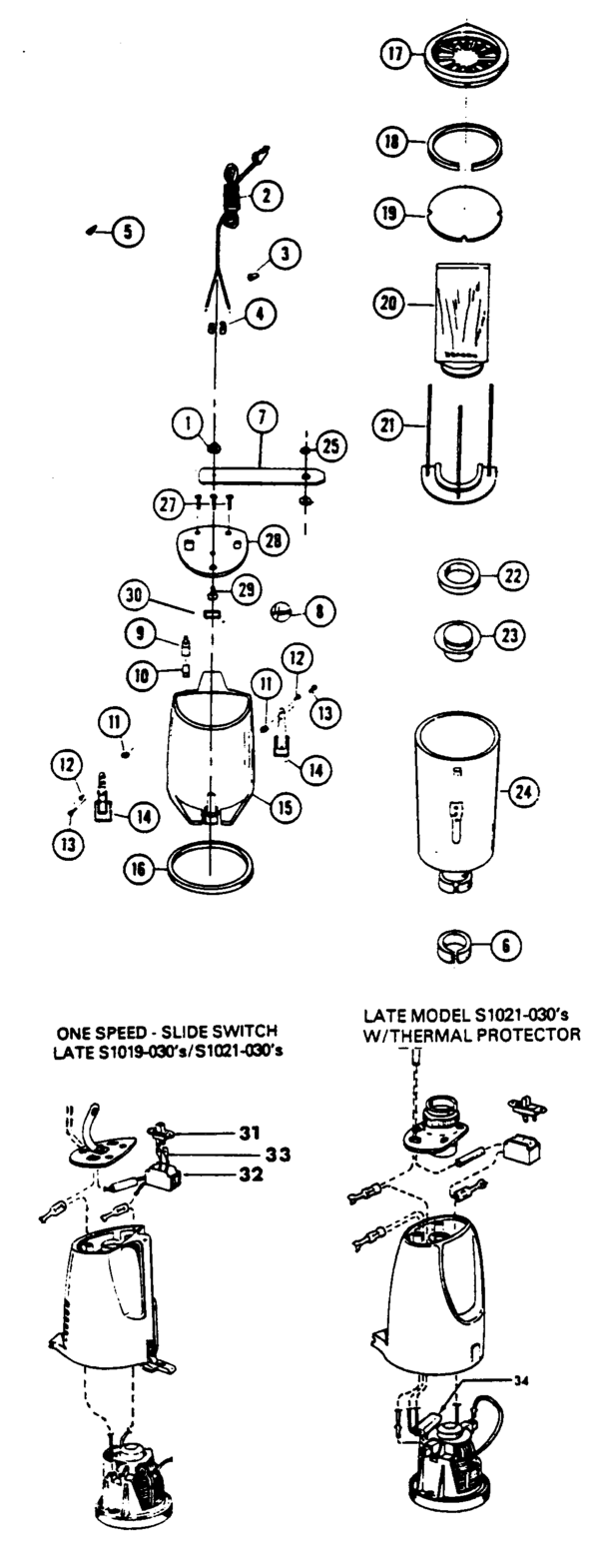

Parts for: Canister
Popular Supplies
Original price was: $8.99.$6.50Current price is: $6.50.Add to cart
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Snap Fastener Stud | 015660- | Not Available |
| 2 | Not Available | Hoover Power Cord | 46383068 | Not Available |
| 3 | Not Available | Hoover Wire Nut | 048969- | Not Available |
| 5 | Not Available | Hoover Terminal | 160356- | Not Available |
| 6 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 8 | Not Available | Hoover Medallion | 016547- | Not Available |
| 9 | Not Available | Hoover Switch - 70 - 2110 | 012971- | Not Available |
| 10 | Not Available | Hoover Pad | 015317- | Not Available |
| 11 | Not Available | Hoover Washer | 161549- | Not Available |
| 12 | Not Available | Hoover Rivet | 016195- | Not Available |
| 13 | Not Available | Hoover Screw | 012954- | Not Available |
| 14 | Not Available | Hoover Latch S2053-032 | 015331AY | Not Available |
| 16 |  | COVER, EXHAUST FILTER CR78 GREEN Part Number: 570015315 for Cirrus | 570015315 | $11.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Hoover Bag Housing Gasket | 015330- | Not Available |
| 19 | Not Available | Hoover Filter-2800 | 015997- | Not Available |
| 20 |  | Hoover Type G Paper Bags 3pk for Broom Vacuum | 43242006 | Original price was: $8.99.$6.50Current price is: $6.50.Add to cart |
| 21 | Not Available | Hoover Bag Support Assembly | 015327- | Not Available |
| 22 | Not Available | Hoover Bag Sealing Collar | 017295- | Not Available |
| 23 | Not Available | Hoover Bag Gasket | 015311JM | Not Available |
| 25 | Not Available | Hoover Snap Fastener Socket | 015661- | Not Available |
| 27 | Not Available | Hoover Screw | 015738EF | Not Available |
| 29 | Not Available | Hoover Eyelet | 016219- | Not Available |
| 30 | Not Available | Hoover Insulator | 31722007 | Not Available |
| 31 | Not Available | Hoover Slide Switch-Qb-1 Sp | 28177005 | Not Available |
| 32 | Not Available | Hoover Terminal Shield | 37922002 | Not Available |
| 33 | Not Available | Hoover Terminal | 27666702 | Not Available |
| 34 | Not Available | Hoover Thermal Protector-S2 | 28382028 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Floor Brush | 013077JM | Not Available |
| 1 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Hoover Floor Brush Back & N | 013155JM | Not Available |
| 3 | Not Available | Hoover Floor Brush Face | 013253AG | Not Available |
| 6 | Not Available | Hoover Dusting Brush | 161851JM | Not Available |
| 6 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Hoover Nozzle Connector Tub | 013149JM | Not Available |
| 8 | Not Available | Hoover Nozzle-843 | 013150LL | Not Available |
| 9 | Not Available | Hoover Dusting Brush Face | 013263BZ | Not Available |
| 11 | Not Available | Hoover Nozzle Connector Tub | 013149JM | Not Available |
| 12 | Not Available | Hoover Furniture Brush-S305 | 161852JM | Not Available |
| 13 | Not Available | Hoover Brush Back | 013254BZ | Not Available |
| 14 | Not Available | Hoover Crevice Tool - Aap | 38617018 | Not Available |
| 15 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 16 | Not Available | Hoover Extension Wand - 211 | 43458001 | Not Available |
| 17 | Not Available | Hoover Tube Guide | 012589- | Not Available |
| 18 | Not Available | Hoover Gasket-Outer | 012845JM | Not Available |
| 19 | Not Available | Hoover Washer | 21312704 | Not Available |
| 20 | Not Available | Hoover Gasket | 012844JM | Not Available |
| 21 | Not Available | Hoover Plate | 012824- | Not Available |
| 22 |  | Motor Assembly Part Number 3620012600 for Simplicity Models QS1 | 3620012600 | Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Hoover Externion Tube Inner | 012598- | Not Available |
| 24 | Not Available | Hoover Rivet | 12763AW- | Not Available |
| 25 | Not Available | Hoover Rivet | 012783- | Not Available |
| 26 | Not Available | Hoover Tube Latch | 012846AG | Not Available |
| 27 | Not Available | Hoover Rivet | 012772- | Not Available |
| 28 | Not Available | Hoover Tube Latch - Aat | 36152018 | Not Available |
| 30 | Not Available | Hoover Tool Bag U3P03 | 58544004 | Not Available |
| 31 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | Hoover Carrying Strap Compl | 015671JM | Not Available |
| 34 | Not Available | Hoover Buckle | 015668- | Not Available |
| 35 | Not Available | Hoover Strap Hook | 015670- | Not Available |
| 36 | Not Available | Hoover Strap Ring | 015669JM | Not Available |
| 37 | Not Available | Hoover Hose Complete | 015584JM | Not Available |
| 38 | Not Available | Hoover Carrying Strap | 048398-A | Not Available |
| 39 | Not Available | Hoover Hose Pixie | 022930- | Not Available |
| 40 | Not Available | Hoover Extension Tube | 034404- | Not Available |
| 41 | Not Available | Hoover Crevice Tool | 34547 | Not Available |
| 42 | Not Available | Hoover Furniture Brush Assem | 034544-A | Not Available |
| 43 | Not Available | Hoover Furniture Brush Nozz | 020486-A | Not Available |
| 44 | Not Available | Hoover Furniture Brush Face | 031598- | Not Available |
| 45 | Not Available | Hoover Furniture Brush Supp | 020493- | Not Available |
| 46 | Not Available | Hoover Screw | 047151- | Not Available |
| 47 | Not Available | Hoover Furniture Brush Guard | 034542-T | Not Available |
| 48 | Not Available | Hoover Dusting Brush Comp. | 47672A | Not Available |
| 49 | Not Available | Hoover Dusting Brush Nozzle | 020483- | Not Available |
| 50 | Not Available | Hoover Dusting Brush Back | 031599- | Not Available |
| 51 | Not Available | Hoover Dusting Brush Guard | 022762- | Not Available |
| 52 | Not Available | Hoover Dusting Brush Skirt | 044503- | Not Available |
| 53 | Not Available | Hoover Screw | 048963- | Not Available |
| 54 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 55 | Not Available | Hoover Hose Connector - Aap | 38634054 | Not Available |
| 56 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 57 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 58 | Not Available | Hoover Hose-Less Ends - Aap | 43431174 | Not Available |
| 59 | Not Available | Hoover Hose Connector Colla | 36116006 | Not Available |
| 60 | Not Available | Hoover Hose Connector Curve | 43466055 | Not Available |
| 61 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 62 | Not Available | Hoover Hose Assem Comp Aap | 43434206 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Pin | 049435- | Not Available |
| 2 | Not Available | Hoover Motor Mount | 015316- | Not Available |
| 6 | Not Available | Hoover Retainer | 015894- | Not Available |
| 7 | Not Available | Hoover Screw | 162911- | Not Available |
| 17 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 18 | Not Available | Hoover Brush Back-409 | 166656- | Not Available |
| 19 | Not Available | Hoover Nozzle Tube | 166652JM | Not Available |
| 20 | Not Available | Hoover Felt Gasket-2910 | 166651- | Not Available |
| 21 | Not Available | Hoover Nozzle Lock-Pad Asse | 43482057 | Not Available |
| 22 | Not Available | Hoover Pads-2910 | 34121001 | Not Available |
| 23 | Not Available | Hoover Brush Retainer Clips | 166646- | Not Available |
| 24 | Not Available | Hoover Seal Foam-S3001 | 34113001 | Not Available |
| 25 | Not Available | Hoover Washer-S3001 | 169241AW | Not Available |
| 27 | Not Available | Hoover Lock Ring | 013730- | Not Available |
| 28 | Not Available | Hoover Wheel Cover-S3001 | 169242- | Not Available |
| 30 | Not Available | Hoover Seal Foam-S3001 | 34112001 | Not Available |
| 31 | Not Available | Hoover Seal-Felt-S3001 | 34223002 | Not Available |
| 32 | Not Available | Hoover Brush Housing | 169250AG | Not Available |
| 34 | Not Available | Hoover Rib Shoe-S3001 | 169253AY | Not Available |
| 35 | Not Available | Hoover Brush Back Complete- | 169256- | Not Available |
| 37 | Not Available | Hoover Gasket-S3001 | 169251- | Not Available |
| 38 | Not Available | Hoover Bottom Plate Complet | 169538- | Not Available |
| 39 | Not Available | Hoover Screw-S3001 | 21481464 | Not Available |
| 40 | Not Available | Hoover Screw-S3001 | 21481465 | Not Available |
| 41 | Not Available | Hoover Roller - S3003 | 169243AG | Not Available |
| 42 | Not Available | Hoover Washer-C2075 | 21312758 | Not Available |
| 43 | Not Available | Hoover Roller Shaft-S3001 | 169244AW | Not Available |
| 44 | Not Available | Hoover Lock Ring-S3001 | 24735081 | Not Available |
| 45 | Not Available | Hoover Seal Foam L.H.-S3001 | 34513001 | Not Available |
| 46 | Not Available | Hoover Seal Foam R.H-S3001 | 34513002 | Not Available |
| 47 | Not Available | Hoover Wheel Shaft - S3001 | 169240AY | Not Available |
| 49 | Not Available | Hoover Seal | 34122006 | Not Available |
