Schematic and parts list for: Hoover Model: S2135

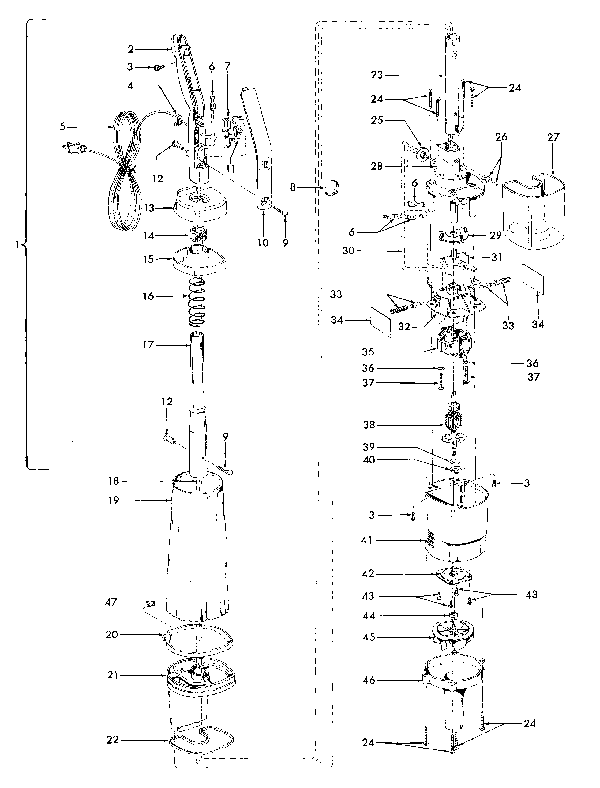

This is a list of parts and a diagram and schematic for: Hoover Model: S2135
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
| # | Part image | Description | SKU | Price |
| 02 | Not Available | Hoover Handle Grip | 39454006 | Not Available |
| 03 | Not Available | Hoover Screw | 21447003 | Not Available |
| 04 | Not Available | Hoover Strain Relief | 27482301 | Not Available |
| 05 | Not Available | Hoover Attach Cord Assembly | 46363148 | Not Available |
| 06 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 07 | Not Available | Hoover Shield | 37258082 | Not Available |
| 08 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 09 | Not Available | Hoover Handle Bolt-U7047/45 | 21631302 | Not Available |
| 10 | Not Available | Hoover Handle Cover - S2097 | 37226063 | Not Available |
| 11 | Not Available | Hoover Switch | 28179022 | Not Available |
| 12 | Not Available | Hoover Handle Nut | 32277021 | Not Available |
| 13 | Not Available | Hoover Bag Cap-Outer-Aap-S2 | 37225008 | Not Available |
| 14 | Not Available | Hoover Gasket | 38781012 | Not Available |
| 15 | Not Available | Hoover Bag Cap-Inner | 37225010 | Not Available |
| 16 | Not Available | Hoover Spring | 38315012 | Not Available |
| 18 | Not Available | Hoover Motor Lead Wire Assembly | 46513006 | Not Available |
| 20 | Not Available | Hoover Clamp Band | 36171046 | Not Available |
| 22 | Not Available | Hoover Gasket | 34123036 | Not Available |
| 24 | Not Available | Hoover Screw | 21434287 | Not Available |
| 25 | Not Available | Hoover Washer - Fibre | 21329104 | Not Available |
| 27 | Not Available | Hoover Dirt Cup | 38775044 | Not Available |
| 29 | Not Available | Hoover Cam | 38562023 | Not Available |
| 30 | Not Available | Hoover Lead Wire | 46143065 | Not Available |
| 31 | Not Available | Hoover Lever-Abn | 38452090 | Not Available |
| 32 | Not Available | Hoover Motor Brush Housing | 42196005 | Not Available |
| 33 | Not Available | Hoover Motor Brush & Spring | 47318022 | Not Available |
| 34 | Not Available | Hoover Insulator | 34152010 | Not Available |
| 36 | Not Available | Hoover Helical Spring Lockw | 21338030 | Not Available |
| 43 | Not Available | Hoover Screw | 21434288 | Not Available |
| 44 | Not Available | Hoover Spacer | 31146008 | Not Available |
| 45 | Not Available | Hoover Fan | 38755018 | Not Available |
| 47 | Not Available | Hoover Screw | 21434288 | Not Available |
| # | Part image | Description | SKU | Price |
| 02 | Not Available | Hoover Nozzle Tube | 38646078 | Not Available |
| 03 | Not Available | Hoover Rug & Floor Nozzle (Use 43414180 Rug And Floor Nozzle) | 38615153 | Not Available |
| 04 | Not Available | Hoover Roller | 38521018 | Not Available |
| 05 | Not Available | Hoover Roller Axle | 31511004 | Not Available |
| 06 | Not Available | Hoover Brush Housing | 36414018 | Not Available |
| 07 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 08 | Not Available | Hoover Brush Back Assembly | 48443004 | Not Available |
| 09 | Not Available | Hoover Screw | 21447203 | Not Available |
| 10 | Not Available | Hoover Brush Back Lever | 38454004 | Not Available |
| 11 | Not Available | Hoover Washer-Felt | 21329105 | Not Available |
| 12 | Not Available | Hoover Rug & Floor Nozzle | 43414180 | Not Available |
| 13 | Not Available | Hoover Nozzle Connector | 38646082 | Not Available |
| 14 | Not Available | Hoover Wheel/Axle Assembly | 43244043 | Not Available |
| 15 | Not Available | Hoover Wheel Bearing-Aat | 38511016 | Not Available |
| 16 | Not Available | Hoover Rug & Floor Nozzle | 43414117 | Not Available |
| 17 | Not Available | Hoover Roller | 38521018 | Not Available |
| 18 | Not Available | Hoover Roller Axle | 31511004 | Not Available |
| 19 | Not Available | Hoover Slider - Ag | 38451008 | Not Available |
| 20 | Not Available | Hoover Brush Housing | 36414013 | Not Available |
| 21 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 22 | Not Available | Hoover Brush Back Assembly | 48443004 | Not Available |
| 23 | Not Available | Hoover Screw | 21447203 | Not Available |
| 24 | Not Available | Hoover Seal | 34122013 | Not Available |
| 25 | Not Available | Hoover Pedal | 38434015 | Not Available |
