Schematic and parts list for: Hoover Model: S2200

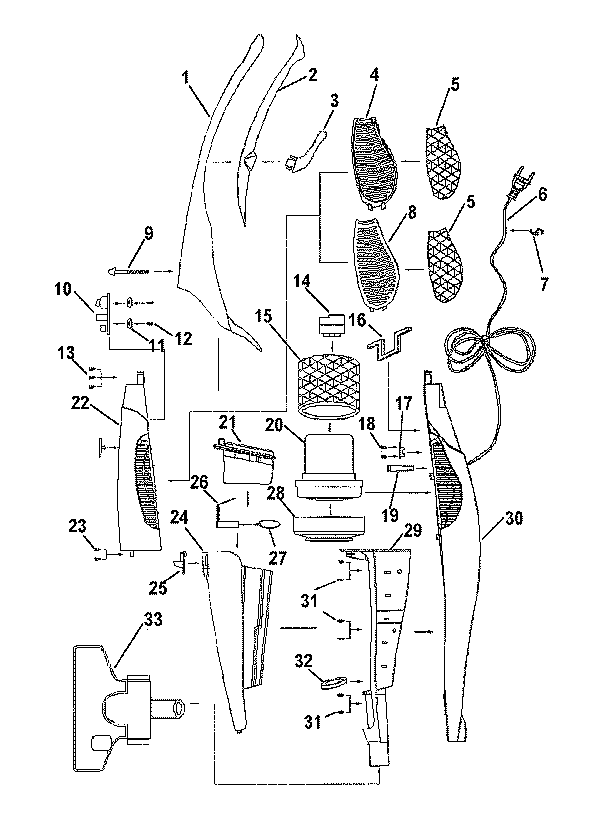

This is a list of parts and a diagram and schematic for: Hoover Model: S2200
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Flair Bagless
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Upper Handle - Graphite Silver Metallic | 59136060 | Not Available |
| 02 | Not Available | Hoover Upper Handle Back - Order #1 | 59136161 | Not Available |
| 03 | Not Available | Hoover Cord Hook | 59136011 | Not Available |
| 04 | Not Available | Hoover Air Outlet Grid - Right | 59136009 | Not Available |
| 05 | Not Available | Hoover Air Outlet Filter | 59136022 | Not Available |
| 06 | Not Available | Hoover Power Cord With Protector | 59136052 | Not Available |
| 07 | Not Available | Hoover S-Clip For Power Cord | FNLA | Not Available |
| 08 | Not Available | Hoover Air Outlet Grid - Left | 59136010 | Not Available |
| 09 | Not Available | Hoover Finger Bolt - Upper Handle | 59136059 | Not Available |
| 10 | Not Available | Hoover Circuit Board | 59136035 | Not Available |
| 11 | Not Available | Hoover Washer | 59136057 | Not Available |
| 12 | Not Available | Hoover Screw | 59136015 | Not Available |
| 13 | Not Available | Hoover Screw | 59136015 | Not Available |
| 14 | Not Available | Hoover Motor Fix Ring - Small | 59136013 | Not Available |
| 15 | Not Available | Hoover Motor Sound Insulation | 59136024 | Not Available |
| 16 | Not Available | Hoover Motor Seal / Chamber Seal | 59136012 | Not Available |
| 17 | No Image | POWER CORD, FIXING BRD Part Number: 59136061 for Hoover | 59136061 | $0.00Read more |
| 18 | Not Available | Hoover Screw | 59136015 | Not Available |
| 19 | Not Available | Hoover Power Cord Protector | 59136051 | Not Available |
| 20 | Not Available | Hoover Motor | 59136023 | Not Available |
| 21 | Not Available | Hoover Primary Bag Filter | 59136055 | Not Available |
| 22 | Not Available | Hoover Front Cover | 59136056 | Not Available |
| 23 | Not Available | Hoover Screw | 59136015 | Not Available |
| 24 | Not Available | Hoover Dirt Cup Assembly | 59136054 | Not Available |
| 25 | Not Available | Hoover Latch - Order #24 (Assembly) | 59136054 | Not Available |
| 26 | Not Available | Hoover Dust Board - Order #24 (Assembly) | 59136054 | Not Available |
| 27 | Not Available | Hoover Rubber Flap - Order #24 (Assembly) | 59136054 | Not Available |
| 28 | Not Available | Hoover Motor Seal | 59136014 | Not Available |
| 29 | Not Available | Hoover Middle Housing With Gasket | 59136058 | Not Available |
| 30 | Not Available | Hoover Rear Cover / Lower Handle | 59136007 | Not Available |
| 31 | Not Available | Hoover Screw | 59136015 | Not Available |
| 32 | Not Available | Hoover Front Sealing - Dirt Cup | 59136045 | Not Available |
