Schematic and parts list for: Hoover Model: S2201

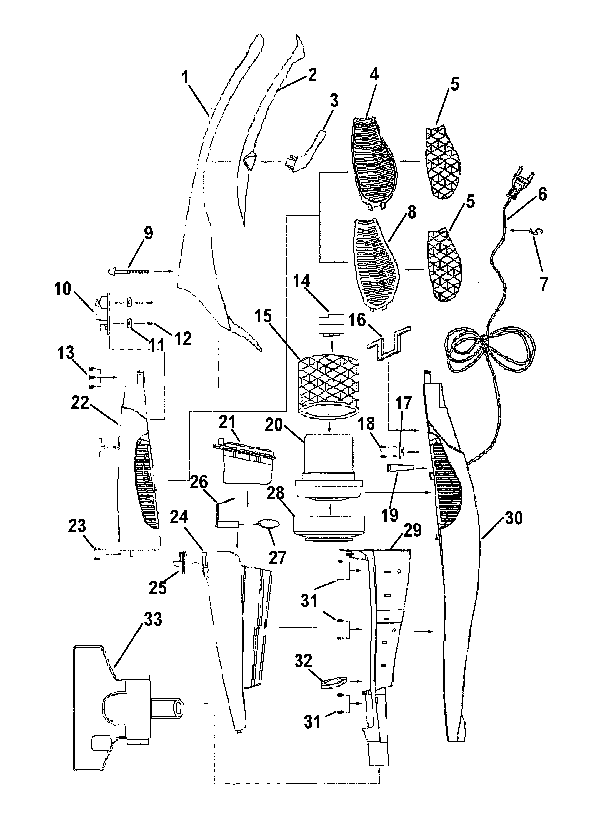

This is a list of parts and a diagram and schematic for: Hoover Model: S2201
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
| # | Part image | Description | SKU | Price |
| 05 | Not Available | Hoover Air Outlet Filter Air Outlet Filter (Inc. 2 Filters) | 59136022 | Not Available |
| 06 | Not Available | Hoover Power Cord With Protector Power Cord With Cord Protector | 59136052 | Not Available |
| 10 | Not Available | Hoover Printed Circuit Board S2200, S2201 | 59136035 | Not Available |
| 11 | Not Available | Hoover Washers | 59136057 | Not Available |
| 12 | Not Available | Hoover Screw | 59136015 | Not Available |
| 13 | Not Available | Hoover Screw | 59136015 | Not Available |
| 14 | Not Available | Hoover Motor Fix Ring/Small | 59136013 | Not Available |
| 15 | Not Available | Hoover Motor Sound Insulation | 59136024 | Not Available |
| 16 | Not Available | Hoover Motor Seal/Chamber Sea | 59136012 | Not Available |
| 17 | No Image | POWER CORD, FIXING BRD Part Number: 59136061 for Hoover | 59136061 | $0.00Read more |
| 18 | Not Available | Hoover Screw | 59136015 | Not Available |
| 19 | Not Available | Hoover Power Cord Prot | 59136051 | Not Available |
| 20 | Not Available | Hoover Motor | 59136023 | Not Available |
| 21 | Not Available | Hoover Primary Bag Filter | 59136055 | Not Available |
| 22 | Not Available | Hoover Front Cover | 59136056 | Not Available |
| 23 | Not Available | Hoover Screw Screw | 59136015 | Not Available |
| 28 | Not Available | Hoover Motor Seal | 59136014 | Not Available |
| 29 | Not Available | Hoover Middle Housing With Gas (Inc. Item 32) - S2200 | 59136058 | Not Available |
| 30 | Not Available | Hoover Rear Cover/Lower Handle Lower Handle - S2200 | 59136007 | Not Available |
| 31 | Not Available | Hoover Screw | 59136015 | Not Available |
| 32 | Not Available | Hoover Front Sealing/Dirt Cup | 59136045 | Not Available |
| 40 | Not Available | Hoover Owners Manual Owner Manual - S2200, S2201 | 59136028 | Not Available |
