Schematic and parts list for: Hoover Model: S2509
This is a list of parts and a diagram and schematic for: Hoover Model: S2509
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

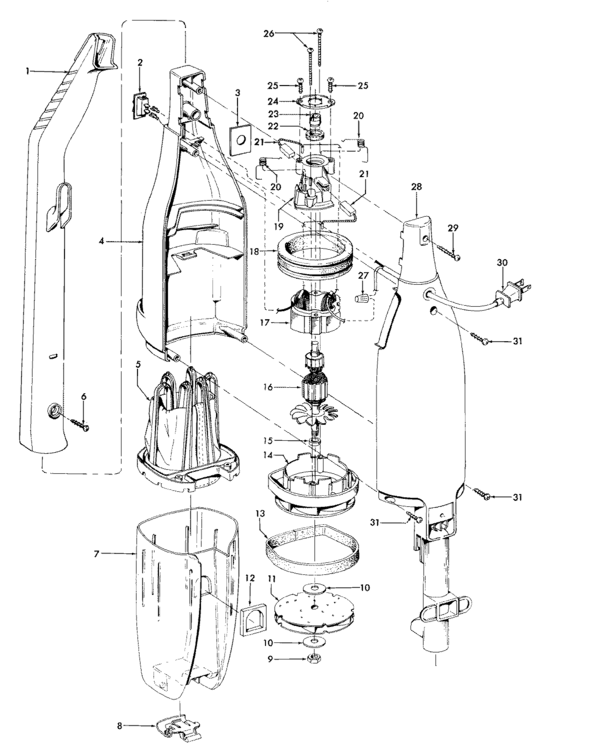

Parts for: Canister
# | Part image | Description | SKU | Price |
1 | Not Available | Hoover HANDLE-S2531/41/51/6 | 39454061 | Not Available |
2 | Not Available | Hoover SWITCH - 3/16" TERMINAL ORDER 28161075 | 28161063 | Not Available |
3 | Not Available | Hoover INSULATOR-S2505/31/4 | 34144009 | Not Available |
4 | Not Available | Hoover FRONT HOUSING-S2505 | 37222004 | Not Available |
6 | Not Available | Hoover SCREW - CORD CLIP EXTENSION | 21447236 | Not Available |
8 | Not Available | Hoover LATCH-S2531 | 36153004 | Not Available |
9 | Not Available | Hoover NUT-F5411 | 21642021 | Not Available |
10 | Not Available | Hoover WASHER-F5411 | 21312818 | Not Available |
11 | Not Available | Hoover FAN ASSEMBLY-F5411 | 43566019 | Not Available |
12 | Not Available | Hoover SEAL-S2515 | 38783022 | Not Available |
13 | Not Available | Hoover MOTOR SUPPORT SEAL-S | 34123048 | Not Available |
14 | Not Available | Hoover MOTOR HOUSING ASSM-S | 42193024 | Not Available |
15 | Not Available | Hoover BEARING SPACER | 31148011 | Not Available |
16 | Not Available | Hoover ARMATURE ASSEM.-SPRI | 44731085 | Not Available |
17 | Not Available | Hoover FIELD ASSEM-SPRINT | 45312047 | Not Available |
18 | Not Available | Hoover MOTOR MOUNT INSULATO | 31195005 | Not Available |
19 | Not Available | Hoover MOTOR BRUSH HOUSING- | 37193026 | Not Available |
20 | Not Available | Hoover SPRING-F5411 | 38353014 | Not Available |
21 | Not Available | Hoover MOTOR BRUSH KIT-S256 | 47313010 | Not Available |
22 | Not Available | Hoover FELT WASHER-F5411 | 21329108 | Not Available |
23 | Not Available | Hoover SLEEVE BEARING - F54 | 24118214 | Not Available |
24 | Not Available | Hoover SLEEVE BEARING RETAI | 36134006 | Not Available |
25 | Not Available | Hoover SCREW-SELF TAPPING-5/8 | 214793DA | Not Available |
26 | Not Available | Hoover SCREW | 21479443 | Not Available |
27 | Not Available | Hoover WIRE CONNECTOR | 27618508 | Not Available |
28 | Not Available | Hoover REAR HOUSING-S2505/1 | 37222013 | Not Available |
29 | Not Available | Hoover SCREW - CORD CLIP EXTENSION | 21447236 | Not Available |
30 | Not Available | Hoover CORD | 46363110 | Not Available |
31 | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
