Schematic and parts list for: Hoover Model: S2610
This is a list of parts and a diagram and schematic for: Hoover Model: S2610
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
# | Part image | Description | SKU | Price |
01 | Not Available | Hoover Handle-S2531/41/51/6 | 39454061 | Not Available |
02 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
03 | Not Available | Hoover Exhaust Duct Cover-J | 37227002 | Not Available |
04 | Not Available | Hoover Receptacle Assembly-S26 | 46326005 | Not Available |
05 | Not Available | Hoover Switch-S1339 | 28161063 | Not Available |
06 | Not Available | Hoover Front Housing-Acf-S2 | 37222023 | Not Available |
07 | WRAP, HOSE S2531 Part Number: 39442045 for Hoover | 39442045 | $3.24Read more | |
08 | Not Available | Hoover Filter/Separator Assembly | 43615087 | Not Available |
09 | Not Available | Hoover Screw | 21447236 | Not Available |
10 | Not Available | Hoover Dirt Cup-Stick Cleaner (Includes 11) | 43645047 | Not Available |
11 | Not Available | Hoover Latch-S2531 | 36153004 | Not Available |
12 | Not Available | Hoover Nut-F5411 | 21642021 | Not Available |
13 | Not Available | Hoover Washer-F5411 | 21312818 | Not Available |
14 | Not Available | Hoover Seal-S2515 | 38783022 | Not Available |
15 | Not Available | Hoover Fan Assembly-F5411 | 43566019 | Not Available |
16 | Not Available | Hoover Motor Support Seal-S | 34123048 | Not Available |
17 | Not Available | Hoover Motor Housing Assembly-S | 42193024 | Not Available |
18 | Not Available | Hoover Bearing Spacer | 31148011 | Not Available |
19 | Not Available | Hoover Armature Assembly | 44731085 | Not Available |
20 | Not Available | Hoover Field Assembly-S2610 (Includes 24) | 45312072 | Not Available |
21 | Not Available | Hoover Motor Mount Insulator | 31195005 | Not Available |
22 | Not Available | Hoover Motor Brush Housing- | 37193026 | Not Available |
23 | Not Available | Hoover Spring-F5411 | 38353014 | Not Available |
24 | Not Available | Hoover Motor Brush Kit-S256 (Includes Two Brushes And Two Crimps) | 47313010 | Not Available |
25 | Not Available | Hoover Felt Washer-F5411 | 21329108 | Not Available |
26 | Not Available | Hoover Sleeve Bearing - F54 | 24118214 | Not Available |
27 | Not Available | Hoover Sleeve Bearing Retainer | 36134006 | Not Available |
28 | Not Available | Hoover Screw-Self Tapping-5/8" | 214793DA | Not Available |
29 | Not Available | Hoover Screw | 21479443 | Not Available |
30 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
31 | Not Available | Hoover Rear Housing-Abe- | 37222016 | Not Available |
32 | Not Available | Hoover Screw | 21447236 | Not Available |
33 | Not Available | Hoover Cord-Sprint | 46363110 | Not Available |
34 | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more | |
35 | Not Available | Hoover Hose Assembly-S2531/41/ | 43491014 | Not Available |
36 | Not Available | Hoover Tool Holder-S2531/41 | 36433119 | Not Available |
37 | No Image | SPRING, ATTACHMENT DOOR S2531 Part Number: 38351018 for Hoover | 38351018 | $1.99Read more |
38 | Not Available | Hoover Screw-S3279 | 21447124 | Not Available |
39 | Not Available | Hoover Exhaust Duct Cover-J | 37227002 | Not Available |

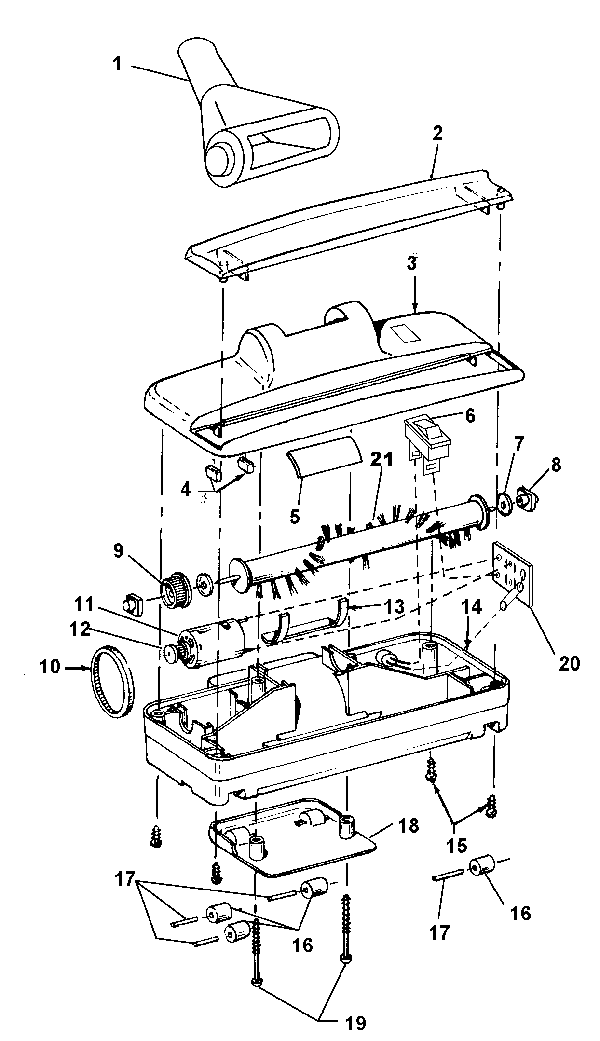

# | Part image | Description | SKU | Price |
03 | Not Available | Hoover Power Nozzle Comp. | 48438276 | Not Available |
05 | Not Available | Hoover Seal-S2203/S2211 | 59139244 | Not Available |
06 | Not Available | Hoover Switch-S2610 | 59139295 | Not Available |
08 | Not Available | Hoover Agitator Bearing-S22 | 59139228 | Not Available |
10 | Not Available | Hoover Belt-S2203/S2211 | 59139232 | Not Available |
11 | Not Available | Hoover Agitator Motor-S2203 | 59139230 | Not Available |
12 | Not Available | Hoover Pulley-Br Vac Stick Motor Pulley | 59139275 | Not Available |
13 | Not Available | Hoover Seal-S2203/S2211 | 59139245 | Not Available |
15 | Not Available | Hoover Screw - S1147 | 59139209 | Not Available |
16 | Not Available | Hoover Roller-S2203/S2211 | 59139233 | Not Available |
17 | Not Available | Hoover Roller Shaft-S2203/S | 59139234 | Not Available |
20 | Not Available | Hoover Circuit Board with Attach. Cord | 59139293 | Not Available |
21 | Not Available | Hoover Agitator Assembly-S220 | 59139227 | Not Available |
22 | Not Available | Hoover Cord Strap-S2610 | 59139294 | Not Available |
