Schematic and parts list for: Hoover Model: S3169
This is a list of parts and a diagram and schematic for: Hoover Model: S3169
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Washer-S3001 | 169241AW | Not Available |
| 3 | Not Available | Hoover Wheel-S2087 | 169239AG | Not Available |
| 4 | Not Available | Hoover Lock Ring | 013730- | Not Available |
| 5 | Not Available | Hoover Wheel Cover-S3001 | 169242- | Not Available |
| 6 | Not Available | Hoover Nozzle Body-Jm-S3129 | 38615160 | Not Available |
| 7 | Not Available | Hoover Seal Foam-S3001 | 34112001 | Not Available |
| 8 | Not Available | Hoover Seal-Felt-S3001 | 34223002 | Not Available |
| 9 | Not Available | Hoover Brush Housing | 169250AG | Not Available |
| 10 | Not Available | Hoover Rib Shoe-S3001 | 169253AY | Not Available |
| 11 | Not Available | Hoover Brush Back Complete- | 169256- | Not Available |
| 12 | Not Available | Hoover Furniture Guard-Litt | 169247JM | Not Available |
| 13 | Not Available | Hoover Gasket-S3001 | 169251- | Not Available |
| 14 | Not Available | Hoover Bottom Plate Complet | 169538- | Not Available |
| 15 | Not Available | Hoover Screw-S3001 | 21481464 | Not Available |
| 16 | Not Available | Hoover Screw-S3001 | 21481465 | Not Available |
| 17 | Not Available | Hoover Roller - S3003 | 169243AG | Not Available |
| 18 | Not Available | Hoover Washer-C2075 | 21312758 | Not Available |
| 19 | Not Available | Hoover Roller Shaft-S3001 | 169244AW | Not Available |
| 20 | Not Available | Hoover Lock Ring-S3001 | 24735081 | Not Available |
| 21 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 22 | Not Available | Hoover Seal Foam L.H.-S3001 | 34513001 | Not Available |
| 23 | Not Available | Hoover Seal Foam R.H-S3001 | 34513002 | Not Available |
| 24 | Not Available | Hoover Wheel Shaft - S3001 | 169240AY | Not Available |
| 25 | Not Available | Hoover Connecting Tube Assm | 169249JM | Not Available |
| 26 | Not Available | Hoover Seal | 34122006 | Not Available |
| 27 | Not Available | Hoover Suction Control Knob | 169254JM | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Nozzle Connector Tub | 43463012 | Not Available |
| 2 | Not Available | Hoover Gasket | 013267- | Not Available |
| 3 | Not Available | Hoover Rug & Floor Nozzle - | 38615156 | Not Available |
| 4 | Not Available | Hoover Litter Picker | 013259PH | Not Available |
| 5 | Not Available | Hoover Spring-S3013 | 015963FW | Not Available |
| 6 | Not Available | Hoover Rib Shoe | 13261AY- | Not Available |
| 7 | Not Available | Hoover Brush Back Assembly | 016184- | Not Available |
| 8 | Not Available | Hoover Retainer | 161413- | Not Available |
| 9 |  | Pad, 15" Blue Microfiber Dusting Pad 4"x15" Part Number: WM710013272 for Bona | WM710013272 | $17.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Hoover Bottom Plate-Edge Cl | 42246002 | Not Available |
| 11 | Not Available | Hoover Screw | 012955- | Not Available |
| 12 | Not Available | Hoover Roller | 013157AG | Not Available |
| 14 | Not Available | Hoover Felt Gasket-2910 | 166651- | Not Available |
| 15 | Not Available | Hoover Exp-Nozzle & Lock As | 43414089 | Not Available |
| 16 | Not Available | Hoover Brush Retainer Clips | 166646- | Not Available |
| 17 | Not Available | Hoover Connector Tube Clamp | 166650AY | Not Available |
| 18 | Not Available | Hoover Screw | 166648AW | Not Available |
| 19 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 20 | Not Available | Hoover Brush Back-409 | 166656- | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Hose Complete-Abx | 43434191 | Not Available |
| 3 | Not Available | Hoover Floor Brush | 013077JM | Not Available |
| 3 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Hoover Dusting Brush | 161851JM | Not Available |
| 4 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 7 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 8 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 9 | Not Available | Hoover Dusting Brush Face | 013263BZ | Not Available |
| 10 | Not Available | Hoover Floor Brush Face | 013253AG | Not Available |
| 13 | Not Available | Hoover Brush Back | 013254BZ | Not Available |
| 14 | Not Available | Hoover Nozzle Connector Tub | 013149JM | Not Available |
| 15 | Not Available | Hoover Hose Connector-Ag | 32855003 | Not Available |
| 16 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 19 | Not Available | Hoover Hose Connector Colla | 36116006 | Not Available |
| 20 | Not Available | Hoover Hose Grip W/Sc-Ag-S1 | 43466068 | Not Available |
| 21 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 22 | Not Available | Hoover Hose Conn Label-U490 | 51869006 | Not Available |
| 23 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 24 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 24 | Not Available | Hoover Shag Vac Rake | 170110- | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Pin | 047938- | Not Available |
| 4 | Not Available | Hoover Ret Ring | 48123AV- | Not Available |
| 7 | Not Available | Hoover Screw | 21447017 | Not Available |
| 8 | Not Available | Hoover Screw | 017001FW | Not Available |
| 9 | Not Available | Hoover Motor Cover | 170377JM | Not Available |
| 10 | Not Available | Hoover Wire Nut | 048969- | Not Available |
| 11 | Not Available | Hoover Hex Nut | 21652003 | Not Available |
| 12 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 13 | Not Available | Hoover Hinge Leaf-Lower | 170348AW | Not Available |
| 14 | Not Available | Hoover Strain Relief Bushin | 27482120 | Not Available |
| 15 | Not Available | Hoover Attach. Cord-Ag | 46363195 | Not Available |
| 16 | Not Available | Hoover Interm Shell-Jj-S312 | 42213068 | Not Available |
| 17 | Not Available | Hoover Motor Mount-Upper S3003 | 169293- | Not Available |
| 18 | Not Available | Hoover Muffler-S3005 | 31194005 | Not Available |
| 19 | Not Available | Hoover Motor Assembly-S3121 | 43177008 | Not Available |
| 20 | Not Available | Hoover Motor Mount-Lower-S3 | 169294- | Not Available |
| 21 | Not Available | Hoover Intake Pan-Ay-S3121 | 37215097 | Not Available |
| 22 | Not Available | Hoover Blower Adapter S3057 | 170382JM | Not Available |
| 23 | Not Available | Hoover Bottom Pan-Jj-S3121 | 41421122 | Not Available |
| 24 | Not Available | Hoover Switch | 28212026 | Not Available |
| 25 | Not Available | Hoover Spacer-S3121 | 31324001 | Not Available |
| 26 | Not Available | Hoover Pedal-Jm | 38424001 | Not Available |
| 27 | Not Available | Hoover Bag Coll Connector | 170352AG | Not Available |
| 28 | Not Available | Hoover Latch S3057-59-61 | 36151012 | Not Available |
| 29 | Not Available | Hoover Handle-Jm-S3A01 | 39457006 | Not Available |
| 30 | Not Available | Hoover Latch Link Spring-85 | 048512FW | Not Available |
| 31 | Not Available | Hoover Shell Cover Latch Co | 016439JX | Not Available |
| 33 | Not Available | Hoover Celebrity Bag - 3-Pk | 4010009H | Not Available |
| 34 | Not Available | Hoover Secondary Filter-S30 | 170332BZ | Not Available |

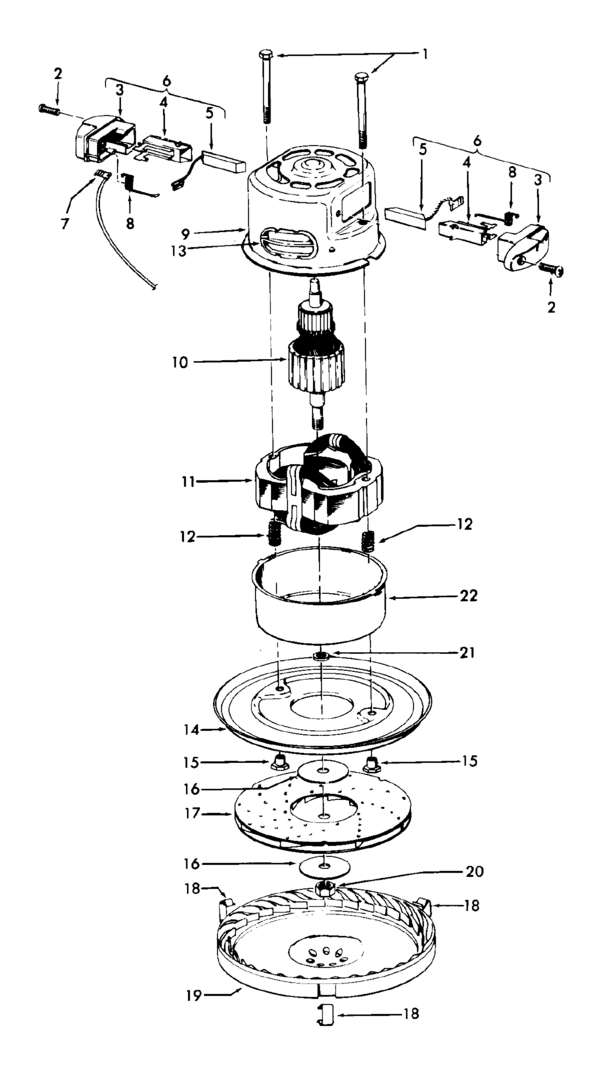

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Field Lamination Bol | 33421004 | Not Available |
| 2 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 3 | Not Available | Hoover Brush Housing-Only-S | 167696AG | Not Available |
| 4 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 5 | Not Available | Hoover Carbon Brush And Terminal | 167681- | Not Available |
| 6 |  | Hoover Conquest, Spirit, PowerMax Vacuum Carbon Brush W/Carrier, Spring 47318008 | 47318008 | $12.99Read more |
| 7 | Not Available | Hoover Terminal-S3005 | 27666551 | Not Available |
| 8 | Not Available | Hoover Spring U3101/3 U4201 | 38353004 | Not Available |
| 9 | Not Available | Hoover Motor Housing-Upper- | 169707- | Not Available |
| 10 | Not Available | Hoover Armature Complete-S3 | 168479- | Not Available |
| 11 | Not Available | Hoover Field Complete-S3005 | 168470- | Not Available |
| 12 | Not Available | Hoover Spring-S3005 | 167721FW | Not Available |
| 13 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 14 | Not Available | Hoover Motor Mounting Plate | 169713FW | Not Available |
| 15 | Not Available | Hoover Nut - Special S3005 | 167695EF | Not Available |
| 16 | Not Available | Hoover Washer | 21312774 | Not Available |
| 17 | Not Available | Hoover Fan-S3153 | 43566006 | Not Available |
| 18 | Not Available | Hoover Spring Clip | 34785004 | Not Available |
| 19 | Not Available | Hoover Diffuser-S3005 | 169714AG | Not Available |
| 20 | Not Available | Hoover Nut-S3005 | 33426001 | Not Available |
| 21 | Not Available | Hoover Spacer | 31148002 | Not Available |
| 22 | No Image | HOUSING, LOWER MOTOR CELEBRITY 3005/3159/3167 Part Number: 41823002 for Hoover | 41823002 | $18.04Read more |
