Schematic and parts list for: Hoover Model: S3219
This is a list of parts and a diagram and schematic for: Hoover Model: S3219
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Thread Guard U3101/3 | 41435018 | Not Available |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 5 | Not Available | Hoover Agit Brush-Concept-5 | 48445017 | Not Available |
| 6 | Not Available | Hoover Agitator Shaft 1170 | 160070 | Not Available |
| 8 | Not Available | Hoover Agitator End Pulley | 38537002 | Not Available |
| 10 | Not Available | Hoover Thread Guard Lh | 48495AY | Not Available |
| 11 | | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 12 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 13 | Not Available | Hoover Agitator End | 41435023 | Not Available |
| 14 | Not Available | Hoover Agit Brush-Concept-5 | 48445017 | Not Available |
| 15 | Not Available | Hoover Thread Guard U3101/3 | 41435018 | Not Available |
| 16 | Not Available | Hoover End Pulley | 38537008 | Not Available |
| 17 | Not Available | Hoover Brush Ring-S3199 | 48418001 | Not Available |
| 18 | Not Available | Hoover Spacer | 31722019 | Not Available |
| 19 | Not Available | Hoover Shaft - Agitator / Brush Roll | 32724005 | Not Available |
| 20 | Not Available | Hoover Agitator-4B-S3199 | 48416030 | Not Available |

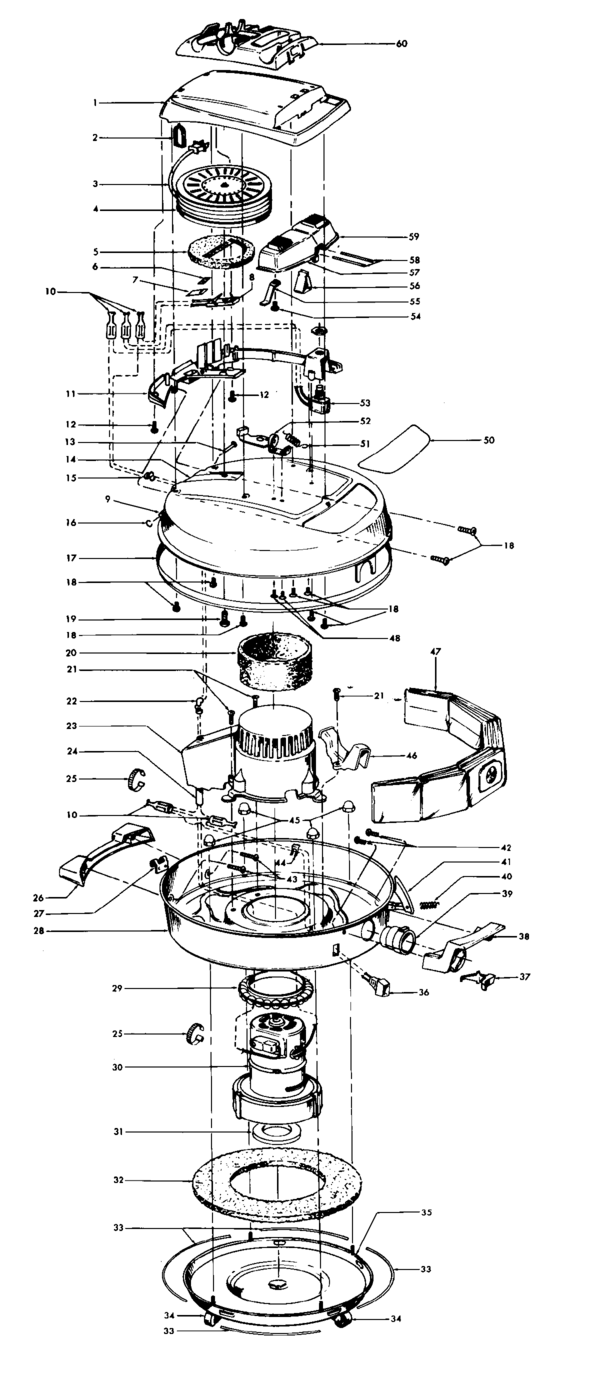

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Cord Reel Cover - Frost Beige | 37215125 | Not Available |
| 2 | Not Available | Hoover Cord Guide - Pastel Gray | 36218014 | Not Available |
| 3 | Not Available | Hoover Attach Cord -App-S31 | 46363224 | Not Available |
| 4 | Not Available | Hoover Cord Reel Assembly | 46831106 | Not Available |
| 5 | Not Available | Hoover Seal-S3129 | 31193010 | Not Available |
| 6 | Not Available | Hoover Speed Nut-S3129 | 21366004 | Not Available |
| 7 | Not Available | Hoover Wire Shield-S3187 | 34141004 | Not Available |
| 8 | Not Available | Hoover Brush Block Assy U31 | 47348045 | Not Available |
| 9 | Not Available | Hoover Hinge Leaf-Upper-S31 | 35214004 | Not Available |
| 10 | Not Available | Hoover Wire Nut | 048969 | Not Available |
| 11 | Not Available | Hoover Cover Plate-Lb-S3153 | 37215135 | Not Available |
| 12 | Not Available | Hoover Screw | 21447003 | Not Available |
| 13 | Not Available | Hoover Pin | 047938 | Not Available |
| 14 | Not Available | Hoover Upper Shell-Lb-S3137 | 42211304 | Not Available |
| 15 | Not Available | Hoover Strain Relief Bushin | 27482120 | Not Available |
| 16 | Not Available | Hoover Ret Ring | 48123AV | Not Available |
| 17 | Not Available | Hoover Furniture Guard-S305 | 170361JM | Not Available |
| 18 | Not Available | Hoover Screw | 21447014 | Not Available |
| 19 | Not Available | Hoover Screw | 21447003 | Not Available |
| 20 | Not Available | Hoover Filter-S3125 | 38764006 | Not Available |
| 21 | Not Available | Hoover Screw | 017001FW | Not Available |
| 22 | Not Available | Hoover Strain Relief | 27482227 | Not Available |
| 23 | No Image | MOTOR COVER-OEM HOOVER DELUXE CELEBRITY Part Number: 37196070 for Hoover | 37196070 | $13.03Read more |
| 24 | Not Available | Hoover Pigtail Cord - Aap | 46311142 | Not Available |
| 25 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 26 | Not Available | Hoover Rest Pad-Jj-S3123 | 36921008 | Not Available |
| 27 | Not Available | Hoover Hinge Leaf-Lower | 170348AW | Not Available |
| 28 | Not Available | Hoover Interm Shell-M-S3237 | 42213029 | Not Available |
| 29 | Not Available | Hoover Motor Mount-Upper S3003 | 169293 | Not Available |
| 30 | Not Available | Hoover Motor-2.6-S3195 | 43577101 | Not Available |
| 31 | Not Available | Hoover Compression Pad-S318 | 31178015 | Not Available |
| 32 | Not Available | Hoover Muffler-S3183 | 31178012 | Not Available |
| 33 | Not Available | Hoover Gasket-S3183 | 34111002 | Not Available |
| 34 | Not Available | Hoover Caster Wheel | 23737202 | Not Available |
| 35 | Not Available | Hoover Bottom Pan-Jr-S3187 | 41421109 | Not Available |
| 36 | Not Available | Hoover Receptacle - Aap | 46326096 | Not Available |
| 37 | Not Available | Hoover Latch S3057-59-61 | 36151012 | Not Available |
| 38 | Not Available | Hoover Handle-Lu-S3191 | 39457009 | Not Available |
| 39 | Not Available | Hoover Bag Coll Connector | 170352AG | Not Available |
| 40 | Not Available | Hoover Latch Link Spring-85 | 048512FW | Not Available |
| 41 | Not Available | Hoover Shell Cover Latch Co | 016439JX | Not Available |
| 42 | Not Available | Hoover Screw | 21447024 | Not Available |
| 43 | Not Available | Hoover Screw | 21447014 | Not Available |
| 44 | Not Available | Hoover Retainer Clip - Form | 34723001 | Not Available |
| 45 | Not Available | Hoover Nut | 21851003 | Not Available |
| 46 | Not Available | Hoover Wire Cover-Jm-S3141 | 37959020 | Not Available |
| 47 | Not Available | Hoover Celebrity Bag - 3-Pk | 4010009H | Not Available |
| 48 | Not Available | Hoover Screw | 038198 | Not Available |
| 51 | Not Available | Hoover Spring-S3129 | 38332001 | Not Available |
| 52 | Not Available | Hoover Brake | 43138024 | Not Available |
| 53 | Not Available | Hoover Switch-S3137 | 28212008 | Not Available |
| 54 | Not Available | Hoover Screw | 21447017 | Not Available |
| 55 | Not Available | Hoover Cam-S3129 | 34661007 | Not Available |
| 56 | Not Available | Hoover Pedal Spring-S3129 | 34783003 | Not Available |
| 57 | Not Available | Hoover Brake Pedal-Ww-S3237 | 38433060 | Not Available |
| 60 | Not Available | Hoover Tool Rack-Lb-S3153 | 36433031 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Cur Carry Hose W/O T | 43433085 | Not Available |
| 2 | Not Available | Hoover El Hose-Jm-6-Spirit | 43433032 | Not Available |
| 4 | Not Available | Hoover Repair Kit-Celebrity | 46321076 | Not Available |
| 6 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 7 | Not Available | Hoover Hose Tube Assem W/Co | 43468055 | Not Available |
| 9 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 10 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 11 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 17 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 18 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 19 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 20 | Not Available | Hoover Rivet | 012783 | Not Available |
| 21 | Not Available | Hoover Cord Clip - Silver Sand Medium | 36171008 | Not Available |
| 22 | Not Available | Hoover Screw | 013275 | Not Available |
| 23 | Not Available | Hoover Suction Reg | 13142AG | Not Available |
| 24 | Not Available | Hoover Suction Regulator | 013257BZ | Not Available |

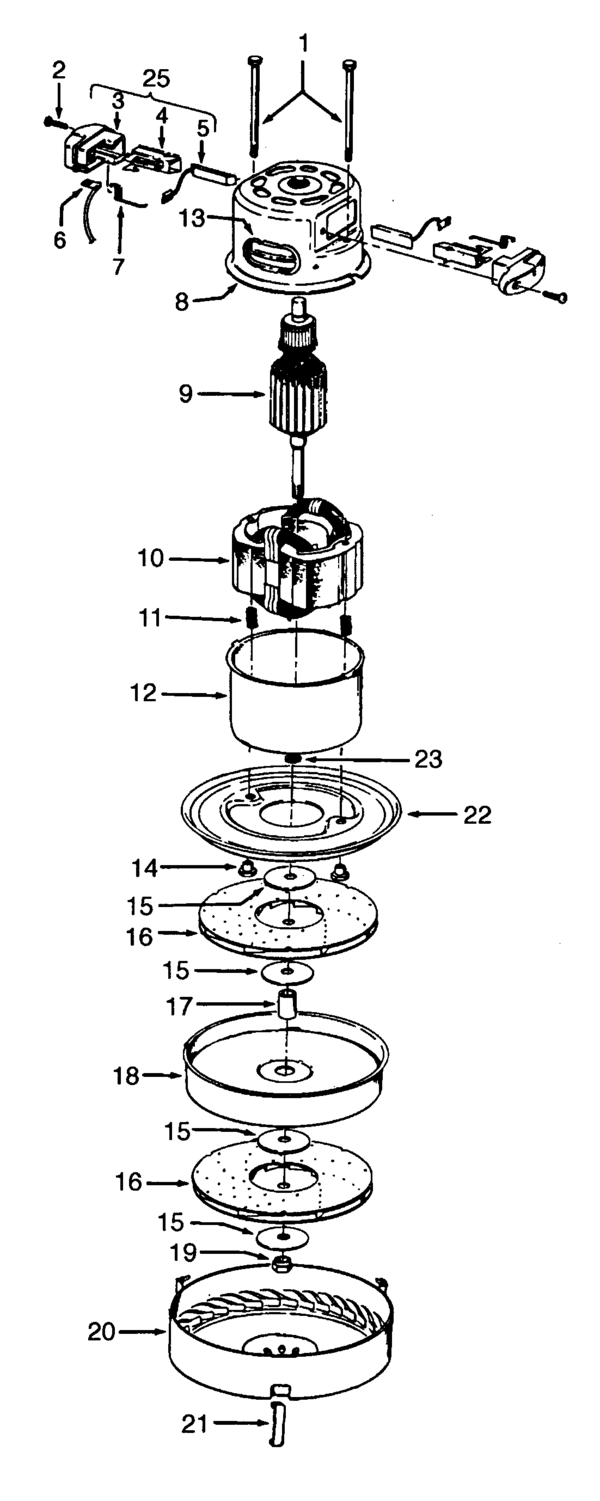

| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 3 | Not Available | Hoover Br Housing | 168038 | Not Available |
| 4 | Not Available | Hoover Brush Housing Comp-S | 168506 | Not Available |
| 5 | Not Available | Hoover Carbon Brush Complete | 167679 | Not Available |
| 6 | Not Available | Hoover Terminal-S3005 | 27666551 | Not Available |
| 7 | Not Available | Hoover Spring U3101/3 U420 | 38353004 | Not Available |
| 8 | Not Available | Hoover Motor Housing-Upper | 169706 | Not Available |
| 12 |  | HOUSING, LOWER MOTOR Part Number: 41823001 for Hoover | 41823001 | $18.79Read more |
| 13 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 14 | Not Available | Hoover Nut - Special S3005 | 167695EF | Not Available |
| 15 | Not Available | Hoover Washer | 21312774 | Not Available |
| 16 | Not Available | Hoover Fan-S3153 | 43566006 | Not Available |
| 17 | Not Available | Hoover H Spacer-S3003 | 31732003 | Not Available |
| 18 | Not Available | Hoover Interstage Complete | 169712 | Not Available |
| 19 | Not Available | Hoover Nut-S3005 | 33426001 | Not Available |
| 20 | Not Available | Hoover Diffuser | 37218005 | Not Available |
| 21 | Not Available | Hoover Spring Clip-Long | 34786002 | Not Available |
| 22 | Not Available | Hoover Motor Mounting Plate | 169713FW | Not Available |
| 23 | Not Available | Hoover Spacer | 31148002 | Not Available |
| 25 | Not Available | Hoover Brush Housing Comp-S | 168506 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Cord Assembly - Black | 46321005 | Not Available |
| 3 | Not Available | Hoover Agitator-4B-S3199 | 48416030 | Not Available |
| 4 | Not Available | Hoover Strain Relief - 6460 | 163768 | Not Available |
| 5 | Not Available | Hoover Screw | 21447041 | Not Available |
| 6 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 8 | Not Available | Hoover Nozzle Connector Ass | 43461021 | Not Available |
| 9 | Not Available | Hoover Seal | 34112005 | Not Available |
| 10 | Not Available | Hoover Seal | 34337003 | Not Available |
| 11 | Not Available | Hoover Socket | 47171009 | Not Available |
| 12 | Not Available | Hoover Wire Nut | 048969 | Not Available |
| 14 | Not Available | Hoover Duct Cover (Ji) | 42256098 | Not Available |
| 15 | Not Available | Hoover Seal | 34123017 | Not Available |
| 16 | Not Available | Hoover Detent Spring | 35276001 | Not Available |
| 17 | Not Available | Hoover Wheel-Ag | 32175025 | Not Available |
| 18 | Not Available | Hoover Wheel Shaft-S3199 | 31523005 | Not Available |
| 19 |  | Wheel, :( Front Quadraflex Power Nozzle Part Number: 32761001 for Hoover | 32761001 | $4.29Read more |
| 20 | Not Available | Hoover Wheel Shaft | 31522004 | Not Available |
| 21 | Not Available | Hoover Screw | 21447007 | Not Available |
| 22 | Not Available | Hoover Base Pl W/Post & Sho | 42246121 | Not Available |
| 25 | Not Available | Hoover Isolation Grommet S3 | 36218005 | Not Available |
| 26 | Not Available | Hoover Dirt Finder Lamp | 27317307 | Not Available |
| 27 | Not Available | Hoover Motor - Pn Order 43177075 | 43177073 | Not Available |
| 28 | Not Available | Hoover Indicator Lens S3147 | 39382013 | Not Available |
| 29 | Not Available | Hoover Terminal | 27666702 | Not Available |
| 30 | Not Available | Hoover Shield | 37258082 | Not Available |
| 31 | Not Available | Hoover Switch | 281770KD | Not Available |
| 32 | Not Available | Hoover Indicator - Ph - Ccs | 51151053 | Not Available |
| 33 | Not Available | Hoover Switch Actuator | 34361001 | Not Available |
| 34 | Not Available | Hoover Actuator Housing | 42262032 | Not Available |
| 35 | Not Available | Hoover Retainer | 36131017 | Not Available |
| 36 | No Image | SPRING, TORSION Part Number: 38353007 for Hoover | 38353007 | $2.59Read more |
| 37 | Not Available | Hoover Pivot Pin | 31523006 | Not Available |
| 38 | Not Available | Hoover Depressor | 38458002 | Not Available |
| 40 |  | Belt, Old Style Hoover Power Nozzle | 38528011 | $5.99Read more |
| 43 | Not Available | Hoover Lens-Kc | 39383060 | Not Available |
