Schematic and parts list for: Hoover Model: S3299

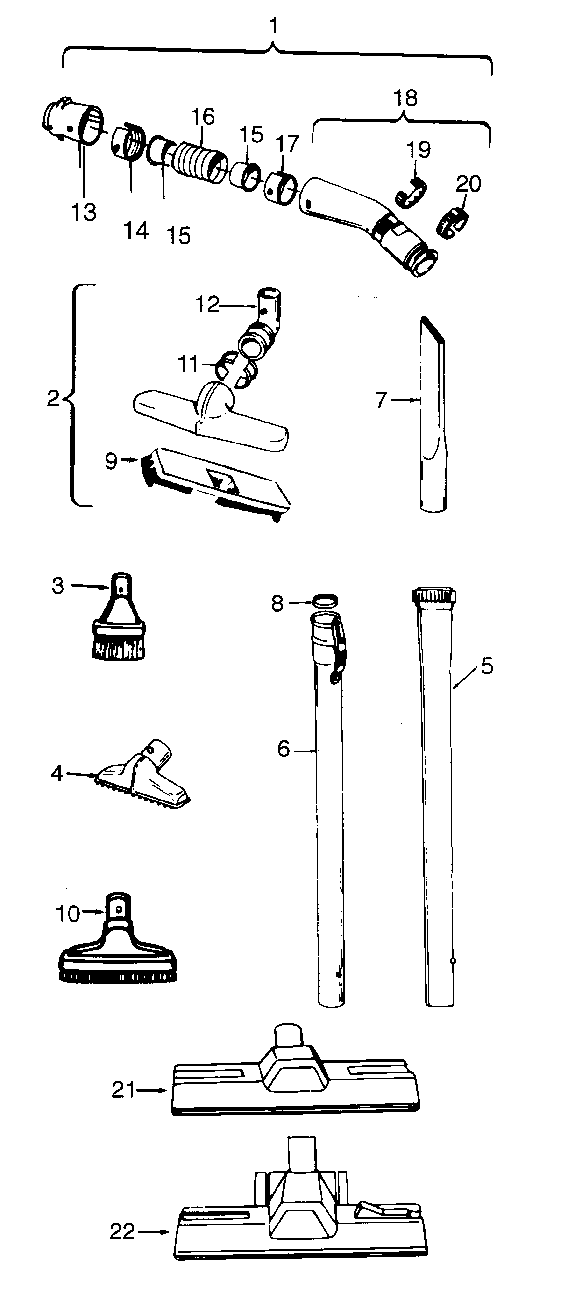

This is a list of parts and a diagram and schematic for: Hoover Model: S3299
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
Popular Supplies
| # | Part image | Description | SKU | Price |
| 07 |  | Separator Neutral Bissell repair part number: 1616184 | 1616184 | $23.73Read more |
| 07 | Not Available | Hoover Seal Foam-S3001 | 34112001 | Not Available |
| 19 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 19 | Not Available | Hoover Roller Shaft-S3001 | 169244AW | Not Available |
| 21 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 22 | Not Available | Hoover Seal Foam Left Hand-S3001 | 34513001 | Not Available |
| 23 | Not Available | Hoover Seal Foam Right Hand-S3001 | 34513002 | Not Available |
| 24 | Not Available | Hoover Wheel Shaft - S3001 | 169240AY | Not Available |
| 25 | Not Available | Hoover Connecting Tube Assembly | 169249JM | Not Available |
| 26 | Not Available | Hoover Seal | 34122006 | Not Available |
| 27 | Not Available | Hoover Suction Control Knob | 169254JM | Not Available |
| # | Part image | Description | SKU | Price |
| 07 | | Separator Neutral Bissell repair part number: 1616184 | 1616184 | $23.73Read more |
| 07 | Not Available | Hoover Seal Foam-S3001 | 34112001 | Not Available |
| 19 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 19 | Not Available | Hoover Roller Shaft-S3001 | 169244AW | Not Available |
| 21 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 22 | Not Available | Hoover Seal Foam Left Hand-S3001 | 34513001 | Not Available |
| 23 | Not Available | Hoover Seal Foam Right Hand-S3001 | 34513002 | Not Available |
| 24 | Not Available | Hoover Wheel Shaft - S3001 | 169240AY | Not Available |
| 25 | Not Available | Hoover Connecting Tube Assembly | 169249JM | Not Available |
| 26 | Not Available | Hoover Seal | 34122006 | Not Available |
| 27 | Not Available | Hoover Suction Control Knob | 169254JM | Not Available |
| # | Part image | Description | SKU | Price |
| 02 | Not Available | Hoover Floor Brush | 43414072 | Not Available |
| 02 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | Not Available | Hoover Furniture Nozzle | 38614020 | Not Available |
| 04 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 05 | Not Available | Hoover Extension Tube | 43453037 | Not Available |
| 06 | Not Available | Hoover Extension Tube | 43453052 | Not Available |
| 07 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 08 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 09 | Not Available | Hoover Brush Back -S3273 | 48447001 | Not Available |
| 11 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 14 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Hoover Hose Connector | 38671011 | Not Available |
| 15 | Not Available | Hoover Hose Sleeve | 32156010 | Not Available |
| 20 | Not Available | Hoover Latch Ring- S3273 | 36153009 | Not Available |
| 22 | Not Available | Hoover Wheeled Rear & Front Nozzle | 43414101 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Screw | 21447041 | Not Available |
| 03 | Not Available | Hoover Diffuser | 34163003 | Not Available |
| 04 | Not Available | Hoover Speed Nut-S3129 | 21366004 | Not Available |
| 05 | Not Available | Hoover Seal-S3203 | 34133007 | Not Available |
| 06 | Not Available | Hoover Pad-C2075 | 34132015 | Not Available |
| 07 | Not Available | Hoover Seal-C2075 | 34143003 | Not Available |
| 08 | Not Available | Hoover Motor - 3.1 - S3259 | 43578051 | Not Available |
| 09 | Not Available | Hoover Wire Nut | 48969 | Not Available |
| 09 | Not Available | Hoover Terminals | 12227 | Not Available |
| 10 | Not Available | Hoover Cord -16 Ft | 46363039 | Not Available |
| 11 | Not Available | Hoover Strain Relief | 27482301 | Not Available |
| 12 | Not Available | Hoover Wheel Bearing | 38511015 | Not Available |
| 15 | Not Available | Hoover Wheel Carrier | 41432040 | Not Available |
| 16 | Not Available | Hoover Insulating Pod | 160472 | Not Available |
| 17 | Not Available | Hoover Main Body- | 37231069 | Not Available |
| 18 | Not Available | Hoover Latch | 36151015 | Not Available |
| 19 | Not Available | Hoover Filter-C2075 | 31114010 | Not Available |
| 20 | Not Available | Hoover Bulkhead-C2075 | 36426014 | Not Available |
| 21 | Not Available | Hoover Motor Retainer-S3405 | 36321012 | Not Available |
| 22 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 23 | Not Available | Hoover Foam Muffler | 34287021 | Not Available |
| 24 | Not Available | Hoover Switch - S3289 | 28164276 | Not Available |
| 25 | Not Available | Hoover Control Panel- S3481, S3299, S3299-031 | 37214052 | Not Available |
| 29 | Not Available | Hoover Lid Seal | 38781010 | Not Available |
| 32 |  | Paper Bag, Micro Lined Type K Canister Spirit 3 Pk Part Number: 4010028K for Hoover | 4010028K | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | Hoover Thermal Protector As | 47534018 | Not Available |
| 38 | | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 38 | | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 38 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 02 | Not Available | Hoover Brush Housing | 168038AG | Not Available |
| 03 | Not Available | Hoover Brush Housing | 168506 | Not Available |
| 04 | Not Available | Hoover Spring U3101 | 38353004 | Not Available |
| 05 | Not Available | Hoover Carbon Brush Complete | 167679 | Not Available |
| 06 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 07 | Not Available | Hoover Screw-U7069 | 21563061 | Not Available |
| 08 | Not Available | Hoover Bolt | 36112003 | Not Available |
| 10 | Not Available | Hoover Thrust Washer-C2075 | 21312778 | Not Available |
| 11 | Not Available | Hoover Star Ring-C2075 | 24198002 | Not Available |
| 15 | Not Available | Hoover Diffuser-C2075 | 43551013 | Not Available |
| 16 | Not Available | Hoover Spacer -C2075 | 31148009 | Not Available |
| 17 | Not Available | Hoover Washer | 21312701 | Not Available |
| 18 | Not Available | Hoover Fan | 43566017 | Not Available |
| 19 | Not Available | Hoover Interstage-C2075 | 42192033 | Not Available |
| 20 | Not Available | Hoover Spacer -C2075 | 31743003 | Not Available |
| 21 | Not Available | Hoover Nut-S3005 | 33426001 | Not Available |
| 22 | Not Available | Hoover Fan Cover -C2075 | 37196087 | Not Available |
| # | Part image | Description | SKU | Price |
| 02 | Not Available | Hoover Nozzle Tube-S1221 | 38646039 | Not Available |
| 04 | Not Available | Hoover Roller - S2095 | 38521018 | Not Available |
| 05 | Not Available | Hoover Roller Axle - S2095 | 31511004 | Not Available |
| 06 | Not Available | Hoover Brush Housing- S1221, S1315, S1337 | 36414018 | Not Available |
| 07 | Not Available | Hoover Spring-2910 | 166649 | Not Available |
| 08 | Not Available | Hoover Brush Back Assembly | 48443004 | Not Available |
| 09 | Not Available | Hoover Screw-S2095 | 21447203 | Not Available |
| 11 | Not Available | Hoover Washer-Felt-S2095 | 21329105 | Not Available |
| 12 | Not Available | Hoover Wheeled Rear & Front Nozzle | 43414101 | Not Available |
| 13 | Not Available | Hoover Nozzle Connector | 38646045 | Not Available |
| 14 | Not Available | Hoover Wheel/Axle Assembly | 43244043 | Not Available |
| 15 | Not Available | Hoover Wheel Bearing | 38511016 | Not Available |
| 16 | Not Available | Hoover Rug & Floor Nozzle | 43414117 | Not Available |
| 17 | Not Available | Hoover Roller - S2095 | 38521018 | Not Available |
| 18 | Not Available | Hoover Roller Axle - S2095 | 31511004 | Not Available |
| 19 | Not Available | Hoover Slider - Ag - S2099 | 38451008 | Not Available |
| 20 | Not Available | Hoover Brush Housing | 36414013 | Not Available |
| 21 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 22 | Not Available | Hoover Brush Back Assembly | 48443004 | Not Available |
| 23 | Not Available | Hoover Screw-S2095 | 21447203 | Not Available |
| 24 | Not Available | Hoover Seal - S2099 | 34122013 | Not Available |
| 25 | Not Available | Hoover Pedal- S2099 | 38434015 | Not Available |
