Schematic and parts list for: Hoover Model: S3511
This is a list of parts and a diagram and schematic for: Hoover Model: S3511
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

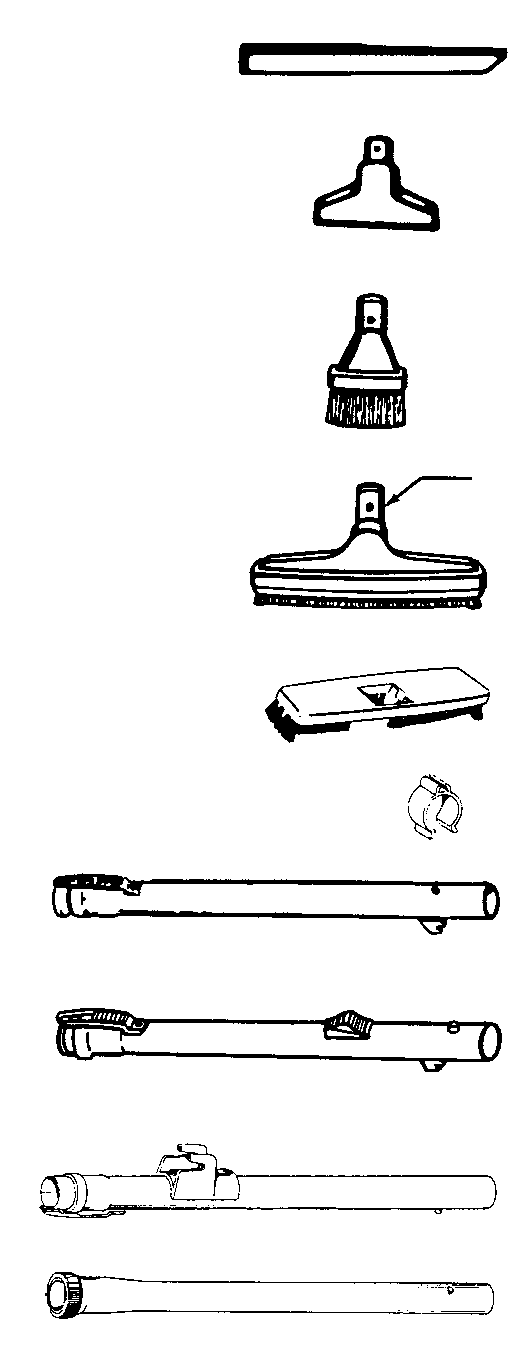

Parts for: Canister
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 02 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | Not Available | Hoover Furniture Nozzle | 43414141 | Not Available |
| 03 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 07 | Not Available | Hoover Cord/Wand Clip - Ag | 36172584 | Not Available |
| 08 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 09 | Not Available | Hoover Extension Tube-Ax-20 | 43453023 | Not Available |
| 11 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 03 | Not Available | Hoover Hose Connector Colla | 36171025 | Not Available |
| 04 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 06 | Not Available | Hoover Hose Connector-Ag-S3 | 38644044 | Not Available |
| 07 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 09 | Not Available | Hoover Hose Connector Colla | 36171025 | Not Available |
| 10 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 12 | Not Available | Hoover Hose Connector-Ag-S3 | 38644044 | Not Available |
| 13 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 15 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 16 | Not Available | Hoover Suction Regulator-S3 | 34777005 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Cord Wrap-Ag-S3523 | 39442034 | Not Available |
| 02 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 04 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 04 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
| 05 | Not Available | Hoover Motor Retainer Assembly (Incl. Items 6,26,27) | 41312040 | Not Available |
| 06 | Not Available | Hoover Retainer Seal-Rh-S35 | 34633003 | Not Available |
| 07 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 08 | Not Available | Hoover Furniture Guard-Ag-S | 36235069 | Not Available |
| 09 | No Image | MOTOR, FUTURA CANISTER S3567 S3569 S3573 S3577 Part Number: 43576186 for Hoover | 43576186 | $187.10Read more |
| 10 | Not Available | Hoover Attachment Cord-Ag-S S3510, S3523, S3527, S3547 | 46383289 | Not Available |
| 13 | Not Available | Hoover Wheel-Ag-S3585 | 38522065 | Not Available |
| 15 | Not Available | Hoover Wheel Carrier-Ag-S32 | 41432040 | Not Available |
| 16 | Not Available | Hoover Bag Collar Support | 36424010 | Not Available |
| 17 | Not Available | Hoover Futura/Spect Bag - 3-Pk Throw Away Bag Assem. - 3 Pk. | 4010064S | Not Available |
| 19 | Not Available | Hoover Bag Collar Seal-Ag | 36424012 | Not Available |
| 20 | Not Available | Hoover Bag Lid Hinge | 36151027 | Not Available |
| 21 | Not Available | Hoover Filter Retainer | 37944005 | Not Available |
| 22 |  | Filter, :( Secondary Futura Spectrum S3639 Part Number: 38765009 for Hoover | 38765009 | $3.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Hoover Torsion Spring | 38351009 | Not Available |
| 26 | Not Available | Hoover Retainer Seal-Lh | 34633002 | Not Available |
| 27 | Not Available | Hoover Retainer Seal-Center | 34123040 | Not Available |
| 29 | Not Available | Hoover Switch Mounting Plate | 34135014 | Not Available |
| 32 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 32 | | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 32 | | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Hoover Rug & Floor Nozzle S3547 (P-188) | 43414170 | Not Available |
| 33 | | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Nut | 12028 | Not Available |
| 02 | Not Available | Hoover Washer | 21312774 | Not Available |
| 03 | Not Available | Hoover Fan Cover - S1311 | 37196065 | Not Available |
| 04 | Not Available | Hoover Fan | 43551008 | Not Available |
| 07 | Not Available | Hoover Bearing Retainer Plate | 31165003 | Not Available |
| 08 | Not Available | Hoover Armature Assembly Comp | 44765220 | Not Available |
| 09 | Not Available | Hoover Spring U3101/3 U4201 | 38353004 | Not Available |
| 10 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 11 | Not Available | Hoover Brush Housing-Only-S | 168038AG | Not Available |
| 12 | Not Available | Hoover Brush Housing Comp-S | 168506 | Not Available |
| 13 | Not Available | Hoover Carbon Brush Complete | 167679 | Not Available |
| 14 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 15 | Not Available | Hoover Motor Housing Assembly | 42193025 | Not Available |
| 17 | Not Available | Hoover Lead Wire Assembly - | 46176001 | Not Available |
| 18 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 19 | Not Available | Hoover Field Coil-C2075 | 45311048 | Not Available |
