Schematic and parts list for: Hoover Model: S3567
This is a list of parts and a diagram and schematic for: Hoover Model: S3567
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

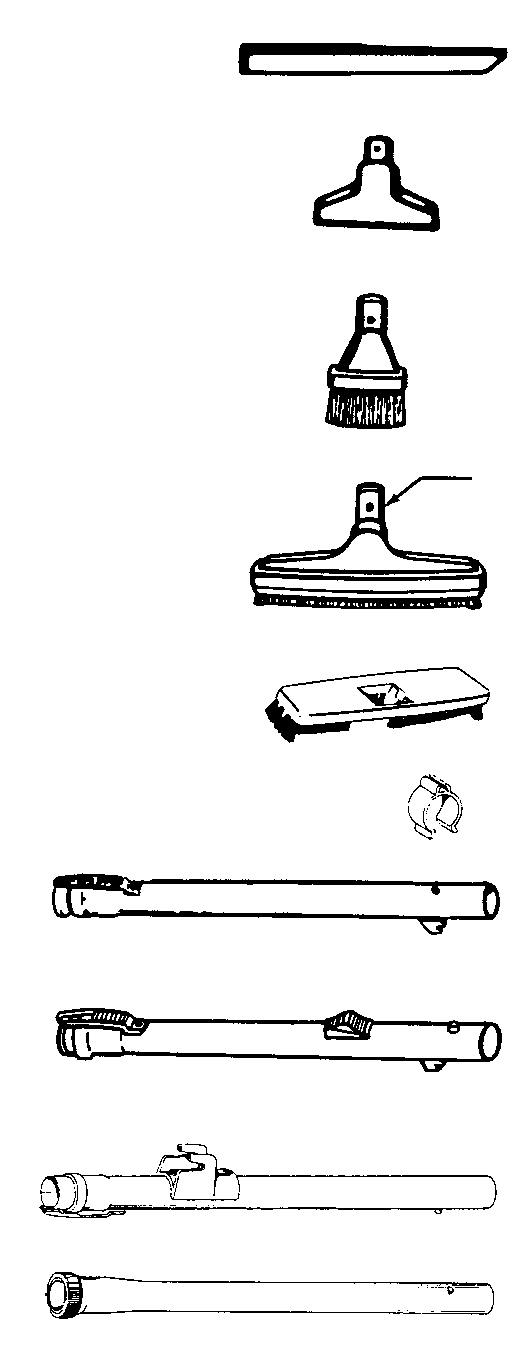

Parts for: Canister
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 02 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | Not Available | Hoover Furniture Nozzle | 43414141 | Not Available |
| 03 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Hoover Brush Back | 48447001 | Not Available |
| 07 | Not Available | Hoover Cord/Wand Clip | 36172584 | Not Available |
| 08 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 09 | Not Available | Hoover Extension Tube Assembly | 43453023 | Not Available |
| 11 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Cord Reel Pedal-Ag-S | 38422155 | Not Available |
| 02 | Not Available | Hoover Cord Reel Brake arm-A | 38458034 | Not Available |
| 03 | Not Available | Hoover Spring-Fw-S3605 | 38314024 | Not Available |
| 04 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 05 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 05 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
| 06 | Not Available | Hoover Motor Retainer Assembly (Incl. It. 7,44,45) | 41312040 | Not Available |
| 07 | Not Available | Hoover Retainer Seal-Rh-S35 | 34633003 | Not Available |
| 08 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 09 | Not Available | Hoover Furniture Guard-Ag-S | 36235069 | Not Available |
| 10 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 11 | No Image | MOTOR, FUTURA CANISTER S3567 S3569 S3573 S3577 Part Number: 43576186 for Hoover | 43576186 | $187.10Read more |
| 11 | Not Available | Hoover Motor Assembly S3530, S3577(P. 266) | 43576184 | Not Available |
| 12 | Not Available | Hoover Terminal-Insulated-U | 18972 | Not Available |
| 13 | Not Available | Hoover Cord Reel Assembly | 41911014 | Not Available |
| 14 | Not Available | Hoover Not Required Part Or See Note Cord Reel Support - Bz | FNLA | Not Available |
| 15 | Not Available | Hoover Not Required Part Or See Note Torsion Spring - Fw | FNLA | Not Available |
| 16 | Not Available | Hoover Not Required Part Or See Note Brake Lever Assem. - Aap | FNLA | Not Available |
| 17 | Not Available | Hoover Not Required Part Or See Note Push Nut | FNLA | Not Available |
| 19 | Not Available | Hoover Not Required Part Or See Note Retainer - Ag | FNLA | Not Available |
| 20 | Not Available | Hoover Attachment Cord-Ag-S | 46383288 | Not Available |
| 21 | Not Available | Hoover Ferrule | 36218018 | Not Available |
| 22 | Not Available | Hoover Not Required Part Or See Note Contact Spring (2) | FNLA | Not Available |
| 23 | Not Available | Hoover Not Required Part Or See Note Brush Holder - Bz | FNLA | Not Available |
| 24 | Not Available | Hoover Wheel-Ag-S3585 | 38522065 | Not Available |
| 25 | Not Available | Hoover Not Required Part Or See Note Slip Ring Assem. - White | FNLA | Not Available |
| 26 | Not Available | Hoover Not Required Part Or See Note Slip Ring Assem. - Black | FNLA | Not Available |
| 27 | Not Available | Hoover Not Required Part Or See Note Brake Pad | FNLA | Not Available |
| 28 | Not Available | Hoover Not Required Part Or See Note Spool & Spring Assem. | FNLA | Not Available |
| 30 | Not Available | Hoover Receptacle Assembly-Ag- | 46326082 | Not Available |
| 31 | Not Available | Hoover Wheel Carrier-Ag-S32 | 41432040 | Not Available |
| 32 | Not Available | Hoover Screw-Self Tapping | 21447223 | Not Available |
| 34 | Not Available | Hoover Bag Collar Support | 36424010 | Not Available |
| 35 | Not Available | Hoover Futura/Spect Bag - 3-Pk Throw Away Bag Assem. - 3 Pk. | 4010064S | Not Available |
| 36 | Not Available | Hoover Bag Indicator | 51151010 | Not Available |
| 37 | Not Available | Hoover Bag Collar Seal-Ag | 36424012 | Not Available |
| 38 | Not Available | Hoover Bag Lid Hinge | 36151027 | Not Available |
| 39 | Not Available | Hoover Filter Retainer | 37944005 | Not Available |
| 40 |  | Filter, :( Secondary Futura Spectrum S3639 Part Number: 38765009 for Hoover | 38765009 | $3.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | Not Available | Hoover Torsion Spring | 38351009 | Not Available |
| 43 | Not Available | Hoover Bag Lid Latch-Ag-S35 | 36153040 | Not Available |
| 44 | Not Available | Hoover Retainer Seal-Lh | 34633002 | Not Available |
| 45 | Not Available | Hoover Retainer Seal-Center | 34123040 | Not Available |
| 46 | Not Available | Hoover Switch-F5805/15/25 | 28218048 | Not Available |
| 47 | Not Available | Hoover Switch Mounting Plate | 34135014 | Not Available |
| 49 | Not Available | Hoover Switch Pedal Without Post - See Note 2 | 38422184 | Not Available |
| 50 | No Image | OWNER'S MANUAL, FUTURA Part Number: 56513344 for Hoover | 56513344 | $11.71Read more |
| 52 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 52 | | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 03 | Not Available | Hoover Hose Connector Colla | 36171025 | Not Available |
| 04 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 06 | Not Available | Hoover Hose Connector-Ag-S3 | 38644044 | Not Available |
| 07 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 09 | Not Available | Hoover Hose Connector Colla | 36171025 | Not Available |
| 10 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 12 | Not Available | Hoover Hose Connector-Ag-S3 | 38644044 | Not Available |
| 13 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 15 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 16 | Not Available | Hoover Suction Regulator-S3 | 34777005 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Nut | 12028 | Not Available |
| 01 | Not Available | Hoover Motor-S3523 | 43576161 | Not Available |
| 02 | Not Available | Hoover Washer Fw | 21312774 | Not Available |
| 03 | Not Available | Hoover Fan Cover - S1311 | 37196065 | Not Available |
| 04 | Not Available | Hoover Fan | 43551008 | Not Available |
| 05 | Not Available | Hoover Bearing Spacer | 31148011 | Not Available |
| 06 | Not Available | Hoover Diffuser Assembly | 43551030 | Not Available |
| 07 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 08 | Not Available | Hoover Armature Assembly Comp | 44765220 | Not Available |
| 09 | Not Available | Hoover Spring U3101/3 U4201 | 38353004 | Not Available |
| 10 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 11 | Not Available | Hoover Brush Housing-Only-S | 168038AG | Not Available |
| 12 | Not Available | Hoover Brush Housing Comp-S | 168506 | Not Available |
| 13 | Not Available | Hoover Carbon Brush Complete | 167679 | Not Available |
| 14 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 15 | Not Available | Hoover Motor Housing Assembly | 42193025 | Not Available |
| 16 | Not Available | Hoover Field Lamination | 21447222 | Not Available |
| 17 | Not Available | Hoover Lead Wire Assembly | 461760 | Not Available |
| 18 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 19 | Not Available | Hoover Field Coil | 45311048 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | No Image | POWER NOZZLE, S3545/S3549 FUTURA Part Number: 48438230 for Hoover | 48438230 | $142.66Read more |
| 02 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 02 | Not Available | Hoover Terminal-Insulated-U | 18972 | Not Available |
| 03 | Not Available | Hoover Not Required Part Or See Note Lead Wire - White | FNLA | Not Available |
| 04 | Not Available | Hoover Motor Assembly Complete | 43177062 | Not Available |
| 05 | Not Available | Hoover Dirt Finder Socket | 47171020 | Not Available |
| 06 | Not Available | Hoover Grommet | 36218016 | Not Available |
| 07 | Not Available | Hoover Screw | 21447003 | Not Available |
| 08 | Not Available | Hoover Rear Seal | 34253018 | Not Available |
| 09 | Not Available | Hoover Duct Cover Assembly (Incl. Items 5,6,8,22) | 42256099 | Not Available |
| 10 | Not Available | Hoover Cord Assembly | 46321088 | Not Available |
| 11 | Not Available | Hoover Strain Relief | 163768 | Not Available |
| 12 |  | SPRING, DETENT Part Number: 35276008 for Hoover | 35276008 | $2.23Read more |
| 13 | Not Available | Hoover Nozzle Connector | 43482114 | Not Available |
| 14 |  | SEAL, PN/HOUSING S3649 Part Number: 34112007 for Hoover | 34112007 | $2.23Read more |
| 15 | Not Available | Hoover Seal | 34122014 | Not Available |
| 16 | Not Available | Hoover Wheel/Axle Assembly | 43244043 | Not Available |
| 18 | Not Available | Hoover Wheel Shaft | 31522004 | Not Available |
| 19 |  | Wheel, :( Front Quadraflex Power Nozzle Part Number: 32761001 for Hoover | 32761001 | $4.29Read more |
| 20 | Not Available | Hoover Screw-Self Tapping | 21479801 | Not Available |
| 21 | Not Available | Hoover Agitator Assembly Comp - S3563 | 48414051 | Not Available |
| 21 |  | Brushroll, Elite/Legacy/ Futura/Tempo/Empower OEM # 48414081, 48414036 | HR-2010 | $27.99Read more |
| 22 | Not Available | Hoover Duct Cover Seal | 34123039 | Not Available |
| 23 | Not Available | Hoover Rib Shoe | 13261AY | Not Available |
| 24 | Not Available | Hoover Belt Guard | 36923008 | Not Available |
| 25 |  | Belt, Old Style Hoover Power Nozzle | 38528011 | $5.99Read more |
| 26 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 27 | Not Available | Hoover Dirt Finder Lamp | 27317307 | Not Available |
| 28 | Not Available | Hoover Dirt Finder Lens | 39383094 | Not Available |
| 29 | Not Available | Hoover Thread Guard - Rh - | 36423016 | Not Available |
| 30 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 31 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 32 | Not Available | Hoover Not Required Part Or See Note Agitator End (2) | FNLA | Not Available |
| 33 | Not Available | Hoover Not Required Part Or See Note Agitator Body | FNLA | Not Available |
| 34 | Not Available | Hoover Not Required Part Or See Note Agitator Shaft | FNLA | Not Available |
| 35 | Not Available | Hoover Thread Guard - Lh - | 36423017 | Not Available |
