Schematic and parts list for: Hoover Model: S3585
This is a list of parts and a diagram and schematic for: Hoover Model: S3585
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
Popular Supplies

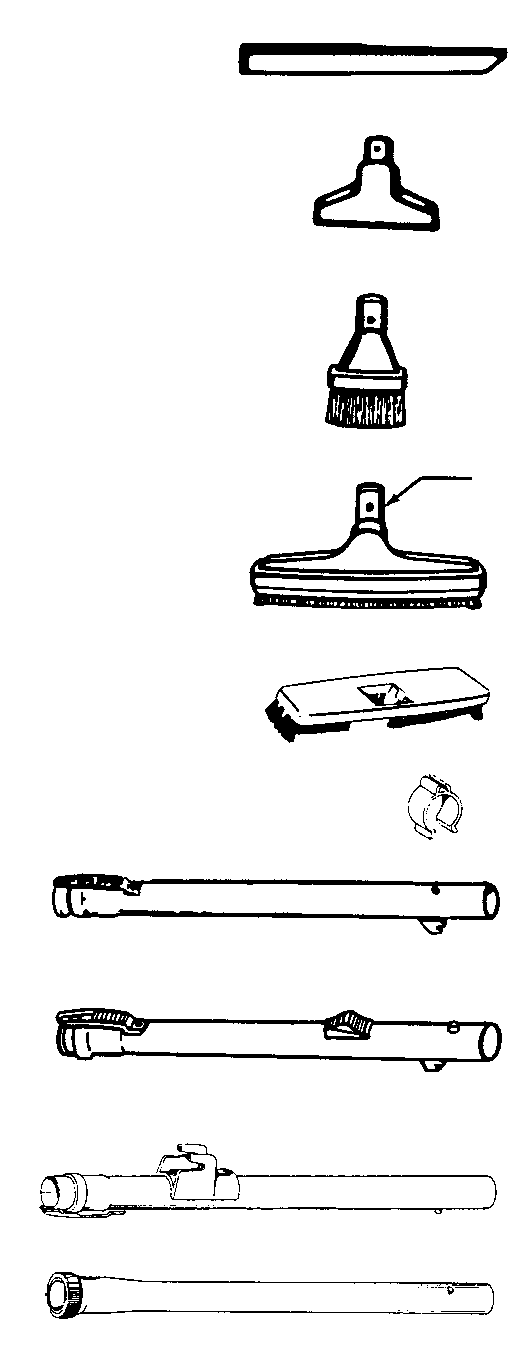

| # | Part image | Description | SKU | Price |
| 01 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 02 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | Not Available | Hoover Furniture Nozzle-Abr | 43414141 | Not Available |
| 03 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 07 | Not Available | Hoover Cord/Wand Clip - Ag | 36172584 | Not Available |
| 08 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 09 | Not Available | Hoover Extension Tube-Ax-20 | 43453023 | Not Available |
| 11 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Tool Lid-Aan | 37215180 | Not Available |
| 02 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 03 | Not Available | Hoover Spring-Fw-S3605 | 38314024 | Not Available |
| 05 | Not Available | Hoover Terminal-Insulated-U | 18972 | Not Available |
| 06 | Not Available | Hoover Connector-S3585,95 | 27617106 | Not Available |
| 07 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 08 | Not Available | Hoover Motor Retainer Assembly (Incl. Item 10) | 41312048 | Not Available |
| 09 | Not Available | Hoover Retainer Seal-Rh-S35 | 34633003 | Not Available |
| 11 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 12 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 15 |  | Filter, :( Exhaust Spectrum WindTunnel Can Part Number: 34174012 for Hoover | 34174012 | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Hoover Exhaust Filter Casse | 38769019 | Not Available |
| 17 | Not Available | Hoover Cord Reel Assembly | 41911014 | Not Available |
| 26 | Not Available | Hoover Attachment Cord-Ag-S | 46383288 | Not Available |
| 27 | Not Available | Hoover Ferrule | 36218018 | Not Available |
| 33 | Not Available | Hoover Wheel-Ag-S3585 | 38522065 | Not Available |
| 34 | Not Available | Hoover Receptacle Assembly- | 46526015 | Not Available |
| 35 | Not Available | Hoover Wheel Carrier-Ag-S32 | 41432040 | Not Available |
| 36 | Not Available | Hoover Screw-S2095/97/99 | 21434288 | Not Available |
| 37 | Not Available | Hoover Cord Channel Cover-A | 36218020 | Not Available |
| 38 | Not Available | Hoover Bag Collar Support | 36424010 | Not Available |
| 39 | Not Available | Hoover Futura/Spect Bag - 3-Pk Throw Away Bag Assm. | 4010064S | Not Available |
| 40 | Not Available | Hoover Bag Indicator | 51151010 | Not Available |
| 41 | Not Available | Hoover Bag Collar Seal-Ag | 36424012 | Not Available |
| 42 | Not Available | Hoover Bag Lid Hinge | 36151027 | Not Available |
| 43 | Not Available | Hoover Filter Retainer | 37944005 | Not Available |
| 44 |  | Filter, :( Secondary Futura Spectrum S3639 Part Number: 38765009 for Hoover | 38765009 | $3.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | Hoover Torsion Spring | 38351009 | Not Available |
| 48 | Not Available | Hoover Retainer Seal-Lh | 34633002 | Not Available |
| 49 | Not Available | Hoover Retainer Seal-Center | 34123040 | Not Available |
| 50 | Not Available | Hoover Screw - Self Tapping | 21466732 | Not Available |
| 51 | Not Available | Hoover Slide Rheostat Sw As Slide Rheostat Switch Assm. | 28179102 | Not Available |
| 52 | Not Available | Hoover Switch | 28212026 | Not Available |
| 53 | Not Available | Hoover Switch Mounting Plat | 34135014 | Not Available |
| 54 | Not Available | Hoover Button-Aau-S3585 | 38421041 | Not Available |
| 55 | Not Available | Hoover Power Light-S3609,15 | 27343250 | Not Available |
| 56 | Not Available | Hoover Switch Pedal-Ag-S358 | 38422159 | Not Available |
| 58 | Not Available | Hoover Cord Reel Brakearm-A | 38458034 | Not Available |
| 60 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 60 | | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Hose Assembly - S359 S3595 | 43433091 | Not Available |
| 02 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 03 | Not Available | Hoover Hose Grip-Rh-S3575 | 39461007 | Not Available |
| 04 | Not Available | Hoover Screw-S3279 | 21447124 | Not Available |
| 06 | Not Available | Hoover Retaining Ring-Abr | 36131087 | Not Available |
| 07 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 08 | Not Available | Hoover Switch- S3605 | 28161053 | Not Available |
| 09 | Not Available | Hoover Hose Grip-Lh-S3575 | 39461008 | Not Available |
| 10 | Not Available | Hoover Grip Control Panel A (Incl. Items 8,14) | 47561009 | Not Available |
| 11 | Not Available | Hoover Latch Ring-S3279 | 36153029 | Not Available |
| 12 | Not Available | Hoover Inner Tube-S3279 | 38646034 | Not Available |
| 13 | Not Available | Hoover Connector-S3595,S360 | 46325030 | Not Available |
| 14 | Not Available | Hoover Nameplate-S3595 | 51371024 | Not Available |
| 16 | Not Available | Hoover Hose Assembly - S360 S3605 ( Use 43433091 Hose Without Rheostat) | 43433090 | Not Available |
| 17 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 18 | Not Available | Hoover Hose Grip-Rh-S3575 | 39461007 | Not Available |
| 19 | Not Available | Hoover Screw-S3279 | 21447124 | Not Available |
| 21 | Not Available | Hoover Retaining Ring-Abr | 36131087 | Not Available |
| 22 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 23 | Not Available | Hoover Switch- S3605 | 28161053 | Not Available |
| 24 | Not Available | Hoover Hose Grip-Lh-S3575 | 39461008 | Not Available |
| 26 | Not Available | Hoover Button-Aau-S3585 | 38421041 | Not Available |
| 27 | Not Available | Hoover Latch Ring-S3279 | 36153029 | Not Available |
| 28 | Not Available | Hoover Inner Tube-S3279 | 38646034 | Not Available |
| 29 | Not Available | Hoover Connector-S3595,S360 | 46325030 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Nut | 12028 | Not Available |
| 01 | Not Available | Hoover Motor Assembly | 43576116 | Not Available |
| 02 | Not Available | Hoover Washer | 21312774 | Not Available |
| 03 | Not Available | Hoover Fan Cover - S1311 | 37196065 | Not Available |
| 04 | Not Available | Hoover Fan | 43551008 | Not Available |
| 05 | Not Available | Hoover Washer | 21312774 | Not Available |
| 06 | Not Available | Hoover Diffuser Assembly | 43551030 | Not Available |
| 07 | Not Available | Hoover Armature Assembly | 44765230 | Not Available |
| 08 | Not Available | Hoover Field Assembly Comp- | 45311069 | Not Available |
| 09 | Not Available | Hoover Spring U3101/3 U4201 | 38353004 | Not Available |
| 10 | Not Available | Hoover Brush Housing-Only-S | 168038AG | Not Available |
| 11 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 12 | Not Available | Hoover Brush Housing Comp-S | 168506 | Not Available |
| 13 | Not Available | Hoover Carbon Brush Complete | 167679 | Not Available |
| 14 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 15 | Not Available | Hoover Motor Housing | 42192015 | Not Available |
| 17 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 18 | Not Available | Hoover Balancing Ring/Nut | 36116023 | Not Available |
| 19 | Not Available | Hoover Thrust Washer-C2075 | 21312778 | Not Available |
| 20 | Not Available | Hoover Spring Washer-C2075 | 21345116 | Not Available |
| 21 | Not Available | Hoover Star Ring-C2075 | 24198002 | Not Available |
| 22 | Not Available | Hoover Spacer -C2075 | 31148009 | Not Available |
| # | Part image | Description | SKU | Price |
| 03 | Not Available | Hoover Agitator Assembly 2B (Use 4B - 48416030) | 48414044 | Not Available |
| 04 | Not Available | Hoover Strain Relief - 6460 | 163768 | Not Available |
| 05 | Not Available | Hoover Screw | 21447041 | Not Available |
| 06 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 07 | Not Available | Hoover Retainer Housing - A | 36131067 | Not Available |
| 08 | Not Available | Hoover Nozzle Connector Assembly | 43461021 | Not Available |
| 09 | Not Available | Hoover Seal | 34112005 | Not Available |
| 10 | Not Available | Hoover Seal | 34337003 | Not Available |
| 11 | Not Available | Hoover Socket | 47171009 | Not Available |
| 12 | Not Available | Hoover Terminal-Insulated-U | 18972 | Not Available |
| 13 | Not Available | Hoover Wire Holder | 45517 | Not Available |
| 14 | Not Available | Hoover Duct Cover (Ji) | 42256098 | Not Available |
| 15 | Not Available | Hoover Seal | 34123017 | Not Available |
| 16 | Not Available | Hoover Detent Spring | 35276001 | Not Available |
| 17 | Not Available | Hoover Wheel-Ag | 32175025 | Not Available |
| 18 | Not Available | Hoover Wheel Shaft-S3199 | 31523005 | Not Available |
| 19 |  | Wheel, :( Front Quadraflex Power Nozzle Part Number: 32761001 for Hoover | 32761001 | $4.29Read more |
| 20 | Not Available | Hoover Wheel Shaft | 31522004 | Not Available |
| 21 | Not Available | Hoover Screw | 21447007 | Not Available |
| 22 | Not Available | Hoover Base With Post (Incl. Items 17,18,19,20,23,24 | 42246121 | Not Available |
| 24 | Not Available | Hoover Rib Shoe | 13261AY- | Not Available |
| 25 | Not Available | Hoover Isolation Grommet S3 | 36218005 | Not Available |
| 26 | Not Available | Hoover Dirt Finder Lamp 15W | 27317307 | Not Available |
| 27 | Not Available | Hoover Motor - Pn | 43177073 | Not Available |
| 28 | Not Available | Hoover Nameplate | 51865018 | Not Available |
| 29 | Not Available | Hoover Terminal | 27666702 | Not Available |
| 30 | Not Available | Hoover Shield | 37258082 | Not Available |
| 31 | Not Available | Hoover Switch - S2095 | 281770KD | Not Available |
| 32 | Not Available | Hoover Indicator - Ph - Ccs | 51151053 | Not Available |
| 33 | Not Available | Hoover Switch Actuator | 34361001 | Not Available |
| 34 | Not Available | Hoover Actuator Housing | 42262032 | Not Available |
| 35 | Not Available | Hoover Retainer | 36131017 | Not Available |
| 36 | No Image | SPRING, TORSION Part Number: 38353007 for Hoover | 38353007 | $2.59Read more |
| 37 | Not Available | Hoover Pivot Pin | 31523006 | Not Available |
| 38 | Not Available | Hoover Depressor | 38458002 | Not Available |
| 40 |  | Belt, Old Style Hoover Power Nozzle | 38528011 | $5.99Read more |
| 41 | Not Available | Hoover Nozzle Body - Ag | 42252189 | Not Available |
| 42 | Not Available | Hoover Lens-Kc | 39383060 | Not Available |
| 43 | Not Available | Hoover Swivel Tube - Ag (Ji | 43457037 | Not Available |
| 44 | Not Available | Hoover Thread Guard Lh | 48495AY- | Not Available |
| 45 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 46 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 47 | Not Available | Hoover Agitator End U3101 | 36422001 | Not Available |
| 48 | Not Available | Hoover Agit Brush-Concept-5 | 48445017 | Not Available |
| 49 | Not Available | Hoover Thread Guard U3101/3 | 41435018 | Not Available |
| 50 | Not Available | Hoover End Pulley | 38537008 | Not Available |
| 51 | Not Available | Hoover Brush Ring-S3199 | 48418001 | Not Available |
| 52 | Not Available | Hoover Spacer | 31722019 | Not Available |
| 53 | Not Available | Hoover Agitator Shaft | 32724005 | Not Available |
