Schematic and parts list for: Hoover Model: S3601
This is a list of parts and a diagram and schematic for: Hoover Model: S3601
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: PowerMax Bagged Canister
Popular Supplies
| # | Part image | Description | SKU | Price |

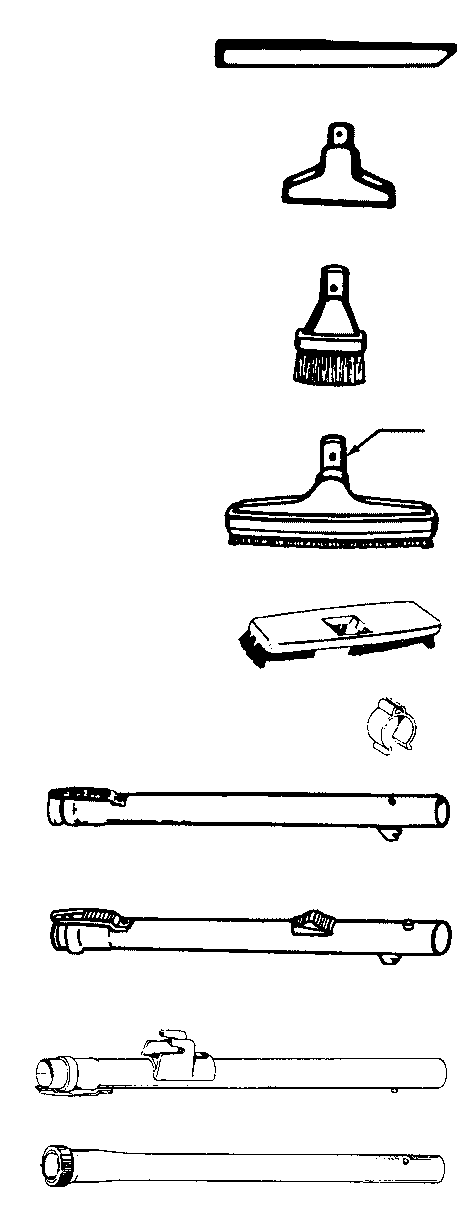

| 01 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 02 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | Not Available | Hoover Furniture Nozzle-Abr | 43414141 | Not Available |
| 03 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 07 | Not Available | Hoover Cord/Wand Clip - Ag | 36172584 | Not Available |
| 08 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 09 | Not Available | Hoover Extension Tube-Ax-20 | 43453023 | Not Available |
| 11 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 02 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 03 | Not Available | Hoover Spring-Fw-S3605 | 38314024 | Not Available |
| 04 | Not Available | Hoover Terminal-Insulated-U | 18972 | Not Available |
| 05 | Not Available | Hoover Retainer Seal-Rh-S35 | 34633003 | Not Available |
| 06 | No Image | MOTOR, FUTURA CANISTER S3567 S3569 S3573 S3577 Part Number: 43576186 for Hoover | 43576186 | $187.10Read more |
| 07 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 09 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 10 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 11 |  | Filter, :( Exhaust Spectrum WindTunnel Can Part Number: 34174012 for Hoover | 34174012 | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Hoover Exhaust Filter Casse | 38769019 | Not Available |
| 14 | Not Available | Hoover Thermal Protector-S3 S3603, S3603-040, S3613 | 28382035 | Not Available |
| 23 | Not Available | Hoover Attachment Cord-Ag-S | 46383288 | Not Available |
| 24 | Not Available | Hoover Ferrule | 36218018 | Not Available |
| 30 | Not Available | Hoover Wheel-Ag-S3585 | 38522065 | Not Available |
| 31 | Not Available | Hoover Receptacle Assembly-Ag- | 46326082 | Not Available |
| 32 | Not Available | Hoover Wheel Carrier-Ag-S32 | 41432040 | Not Available |
| 33 | Not Available | Hoover Screw-Self Tapping | 21447223 | Not Available |
| 34 | Not Available | Hoover Cord Channel Cover-A | 36218020 | Not Available |
| 35 | Not Available | Hoover Bag Collar Support | 36424010 | Not Available |
| 36 |  | Hoover Type S Regular aftermarket Vacuum Cleaner 3 Paper Bags | 836301000148 | $7.95Add to cart |
| 38 | Not Available | Hoover Bag Collar Seal-Ag | 36424012 | Not Available |
| 39 | Not Available | Hoover Bag Lid Hinge | 36151027 | Not Available |
| 40 | Not Available | Hoover Filter Retainer | 37944005 | Not Available |
| 41 |  | Filter, :( Secondary Futura Spectrum S3639 Part Number: 38765009 for Hoover | 38765009 | $3.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | Not Available | Hoover Speed Clip-S3603,09, | 21378159 | Not Available |
| 44 | Not Available | Hoover Torsion Spring | 38351009 | Not Available |
| 45 | Not Available | Hoover Bag Lid Latch-Ag-S35 | 36153040 | Not Available |
| 46 | Not Available | Hoover Retainer Seal-Lh | 34633002 | Not Available |
| 47 | Not Available | Hoover Retainer Seal-Center | 34123040 | Not Available |
| 48 | Not Available | Hoover Motor Retainer Assem (Incl. It 5,46,47) | 41312040 | Not Available |
| 50 | Not Available | Hoover Switch Mounting Plat | 34135014 | Not Available |
| 54 | Not Available | Hoover Plug - S3575 | 23762005 | Not Available |
| 57 | Not Available | Hoover Cord Reel Brakearm-A | 38458034 | Not Available |
| 58 | Not Available | Hoover Cord Reel Assembly | 41911014 | Not Available |
| 60 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 60 | | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Hose-2W-Ag-S3530 | 43433113 | Not Available |
| 02 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 03 | Not Available | Hoover Hose Grip-Rh-Ag | 39461018 | Not Available |
| 04 | Not Available | Hoover Screw-S3279 | 21447124 | Not Available |
| 05 | Not Available | Hoover Splice - Ccs | 27613002 | Not Available |
| 06 | Not Available | Hoover Retaining Ring-Abr | 36131087 | Not Available |
| 07 | Not Available | Hoover Terminal-Insulated-U | 18972 | Not Available |
| 08 | Not Available | Hoover Insulator-S3603,09,1 | 36913030 | Not Available |
| 09 | Not Available | Hoover Hose Grip-Lh-Ag-S361 | 39461017 | Not Available |
| 11 | Not Available | Hoover Latch Ring-S3279 | 36153029 | Not Available |
| 12 | Not Available | Hoover Inner Tube - Ag | 38646081 | Not Available |
| 13 | Not Available | Hoover Connector-Bz-S3575 | 46325032 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Nut | 12028 | Not Available |
| 02 | Not Available | Hoover Washer | 21312774 | Not Available |
| 03 | Not Available | Hoover Fan Cover - S1311 | 37196065 | Not Available |
| 04 | Not Available | Hoover Fan | 43551008 | Not Available |
| 06 | Not Available | Hoover Diffuser Assembly Co | 43551029 | Not Available |
| 07 | Not Available | Hoover Bearing Retainer Pla | 31165003 | Not Available |
| 09 | Not Available | Hoover Spring U3101/3 U4201 | 38353004 | Not Available |
| 10 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 11 | Not Available | Hoover Brush Housing-Only-S | 167696AG | Not Available |
| 12 |  | Hoover Conquest, Spirit, PowerMax Vacuum Carbon Brush W/Carrier, Spring 47318008 | 47318008 | $12.99Read more |
| 14 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 15 | Not Available | Hoover Motor Housing Assm-S | 42193025 | Not Available |
| 16 | No Image | SCREW, LONG PORTAPOWER HOUSING Part Number: 21479573 for Hoover | 21479573 | $1.12Read more |
| 17 | Not Available | Hoover Lead Wire Assembly - | 46176001 | Not Available |
| 18 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 19 | Not Available | Hoover Field Coil-S3205-022 | 45311051 | Not Available |
| # | Part image | Description | SKU | Price |
| 02 | Not Available | Hoover Terminal-Insulated-U | 18972 | Not Available |
| 03 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 04 | Not Available | Hoover Motor Assembly Compl | 43177062 | Not Available |
| 05 | Not Available | Hoover Dirt Finder Socket | 47171020 | Not Available |
| 06 | Not Available | Hoover Grommet | 36218016 | Not Available |
| 07 | Not Available | Hoover Screw | 21447003 | Not Available |
| 08 | Not Available | Hoover Rear Seal | 34253018 | Not Available |
| 09 | Not Available | Hoover Duct Cover Assem. (Incl. Items 5,6,8,22) | 42256099 | Not Available |
| 11 | Not Available | Hoover Strain Relief - 6460 | 163768 | Not Available |
| 12 |  | SPRING, DETENT Part Number: 35276008 for Hoover | 35276008 | $2.23Read more |
| 14 |  | SEAL, PN/HOUSING S3649 Part Number: 34112007 for Hoover | 34112007 | $2.23Read more |
| 15 | Not Available | Hoover Seal | 34122014 | Not Available |
| 16 | Not Available | Hoover Wheel/Axle Assembly | 43244043 | Not Available |
| 18 | Not Available | Hoover Wheel Shaft | 31522004 | Not Available |
| 19 |  | Wheel, :( Front Quadraflex Power Nozzle Part Number: 32761001 for Hoover | 32761001 | $4.29Read more |
| 20 | Not Available | Hoover Screw-Self Tapping | 21479801 | Not Available |
| 21 |  | Brushroll, Elite/Legacy/ Futura/Tempo/Empower OEM # 48414081, 48414036 | HR-2010 | $27.99Read more |
| 22 | Not Available | Hoover Duct Cover Seal | 34123039 | Not Available |
| 23 | Not Available | Hoover Rib Shoe | 13261AY | Not Available |
| 24 | Not Available | Hoover Belt Guard-S3603,09, | 36923008 | Not Available |
| 25 |  | Belt, Old Style Hoover Power Nozzle | 38528011 | $5.99Read more |
| 26 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 27 | Not Available | Hoover Dirt Finder Lamp | 27317307 | Not Available |
| 28 | Not Available | Hoover Dirt Finder Lens | 39383105 | Not Available |
| 31 | Not Available | Hoover Thread Guard - Rh - | 36423016 | Not Available |
| 32 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 33 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 34 | Not Available | Hoover Agitator End - U4455 | 36422022 | Not Available |
| 36 | Not Available | Hoover Agitator Shaft - U44 | 32724013 | Not Available |
| 37 | Not Available | Hoover Thread Guard - Lh - | 36423017 | Not Available |
