Schematic and parts list for: Hoover Model: S3661
This is a list of parts and a diagram and schematic for: Hoover Model: S3661
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
Popular Supplies

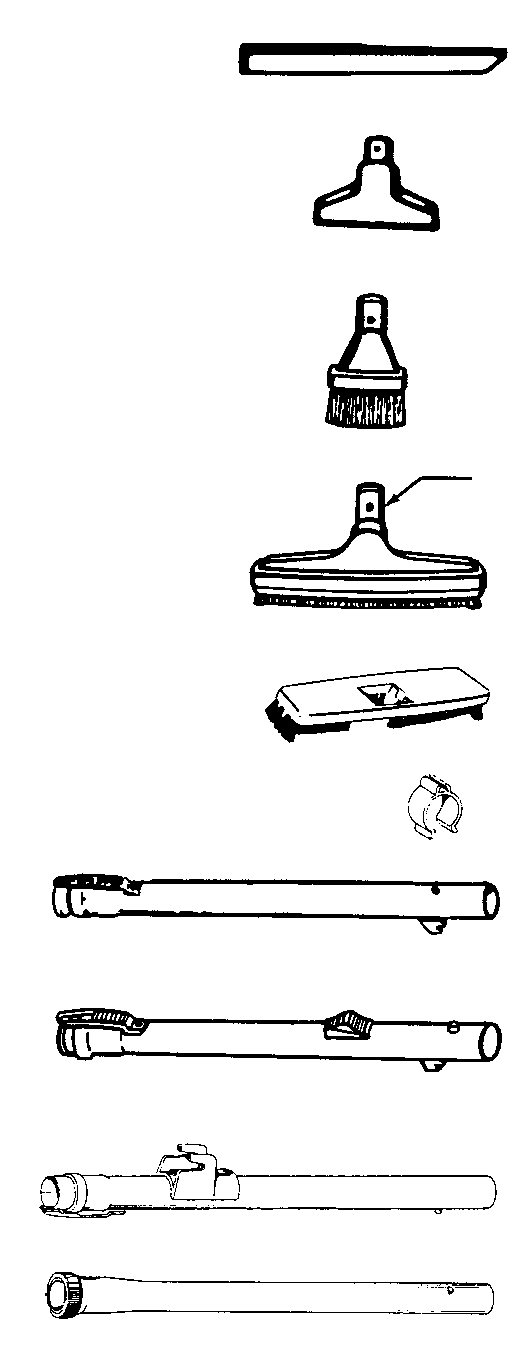

| # | Part image | Description | SKU | Price |
| 01 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 02 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | Not Available | Hoover Furniture Nozzle | 43414141 | Not Available |
| 03 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Hoover Brush Back | 48447001 | Not Available |
| 07 | Not Available | Hoover Cord/Wand Clip | 36172584 | Not Available |
| 08 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 09 | Not Available | Hoover Extension Tube | 43453023 | Not Available |
| 11 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Tool Lid 37215182</A02. Screw-Self | 37215182</A02. Screw-Self Tapping!%21447217 | Not Available |
| 03 | Not Available | Hoover Spring-Fw-S3605 | 38314024 | Not Available |
| 06 | Not Available | Hoover Retainer Seal-Rh | 34633003 | Not Available |
| 08 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 09 | Not Available | Hoover Furniture Guard-Ag-S | 36235069 | Not Available |
| 10 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 11 | Not Available | Hoover Motor-Wt Canisters | 43576192 | Not Available |
| 12 |  | Filter, :( Exhaust Spectrum WindTunnel Can Part Number: 34174012 for Hoover | 34174012 | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Hoover Terminals | 12227 | Not Available |
| 15 | Not Available | Hoover Exhaust Filter Casse | 38769019 | Not Available |
| 16 | Not Available | Hoover Toc Retaining Clip | 21378160 | Not Available |
| 17 | Not Available | Hoover Thermal Protector | 28382085 | Not Available |
| 18 | Not Available | Hoover Not Required Part Or See Note Cord Reel Support - Bz | FNLA | Not Available |
| 19 | Not Available | Hoover Not Required Part Or See Note Torsion Spring - Fw | FNLA | Not Available |
| 20 | Not Available | Hoover Not Required Part Or See Note Brake Lever Assem. - Aap | FNLA | Not Available |
| 21 | Not Available | Hoover Not Required Part Or See Note Brake Pad | FNLA | Not Available |
| 22 | Not Available | Hoover Not Required Part Or See Note Push Nut | FNLA | Not Available |
| 23 | Not Available | Hoover Not Required Part Or See Note Slip Ring Assem. - White | FNLA | Not Available |
| 24 | Not Available | Hoover Not Required Part Or See Note Spacer - Bz (2) | FNLA | Not Available |
| 25 | Not Available | Hoover Not Required Part Or See Note Retainer - Ag | FNLA | Not Available |
| 26 | Not Available | Hoover Attachment Cord | 46383288 | Not Available |
| 27 | Not Available | Hoover Ferrule | 36218018 | Not Available |
| 28 | Not Available | Hoover Not Required Part Or See Note Contact Spring (2) | FNLA | Not Available |
| 29 | Not Available | Hoover Not Required Part Or See Note Slip Ring Assem. - Black | FNLA | Not Available |
| 30 | Not Available | Hoover Not Required Part Or See Note Spool & Spring Assem. | FNLA | Not Available |
| 31 | Not Available | Hoover Not Required Part Or See Note Brush Holder | FNLA | Not Available |
| 32 | Not Available | Hoover Wheel-Ag-S3585 | 38522065 | Not Available |
| 36 | Not Available | Hoover Screw-Self Tapping | 21447223 | Not Available |
| 37 | Not Available | Hoover Cord Channel Cover | 36218020 | Not Available |
| 38 | Not Available | Hoover Bag Collar Support | 36424010 | Not Available |
| 39 |  | Hoover Type S Regular aftermarket Vacuum Cleaner 3 Paper Bags | 836301000148 | $7.95Add to cart |
| 40 | Not Available | Hoover Bag Indicator | 51151028 | Not Available |
| 41 | Not Available | Hoover Bag Collar Seal-Ag | 36424012 | Not Available |
| 42 | Not Available | Hoover Bag Lid Hinge | 36151027 | Not Available |
| 43 | Not Available | Hoover Filter Retainer | 37944005 | Not Available |
| 44 |  | Filter, :( Secondary Futura Spectrum S3639 Part Number: 38765009 for Hoover | 38765009 | $3.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | Hoover Torsion Spring | 38351009 | Not Available |
| 47 | Not Available | Hoover Bag Lid Latch | 36153040 | Not Available |
| 48 | Not Available | Hoover Retainer Seal-Lh | 34633002 | Not Available |
| 49 | Not Available | Hoover Screw - Self Tapping | 21466732 | Not Available |
| 50 | Not Available | Hoover Retainer Seal-Center | 34123040 | Not Available |
| 51 | Not Available | Hoover Not Required Part Or See Note Incl. W/Item 5 | FNLA | Not Available |
| 52 | Not Available | Hoover Switch-F5805/15/25 | 28218048 | Not Available |
| 53 | Not Available | Hoover Not Required Part Or See Note Not Applic. Switch Mounting Plate | FNLA | Not Available |
| 54 | Not Available | Hoover Connector-S3585,95 | 27617106 | Not Available |
| 55 | Not Available | Hoover Rheostat Cover-Ag-S3 | 37941043 | Not Available |
| 56 | Not Available | Hoover Spring-S3523 | 38314026 | Not Available |
| 58 | Not Available | Hoover Cord Reel Brakearm | 38458034 | Not Available |
| 59 | Not Available | Hoover Switch Pedal | 38422184 | Not Available |
| 60 | Not Available | Hoover Cord Reel Pedal | 38422155 | Not Available |
| 61 | Not Available | Hoover Speed Clip-S3603,09, | 21378159 | Not Available |
| 62 | Not Available | Hoover Cord Reel Assembly | 41911014 | Not Available |
| 64 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 64 | | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover White Vac Pan | 40300066 | Not Available |
| 01 | Not Available | Hoover 45 Degree Elbow - Cc | 33211001 | Not Available |
| 02 | Not Available | Hoover Sweep 90 Degree Elbow | 33215002 | Not Available |
| 03 | Not Available | Hoover Short 90 Degree Elbow | 33215003 | Not Available |
| 04 | Not Available | Hoover Sweep 90 Degree Tee | 38681006 | Not Available |
| 05 | Not Available | Hoover Mounting Plate | 38719005 | Not Available |
| 06 | Not Available | Hoover Pipe Strap | 48615015 | Not Available |
| 08 | Not Available | Hoover Stop Coupling | 32286011 | Not Available |
| 09 | Not Available | Hoover Spec Short 90 Degree | 10141001 | Not Available |
| 10 | Not Available | Hoover Sweep 90 Degree Spigot | 10096001 | Not Available |
| 11 | Not Available | Hoover Steel Mounting Plate-Wide | 10121001 | Not Available |
| 12 | Not Available | Hoover Steel Mounting Plate-Narrow | 10121002 | Not Available |
| 13 | Not Available | Hoover Plaster Guard - Ccs | 10141003 | Not Available |
| 14 | Not Available | Hoover 45 Degree Spigot - C | 10096002 | Not Available |
| 15 | Not Available | Hoover Vac Cap - Ccs | 10019002 | Not Available |
| 16 | Not Available | Hoover Pipe Adapter (1 3/4" To 2") | 10129001 | Not Available |
| 17 | Not Available | Hoover Pipe Adapter (1 13/16" To 2") | 10129002 | Not Available |
| 18 | Not Available | Hoover Vac Muffler - Cvs | 10098001 | Not Available |
| 19 | Not Available | Hoover Exhaust Vent Cap - C | 10102001 | Not Available |
| 20 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 21 | Not Available | Hoover Pipe Collar-Cvs | 32162010 | Not Available |
| 22 | Not Available | Hoover Fitting Strap - Cvs | 36171019 | Not Available |
| 23 | Not Available | Hoover Short Tee - Cvs | 38681009 | Not Available |
| 24 | Not Available | Hoover Double Fitting - Cvs | 38681008 | Not Available |
| 25 | Not Available | Hoover Valve Extension-Cvs | 32175021 | Not Available |
| 26 | Not Available | Hoover Flange Fitting Gasket | 38783016 | Not Available |
| 28 | Not Available | Hoover Pipe Cutter Blades - Pipe/Cutter Blades | 59133226 | Not Available |
| 29 | Not Available | Hoover Metal Firewall Pipe 6" | 31745005 | Not Available |
| 30 | Not Available | Hoover Nail Guard - Cvs | 59133225 | Not Available |
| 31 | Not Available | Hoover Tl Ext Tube Assembly-17" | 43453038 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Hose-3W-Ag (Replaced 43433115) | 43433119 | Not Available |
| 02 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 04 | Not Available | Hoover Screw-S3279 | 21447124 | Not Available |
| 06 | Not Available | Hoover Retaining Ring-Abr | 36131087 | Not Available |
| 07 | Not Available | Hoover Terminal-Insulated-U | 18972 | Not Available |
| 08 | Not Available | Hoover Insulator-S3603,09,1 | 36913030 | Not Available |
| 09 | Not Available | Hoover Switch - S3609,15 | 28267001 | Not Available |
| 12 | Not Available | Hoover Button | 38421041 | Not Available |
| 13 | Not Available | Hoover Latch Ring | 36153029 | Not Available |
| 15 | Not Available | Hoover Connector | 46526004 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Nut | 12028 | Not Available |
| 2 | Not Available | Hoover Washer | 21312774 | Not Available |
| 3 | Not Available | Hoover Fan Cover - S1311 | 37196065 | Not Available |
| 4 | Not Available | Hoover Fan | 43551008 | Not Available |
| 6 | Not Available | Hoover Diffuser Assembly | 43551029 | Not Available |
| 7 | Not Available | Hoover Bearing Retainer Plate | 31165003 | Not Available |
| 9 | Not Available | Hoover Spring U3101/3 U4201 | 38353004 | Not Available |
| 10 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 11 | Not Available | Hoover Brush Housing-Only | 167696AG | Not Available |
| 12 |  | Hoover Conquest, Spirit, PowerMax Vacuum Carbon Brush W/Carrier, Spring 47318008 | 47318008 | $12.99Read more |
| 14 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 15 | Not Available | Hoover Motor Housing Assembly | 42193025 | Not Available |
| 16 | No Image | SCREW, LONG PORTAPOWER HOUSING Part Number: 21479573 for Hoover | 21479573 | $1.12Read more |
| 17 | Not Available | Hoover Lead Wire Assembly - | 46176001 | Not Available |
| 18 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 19 | Not Available | Hoover Field Coil-S3205-022 | 45311051 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | HOOD, S3655 Part Number: 37253311 for Hoover | 37253311 | $13.77Read more |
| 1 | No Image | HOOD, POWER NOZZLE S3639 Part Number: 37253330 for Hoover | 37253330 | $19.11Read more |
| 2 | Not Available | Hoover Dirt Finder Lens | 39383105 | Not Available |
| 3 | Not Available | Hoover Dirt Finder Socket | 47171020 | Not Available |
| 4 | Not Available | Hoover Dirt Finder Lamp | 27317307 | Not Available |
| 5 | Not Available | Hoover Screw 8 Required | 21447003 | Not Available |
| 6 | Not Available | Hoover Grommet | 36218016 | Not Available |
| 7 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
| 8 | Not Available | Hoover Rear Seal | 34253018 | Not Available |
| 9 | Not Available | Hoover Duct Cover | 37243031 | Not Available |
| 10 | Not Available | Hoover Seal | 34113008 | Not Available |
| 11 | Not Available | Hoover Wheel/Axle Assembly | 43244043 | Not Available |
| 12 | No Image | HOOD, S3641 PN Part Number: 37253A17 for Hoover | 37253A17 | $16.59Read more |
| 13 | Not Available | Hoover Rib Shoes | 013261AY | Not Available |
| 14 | Not Available | Hoover Agitator Cover | 37243029 | Not Available |
| 15 | Not Available | Hoover Duct Cover | 37243030 | Not Available |
| 16 | No Image | SCREW, HOOVER BRUSHROLL DUCT COVER S3630 Part Number: 21479449 for Hoover | 21479449 | $1.81Read more |
| 17 | Not Available | Hoover Seal | 34122014 | Not Available |
| 18 |  | SEAL, PN/HOUSING S3649 Part Number: 34112007 for Hoover | 34112007 | $2.23Read more |
| 19 | Not Available | Hoover Nozzle Connector | 43482114 | Not Available |
| 20 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 21 | Not Available | Hoover Agitator-Service | 48414084 | Not Available |
| 22 |  | SPRING, DETENT Part Number: 35276008 for Hoover | 35276008 | $2.23Read more |
| 23 | Not Available | Hoover Strain Relief | 163768 | Not Available |
| 24 | Not Available | Hoover Power Nozzle Cord-Ag | 46521021 | Not Available |
| 25 |  | Windtunnel Canister Power Nozzle Belt 36528036 | 38528036 | $9.99Add to cart |
| 26 | Not Available | Hoover Wheel Shaft | 31522004 | Not Available |
| 27 |  | Wheel, :( Front Quadraflex Power Nozzle Part Number: 32761001 for Hoover | 32761001 | $4.29Read more |
| 28 | Not Available | Hoover Litter Picker | 39511004 | Not Available |
| 29 | Not Available | Hoover Screw | 21447236 | Not Available |
| 30 | Not Available | Hoover Base Plate Base Plate - (Inc. Items 26, 27, 28) See Note | 37245053 | Not Available |
| 31 | Not Available | Hoover Screw-Self Tapping | 21479801 | Not Available |
| 45 | Not Available | Hoover Hood S3636-050 | 37253332 | Not Available |
