Schematic and parts list for: Hoover Model: S6757
This is a list of parts and a diagram and schematic for: Hoover Model: S6757
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

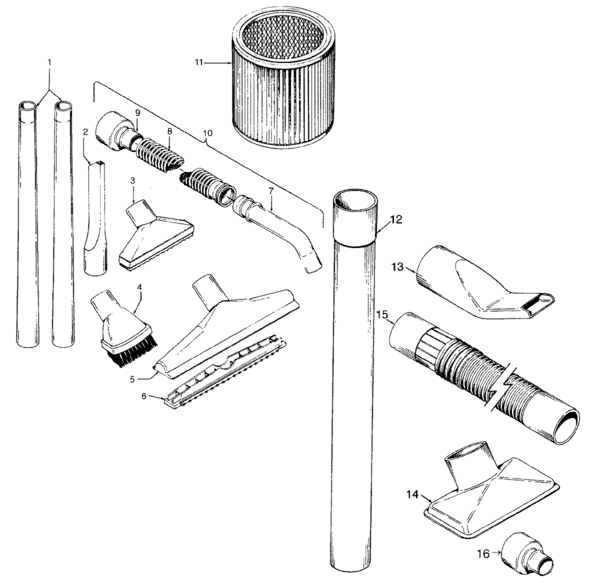

Parts for: Canister
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Extension Tube - Black | 38634078 | Not Available |
| 3 | Not Available | Hoover Furniture Tool - Black | 38614029 | Not Available |
| 4 | Not Available | Hoover Dusting Brush | 43414145 | Not Available |
| 6 | Not Available | Hoover Squeegee | 39512006 | Not Available |
| 7 | Not Available | Hoover Hand Grip | 39454059 | Not Available |
| 8 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 9 | Not Available | Hoover Hose Connector | 38638061 | Not Available |
| 10 | Not Available | Hoover Hose-Wet/Dry-S6529 | 43434034 | Not Available |
| 11 | Not Available | Hoover Cartridge Filter | 43611009 | Not Available |
| 12 | Not Available | Hoover Extension Tube | 38638032 | Not Available |
| 13 | Not Available | Hoover Blower Nozzle | 38619016 | Not Available |
| 14 | Not Available | Hoover Utility Nozzle | 38614027 | Not Available |
| 15 | Not Available | Hoover Hose 2-1/2 | 43434004 | Not Available |
| 16 | Not Available | Hoover Adaptor | 32283002 | Not Available |

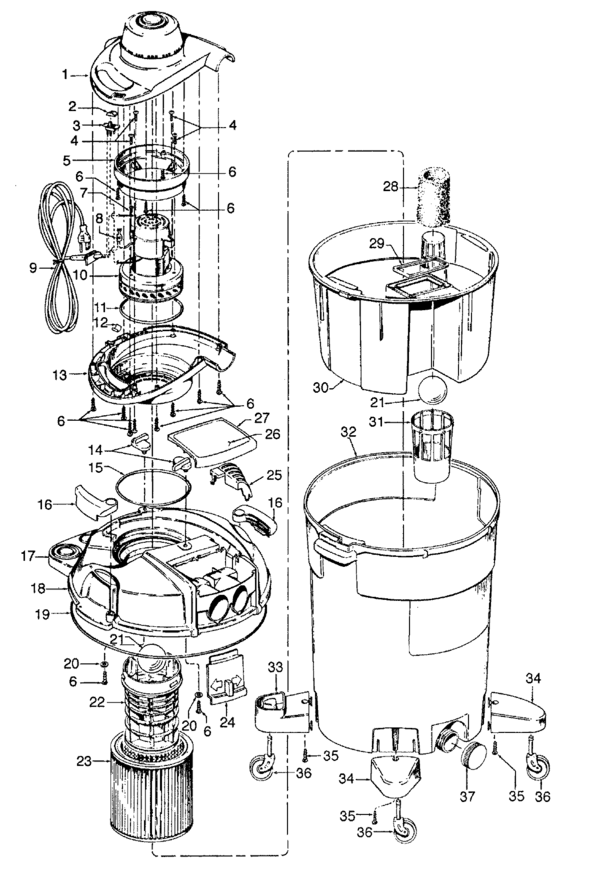

| # | Part image | Description | SKU | Price |
| 3 | Not Available | Hoover Switch-S6751/55 | 28177030 | Not Available |
| 4 | Not Available | Hoover Screw - Self Tapping | 21455325 | Not Available |
| 5 | Not Available | Hoover Mtr Mounting Ring-S6 | 36322009 | Not Available |
| 6 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 7 | Not Available | Hoover Screw-Tapping | 21447240 | Not Available |
| 8 | Not Available | Hoover Terminals-0513 | 012227- | Not Available |
| 11 | Not Available | Hoover Seal - S6751/55 | 38781033 | Not Available |
| 12 | Not Available | Hoover Insulator-S6751/55 | 36913021 | Not Available |
| 15 | Not Available | Hoover Seal-Inner - S6751/5 | 38781034 | Not Available |
| 17 | Not Available | Hoover Tool Rack-Ag-S6751/5 | 36433091 | Not Available |
| 20 | Not Available | Hoover Flat Washer | 21312797 | Not Available |
| 21 | Not Available | Hoover Ball Float-S6529/43/ | 25661015 | Not Available |
| 22 | Not Available | Hoover Filter Support | 36426026 | Not Available |
| 23 | Not Available | Hoover Cartridge Filter | 43611009 | Not Available |
| 25 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 27 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 28 | Not Available | Hoover Inner Tank Filter | 43611040 | Not Available |
| 29 | Not Available | Hoover Inner Tank Gasket | 38783002 | Not Available |
| 30 | Not Available | Hoover Inner Tank | 43641022 | Not Available |
| 31 | Not Available | Hoover Float Retainer | 38719026 | Not Available |
| 32 | No Image | TANK, 16 GAL S7657 Part Number: 38777023 for Hoover | 38777023 | $36.95Read more |
| 33 | Not Available | Hoover Castor Support-Delux | 36432046 | Not Available |
| 34 | Not Available | Hoover Caster Support | 36432042 | Not Available |
| 35 | Not Available | Hoover Screw-Self Tapping | 21447215 | Not Available |
| 36 | Not Available | Hoover Caster Wheel | 23737112 | Not Available |
| 996 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
