Schematic and parts list for: Hoover Model: U3339
This is a list of parts and a diagram and schematic for: Hoover Model: U3339
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Thread Guard | 41435021 | Not Available |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 4 | Not Available | Hoover Agitator End Pulley | 38537002 | Not Available |
| 5 | Not Available | Hoover Agitator Brush--9 Mi | 48445019 | Not Available |
| 7 |  | Hoover 38528008 Concept Vacuum Cleaner Belt | 38528008 | $5.99Read more |
| 8 | Not Available | Hoover Agitator Shaft 1170 | 160070 | Not Available |
| 9 | Not Available | Hoover Agitator End | 41435023 | Not Available |
| 10 | Not Available | Hoover Thread Guard | 41435018 | Not Available |
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Gasket | 12845JM | Not Available |
| 3 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 4 | Not Available | Hoover Nozzle Connector Tube (Use W/161852Jm) | 013149JM | Not Available |
| 5 | Not Available | Hoover Brush Back (Use W/161852Jm) | 013254BZ | Not Available |
| 7 | Not Available | Hoover Converter Assembly Comp | 43482077 | Not Available |
| 8 | Not Available | Hoover Wheel | 32761008 | Not Available |
| 9 | Not Available | Hoover Roller Shaft | 21155119 | Not Available |
| 10 | Not Available | Hoover Latch Lever | 38452054 | Not Available |
| 11 | Not Available | Hoover Washer | 31142012 | Not Available |
| 12 | Not Available | Hoover Screw | 017001FW | Not Available |
| 14 | Not Available | Hoover Hose Conn Label | 51869006 | Not Available |
| 16 | Not Available | Hoover Hose Sleeve | 32156010 | Not Available |
| 18 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 19 | Not Available | Hoover Latch Ring | 36153009 | Not Available |
| 20 | Not Available | Hoover Converter Seal Assembly | 43548006 | Not Available |
| 21 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 21 | Not Available | Hoover Crevice Tool | 38617024 | Not Available |
| 22 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 22 | Not Available | Hoover Extension Tube | 38634078 | Not Available |
| 23 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |

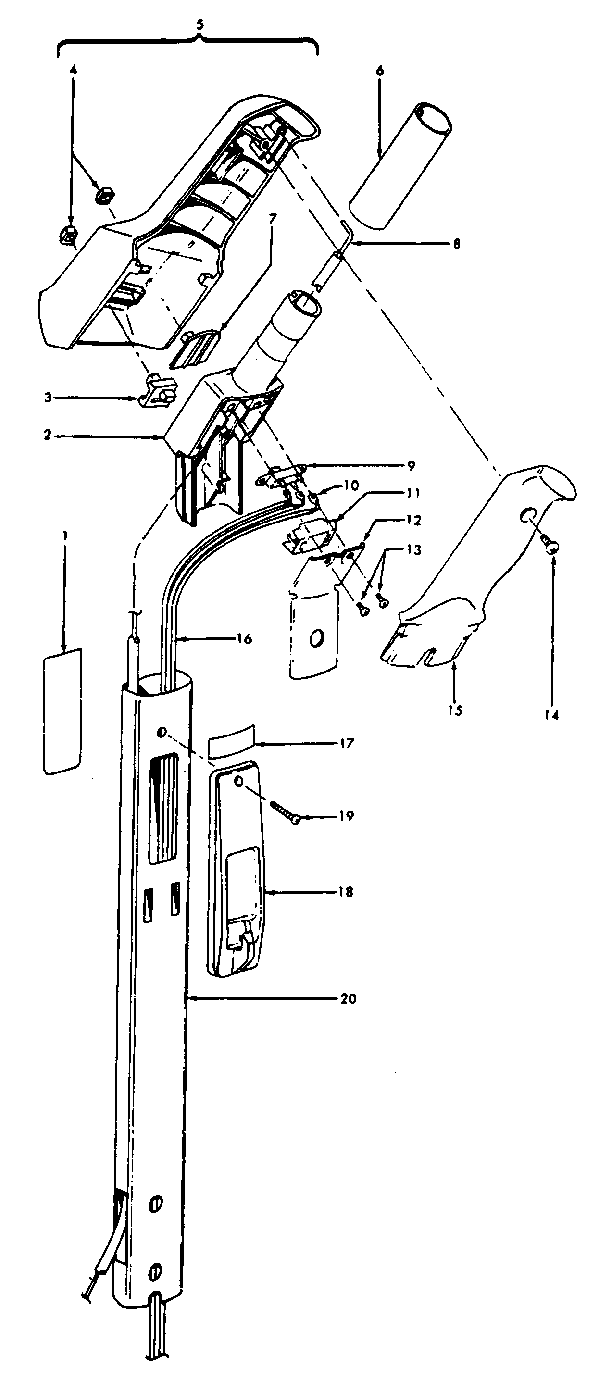

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Handle Tube Nameplate | 51639095 | Not Available |
| 2 | Not Available | Hoover Handle Support | 36957012 | Not Available |
| 3 | Not Available | Hoover Drive Control Pin | 36142001 | Not Available |
| 4 | Not Available | Hoover Switch Button | 38421021 | Not Available |
| 6 | Not Available | Hoover Handle Sleeve | 31754002 | Not Available |
| 7 | Not Available | Hoover Switch Actuator | 38421042 | Not Available |
| 8 | Not Available | Hoover Control Cable | 43211010 | Not Available |
| 9 | Not Available | Hoover Switch | 28179021 | Not Available |
| 10 | Not Available | Hoover Terminal | 27666702 | Not Available |
| 11 | Not Available | Hoover Shield | 37258082 | Not Available |
| 12 | Not Available | Hoover Handle Support Plate | 34777017 | Not Available |
| 13 | Not Available | Hoover Screw | 21447125 | Not Available |
| 14 | Not Available | Hoover Screw | 21447041 | Not Available |
| 16 | Not Available | Hoover Lead Wire Assembly | 46514011 | Not Available |
| 17 | Not Available | Hoover Label | 51869001 | Not Available |
| 19 | Not Available | Hoover Screw | 21447122 | Not Available |
| 20 | Not Available | Hoover Handle Tube | 48631143 | Not Available |
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Hood | 37253239 | Not Available |
| 3 | Not Available | Hoover Screw | 21447003 | Not Available |
| 4 | Not Available | Hoover Agitator Clip | 34788001 | Not Available |
| 5 | Not Available | Hoover Pin | 31522016 | Not Available |
| 7 | Not Available | Hoover Agitator Housing-Ke- | 42246064 | Not Available |
| 8 |  | Dusting brush 2027 series Bissell repair part number: 1612173 | 1612173 | $9.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Hoover Screw | 21447014 | Not Available |
| 10 | Not Available | Hoover Lock Ring | 163699 | Not Available |
| 11 | Not Available | Hoover Roller-U3101 U3103 | 31142014 | Not Available |
| 12 | Not Available | Hoover Drive Pulley-Concept | 38537001 | Not Available |
| 13 |  | BELT-HOOVER,DIAL A MATIC/CONCEPT,POWER DRIVE | 39311007 | $6.99Read more |
| 14 | Not Available | Hoover Keylock-1170 | 160040AY | Not Available |
| 15 |  | Agitator Fillet Part Number B016-0014 for Riccar and Simplicity Models R100, R200, R300, R300C, R500, R600, R700, R800, R800C, 4-5AE,VIBPBP.2, VIBCBP.1 | B0160014 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Hoover Screw | 017001FW | Not Available |
| 17 | Not Available | Hoover Bearing | 32155004 | Not Available |
| 18 | Not Available | Hoover Spring | 38335014 | Not Available |
| 19 | Not Available | Hoover Washer | 21312772 | Not Available |
| 20 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 21 | Not Available | Hoover Handle Release Lever | 38452071 | Not Available |
| 22 | Not Available | Hoover Agitator Pulley Seal | 38781006 | Not Available |
| 23 | Not Available | Hoover Rear Wheel | 38522032 | Not Available |
| 24 | Not Available | Hoover Wheel Cover | 37912013 | Not Available |
| 25 | Not Available | Hoover Bottom Plate Duct Se | 34122019 | Not Available |
| 27 | Not Available | Hoover Handle Release | 38452048 | Not Available |
| 28 | Not Available | Hoover Rear Axle | 32547002 | Not Available |
| 29 | Not Available | Hoover Frame-L.H. | 35476012 | Not Available |
| 30 | Not Available | Hoover Drive Wheel Complete | 163340AG | Not Available |
| 31 | Not Available | Hoover Power Drive Unit | 43124009 | Not Available |
| 32 | Not Available | Hoover Frame Assembly | 41967004 | Not Available |
| 33 | Not Available | Hoover Screw Assembly | 16295 | Not Available |
| 34 | Not Available | Hoover Handle Release Lever | 38452059 | Not Available |
| 35 | Not Available | Hoover Duct Seal | 34123003 | Not Available |
| 36 | Not Available | Hoover Agitator Housing Bracket-R. | 35476027 | Not Available |
| 37 | Not Available | Hoover Air Duct | 38656023 | Not Available |
| 38 | Not Available | Hoover Screw | 21447203 | Not Available |
| 39 | Not Available | Hoover Detent Spring | 34751002 | Not Available |
| 40 | Not Available | Hoover Cam-He | 38563018 | Not Available |
| 41 | Not Available | Hoover Hood Nameplate | 52115157 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | SCREW, LONG PORTAPOWER HOUSING Part Number: 21479573 for Hoover | 21479573 | $1.12Read more |
| 3 |  | Carbon Brush, For Concept/PowerMax/Spirit Part Number: 4400010333 for Hoover | 4400010333 | $7.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Hoover Nut | 160079AW | Not Available |
| 4 |  | Hoover Conquest, Spirit, PowerMax Vacuum Carbon Brush W/Carrier, Spring 47318008 | 47318008 | $12.99Read more |
| 18 | Not Available | Hoover Screw | 21447013 | Not Available |
| 19 | Not Available | Hoover Rivet | 18858 | Not Available |
| 20 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 21 | Not Available | Hoover Retainer | 34124011 | Not Available |
| 22 | Not Available | Hoover Screw | 21447003 | Not Available |
| 23 | Not Available | Hoover Terminals | 12227 | Not Available |
| 24 | Not Available | Hoover Pivot Bearing | 38511002 | Not Available |
| 25 | Not Available | Hoover Pivot Bearing | 38511027 | Not Available |
| 26 | Not Available | Hoover Bolt 1170 | 160058 | Not Available |
| 27 | Not Available | Hoover Washer-Pd Trans | 19555 | Not Available |
| 28 | Not Available | Hoover Lamp Socket Assembly | 47176001 | Not Available |
| 29 | Not Available | Hoover Light Bulb - 12V | 27313105 | Not Available |
| 30 | Not Available | Hoover Connector | 27617103 | Not Available |
| 32 | Not Available | Hoover Motor Assembly | 43576074 | Not Available |
| 33 | Not Available | Hoover Motor Mount | 32175011 | Not Available |
| 34 | Not Available | Hoover Seal Ring | 32156007 | Not Available |
| 35 | Not Available | Hoover Mount Ring | 32155006 | Not Available |
| 36 | Not Available | Hoover Jacket Bottom | 36425008 | Not Available |
| 37 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 38 | Not Available | Hoover Screw | 21447012 | Not Available |
| 39 | Not Available | Hoover Screw | 21447020 | Not Available |
| 40 | Not Available | Hoover Screw | 21563001 | Not Available |
| 41 | Not Available | Hoover Rear Housing Cover | 37257156 | Not Available |
| 42 | Not Available | Hoover Ferrule-Bz | 36218007 | Not Available |
| 43 | Not Available | Hoover Tension Spring | 38333006 | Not Available |
| 45 | Not Available | Hoover Rivet | 21254008 | Not Available |
| 46 | Not Available | Hoover Cord Release Button- | 38426053 | Not Available |
| 47 | Not Available | Hoover Handle Mounting Bracket-Rear | 35152011 | Not Available |
| 48 | Not Available | Hoover Insulating Tube | 31735007 | Not Available |
| 49 | Not Available | Hoover Not Required Part Or See Note Tape | FNLA | Not Available |
| 50 | Not Available | Hoover Lead Wire Assembly | 46514011 | Not Available |
| 51 | Not Available | Hoover Not Required Part Or See Note Handle Assem. (See Detail) | FNLA | Not Available |
| 53 | Not Available | Hoover Spring | 38334002 | Not Available |
| 54 | Not Available | Hoover Bag Cover Nameplate | 51639090 | Not Available |
| 56 | Not Available | Hoover Hanger | 37959095 | Not Available |
| 58 | Not Available | Hoover Jacket Support U3101 | 36425012 | Not Available |
| 59 | Not Available | Hoover Top Fill Tube | 38657010 | Not Available |
| 60 |  | Paper Bag, DVC or Envirocare Hoover A 3Pk | HR-14015 | $6.99Add to cart |
| 61 | Not Available | Hoover Wrench This Is A 1/2", 12 Point, Deep Offset Box Wrench | 170975 | Not Available |
