Schematic and parts list for: Hoover Model: U4005
This is a list of parts and a diagram and schematic for: Hoover Model: U4005
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 5 |  | Brush Strip, :( Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover | 160646BZ | $6.21Read more |
| 10 |  | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 13 |  | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Nozzle Connector Tube (Use W/ 161852Jm) | 013149JM | Not Available |
| 3 | Not Available | Hoover Brush Back (Use W/161852Jm) | 013254BZ | Not Available |
| 4 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Hoover Dusting Brush Face (Use W/ 161851Jm) | 013263BZ | Not Available |
| 8 | Not Available | Hoover Floor Brush (Use W/13077Jm) | 013155JM | Not Available |
| 9 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Hoover Furniture Nozzle | 38614029 | Not Available |
| 10 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Hoover Crevice Tool | 38617024 | Not Available |
| 11 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 12 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 13 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 14 | Not Available | Hoover Hose Tube Assembly | 43466040 | Not Available |
| 15 | Not Available | Hoover Foot Pad - F5047 | 034207AG | Not Available |
| 16 | Not Available | Hoover Latch-U4901-U4903 | 33126001 | Not Available |
| 17 | Not Available | Hoover Spring | 38311006 | Not Available |
| 18 | Not Available | Hoover Washer | 161549 | Not Available |
| 19 | Not Available | Hoover Pads-2910 | 34121001 | Not Available |
| 20 | Not Available | Hoover Converter Body Assembly | 43482097 | Not Available |
| 21 | Not Available | Hoover Seal-End-U4901-U4903 | 34253003 | Not Available |
| 22 | Not Available | Hoover Latch Lever-U4901 | 38452026 | Not Available |
| 23 | Not Available | Hoover Seal-Side-U4901 | 34113005 | Not Available |
| 24 | Not Available | Hoover Converter Body Assembly | 43482097 | Not Available |
| 25 | Not Available | Hoover Tool Bag | 58544004 | Not Available |
| 28 | Not Available | Hoover Hose Sleeve | 32156010 | Not Available |
| 31 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 32 | Not Available | Hoover Hose Conn Label | 51869006 | Not Available |
| 33 | Not Available | Hoover Latch Ring-S3273 | 36153009 | Not Available |
| 35 | Not Available | Hoover Tube Latch | 012846AG | Not Available |
| 36 | Not Available | Hoover Rivet | 12772 | Not Available |
| 37 |  | Handle, Blk Right & Left Snap Together Kit Part Number: R12783K for Rexair | R12783K | $39.73Read more |
| 38 | Not Available | Hoover Rivet | 12763AW | Not Available |
| 39 | Not Available | Hoover Plate | 12824 | Not Available |
| 40 |  | Motor Assembly Part Number 3620012600 for Simplicity Models QS1 | 3620012600 | Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Hoover Washer | 21312704 | Not Available |
| 42 | Not Available | Hoover Tube Latch | 36152018 | Not Available |
| 43 |  | Mesh Blade Window Tool Bissell repair part number: 1612597 | 1612597 | $15.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | Not Available | Hoover Tube Guide | 12589 | Not Available |
| 45 | Not Available | Hoover Gasket | 012844JM | Not Available |
| 46 | Not Available | Hoover Externion Tube Inner | 12598 | Not Available |
| 47 | Not Available | Hoover Extension Wand | 43458001 | Not Available |
| 48 | Not Available | Hoover Extension Tube | 38634078 | Not Available |
| 48 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 3 | Not Available | Hoover Handle Grip | 023458JM | Not Available |
| 4 |  | Pfaff Bobbin Case Part 91-105544-91 | WP12272 | $25.00Read more |
| 5 | Not Available | Hoover Switch- | 12971 | Not Available |
| 7 | No Image | SWITCH PLATE SCREWS Part Number: 21465314 for Hoover | 21465314 | $2.14Read more |
| 9 | Not Available | Hoover Retainer | 36171043 | Not Available |
| 10 | Not Available | Hoover Wire Nut (Not Applicable - U4014-079) | 48969 | Not Available |
| 11 | Not Available | Hoover Terminal (Not Applicable - U4014-079) | 160356 | Not Available |
| 12 | Not Available | Hoover Strain Relief Body (Not Applicable - U4014-079) | 12260 | Not Available |
| 13 |  | gasket for kitchendaid mixer | WP12261 | $14.99Read more |
| 14 | Not Available | Hoover Jacket Support | 035234AW | Not Available |
| 15 | Not Available | Hoover Ret Ring | 48123AV | Not Available |
| 16 | Not Available | Hoover Jacket Support Spring 1070 | 35205 | Not Available |
| 17 | Not Available | Hoover Pin | 48882 | Not Available |
| 19 | Not Available | Hoover Service Plug Assembly | 35380 | Not Available |
| 20 | Not Available | Hoover Handle Receptacle Assembly (Not Applicable - U4014-079) | 034484JM | Not Available |
| 22 |  | Kit, Bag Docking W/Hinge & Clip Part Number: 440013704 for Oreck | 440013704 | $17.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Hoover Cord Ret Clamp-U4014 U4014-079 (Handle/Cord Protector) | 36172506 | Not Available |
| # | Part image | Description | SKU | Price |
| 48 | Not Available | Hoover Hose End - Converter | 013147JM | Not Available |
| 49 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Hoover Hose Grip With Sc | 43466068 | Not Available |
| 51 | Not Available | Hoover Hose Grip Collar | 012704BZ | Not Available |
| 52 | Not Available | Hoover Hose End Converter Except 63, 64 (Use W/ Hose 48617) | 023473JM | Not Available |
| 53 | Not Available | Hoover Hose Grip | 23393JM | Not Available |
| 54 | Not Available | Hoover Hose Assm Complete Tufflex (Std. Rear Conversion) | 012864JM | Not Available |
| 55 | Not Available | Hoover Hose Tube | 13143 | Not Available |
| 56 | Not Available | Hoover Converter Assembly 1330, 1348, 1348-002 | 43452503 | Not Available |
| 58 | Not Available | Hoover Hose Complete | 019633JM | Not Available |
| 61 | Not Available | Hoover Blower (Use W/Hose 22671) | 034984A | Not Available |
| 62 | Not Available | Hoover Converter Special 63, 64 | 35447 | Not Available |
| 63 | Not Available | Hoover Model 91 Connector (Use W/Hose 22671) | 35190 | Not Available |
| 64 | Not Available | Hoover Connector Converter (Use W/Hose 22671) | 034202JM | Not Available |
| 65 | Not Available | Hoover Hose-Less Ends | 048617JM | Not Available |
| 66 | Not Available | Hoover Hose Complete | 43434213 | Not Available |
| 67 | Not Available | Hoover Hose Assembly Complete Tufflex (Std. Rear Conversion) | 012864JM | Not Available |
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Foot Pad | 38426072 | Not Available |
| 3 | Not Available | Hoover Lock Ring | 017207AZ | Not Available |
| 4 | Not Available | Hoover Washer | 21312772 | Not Available |
| 5 | No Image | WHEEL, :( REAR EARLY CONVERTIBLE Part Number: 38521041 for Hoover | 38521041 | $4.20Read more |
| 6 | Not Available | Hoover Spacer | 31148004 | Not Available |
| 8 | Not Available | Hoover Foot Pad | 38426080 | Not Available |
| 9 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.78Read more |
| 11 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 12 | Not Available | Hoover Pivot Pin | 047450AY | Not Available |
| 13 |  | Kirby MINI EMTOR, W/FILL TUBE ASS'Y G6 and other g series | 185899S | $59.99Read more |
| 15 | | Assy Power Foot wBlue Bristles 120V CAN REPL Bissell repair part number: 1618588 | 1618588 | $91.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Hoover Screw-Machine (Not Applicable - U4014-079) | 12892 | Not Available |
| 17 | Not Available | Hoover Lock Washer | 14287 | Not Available |
| 18 |  | Cup, Black Massage 505-Legend Part Number: 214199 for Kirby | 214199 | $8.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | | Plastic Wand Bissell repair part number: 1614279 | 1614279 | $13.17Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Hoover Tool Conn Valve Spring | 45191 | Not Available |
| 25 | Not Available | Hoover Spring | 048409FW | Not Available |
| 26 | Not Available | Hoover Bag Flange Clamp Lever | 19907 | Not Available |
| 27 | Not Available | Hoover Washer | 161507 | Not Available |
| 28 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 29 | Not Available | Hoover Spring | 161513 | Not Available |
| 30 | Not Available | Hoover Cam Follower Assembly | 161514 | Not Available |
| 31 | Not Available | Hoover Motor Lead Spring | 38313023 | Not Available |
| 32 | Not Available | Hoover Cord Cover Tubing | 31727023 | Not Available |
| 33 | Not Available | Hoover Socket Plug | 023296AG | Not Available |
| 37 | Not Available | Hoover Cord Clip- (Not Applicable - U4014-079) | 39442030 | Not Available |
| 38 | | Dirty Tank Rubber Plug Bissell repair part number: 1611735 | 1611735 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Hoover Screw (Not Applicable - U4014-07 | 166648AW | Not Available |
| 41 | Not Available | Hoover Bottom Plate Latch- | 35446003 | Not Available |
| 42 | Not Available | Hoover Rivet | 12456 | Not Available |
| 43 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 44 | Not Available | Hoover Front Wheel | 34791AG | Not Available |
| 46 | Not Available | Hoover Agitator Support Plate | 34355002 | Not Available |
| 47 |  | Clear In Line Feed Through Rocker Switch spt-2 | 48422 | $9.99Add to cart |
| 48 | Not Available | Hoover Rivet Semi-Tubular | 32243001 | Not Available |
| 49 | Not Available | Hoover Agitator Clamp Spring | 047259AY | Not Available |
| 50 | Not Available | Hoover Medallion-U7047 | 51661008 | Not Available |
| 52 | Not Available | Hoover Cleaner Bottom Plate | 34439 | Not Available |
| 53 | Not Available | Hoover Rivet | 161882 | Not Available |
| 54 | Not Available | Hoover Felt | 47237 | Not Available |
| 55 | Not Available | Hoover Bottom Plate With Edge | 167238 | Not Available |
| 56 | Not Available | Hoover Support Pad | 34111001 | Not Available |
| 57 | Not Available | Hoover Bottom Plate Seal | 31718001 | Not Available |
| 58 | Not Available | Hoover Rivet | 12997AW | Not Available |
| 60 | Not Available | Hoover Bottom Plate Latch Left | 35446005 | Not Available |
| 62 | Not Available | Hoover Bail Shaft | 161509AY | Not Available |
| 64 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 65 | Not Available | Hoover Screw U4000 Series | 23878 | Not Available |
| 66 |  | Power Cord for Sewing Machines - Polarized 6' Square Round Power Cord | WP11556 | $13.90Add to cart |

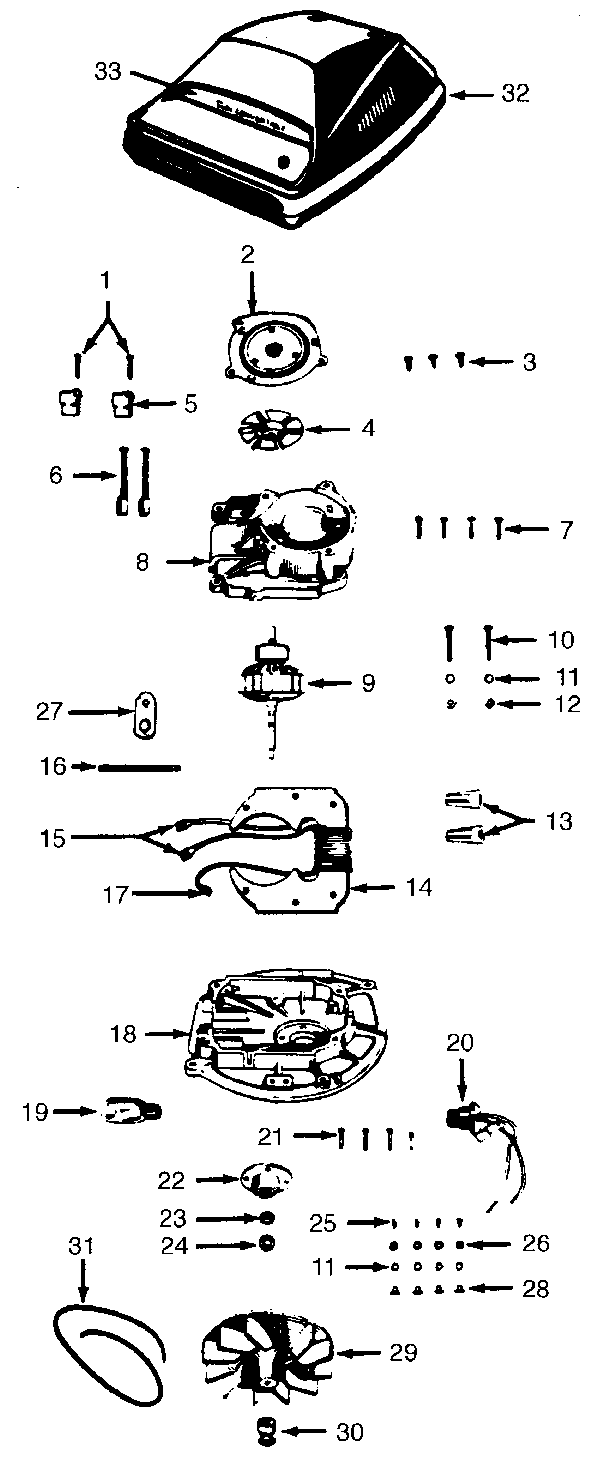

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 046930AZ | Not Available |
| 2 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 3 | Not Available | Hoover Screw | 45533AY | Not Available |
| 4 | Not Available | Hoover Ventilating Fan | 38755004 | Not Available |
| 5 | Not Available | Hoover Brush Cap - U4313 | 36315003 | Not Available |
| 6 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 7 | Not Available | Hoover Screw | 161535 | Not Available |
| 8 | Not Available | Hoover Upper Motor Casing | 19857 | Not Available |
| 9 | Not Available | Hoover Armature-8Mm | 44765085 | Not Available |
| 10 | Not Available | Hoover Field Bolt | 45118 | Not Available |
| 11 |  | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Hoover Nut Hex 5140 | 15673 | Not Available |
| 13 | Not Available | Hoover Wire Nut | 48969 | Not Available |
| 14 | Not Available | Hoover Field Coil | 45412014 | Not Available |
| 15 |  | Dust Brush, :( Black WindTunnel Upright Part Number: 43414197 for Hoover | 43414197 | $11.71Read more |
| 16 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 17 | | PreMotor Filter single black with 90PPI Bissell repair part number: 1614320 | 1614320 | $8.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Hoover Motor Case Left Hand | 42193006 | Not Available |
| 19 | Not Available | Hoover Dirt Finder Lamp 15 Watt | 27317307 | Not Available |
| 20 | Not Available | Hoover Dirt Finder Socket | 17016 | Not Available |
| 21 | Not Available | Hoover Screw | 45355 | Not Available |
| 22 | | Handle Main-steel Tube Part Number 19829 for Cleanmax Models CM-WAV | 19829 | Original price was: $115.99.$92.99Current price is: $92.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Hoover Fan Spacer | 163059 | Not Available |
| 24 | Not Available | Hoover Washer-S3001 | 169241AW | Not Available |
| 25 | Not Available | Hoover Screw | 21772501 | Not Available |
| 26 | Not Available | Hoover Washer-Lock | 19772 | Not Available |
| 27 | Not Available | Hoover Wire Holder | 45517 | Not Available |
| 28 | Not Available | Hoover Nut | 45251 | Not Available |
| 29 | Not Available | Hoover Fan | 38755011 | Not Available |
| 30 | Not Available | Hoover Motor Pulley-Heat In | 38532009 | Not Available |
| 31 | Not Available | Hoover Motor Gasket | 47232 | Not Available |
| 32 | Not Available | Hoover Hood Complete | 42251324 | Not Available |

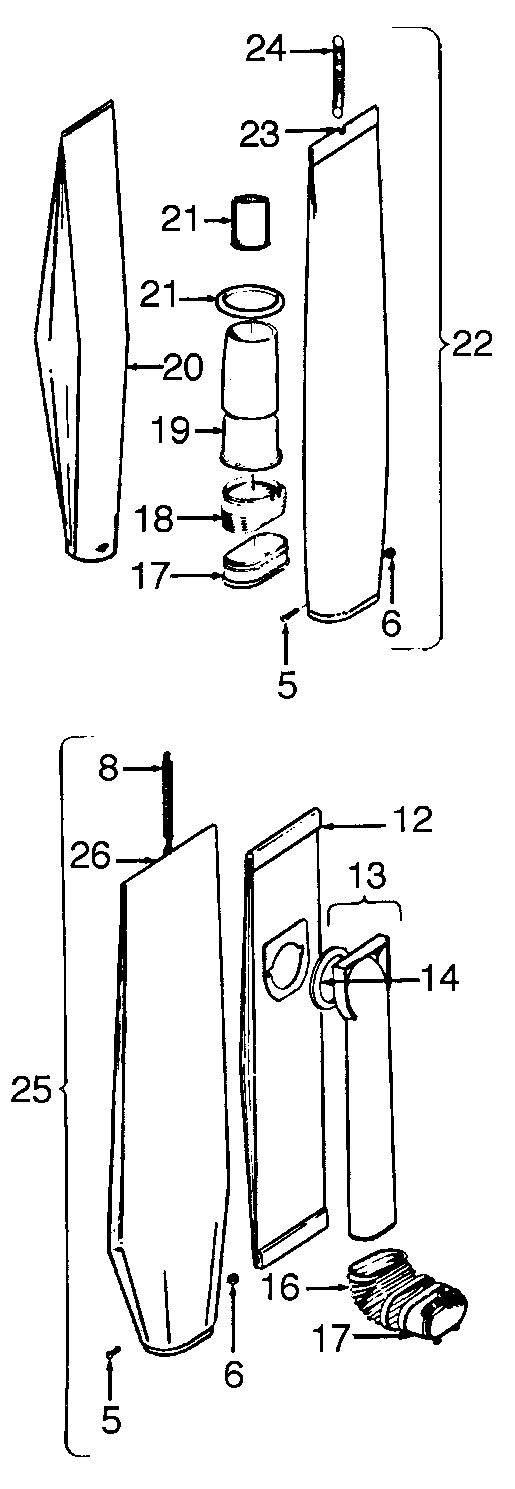

| # | Part image | Description | SKU | Price |
| 5 | Not Available | Hoover Screw | 21765159 | Not Available |
| 6 | Not Available | Hoover Nut | 015854EF | Not Available |
| 8 | Not Available | Hoover Support Spring | 38336014 | Not Available |
| 12 |  | Paper Bag, DVC or Envirocare Hoover A 3Pk | HR-14015 | $6.99Add to cart |
| 14 | Not Available | Hoover Bag Collar Seal (Use W/Item 13 - 43482058) | 32174004 | Not Available |
| 16 | Not Available | Hoover Bellows | 38673009 | Not Available |
| 18 |  | Bellows, Botttom Fill Convertible 1030/U4387 Uprt Part Number: 011064JM for Hoover | 011064JM | $6.63Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Hoover Support Tube | 161889 | Not Available |
| 21 | Not Available | Hoover Bag Retainer Sleeve | 35091 | Not Available |
| 21 |  | Belt, :( Hoover Lark/12/14/115/1330/1340/1 Part Number: 046550AG for Hoover | 046550AG | $1.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Hoover Suppor Spring | 38335006 | Not Available |
| 25 | Not Available | Hoover Outer Bag Complete | 43678330 | Not Available |
| 26 | Not Available | Hoover Outer Bag-Top Filter | 43677322 | Not Available |
Report errors on this page HERE
