Schematic and parts list for: Hoover Model: U4103
This is a list of parts and a diagram and schematic for: Hoover Model: U4103
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Terminal | 27666702 | Not Available |
| 3 | Not Available | Hoover Switch - S2095 | 281770KD | Not Available |
| 4 | Not Available | Hoover Switch Button | 38421012 | Not Available |
| 6 | Not Available | Hoover Switch Pad | 34138006 | Not Available |
| 8 | Not Available | Hoover Nameplate | 51669022 | Not Available |
| 9 | Not Available | Hoover Terminals | 12227 | Not Available |
| 10 | Not Available | Hoover Screw | 166735EF | Not Available |
| 11 | Not Available | Hoover Bag Support | 39442001 | Not Available |
| 13 | Not Available | Hoover Handle Clamp Nut | 32277008 | Not Available |
| 14 | Not Available | Hoover Handle Clamp Bolt | 21631301 | Not Available |
| 16 | Not Available | Hoover Outer Bag Complete | 43678330 | Not Available |
| 17 | Not Available | Hoover Support Spring | 38336014 | Not Available |
| 18 |  | Paper Bag, DVC or Envirocare Hoover A 3Pk | HR-14015 | $6.99Add to cart |
| 19 | Not Available | Hoover Outer Bag | 43677322 | Not Available |
| 20 | Not Available | Hoover Bag Collar Seal | 32174004 | Not Available |
| 21 | Not Available | Hoover Top Fill Tube | 38657004 | Not Available |
| 21 |  | Belt, :( Hoover Lark/12/14/115/1330/1340/1 Part Number: 046550AG for Hoover | 046550AG | $1.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Hoover Screw | 21765159 | Not Available |
| 23 | Not Available | Hoover Nut | 015854EF | Not Available |
| 24 | Not Available | Hoover Bellows | 38673009 | Not Available |
| 25 | Not Available | Hoover Bag Flange With Sealant | 41424011 | Not Available |
| 26 | Not Available | Hoover Bag Ring Gasket | 47454 | Not Available |
| 27 | Not Available | Hoover Handle Plug Receptacle | 46326070 | Not Available |
| 29 |  | Dirty Tank Rubber Plug Bissell repair part number: 1611735 | 1611735 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Hoover Foot Pad | 38426080 | Not Available |
| 31 | Not Available | Hoover Handle Contol Lever | 43137036 | Not Available |
| 33 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 34 | Not Available | Hoover Screw-Self Tapping | 21465312 | Not Available |
| 35 | Not Available | Hoover Bail Cover Plate | 34777012 | Not Available |
| 36 | Not Available | Hoover Cord Support Tube | 31724015 | Not Available |
| 37 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 38 | Not Available | Hoover Washer (Use W/Metal Nozzle Adj. Lever) | 161507 | Not Available |
| 40 | Not Available | Hoover Indicator-Printed | 51151034 | Not Available |
| 41 | Not Available | Hoover Bag Flange Clamp Lever | 19907 | Not Available |
| 42 | Not Available | Hoover Spring | 048409FW | Not Available |
| 43 | Not Available | Hoover Lock Ring (Use 3 With 43137013 | 13730 | Not Available |
| 44 | Not Available | Hoover Bail Shaft | 161509AY | Not Available |
| 46 | Not Available | Hoover Washer (Use 1 With 33152003; Use 4 W/33141015 & 33141011 | 21312772 | Not Available |
| 47 | Not Available | Hoover Pivot Pin | 047450AY | Not Available |
| 48 | Not Available | Hoover Rear Wheel | 38521016 | Not Available |
| 48 | No Image | WHEEL, :( REAR EARLY CONVERTIBLE Part Number: 38521041 for Hoover | 38521041 | $4.20Read more |
| 49 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 50 | Not Available | Hoover Spacer | 31148004 | Not Available |
| 52 | Not Available | Hoover Spring | 161513 | Not Available |
| 54 | Not Available | Hoover Axle/Bag Flange Retainer | 35434040 | Not Available |
| 55 | Not Available | Hoover Frontwheel Shaft | 047457AY | Not Available |
| 57 | Not Available | Hoover Motor Lead Spring | 38313023 | Not Available |
| 58 | Not Available | Hoover Cord Cover Tubing | 31727023 | Not Available |
| 59 |  | Dust Brush, :( Black WindTunnel Upright Part Number: 43414197 for Hoover | 43414197 | $11.71Read more |
| 60 | Not Available | Hoover Insulating Pod | 160472 | Not Available |
| 61 | Not Available | Hoover Switch Actuator | 38452028 | Not Available |
| 62 | Not Available | Hoover Switch-U4313 | 019513AG | Not Available |
| 63 | Not Available | Hoover Screw Assembly | 23254001 | Not Available |
| 64 | Not Available | Hoover Capsert-1060 | 016125AY | Not Available |
| 65 | Not Available | Hoover Rivet | 12997AW | Not Available |
| 66 | Not Available | Hoover Washer | 168278AY | Not Available |

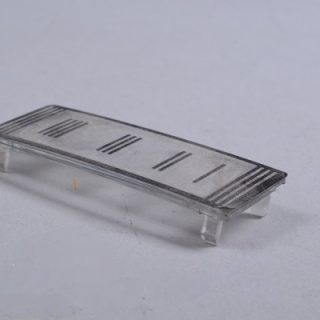

| 67 | Not Available | Hoover Indicator Lens | 48111008 | Not Available |
| 68 | Not Available | Hoover Screw | 21447013 | Not Available |
| 68 | | Plastic Wand Bissell repair part number: 1614279 | 1614279 | $13.17Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 | Not Available | Hoover Switch Bracket | 34771001 | Not Available |
| 74 | Not Available | Hoover Plug/Tubing Assembly U4101, U4101-001, U4107, U4107-001, U4113, | 46323105 | Not Available |
| 75 | Not Available | Hoover Plug/Tubing Assembly U4103, U4103-001, U4109, U4109-001, U4115. | 46323102 | Not Available |
| 76 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.78Read more |
| 77 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 78 |  | Clear In Line Feed Through Rocker Switch spt-2 | 48422 | $9.99Add to cart |
| 79 | Not Available | Hoover Rivet Semi-Tubular | 32243001 | Not Available |
| 81 | Not Available | Hoover Agitator Clamp Sprin U4101, U4103, U4107, U4109, U4113,U4115 | 047259AY | Not Available |
| 81 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $2.26Read more |
| 82 | Not Available | Hoover Rivet | 12456 | Not Available |
| 83 | Not Available | Hoover Bottom Plate Latch L | 35446005 | Not Available |
| 84 | Not Available | Hoover Bottom Plate Latch-R | 35446003 | Not Available |
| 86 | No Image | BOTTOM PLATE, CURRENT CONVERTIBLES LARGE FIN Part Number: 42246038 for Hoover | 42246038 | $37.02Read more |
| 86 | Not Available | Hoover Bottom Plate Complet U4101, U4103, U4107, U4109, U4113, U4115 | 42246008 | Not Available |
| 87 | Not Available | Hoover Support Pad | 34111001 | Not Available |
| 88 | Not Available | Hoover Bottom Plate Seal | 31718001 | Not Available |
| 89 |  | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | Not Available | Hoover Agitator Assembly Complete | 41435005 | Not Available |

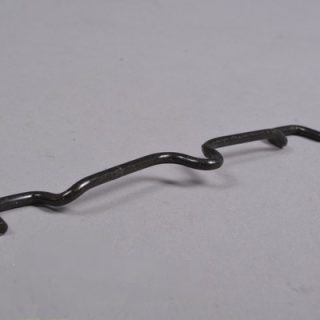

| 92 | No Image | SPRING, BOTTOM PLATE Part Number: 012138FW for Hoover | 012138FW | $3.73Read more |
| 92 | Not Available | Hoover Cleaner Bottom Plate U4101, U4103, U4107, U4109, U4113, U4115 | 34439 | Not Available |
| 95 | Not Available | Hoover Furniture Guard | 168497JM | Not Available |
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Nozzle Connector Tube (Use W/ 161852Jm) | 013149JM | Not Available |
| 3 | Not Available | Hoover Brush Back (Use W/161852Jm) | 013254BZ | Not Available |
| 4 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Hoover Dusting Brush Face (Use W/ 161851Jm) | 013263BZ | Not Available |
| 8 | Not Available | Hoover Floor Brush Back (Use W/13077Jm) | 013155JM | Not Available |
| 9 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Hoover Furniture Nozzle | 38614029 | Not Available |
| 10 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Hoover Crevice Tool | 38617024 | Not Available |
| 11 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 12 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 13 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 14 | Not Available | Hoover Hose Tube Assembly | 43466040 | Not Available |
| 15 | Not Available | Hoover Foot Pad - F5047 | 034207AG | Not Available |
| 16 | Not Available | Hoover Latch-U4901 | 33126001 | Not Available |
| 17 | Not Available | Hoover Spring | 38311006 | Not Available |
| 18 | Not Available | Hoover Washer | 161549 | Not Available |
| 19 | Not Available | Hoover Pads-2910 | 34121001 | Not Available |
| 20 | Not Available | Hoover Converter Body Assembly | 43482097 | Not Available |
| 21 | Not Available | Hoover Seal-U4901 | 34253003 | Not Available |
| 22 | Not Available | Hoover Latch Lever-U4901 | 38452026 | Not Available |
| 23 | Not Available | Hoover Seal-Side-U4901 | 34113005 | Not Available |
| 24 | Not Available | Hoover Converter Body Assembly | 43482097 | Not Available |
| 25 | Not Available | Hoover Tool Bag U3P03 | 58544004 | Not Available |
| 28 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 31 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 32 | Not Available | Hoover Hose Conn Label-U490 | 51869006 | Not Available |
| 33 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 35 | Not Available | Hoover Tube Latch | 012846AG | Not Available |
| 36 | Not Available | Hoover Rivet | 12772 | Not Available |
| 37 |  | Handle, Blk Right & Left Snap Together Kit Part Number: R12783K for Rexair | R12783K | $39.73Read more |
| 38 | Not Available | Hoover Rivet | 12763AW | Not Available |
| 39 | Not Available | Hoover Plate | 12824 | Not Available |
| 40 |  | Motor Assembly Part Number 3620012600 for Simplicity Models QS1 | 3620012600 | Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Hoover Washer | 21312704 | Not Available |
| 42 | Not Available | Hoover Tube Latch - Aat | 36152018 | Not Available |
| 43 | | Mesh Blade Window Tool Bissell repair part number: 1612597 | 1612597 | $15.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | Not Available | Hoover Tube Guide | 12589 | Not Available |
| 45 | Not Available | Hoover Gasket | 012844JM | Not Available |
| 46 | Not Available | Hoover Externion Tube Inner | 12598 | Not Available |
| 47 | Not Available | Hoover Extension Wand | 43458001 | Not Available |
| 48 | Not Available | Hoover Extension Tube | 38634078 | Not Available |
| 48 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 48 | Not Available | Hoover Hose End - Converter | 013147JM | Not Available |
| 49 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Hoover Hose Grip | 43466068 | Not Available |
| 51 | Not Available | Hoover Hose Grip Collar | 012704BZ | Not Available |
| 52 | Not Available | Hoover Hose End Converter- Except 63, 64 (Use W/ Hose 48617) | 023473JM | Not Available |
| 53 | Not Available | Hoover Hose Grip | 23393JM | Not Available |
| 54 | Not Available | Hoover Hose Assembly Complete | 012864JM | Not Available |
| 55 | Not Available | Hoover Hose Tube | 13143 | Not Available |
| 56 | Not Available | Hoover Converter Assembly- 1330, 1348, 1348-002 | 43452503 | Not Available |
| 58 | Not Available | Hoover Hose Complete | 019633JM | Not Available |
| 61 | Not Available | Hoover Blower- (Use W/Hose 22671) | 034984A | Not Available |
| 62 | Not Available | Hoover Converter Special | 35447 | Not Available |
| 63 | Not Available | Hoover Model 91 Connector (Use W/Hose 22671) | 35190 | Not Available |
| 64 | Not Available | Hoover Connector Converter (Use W/Hose 22671) | 034202JM | Not Available |
| 65 | Not Available | Hoover Hose-Less Ends | 048617JM | Not Available |
| 66 | Not Available | Hoover Hose Complete | 43434213 | Not Available |
| 67 | Not Available | Hoover Hose Assm Complete | 012864JM | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 45533AY | Not Available |
| 2 |  | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Indicator Guide Assembly | 41961009 | Not Available |

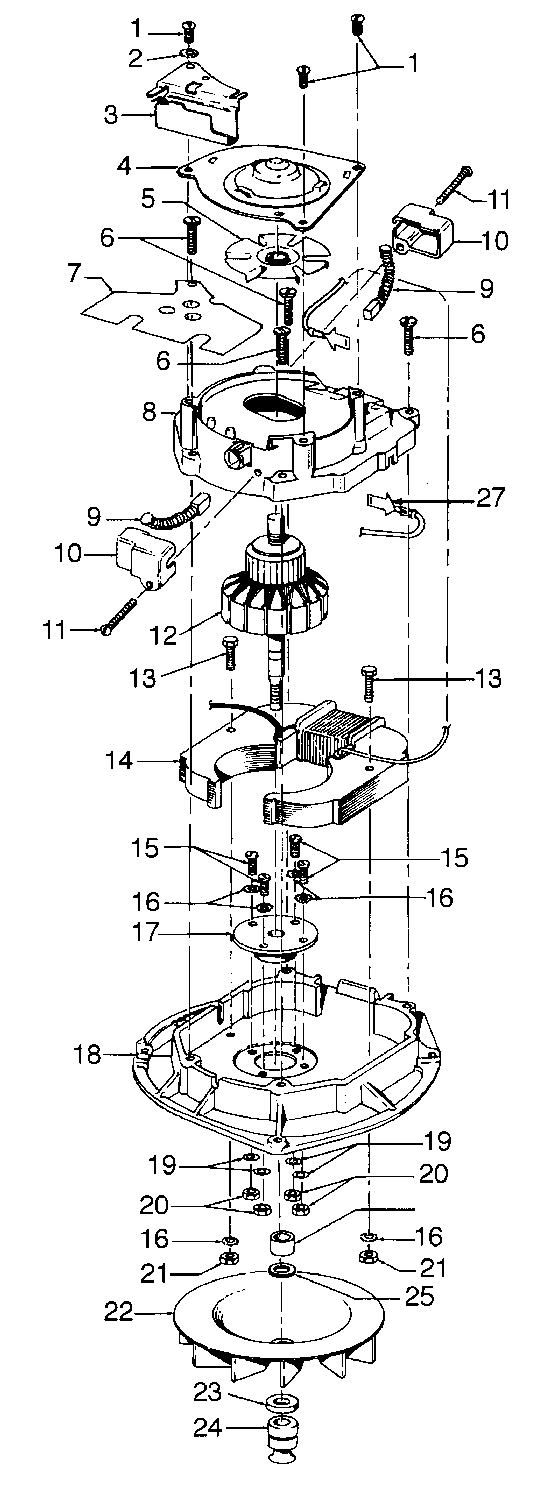

| 4 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 5 | Not Available | Hoover Ventilating Fan-U415 | 38755004 | Not Available |
| 6 | Not Available | Hoover Screw | 161535 | Not Available |
| 7 | Not Available | Hoover Insulation Shield | 164684 | Not Available |
| 8 | Not Available | Hoover Upper Motor Casing | 19857 | Not Available |
| 9 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 10 | Not Available | Hoover Brush Cap - U4313 | 36315003 | Not Available |
| 11 | Not Available | Hoover Screw | 046930AZ | Not Available |
| 12 | Not Available | Hoover Armature-8Mm | 44765085 | Not Available |
| 13 | Not Available | Hoover Field Bolt | 45118 | Not Available |
| 14 | Not Available | Hoover Field Coil | 45412014 | Not Available |
| 15 | Not Available | Hoover Screw | 21772501 | Not Available |
| 16 | | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | Handle Main-steel Tube Part Number 19829 for Cleanmax Models CM-WAV | 19829 | Original price was: $115.99.$92.99Current price is: $92.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Hoover Motor Case Left Hand | 42193006 | Not Available |
| 19 | Not Available | Hoover Washer-Lock | 19772 | Not Available |
| 20 | Not Available | Hoover Nut | 45251 | Not Available |
| 21 | Not Available | Hoover Nut Hex | 15673 | Not Available |
| 22 | Not Available | Hoover Fan | 38755011 | Not Available |
| 23 | Not Available | Hoover Washer-Heat Insulation | 31162004 | Not Available |
| 24 | Not Available | Hoover Motor Pulley-Heat Insulation | 38532009 | Not Available |
| 25 | Not Available | Hoover Washer-S3001 | 169241AW | Not Available |
| 26 | Not Available | Hoover Fan Spacer | 163059 | Not Available |
| 27 | | PreMotor Filter single black with 90PPI Bissell repair part number: 1614320 | 1614320 | $8.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
Report errors on this page HERE
